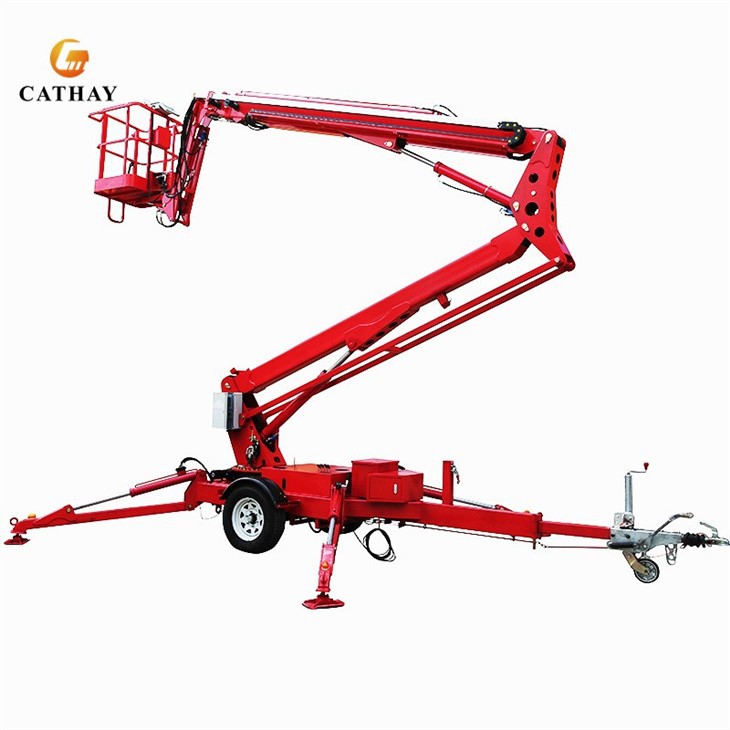

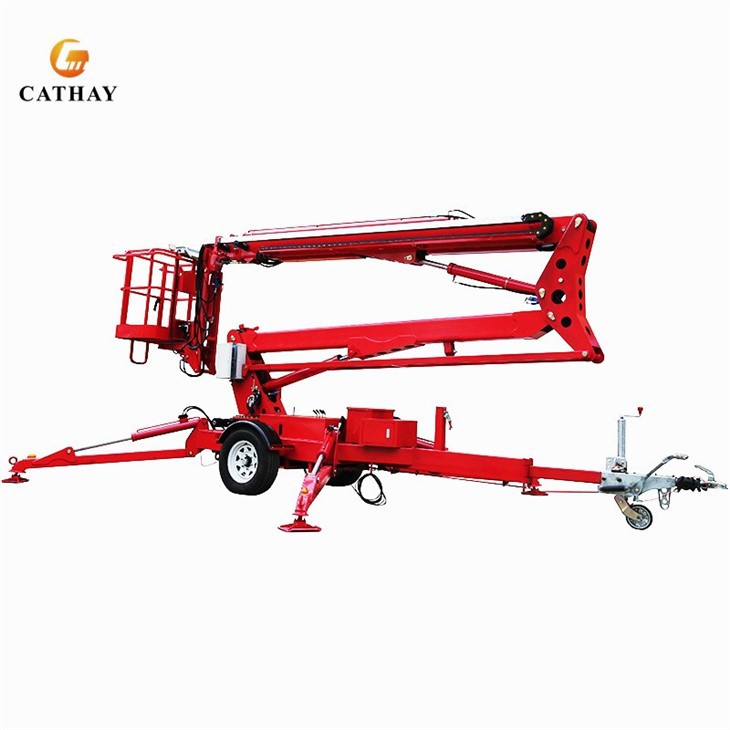

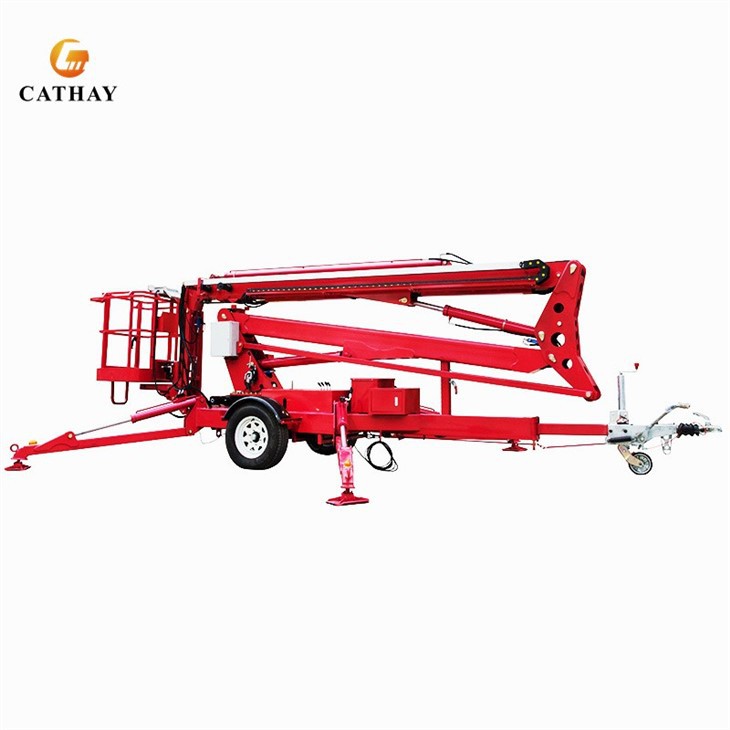

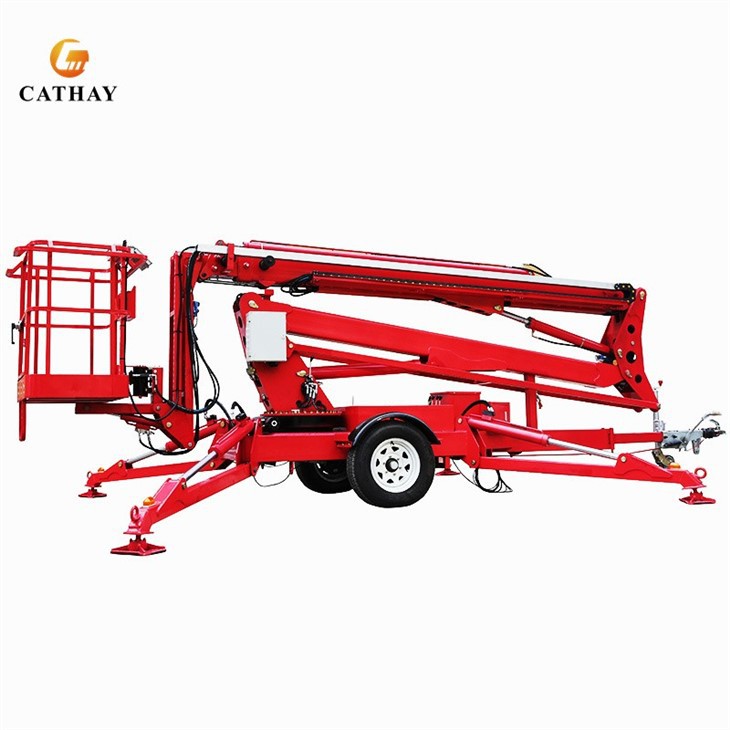

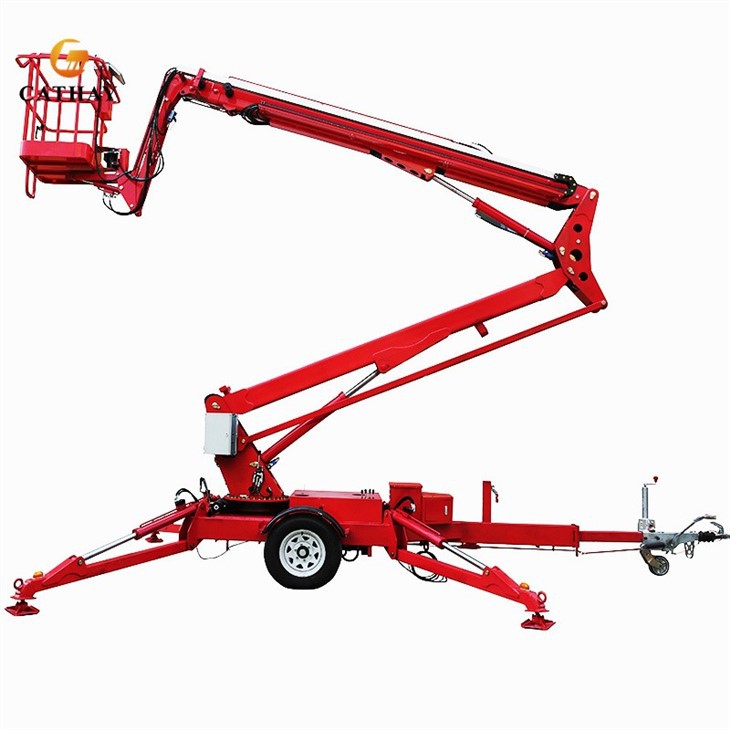

10~20m Electric Cherry Picker Boom Lift
The Cathaylift 10~20m Electric Cherry Picker Boom Lift, a versatile solution for high-altitude tasks with a load capacity of 200kg. This ultra-convenient lift is designed for easy transportation to any location, making it perfect for both indoor and outdoor applications. Its hydraulic legs are equipped with self-balancing devices, ensuring stable operation even on uneven surfaces. Ideal for maintenance, construction, and other elevated work, this boom lift combines safety, reliability, and ease of use, providing an efficient and secure platform for working at heights.
Products Details
Advantages:
Superior Transportability: With its compact and lightweight design, the boom lift can be easily transported by truck or van. This convenience makes it a more practical choice compared to bulkier aerial work platforms like scissor lifts or self-propelled boom lifts.
Stable Operation on Uneven Surfaces: The hydraulic legs with self-balancing devices provide exceptional stability on unbalanced surfaces, making the lift ideal for both indoor and outdoor operations. Available in telescopic and articulated versions, it offers greater flexibility for various tasks.
Enhanced Safety Features: Equipped with German AL-KO retractors, parking brakes, inertia brakes, self-leveling soles, tilt angle sensors, and waterproof control panels, the boom lift ensures a high level of safety and stability during operation. The electromagnetic brake connected to the tractor's brake light further enhances safety by synchronizing braking.
Efficient and Controlled Operation: The two-way cylinder with a balance valve includes an emergency lowering switch for quick response in emergencies. Additionally, the diesel engine's manual throttle allows for optimal control, ensuring precise and efficient operation.
Durable and Maintenance-Friendly Design: The anti-pinch basket and basket leveling switch guarantee safety and stability during prolonged use. Maintenance is simplified with accessible maintenance holes and a hydraulic oil tank with a filter system that prevents impurities from clogging the oil circuit. The waterproof design of electrical components, pump stations, and DC motors protects against water damage, extending the service life of the lift.
Real Order
|
Model Type |
CTA-10A |
CTA-12A |
CTA-14T |
CTA-16T |
CTA-18T |
CTA-20T |
|
Version |
Articulated |
Articulated |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
|
Lifting height |
10M |
12M |
14M |
16M |
18M |
20M |
|
Working height |
12M |
14M |
16M |
18M |
20M |
22M |
|
Load capacity |
200KG |
|||||
|
Platform size |
0.9*0.7M |
|||||
|
Working radius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
|
Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
3000KG |
3100KG |
|
Overall Size( L*W*H) |
5.2*1.7*2.1M |
6.2*1.7*2.1M |
5.6*1.7*2.1M |
5.7*1.7*2.2M |
6.5*1.8*2.3M |
5.8*1.9*2.3M |
|
Supporting Legs Stride Distance(Horizontal) |
3.0 M |
3.6 M |
3.6 M |
3.9 M |
3.9 M |
3.9 M |
|
Supporting Legs Stride Distance (Vertical) |
4.7 M |
4.7 M |
4.7 M |
4.9 M |
4.9 M |
4.9 M |
|
Wind Resistance Level |
≦5 |
|||||
|
20'/40' Container Loading Quantity |
20'/1set |
20'/1set |
20'/1set |
20'/1set |
20'/1set |
20'/1set |
|
40'/3sets |
40'/3sets |
40'/3sets |
40'/3sets |
40'/3sets |
40'/2sets |
|
|
Power optional |
AC-electrical Power (Xi'an Motor) |
|||||
|
Diesel Power Motor (YSD Motor) |
||||||
|
Gasoline Power (Honda Motor) |
||||||
|
DC Battery Power (Bucher Motor) |
||||||
|
AC+ Diesel/Gas Power (Dual Power) |
||||||
|
AC/Diesel/Gas+DC Power (Dual Power) |
||||||
|
Extra Optional |
Friction wheel walking device: (Automatic Moving) |
|||||
