Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric cherry picker in China. We warmly welcome you to buy discount electric cherry picker for sale here from our factory. Quality products and reasonable price are available.

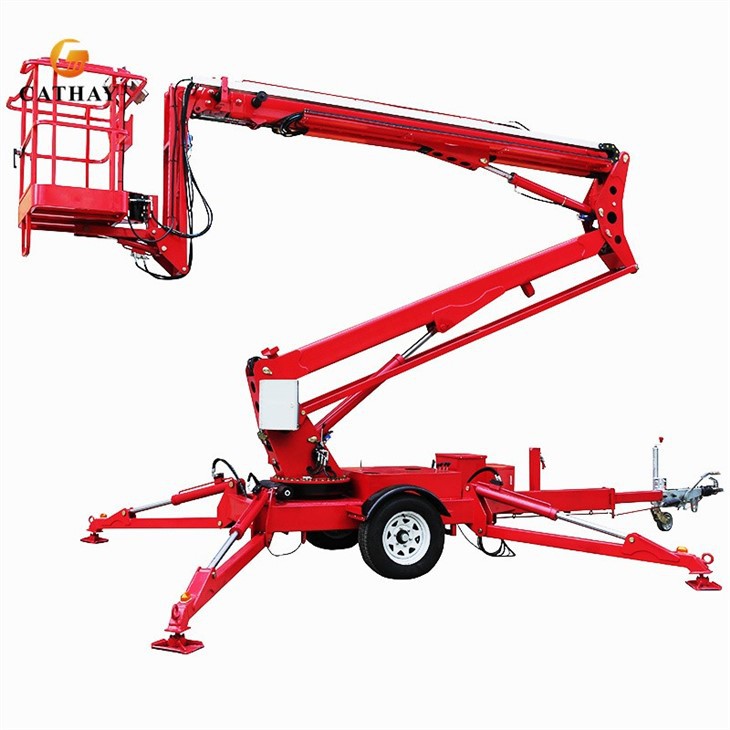

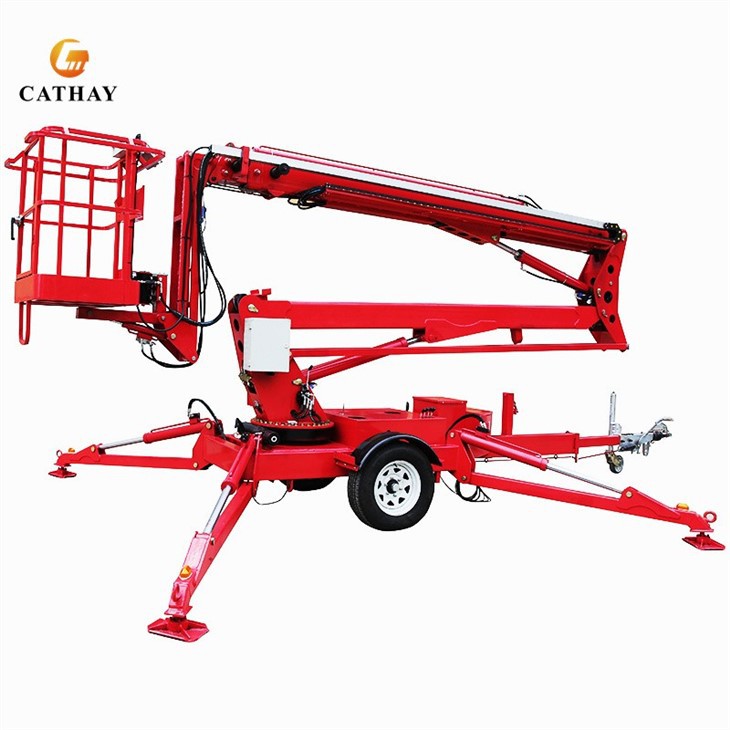

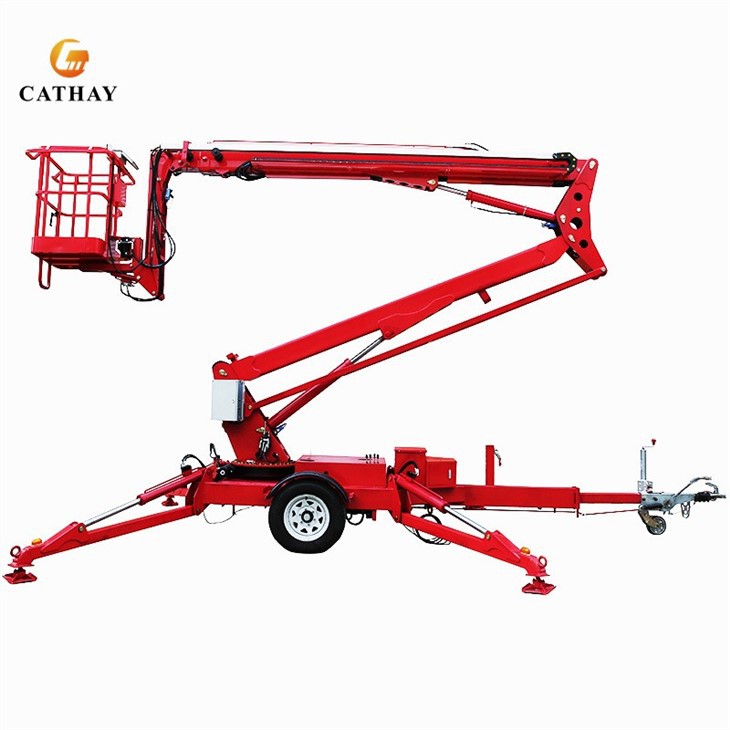

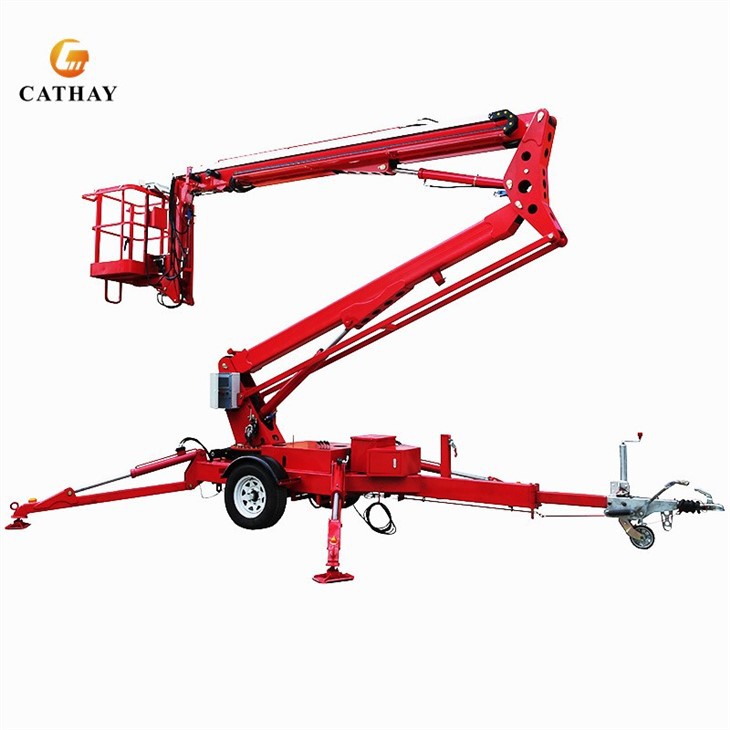

10~20m Electric Cherry Picker
Attention all construction contractors in the world! Say goodbye to the hassle and inconvenience of transporting heavy aerial work platforms from one location to another. Introducing the CTA electric cherry picker, the ultimate aerial work solution that will revolutionize the way you work.
With a maximum load capacity of 200kg and a platform height of 10~20m, the CTA is the perfect choice for both indoor and outdoor work conditions. Its compact and lightweight design makes it easy to haul by trucks or lorries, allowing you to bring it to any location with ease.
Products Details
Advantages:
1. Its compact and lightweight design allows for easy transportation by trucks or lorries to any location, making it more convenient than other aerial work platforms like scissor lifts or self-propelled boom lifts.
2. The hydraulic outriggers with self-balancing devices make it perfect for unbalanced indoor and outdoor work, and it comes in two versions: telescopic and articulated, providing even more flexibility.
3. The Trailer Boom Lift is specially designed for use both outdoors and indoors, with features like the German AL-KO Retractor with parking brake and inertia brake for safety and stability while working.
4. Other safety features include the self-leveling sole, tilt angle sensor, waterproof control panel, and electric box.
5. The control panel is equipped with a main switch and function rod to avoid an unconscious operation, and the Trailer Boom Lift comes with an electromagnetic brake that connects to the brake light of the tractor for synchronous braking and a shorter braking distance.
6. The two-way cylinder with a balance valve comes with an emergency decline switch, and the diesel engine is equipped with a manual accelerator for optimal control.
7. The anti-pinch basket and basket leveling switch ensure the safety and stability of the lift during long hours of work, and the maintenance hole allows for easy daily maintenance.
8. The hydraulic oil tank with a filtration system ensures the longevity of the lift by preventing impurities from blocking the oil way, and the waterproof design of the electric parts, pump station, and DC motor protects them from water damage.
Real Order
Whether you're working on a construction site, a warehouse, or a manufacturing facility, the CTA is the perfect aerial work solution for all your needs. Experience unparalleled safety, convenience, and versatility with the CTA electric cherry picker. Don't wait, get yours today!
|
Model Type |
CTA-10A |
CTA-12A |
CTA-14T |
CTA-16T |
CTA-18T |
CTA-20T |
|
Version |
Articulated |
Articulated |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
|
Lifting height |
10M |
12M |
14M |
16M |
18M |
20M |
|
Working height |
12M |
14M |
16M |
18M |
20M |
22M |
|
Load capacity |
200KG |
|||||
|
Platform size |
0.9*0.7M |
|||||
|
Working radius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
|
Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
3000KG |
3100KG |
|
Overall Size( L*W*H) |
5.2*1.7*2.1M |
6.2*1.7*2.1M |
5.6*1.7*2.1M |
5.7*1.7*2.2M |
6.5*1.8*2.3M |
5.8*1.9*2.3M |
|
Supporting Legs Stride Distance(Horizontal) |
3.0 M |
3.6 M |
3.6 M |
3.9 M |
3.9 M |
3.9 M |
|
Supporting Legs Stride Distance (Vertical) |
4.7 M |
4.7 M |
4.7 M |
4.9 M |
4.9 M |
4.9 M |
|
Wind Resistance Level |
≦5 |
|||||
|
20’/40’ Container Loading Quantity |
20’/1set |
20’/1set |
20’/1set |
20’/1set |
20’/1set |
20’/1set |
|
40’/3sets |
40’/3sets |
40’/3sets |
40’/3sets |
40’/3sets |
40’/2sets |
|
|
Power optional |
AC-electrical Power (Xi’an Motor) |
|||||
|
Diesel Power Motor (YSD Motor) |
||||||
|
Gasoline Power (Honda Motor) |
||||||
|
DC Battery Power (Bucher Motor) |
||||||
|
AC+ Diesel/Gas Power (Dual Power) |
||||||
|
AC/Diesel/Gas+DC Power (Dual Power) |
||||||
|
Extra Optional |
Friction wheel walking device: (Automatic Moving) |
|||||
