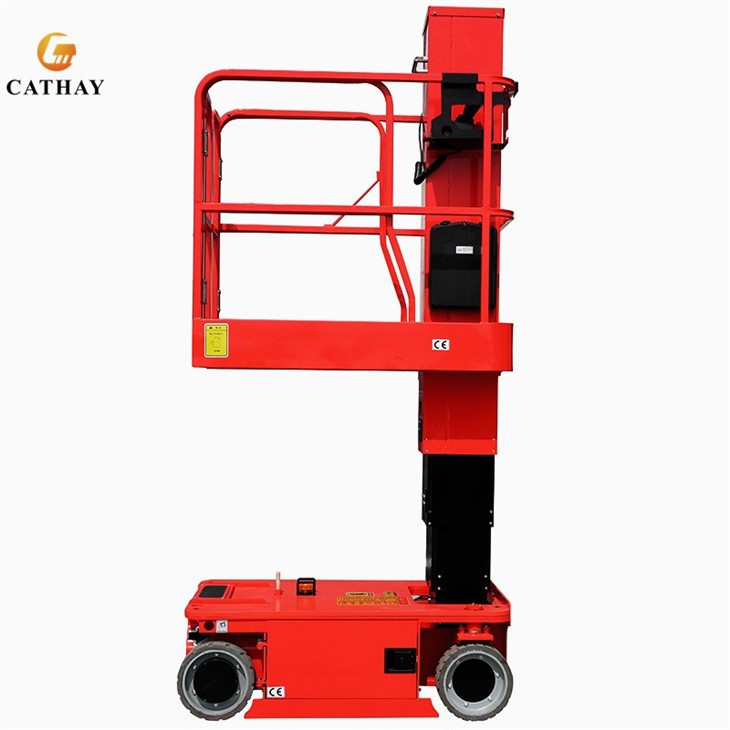

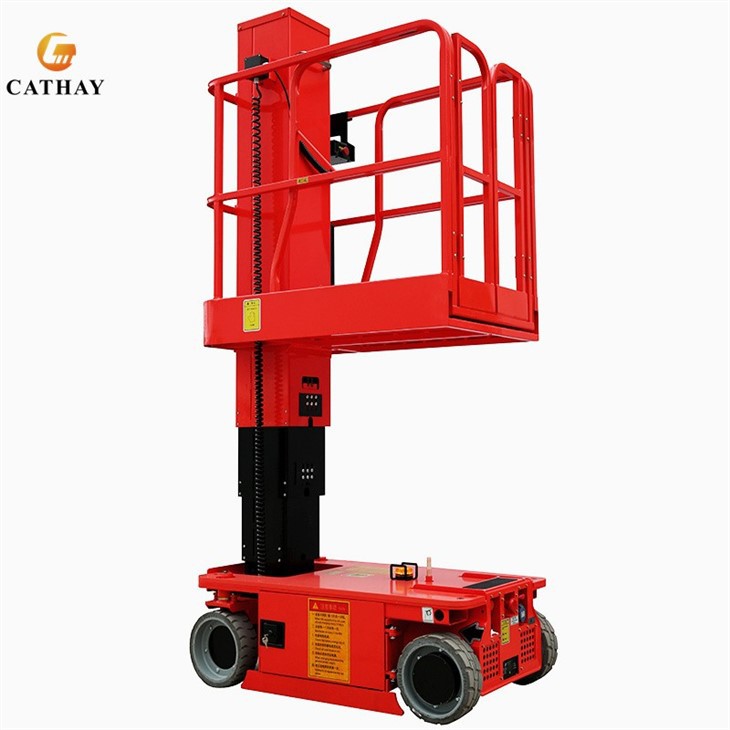

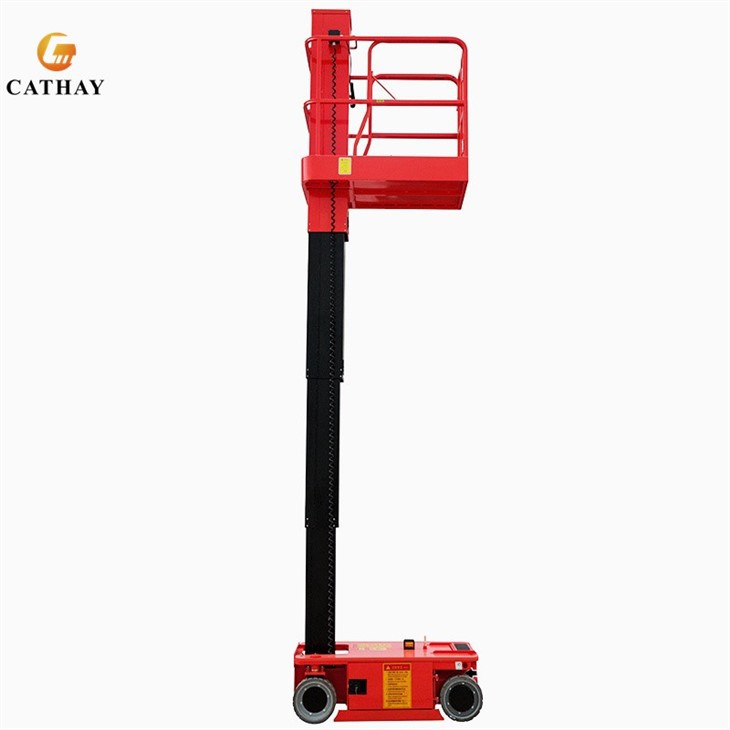

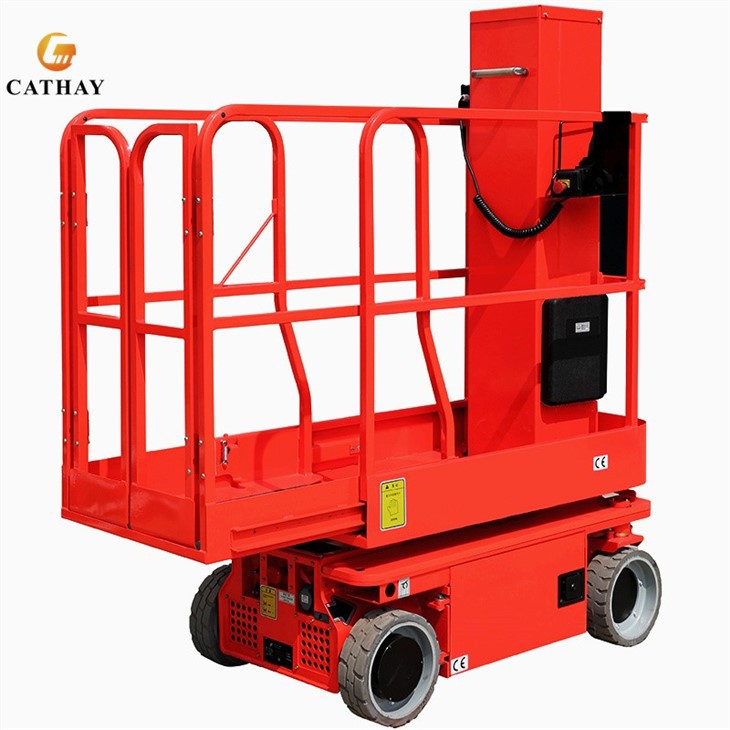

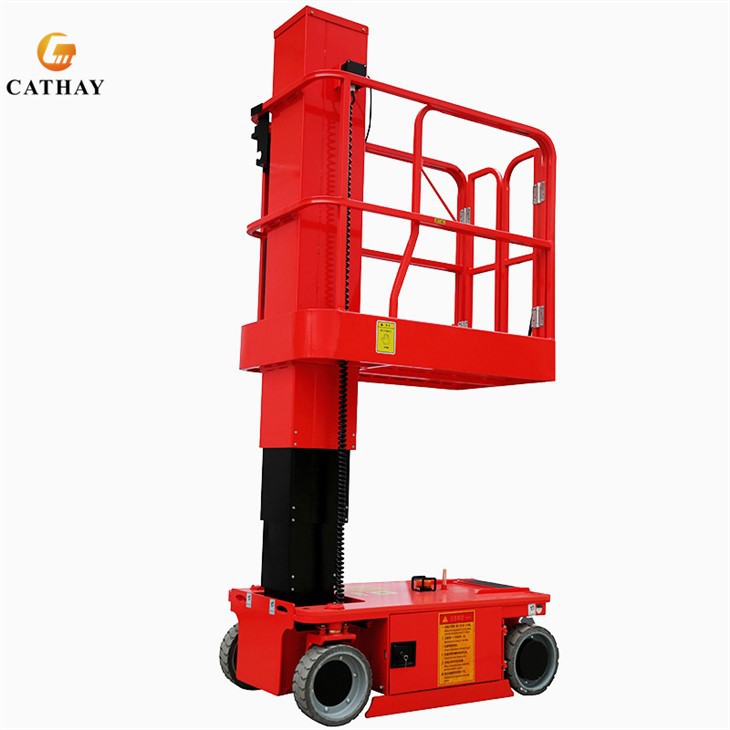

Electric Vertical Access Platform

Name: China Electric Vertical Access Platform Manufacturers Suppliers Factory - Good Price - Cathay Machinery
Brand: Cathaylift
SKU: 245572046

CATHAYLIFT's Electric Vertical Access Platform is designed for optimal maneuverability in tight indoor and outdoor areas. Equipped with a reliable AC motor and straight elevation, it efficiently navigates confined spaces. The 51cm extendable platform offers ample room for working at heights, reaching a maximum of 8m. With a robust load capacity of 227kg, this platform is ideal for various tasks, including maintenance, troubleshooting, and inventory management in warehouses.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric vertical access platform in China. We warmly welcome you to buy discount electric vertical access platform for sale here from our factory. Quality products and reasonable price are available.

Electric Vertical Access Platform

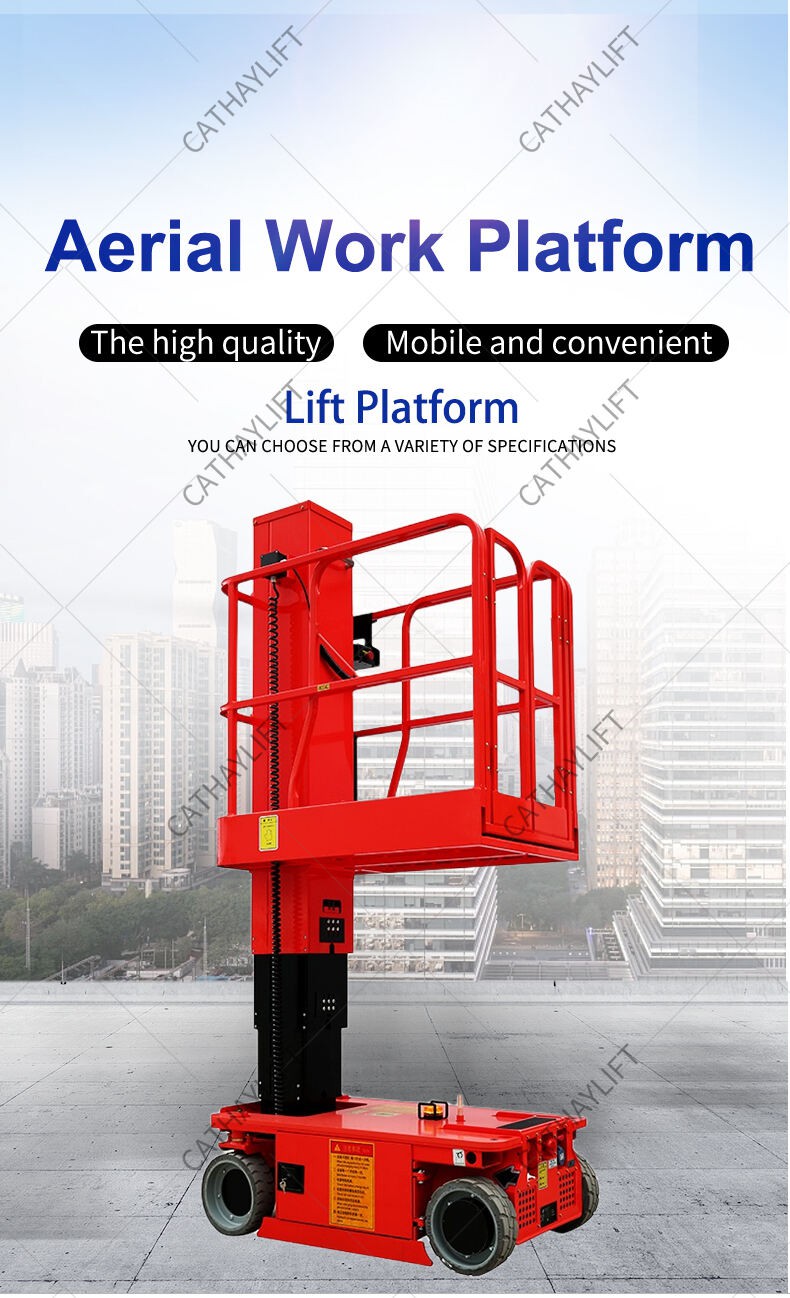

MEWP access 1

Model Type No.	CSTAR-3600	CSTAR-4800	CSTAR-6000
Max.Platform Height	3.6m	4.8m	6m
Max Working Height	5.6m	6.8m	8m
Load Capacity	227kg		159kg
Extendable platform capacity	114kg
Platform Size	1.3x0.7m
Extendable Platform Length	0.51m
Wheel Base	1.04m
Inner Turning Radius	0m
Outer Turning Radius	1.4m
Travel Speed(Stowed)	4km/h
Travel Speed(Raised)	1.1km/h
Up/down Speed	31/32sec	41.5/42sec	52/53sec
Grade Ability	25%
Drive Tires	305X100mm
Drive Motors	2X24VDC/0.5KW
Lifting Motor	24DC/1.3KW
Battery	2X12V/100AH
Charger	24V/15A
Weight	810kg	980kg	1060kg

Products Details

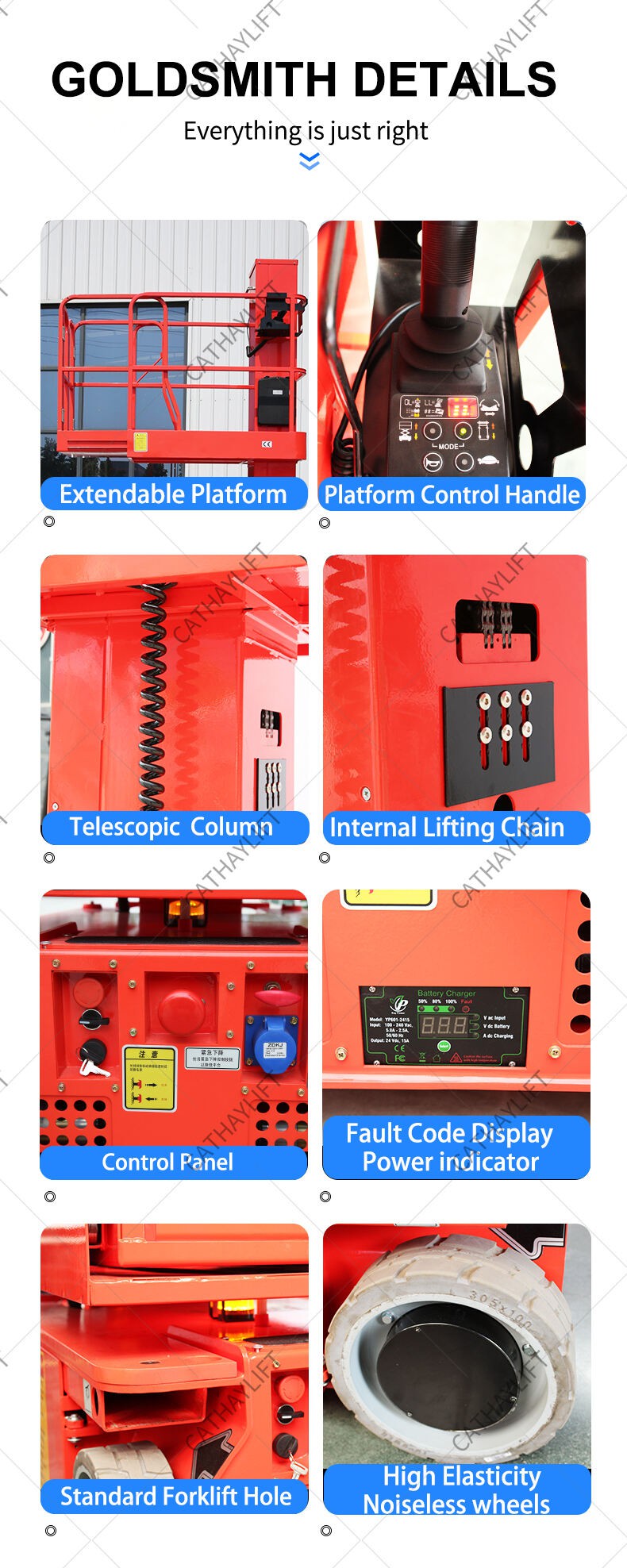

MEWP access 2

Advantages

High Load Capacity and Working Height: With a maximum load capacity of 227kg and a working height of 8m, this platform can accommodate various maintenance, troubleshooting, and inventory control tasks. It is ideal for activities such as changing light bulbs, performing routine machinery maintenance, or conducting inventory checks.
Extendable Platform for Extra Space: The 51cm extendable platform provides additional working space, enabling workers to perform a wide range of tasks with greater efficiency and comfort. This feature is especially useful for tasks requiring more room to maneuver or handle equipment.
Powerful AC Motor and Straight Elevation: Equipped with a reliable AC motor, this platform ensures smooth and efficient operation. The straight elevation mechanism allows for precise positioning, enhancing safety and ease of use.
Compact Size and Maneuverability: The Electric Vertical Access Platform's compact design allows it to be easily driven into narrow aisles, confined spaces, and other hard-to-reach areas. This is particularly beneficial in environments where traditional ladders or scaffolds would be impractical or unsafe.

MEWP access 4
