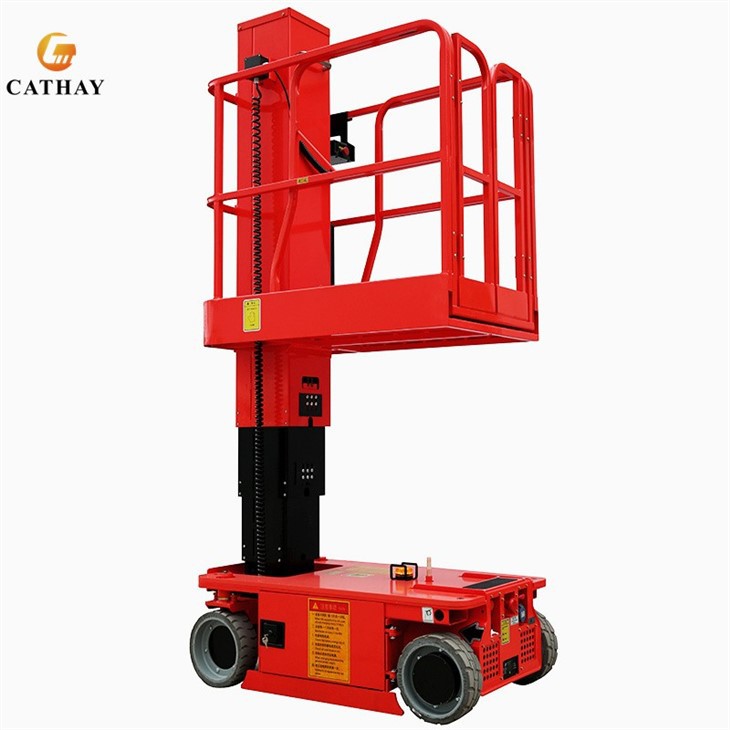

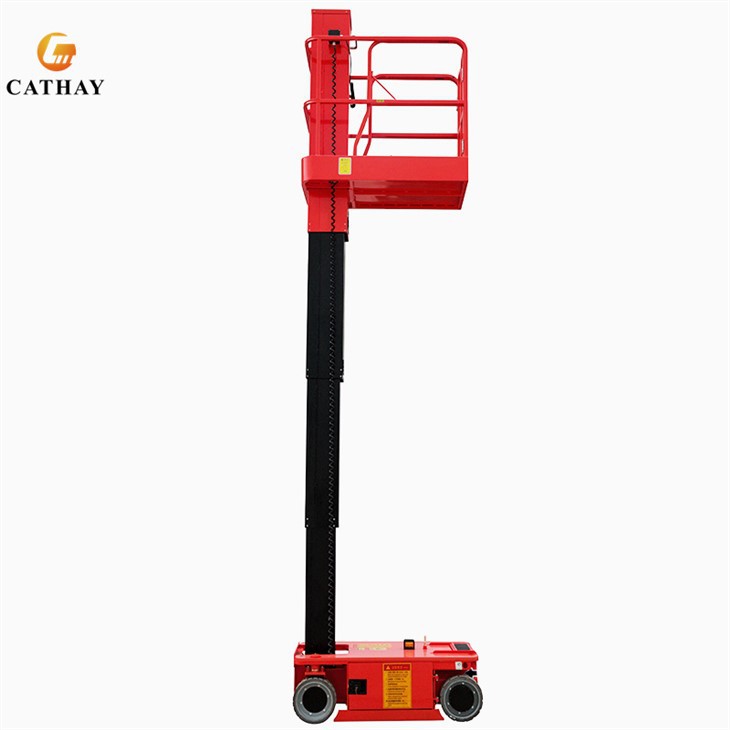

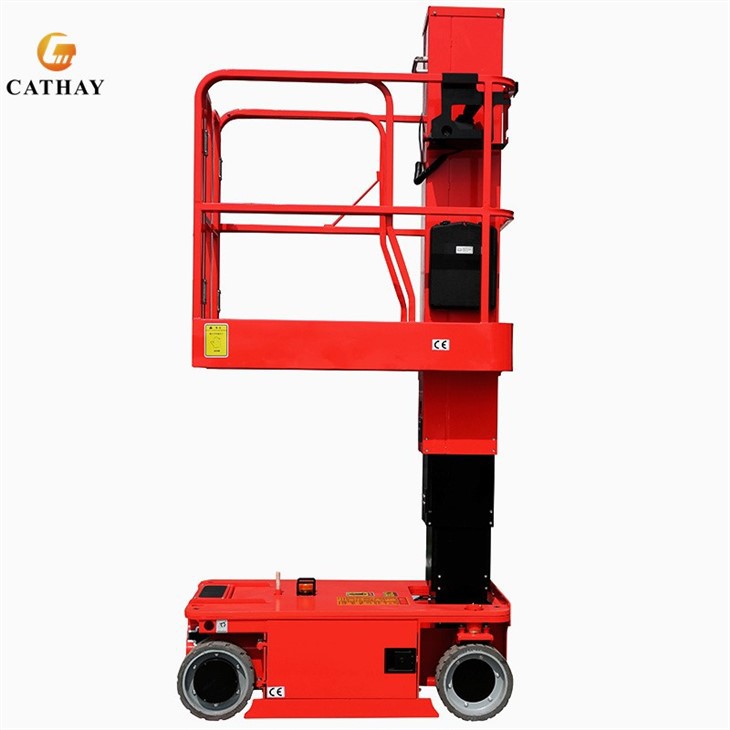

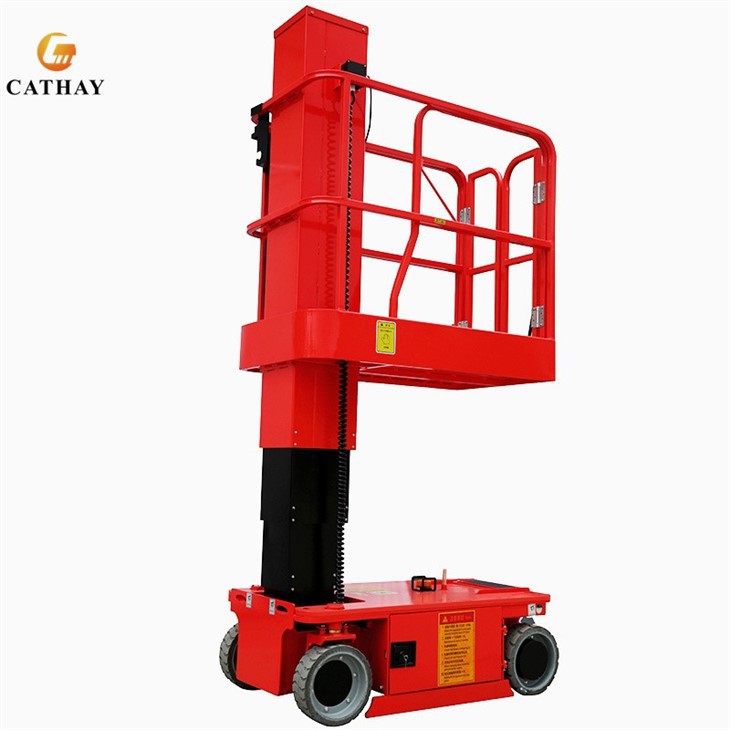

Vertical Indoor Access Platform
CATHAYLIFT's Vertical Indoor Access Platform utilizes high-quality, high-strength aluminum alloy thin-walled long cylinders, ensuring exceptional strength and stability. The clever use of high-molecular polymer polytetrafluoroethylene sliders between the long cylinders provides smooth and flexible movement, while the compact size and lightweight design make it easy to transport and maneuver. Non-marking rubber tires offer excellent traction on various surfaces, allowing for convenient operation across diverse environments. The 25% grade ability ensures effortless climbing on inclines, meeting your common climbing needs.
|
Model Type No. |
CSTAR-3600 |
CSTAR-4800 |
CSTAR-6000 |
|
Max.Platform Height |
3.6m |
4.8m |
6m |
|
Max Lifting Height |
5.6m |
6.8m |
8m |
|
Load Capacity |
227kg |
159kg |
|
|
Extendable platform capacity |
114kg |
||
|
Platform Size |
1.3x0.7m |
||
|
Extendable platform length |
0.51m |
||
|
Wheel base |
1.04m |
||
|
Inner Turning Radius |
0m |
||
|
Outer Turning Radius |
1.4m |
||
|
Travel Speed(Stowed) |
4km/h |
||
|
Travel Speed(Raised) |
1.1km/h |
||
|
Up/down Speed |
31/32sec |
41.5/42sec |
52/53sec |
|
Grade Ability |
25% |
||
|
Drive Tires |
305X100mm |
||
|
Drive Motors |
2X24VDC/0.5KW |
||
|
Lifting Motor |
24DC/1.3KW |
||
|
Battery |
2X12V/100AH |
||
|
Charger |
24V/15A |
||
|
Weight |
810kg |
980kg |
1060kg |
Product Details:
● Electric push rod(oil-free)
● Brushless DC motor( Maintenance-free for the whole machine)
● No noise
● Zero emission
● Energy saving and environmental protection
● Flexible, small turning radius, high agility, high maneuverability.
● Equipped with multiple safety designs
● Higher cost performance
Details Images:

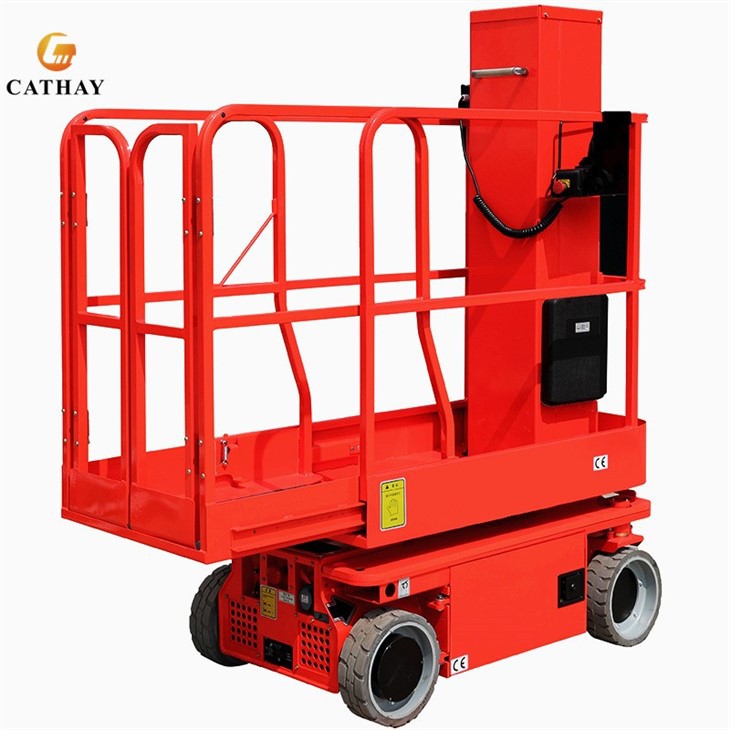

Extensible Platform and electric push rod:
The extendable platform, measuring 0.51m, can be quickly deployed to the operation point, ensuring swift and convenient access to high-up areas. This feature significantly streamlines your workflows, allowing you to complete tasks efficiently without the need for bulky equipment.
Dual control system:
Replacing traditional oil cylinders with an electric push rod, this platform offers a safer and more reliable operation. The built-in chain creates an oil-free design, eliminating potential hazards associated with hydraulic systems. The dual control system, featuring emergency descent valves, main power switches, emergency stop buttons, and a built-in charger, provides multiple layers of safety for the operator. The platform's control handle incorporates proportional control and anti-misoperation design, ensuring accurate and safe operation.
Pumping station ECU and tilt sensor:
The platform is equipped with a cutting-edge Electronic Control Unit (ECU) that analyzes machine actions and detects potential faults, displaying relevant codes on the ground control panel. The tilt sensor monitors the ground's inclination, automatically locking the platform and initiating an intelligent descending operation when the horizontal angle exceeds 2 degrees and the raised height reaches 2 m, safeguarding the operator.
Maintenance-free lead-acid batteries
The maintenance-free lead-acid batteries offer a significant advantage over traditional batteries. They require no liquid additions, minimize corrosion, and boast strong resistance to overcharging, ensuring extended battery life and reliable power storage.
High elastic rubber static grey tires and hydraulic steering system:
The platform's high-elastic rubber static grey tires, measuring Φ305*100mm, provide a silent and non-marking operation. They also feature standard forklift holes, facilitating long-distance transportation. The hydraulic steering system enhances sensitivity while reducing energy consumption, making for a smooth and efficient driving experience. The power steering assist can be adjusted based on angle and vehicle speed, contributing to enhanced stability.
Automatic pothole protection system:
The platform is equipped with an automatic pothole protection system that features a sensor switch. When the pothole protection is not fully opened, the platform automatically stops when it reaches a height of 2m, preventing potential accidents caused by uneven terrain.
