Self Propelled Electric Mast Lift

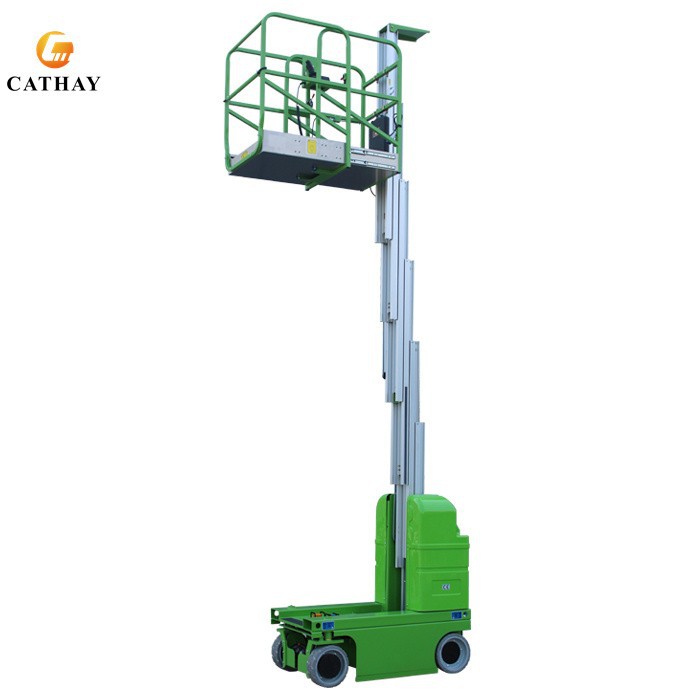

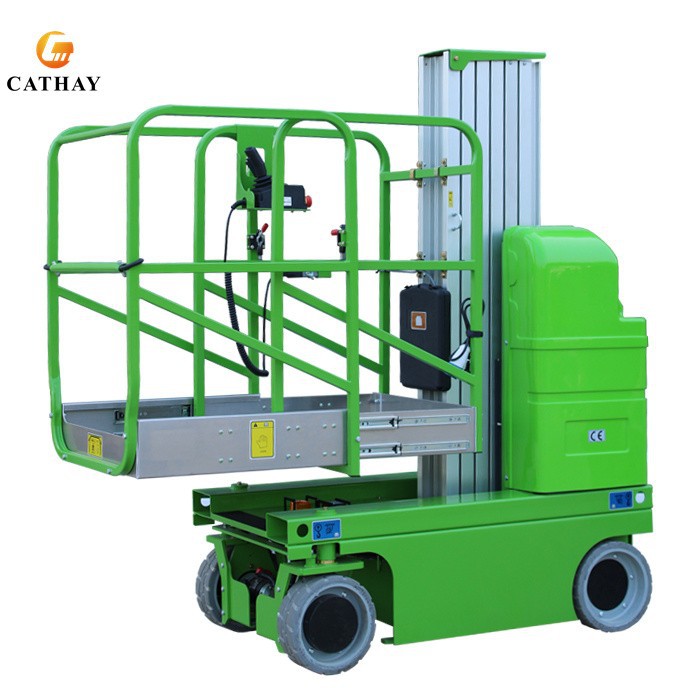

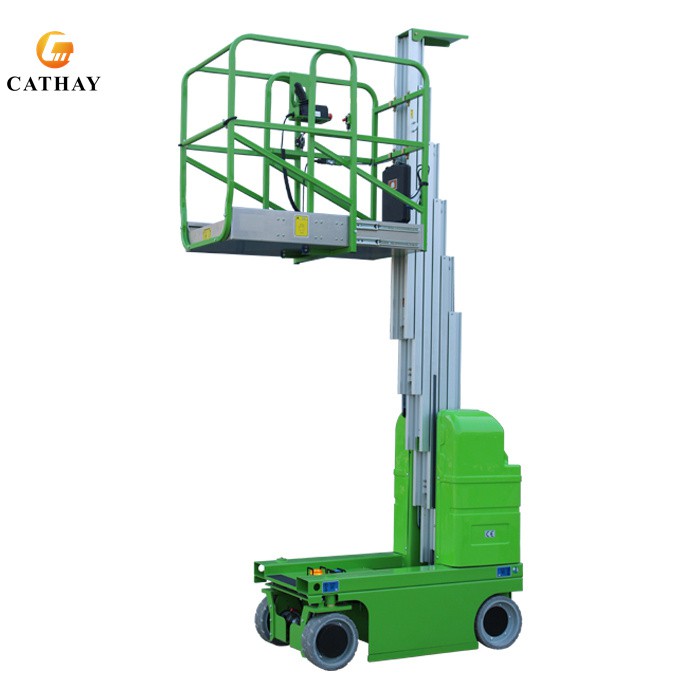

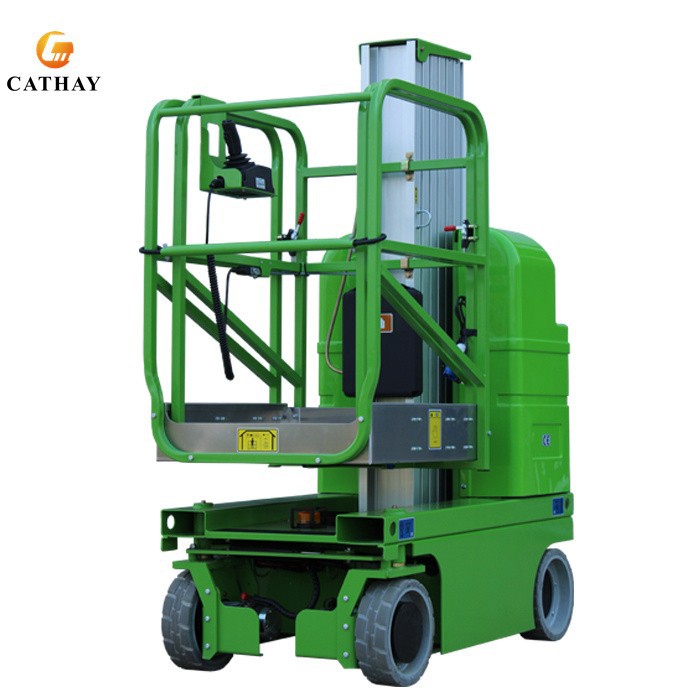

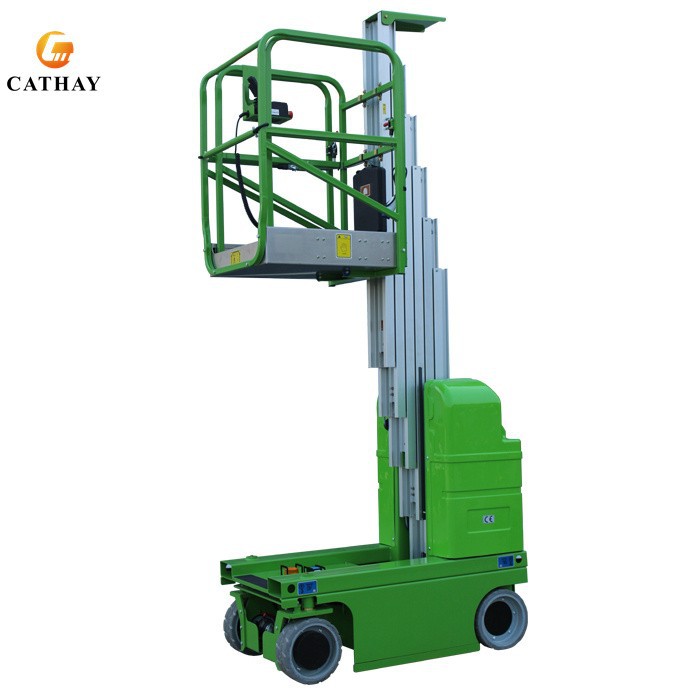

The CR series electric mast lift is available in two models, the single mast and the dual mast, with maximum platform heights of 6m, 7.5m, or 9m, and load capacities that vary depending on the model. The lifting motor has a power of 2.2KW, and the operating voltage is 24VDC, with a charging voltage of 220VAC. The machine is equipped with two 100AH batteries, allowing it to be used continuously for up to five hours.
|
Model No. |
|
CR-6 |
CR-7.5 |
CR-7.5D |
CR-9D |
|
Max.Platform Height |
Mm |
6000 |
7500 |
7500 |
9000 |
|
Max Working Height |
Mm |
8000 |
9500 |
9500 |
11000 |
|
Load Capacity |
Mm |
150Kg |
125kg |
200Kg |
150kg |
|
Occupants |
Mm |
1 |
1 |
1 |
1 |
|
Overall Size |
Mm |
1400(1890)*760 *1990 |
1400(1890)*1020 *1990 |
1460*1020*1990 |
1460*820*1990 |
|
Platform Size |
Mm |
1260*700 |
1000*620 |
||
|
Wheel Base |
Mm |
1140 |
1140 |
||
|
Max Drive Speed ( Stowed) |
Km/h |
4 |
4 |
||
|
Max Drive Speed (Extended) |
Km/h |
1.1 |
1.1 |
||
|
Min Turn Radius |
Mm |
0 |
0 |
||
|
Up/Down Speed |
/Sec |
43/35Sec |
48/40Sec |
48/40SEC |
53/48SEC |
|
Driving Wheel Size |
Mm |
Φ230X80 |
Φ230X80 |
||
|
Battery |
V/Ah |
2X12Vdc/100Ah |
2X12VDC/100AH |
||
|
Lifting Motor |
/ |
24Vdc/1.3Kw |
24VDC/1.3KW |
||
|
Net Weight |
Kg |
1120 |
1170 |
1260 |
1360 |
|
Charger |
|
24V/15A |
24V/15A |
24V/15A |
24V/15A |

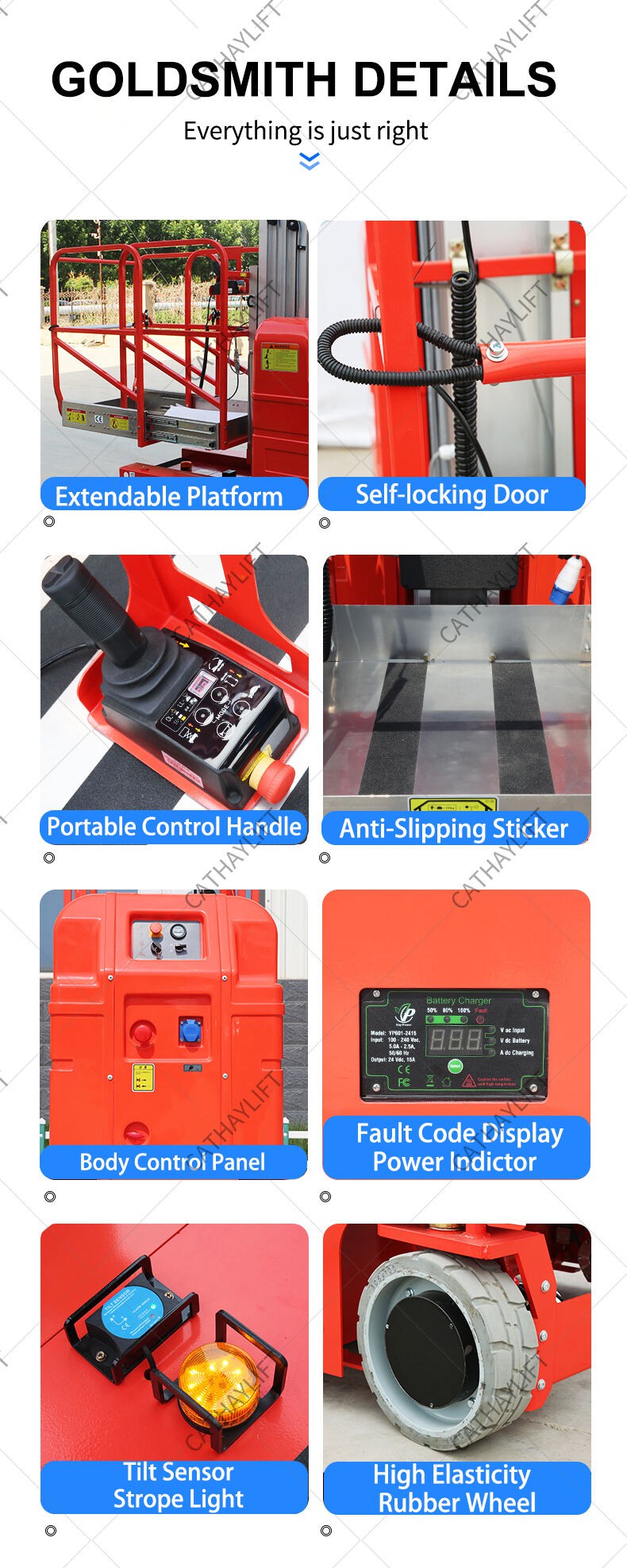

The control panel includes a lower control panel with a charging power indicator, charging status indicator, key switch, emergency stop button, toggle switch, and power indicator. The upper control panel allows for coordinated control of the handle and buttons, and operators can use it to increase, decrease, turn, and set the machine parameters.
The CR series electric mast lift has several safety features that ensure the safety of operators. It features a load detection function that prevents it from raising beyond its rated load and an organic machine tilt sensing function that sends a signal if the ground tilt is greater than 2 degrees when the platform is raised to a height of 2 meters. It also has a pothole protection function that automatically stops the platform from rising to a height of 2 meters if the pothole protection is not fully opened.
Other notable features of the CR series electric mast lift include two high-elastic rubber gray tires, hydraulically controlled front wheel steering, a telescopic guardrail that can extend 480mm longitudinally, and a load detection function that prevents it from raising beyond its rated load. It also has an organic machine tilt sensing function and a pothole protection function, both of which help ensure the safety of the operator.
the CR series electric mast lift is a reliable and efficient tool for reaching work areas located above and over machinery or equipment. With its safety features and easy-to-use controls, it can help operators work safely and efficiently at heights.
