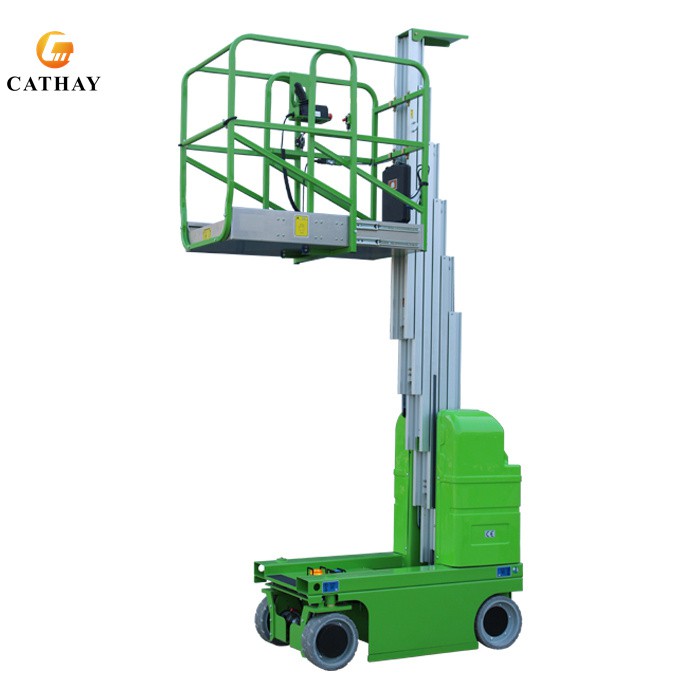

Automatic Ladder Lift

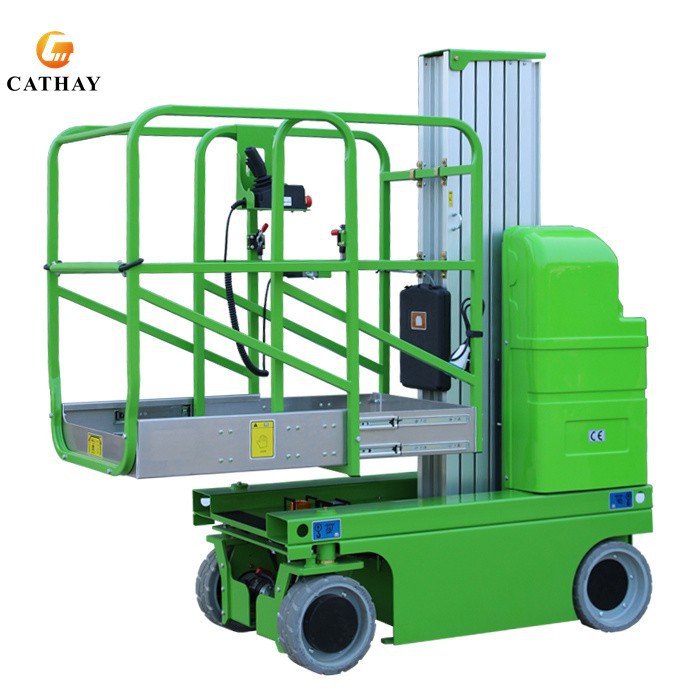

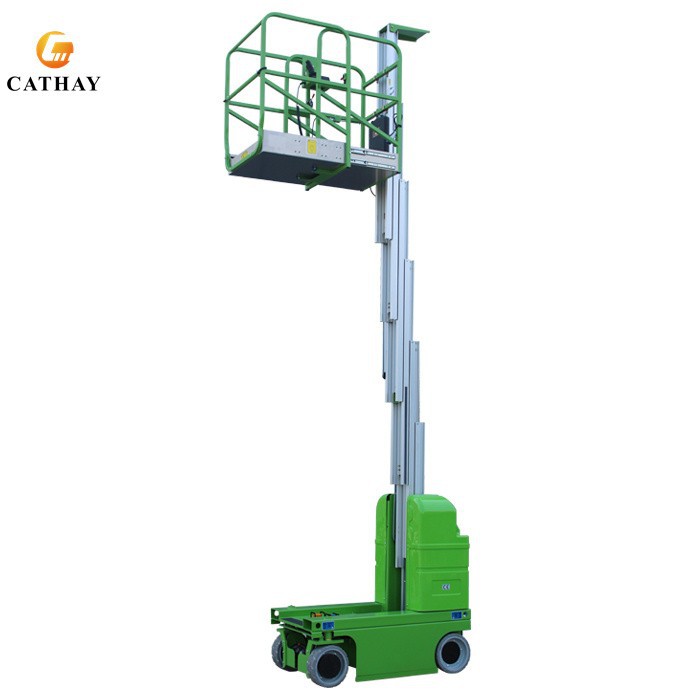

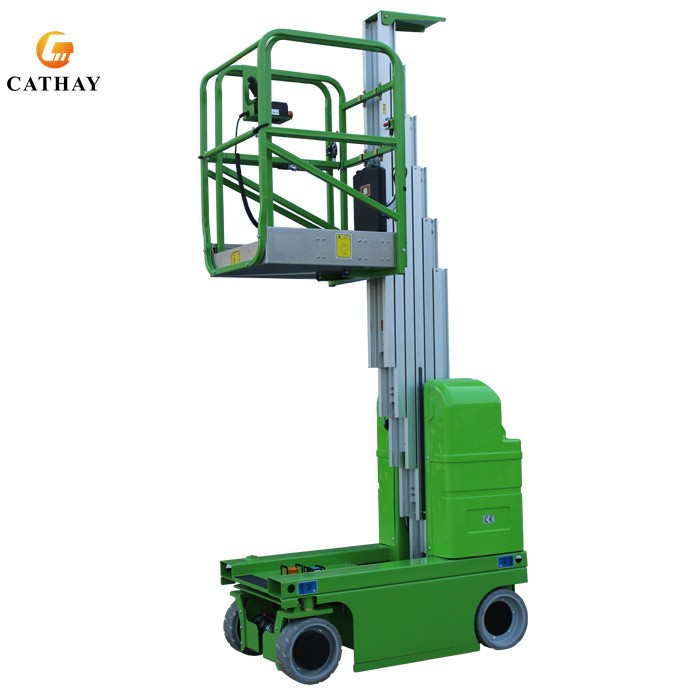

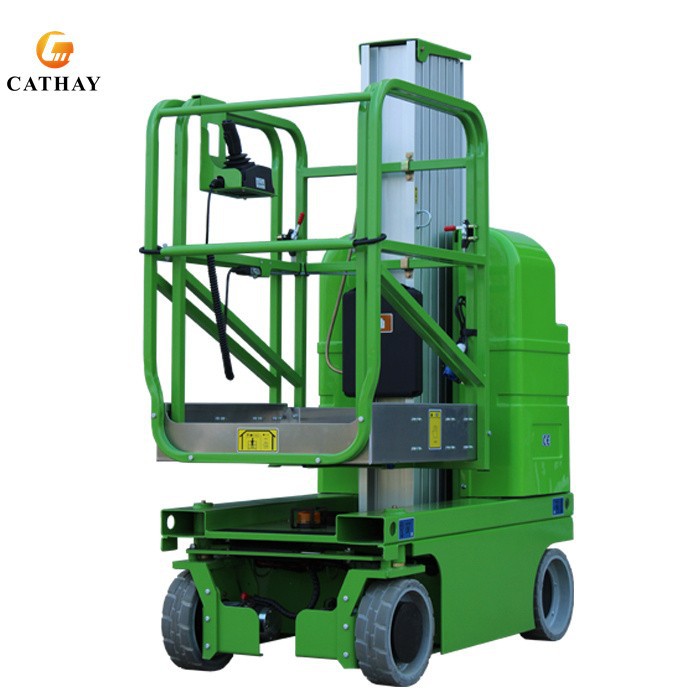

CATHAYLIFT's Automatic Ladder Lift excels in tight spaces, thanks to its small footprint and zero turning radius. This exceptional maneuverability enables it to navigate narrow aisles and confined areas with exceptional agility. Powered by clean and efficient batteries, this platform offers high mobility and sensitivity, allowing you to work seamlessly in various environments. The inclusion of an optional extension platform further expands the working range, providing greater versatility and flexibility for diverse operations.
|
Model No. |
CR-6 |
CR-7.5 |
|
|
Max. Platform Height |
mm |
6000 |
7500 |
|
Max. Working Height |
mm |
8000 |
9500 |
|
Load Capacity |
mm |
150Kg |
125kg |
|
Occupants |
mm |
1 |
|
|
Overall Size |
mm |
1400 (1890)*760*1990 |
1400 (1890)*1020*1990 |
|
Platform Size |
mm |
1260*700 |
|
|
Wheel Base |
mm |
1140 |
|
|
Max. Drive Speed (Platform Stowed) |
Km/h |
4 |
|
|
Max. Drive Speed (Platform Extended) |
Km/h |
1.1 |
|
|
Min Turn Radius |
mm |
0 |
|
|
UP/Down Speed |
/SEC |
43/35SEC |
48/40SEC |
|
Driving Wheel Size |
mm |
Φ230X80 |
|
|
Battery |
V/Ah |
2X12VDC/100AH |
|
|
Lifting motor |
/ |
24VDC/1.3KW |
|
|
Net Weight |
kg |
1120 |
1356 |
|
Charger |
24V/15A |
24V/15A |
|
Product Details:
● Proportional control (high sensitivity, high precision)
● Intelligent automatic brake lock
● Buzzer, Horn, Strobe light
● Extended platform with 0.49m
● Pothole protector
● Fault diagnosis system(The code is displayed in the control panel)
● Oil Pipe Explosion-Proof System
● 4 wheels×2 drive
Details Images:
Smart control handle:
This ergonomically designed handle serves as the primary control interface for the platform. Its intuitive layout minimizes the risk of misoperation, ensuring smooth and precise movement. The integrated fault code display provides real-time feedback, allowing for swift identification and resolution of any potential issues. For enhanced safety, the platform automatically transitions to a slow mode when lifting, ensuring controlled and gradual ascent. The red button, prominently positioned on the handle, acts as an emergency stop switch, offering immediate control in the event of an unexpected situation.
Main Control Panel (Ground):
This robust panel provides comprehensive control over the platform from the ground level. The prominent red rotary button serves a dual purpose: it acts as an emergency stop switch and a power display switch, granting operators complete control and visibility over the platform's status. Additional controls on the panel include buttons for upper and lower control conversion, as well as dedicated buttons for lifting and lowering operations. This ground-level control enhances efficiency and allows for convenient monitoring of the platform's operation.
Emergency hydraulic valve complete set of safety signs:
In the unlikely event of a power failure or emergency situation, the emergency hydraulic valve provides a crucial safety backup. This valve can be manually rotated and dragged, initiating a controlled descent of the platform to the ground. The complete set of warning signs strategically positioned throughout the platform ensures clear communication of safety procedures and potential hazards, enhancing situational awareness among operators and bystanders.
Buzzer, warning light, tilt sensor:
The integrated buzzer and warning light constantly operate when the platform is powered on, serving as a visual and audible reminder of its active state. The tilt sensor plays a critical role in maintaining platform stability. When the platform reaches a height of two meters, the sensor monitors the angle of the platform. If the angle exceeds two degrees, the platform automatically locks, preventing potential tipping hazards. At the same time, the intelligent system initiates a controlled descent, ensuring a safe return to the ground. The prominent red button acts as the main power switch, while the adjacent charging socket allows for convenient battery replenishment using the built-in charger.
Application
Real Order:
