Electric Vertical Mast Lift

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric vertical mast lift in China. We warmly welcome you to buy discount electric vertical mast lift for sale here from our factory. Quality products and reasonable price are available.

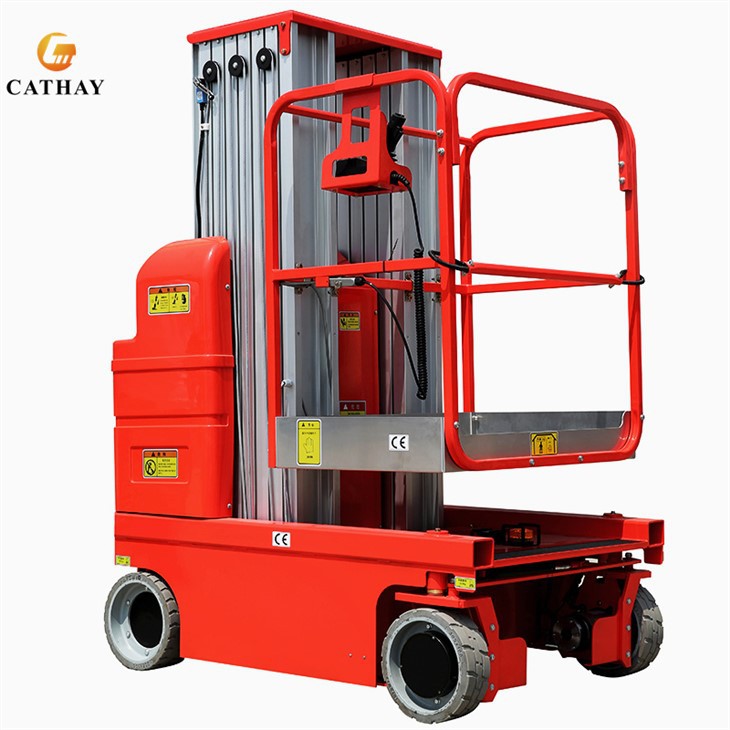

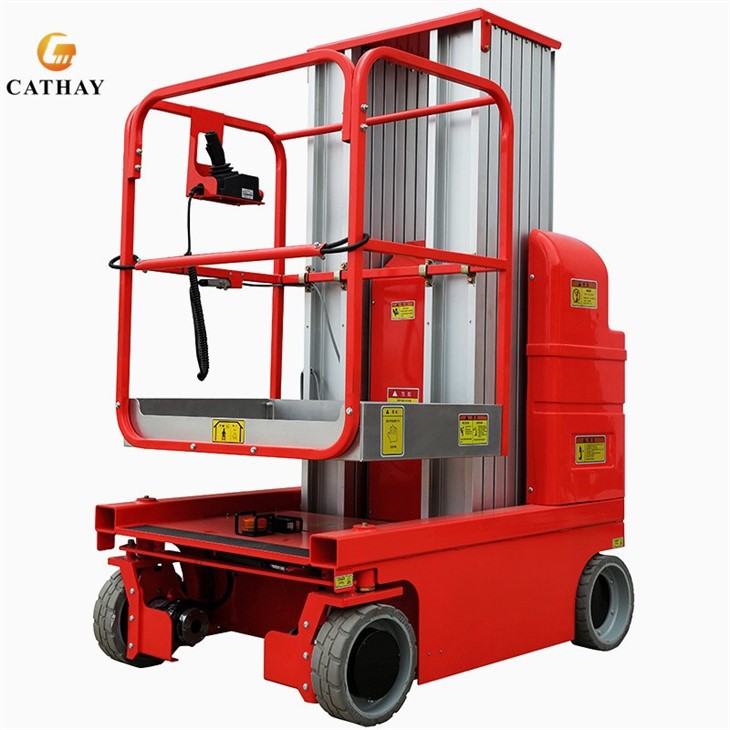

6m 7.5m 9m Electric Vertical Mast Lift

The Electric Vertical Mast Lift! With its maintenance-free design, sturdy construction, and long-lasting battery, this lift is the perfect solution for any aerial maintenance job. Whether you're working in a warehouse, transporting goods, or managing inventory, the Electric Vertical Mast Lift offers excellent stability and maneuverability.

• Two Types Based on Lifting Height: Single Mast (6m and 7.5m) and Double Mast (7.5m and 9m)
• Load Capacities: Single Mast (125kg and 150kg) and Double Mast (150kg and 200kg)
• Eco-friendly: Powered by electricity, ensuring safety and reliability
• High-quality Accessories: Manufactured by Dingli
• Long-lasting Battery: The fully charged battery can walk up to 9 km under full load and lift 73 times
• 5 Hours of Continuous Work: Optimal performance for all your aerial maintenance needs

• Walking Motor: 2 built-in front-wheel motors
• Lifting Motor: 2.2KW, 24VDC operating voltage, and 220VAC charging voltage
• Two 100AH Batteries: Onboard the vehicle
• High-elastic Rubber Tires: Gray, with a diameter of 305mm and width of 100mm
• Hydraulically Controlled Front Wheel Steering: Powered by 0.5KW*2
• Load-detecting Function: Ensures the lift cannot be raised beyond its rated load
• Organic Machine Tilt Sensing Function: Prevents lowering on tilted ground
• Pothole Protection Function: Stops the lift from rising if the pothole protection is not fully opened

• Buzzer, Strobe Light, and Horn: For added safety
• Emergency Drop Cable: In case of emergencies
• Waterproof Charging Plug: Ensuring durability and reliability
• Control Panel: Lower and upper control panels for easy operation
• Small Turning Radius: Allows for a 360-degree turn

The Electric Vertical Mast Lift! With its maintenance-free design, sturdy construction, and long-lasting battery, this lift is the perfect solution for any aerial maintenance job. Whether you're working in a warehouse, transporting goods, or managing inventory, the Electric Vertical Mast Lift offers excellent stability and maneuverability.

The Electric Vertical Mast Lift comes in two types based on lifting height: the single mast which offers heights of 6m and 7.5m with load capacities of 150kg and 125kg respectively, and the double mast which has heights of 7.5m and 9m with load capacities of 200kg and 150kg respectively. All models are powered by electricity, making them safe, reliable, and environmentally friendly.

The lift's walking motor consists of 2 built-in front-wheel motors, a lifting motor of 2.2KW, an operating voltage of 24VDC, a charging voltage of 220VAC, and two 100AH batteries on board the vehicle. It also features two high-elastic rubber gray tires, front and rear, with a diameter of 305mm and a width of 100mm.

One of the standout features of the Electric Vertical Mast Lift is its hydraulically controlled front wheel steering and front wheel electric drive, powered by 0.5KW*2. It also has a load-detecting function that ensures the lift cannot be raised beyond its rated load and has a light warning. Additionally, the lift has an organic machine tilt sensing function that prevents the lift from being lowered when the ground is tilted more than 2 degrees.

The Electric Vertical Mast Lift also has a pothole protection function with a sensor switch that stops the lift from rising to a height of 2 meters if the pothole protection is not fully opened. The lift will also automatically stop after it's been lifted and lowered to a height of 2 meters, and a release of the handle is necessary to operate it again.

Other features include a buzzer, strobe light, horn, emergency drop cable, and waterproof charging plug. The control panel has a lower control panel with a charging power indicator, charging status indicator, key switch, emergency stop button, toggle switch for up or down, and power indicator. The upper control is coordinated with the handle and buttons, allowing for easy operation.

Compared to other lifts on the market, the Electric Vertical Mast Lift has a relatively small turning radius for its front-wheel drive, allowing for a 360-degree turn. Most lifts have a rear-wheel drive, which can result in uneven gravity distribution. All accessories for the Electric Vertical Mast Lift are of high quality and made by Dingli. With a fully charged battery, the lift can walk up to nine kilometers under full load and can be lifted 73 times, allowing for five hours of continuous work.

In summary, the Electric Vertical Mast Lift offers a safe, reliable, and efficient solution for all your aerial maintenance needs. Try it today and experience the difference it makes!
