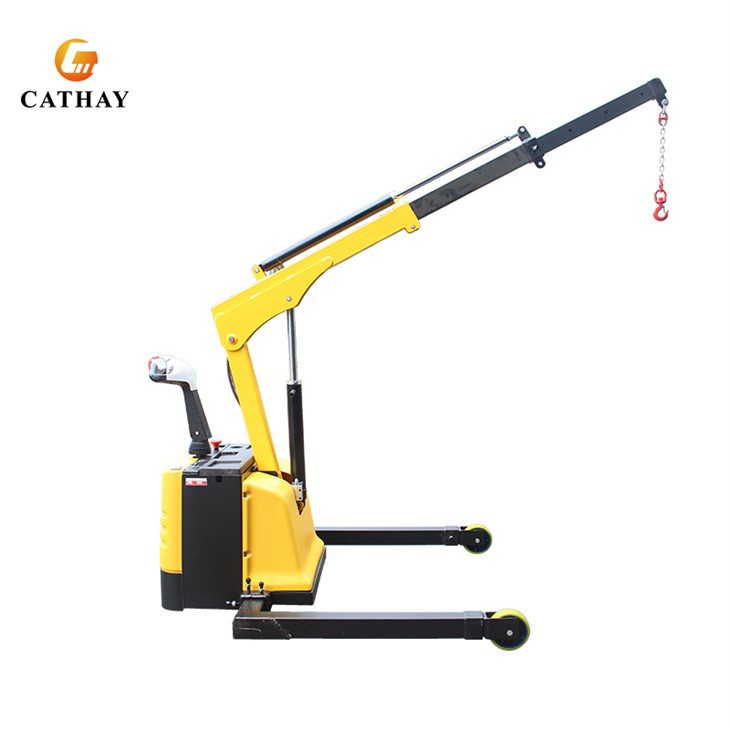

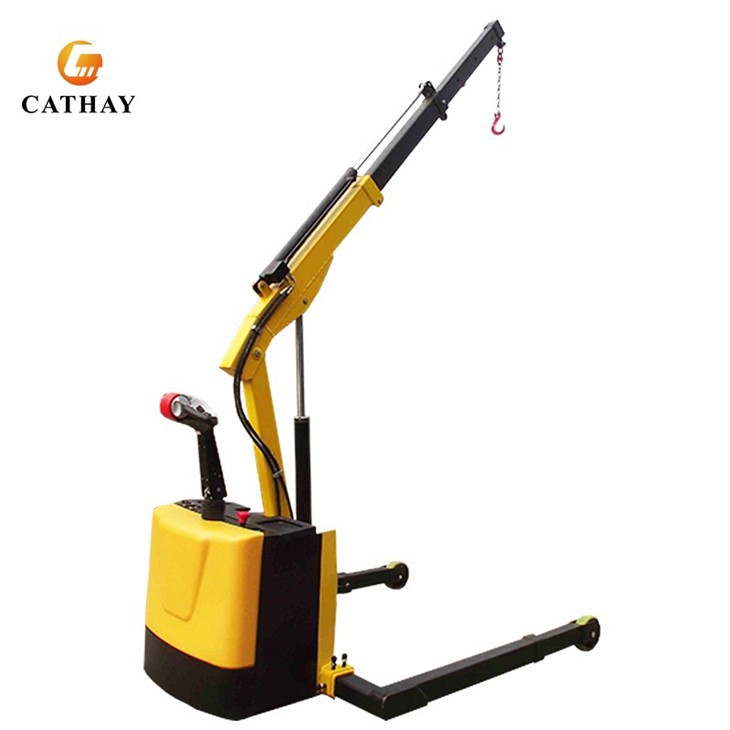

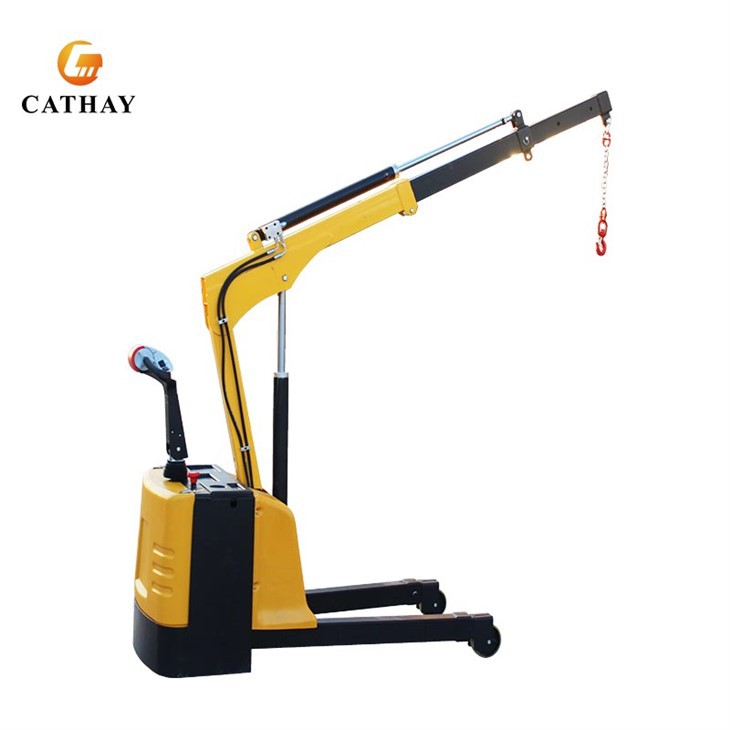

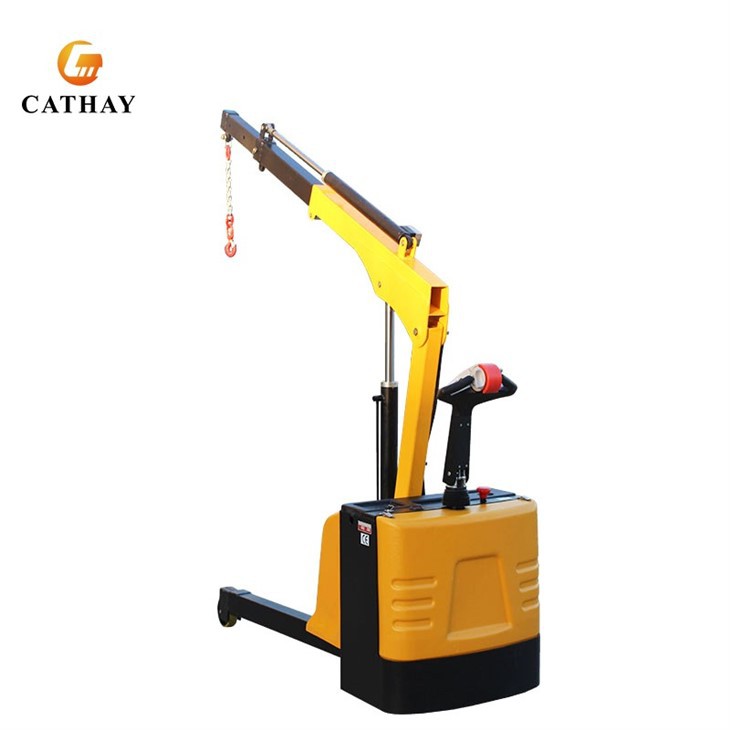

Hydraulic Narrow Floor Crane
CATHAYLIFT's Hydraulic Narrow Floor Crane boasts a 120° left and right rotation, enabling precise positioning of loads with minimal effort. The crane supports both electric and hydraulic lifting, providing users with dual-use flexibility. Powered by two deep-cycle 12V, 80-95/Ah lead-acid batteries, it ensures strong and consistent performance, with up to 3~4 hours of nonstop operation on a full charge and up to 8 hours when used intermittently. The integrated battery charger and battery level gauge further enhance usability, allowing for easy monitoring and maintenance. With a maximum lifting height of 3570mm, this crane is perfect for tasks that require elevated reach.
|
Model Type |
CSEC-1200 |
CSEC-1200A |
CSEC-700 |
CSEC-900R |
|
Horizontal Reach |
1280+610+610 mm |
1220+610+610 mm |
1280+610+610 mm |
|
|
Load Capacity |
1200 kg |
700 kg |
900 kg |
|
|
Max. Lifting Height |
3570 mm |
3540 mm |
3560 mm |
3180 mm |
|
Min Lifting Height |
960 mm |
935 mm |
950 mm |
1410 mm |
|
Retracted Size (W*L*H) |
1920*760*1600 mm |
1865*1490*1570 mm |
2595*760*1580 mm |
2000*1854*1550 mm |
|
Arm Electric Rotation |
/ |
120° left/right |
||
Detail Images:

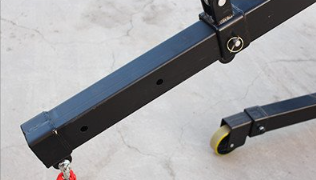

- Auxiliary Roller Skating Device: The electric telescopic arm is equipped with an auxiliary roller skating device, which stabilizes the boom during extension and retraction.

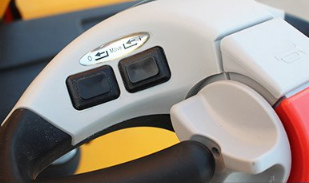

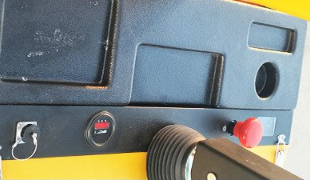

- User-Friendly Console: The crane's console is designed with simplicity and elegance, integrating essential controls such as the power switch, power display meter, emergency button, lifting push rod, and boom telescopic push rod.

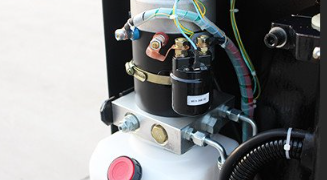

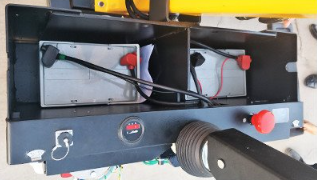

- Dual-Power Functionality: The crane supports both electric and hydraulic lifting, offering dual-use flexibility. Its deep-cycle 12V batteries provide reliable power, enabling up to 3~4 hours of continuous operation or 8 hours of intermittent use on a single charge.
More Details:
- Rotatable Structure: The main arm can be equipped with a 120° rotatable structure, allowing for greater flexibility and precision when positioning loads.
- Heavy-Duty Hook: Designed with a robust hook, the crane is compatible with various spreaders and lifting attachments. A snap lock mechanism is included to securely fasten loads, preventing accidental detachment and ensuring safer lifting operations.
- Auxiliary Roller Skating Device: The electric telescopic arm is equipped with an auxiliary roller skating device, which stabilizes the boom during extension and retraction. This results in smoother, more controlled movements, reducing wear and tear on the system.
