Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of mobile crane lift in China. We warmly welcome you to buy discount mobile crane lift for sale here from our factory. Quality products and reasonable price are available.

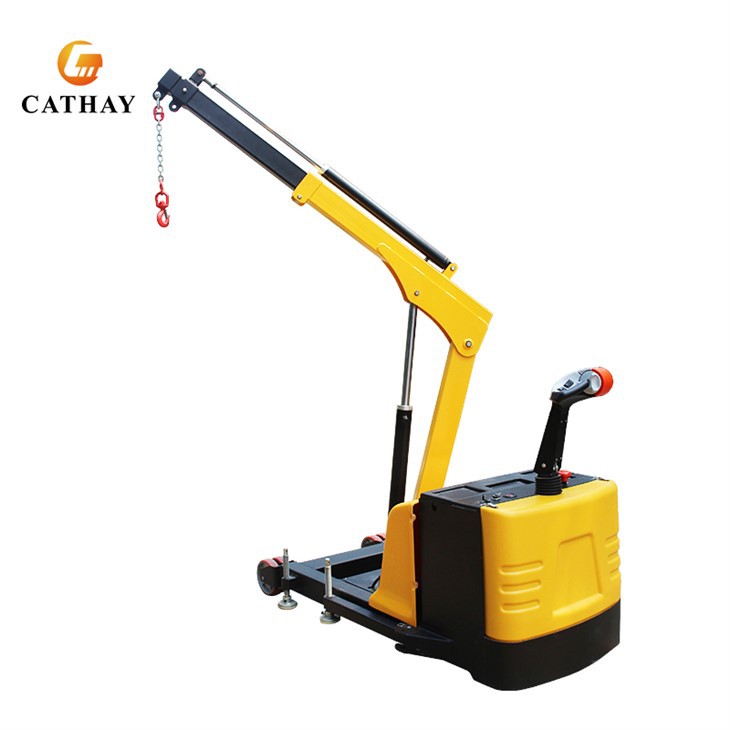

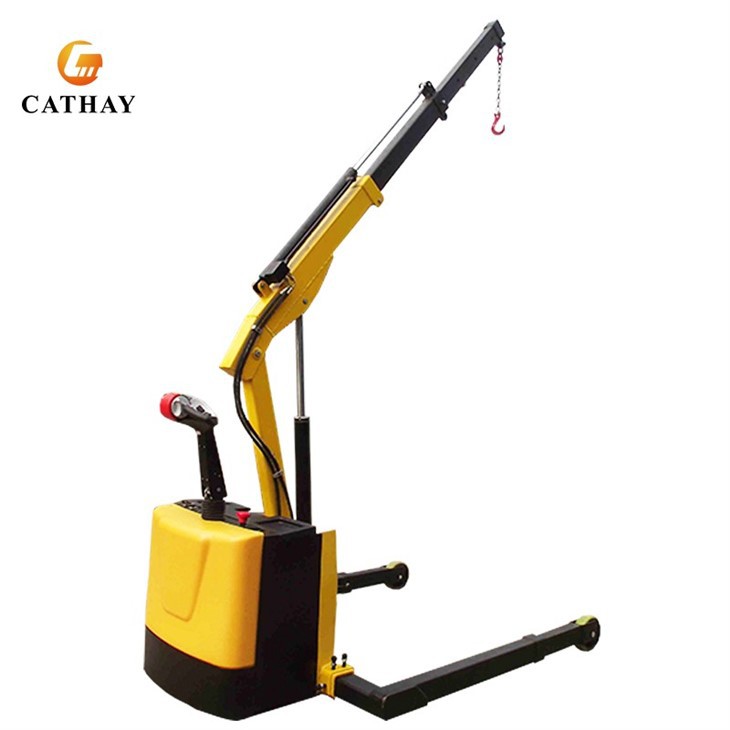

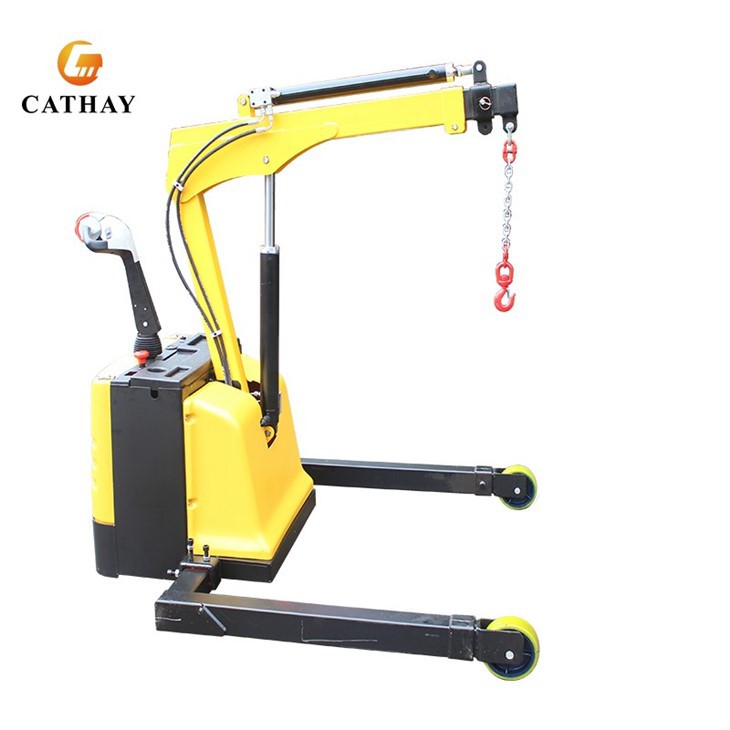

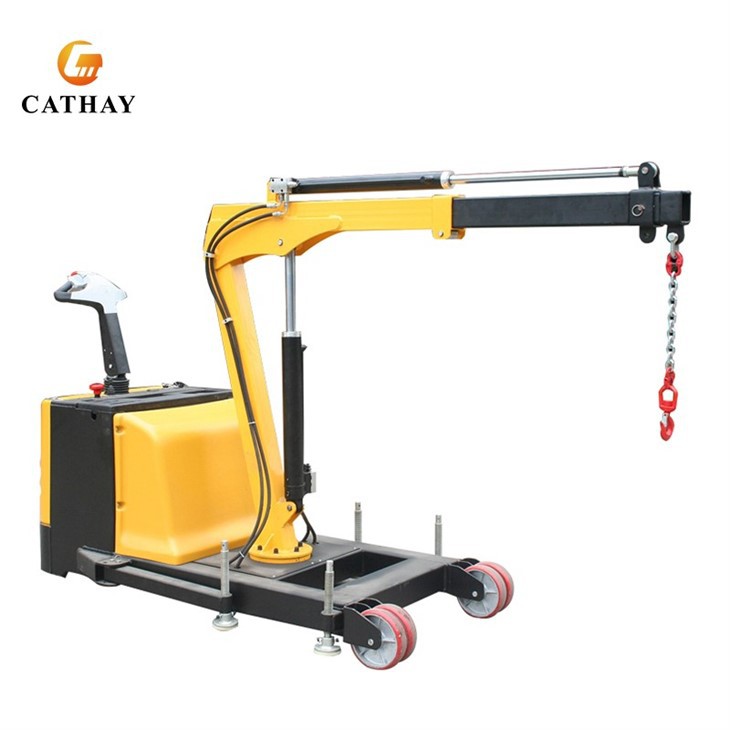

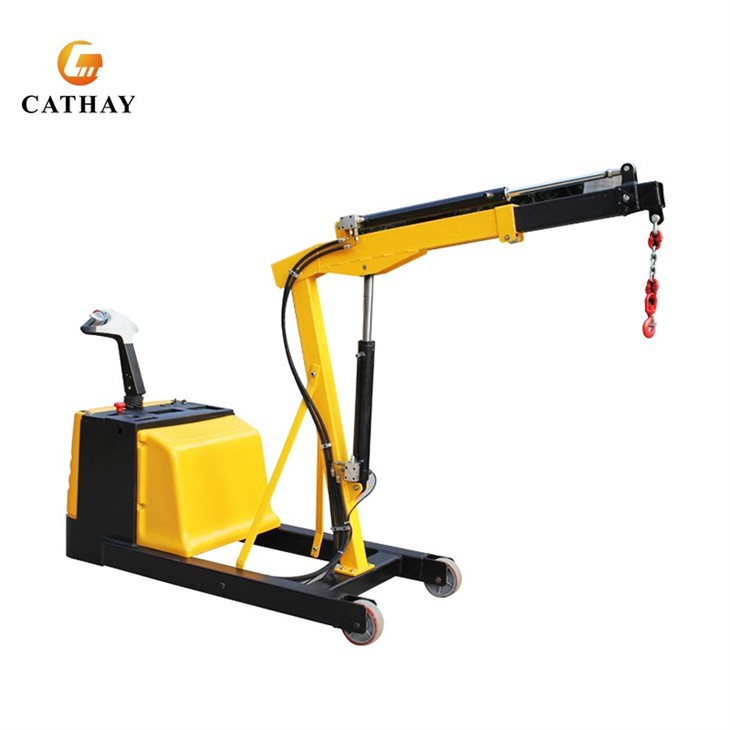

Mobile Crane Lift
Engineered to handle weight capacities ranging from 700kg to 1200kg, CATHAYLIFT's Mobile Crane Lift can be customized to meet your specific lifting needs. It is built with four robust steel swivel casters and a maneuverable handle, facilitating effortless navigation even in tight areas. Safety is paramount, with an advanced hydraulic system and essential walkie truck protections ensuring a secure and reliable lifting experience. Available in a variety of vibrant colors, this crane complements your workspace while boosting productivity. Whether you're in construction, manufacturing, or any industry requiring efficient lifting solutions, CATHAYLIFT's Mobile Crane Lift is a reliable and versatile choice. Its powerful performance, safety features, and customizable options make it the ideal lifting companion for a wide range of applications.
|
Model Type |
CSEC-1200 |
CSEC-1200A |
CSEC-700 |
CSEC-900R |
|
Horizontal Reach |
1280+610+610 mm |
1280+610+610 mm |
1220+610+610 mm |
1280mm+610mm+610mm |
|
Load Capacity |
1200kg |
1200kg (1280mm) |
700kg (1220mm) |
900kg (1280mm) |
|
Load Capacity (stage 1) |
600kg (1280~1890mm) |
600kg (1280~1890mm) |
400kg (1220~1830mm) |
450kg (1280~1890mm) |
|
Load Capacity (stage 2) |
300kg (1890~2500mm) |
300kg (1890~2500mm) |
200kg (1890~2440mm) |
250kg (1890~2500mm) |
|
Max Lifting Height |
3570 mm |
3540 mm |
3560 mm |
3180 mm |
|
Min Lifting Height |
960 mm |
935 mm |
950 mm |
1410 mm |
|
Retracted size (W*L*H) |
1920*760*1600 mm |
1865*1490*1570 mm |
2595*760*1580 mm |
2000*1854*1550 mm |
|
Arm Electric Rotation |
/ |
/ |
/ |
120° left/right |
Product Details
Battery Charging Instructions
- Battery Location: The batteries and battery charger are conveniently housed within the battery pack.
- Power Off: Begin by turning off the power supply to the crane. Rotate the switch key counter-clockwise (CCW) to the off position.
- Disconnect Battery: Carefully disconnect the battery cable connector from the compartment on the crane.
- Connect to Charger: Fully engage the battery cable connector to the compartment on the battery charger.
- Voltage Check: Before connecting the battery charger to the local power supply, ensure that both the charger and the local power supply have the same voltage.
- AC Connection: Plug the AC extension cord from the charger into the outlet of the local power supply. This will automatically activate the charger.
- Automatic Charging: The charger will commence the charging process, automatically adjusting the charging rate to meet the needs of the batteries.
- Full Charge Maintenance: Once the batteries reach full charge, the charger will transition to a maintenance mode, providing only enough current to keep the batteries fully charged.
- Disconnection: When the charging cycle is complete, disconnect the AC plug from the local power supply and the crane outlet.
- Reconnect Battery: Remove the battery connector from the charger and fully engage it to the drive plug on the crane.
- Ready for Operation: Your CATHAYLIFT Mobile Crane is now ready for operation.
