Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of hydraulic tracked boom lift in China. We warmly welcome you to buy discount hydraulic tracked boom lift for sale here from our factory. Quality products and reasonable price are available.

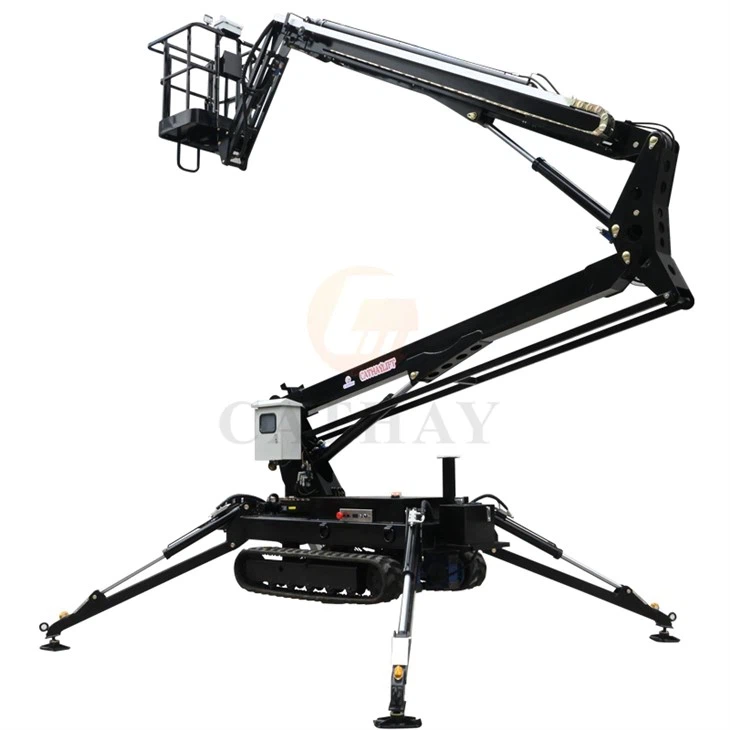

Hydraulic Tracked Boom Lift
CATHAYLIFT's Hydraulic Tracked Boom Lift excels in both functionality and versatility, making it a preferred choice for a wide range of applications. Its crawler-based movement system ensures stable driving and superior traction, even on rough or uneven surfaces, with an impressive climbing ability of 36%. The boom's innovative design, featuring two sets of parallel four-bar linkages, ensures compact storage and an extensive lifting stroke, while the middle telescopic mechanism significantly expands the platform's operating range.
The 360° rotatable turntable and telescopic arm design provide exceptional flexibility, enabling operators to reach difficult angles and heights effortlessly. Additionally, the outrigger self-balancing design enhances stability, making it ideal for uneven or rough terrains. Powered by multiple energy sources such as AC, DC, gasoline, and diesel, this boom lift is adaptable to diverse working environments, ensuring uninterrupted performance wherever it is deployed. Furthermore, its ability to perform large-scale, high-altitude continuous operations makes it indispensable in bustling environments such as airport terminals, stations, shopping malls, stadiums, and residential properties.
Product Details:
Application:
Real Order:
|
Model Type |
CTA-10TC |
CTA-12TC |
CTA-14TC |
CTA-16TC |
CTA-18TC |
CTA-20TC |
|
Version |
Articulated |
Articulated |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
|
Lifting height |
10M |
12M |
14M |
16M |
18 |
20 |
|
Working height |
12M |
14M |
16M |
18M |
20 |
22 |
|
Load Capacity |
200KG |
|||||
|
Platform size |
0.9*0.8M |
|||||
|
Working radius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
|
Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
3500KG |
3800KG |
|
Overall Size( L*W*H) |
5.2*1.35*2. 1M |
6.2*1.35*2. 1M |
6.1*1.35*2. 7M |
6.5*1.35*2. 85M |
6.8*1.35*2. 9M |
7.2*1.35*2. 95M |
|
Electric Motor |
48V/3.3kw |
|||||
|
Battery |
8*12V/230Ah |
|||||
|
Wind Resistance Level |
5 |
|||||
