Lightweight Mini Man Lift

Name: China Lightweight Mini Man Lift Manufacturers Suppliers Factory - Good Price - Cathay Machinery
Brand: Cathaylift
SKU: 273729915

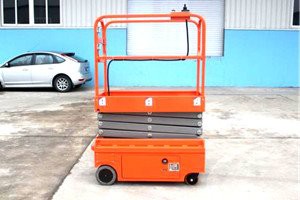

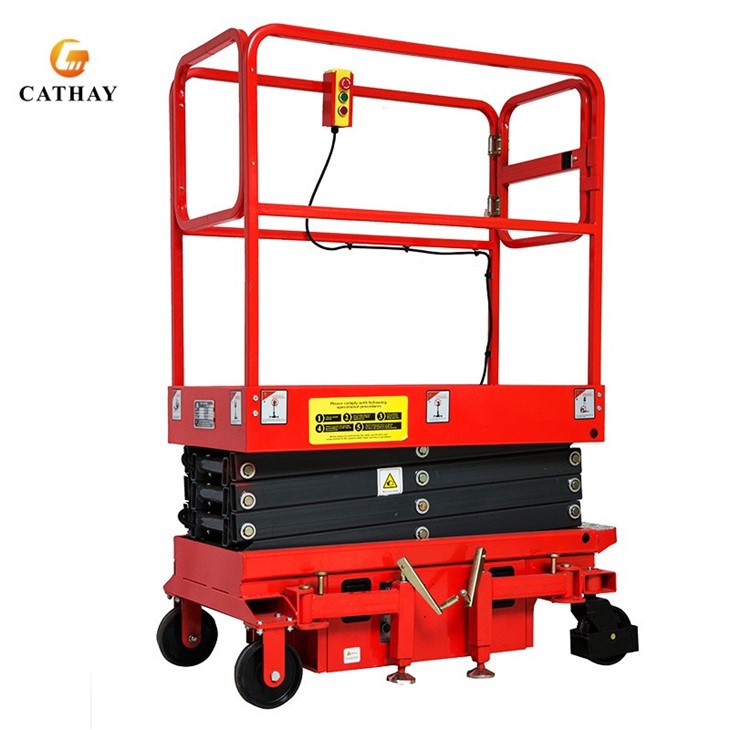

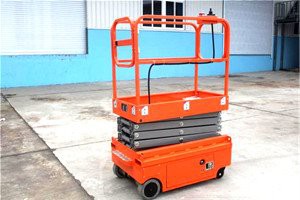

With a robust load capacity of 300kg, CATHAYLIFT Lightweight Mini Man Lift comfortably accommodates two to three workers simultaneously. Its compact design allows seamless access through standard doors, elevators, and narrow areas. The lift boasts a maximum working height of 5.9 meters, providing ample reach for a variety of applications while maintaining a small footprint.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of lightweight mini man lift in China. We warmly welcome you to buy discount lightweight mini man lift for sale here from our factory. Quality products and reasonable price are available.

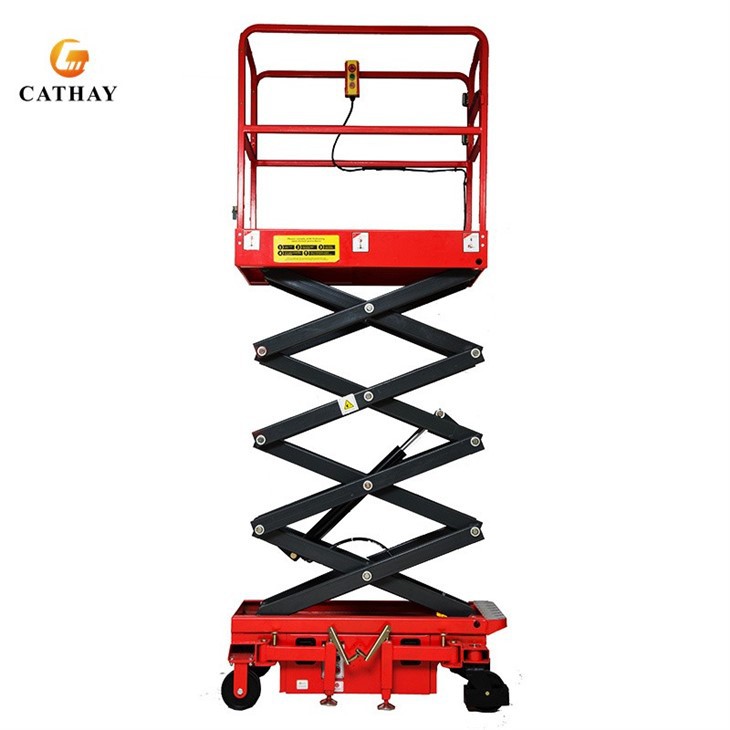

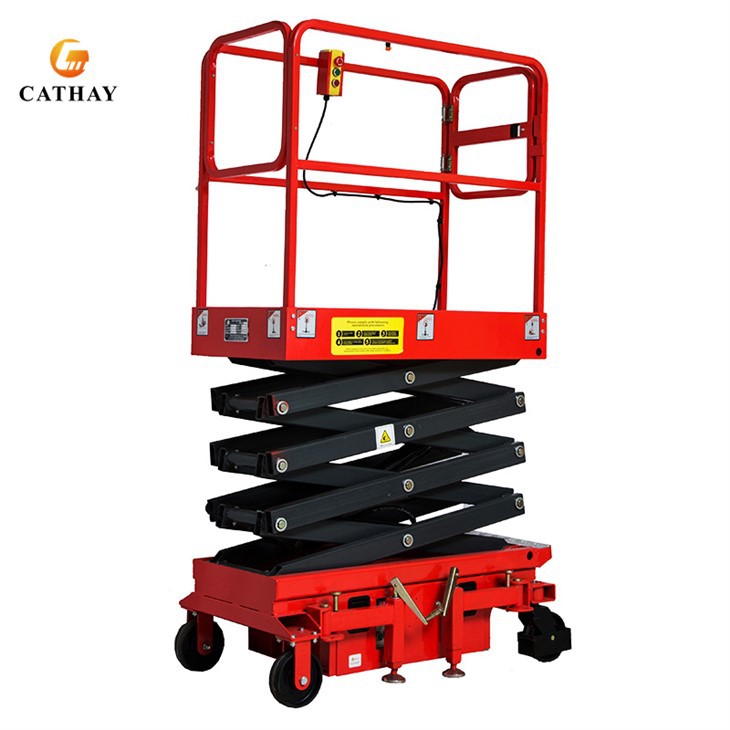

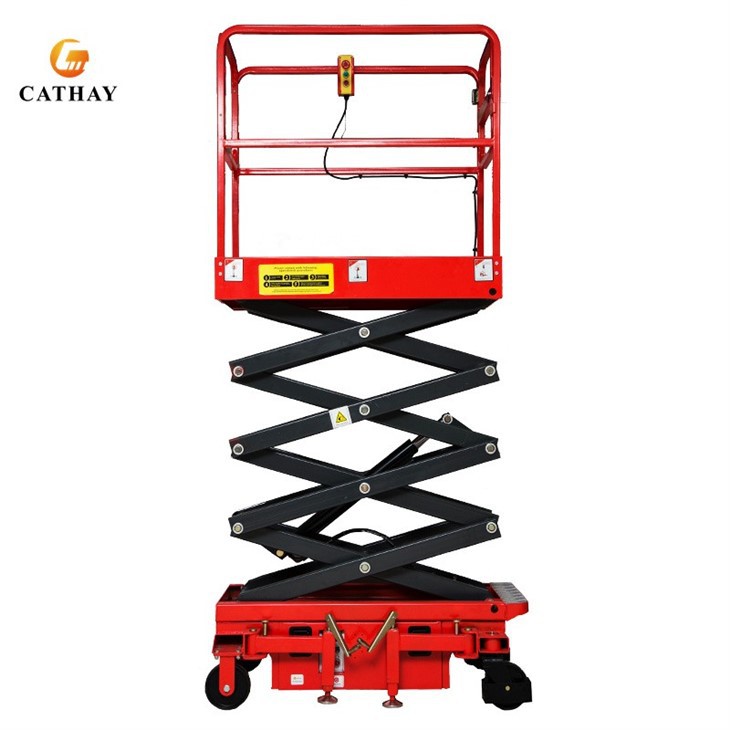

Lightweight Mini Man Lift

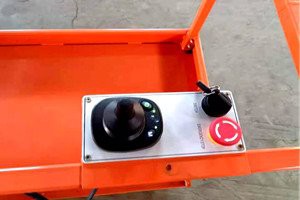

Equipped with an automatic walking function, CATHAYLIFT Lightweight Mini Man Lift enables smooth forward, backward, and steering movements at adjustable speeds, all controlled effortlessly by a single operator. The integrated design features a built-in power supply, eliminating the need for external electricity or traction, which enhances portability and reduces setup time.

Model	CLMS30	CLMS39
Max. Platform Height (mm)	3000	3900
Max. Working Height (mm)	5000	5900
Rated Capacity (kg)	300
Platform Size (mm)	1170*600
Wheelbase (mm)	990
Min. Turning Radius (mm)	1200
Max. Drive Peed (Platform lifted)	4km/h
Max. Drive Speed (Platform down)	0.8km/h
Lifting/Falling Speed (Sec)	20/30
Max. Travel Grade (%)	10-15
Drive Motor (V/KW)	2×24/0.3
Lifting Motor (V/KW)	24/0.8

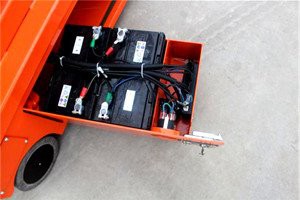

Battery (V/AH)	2×12/ 80
Charger (V/A)	24/15A
Max. Allowable Working Angle	2°

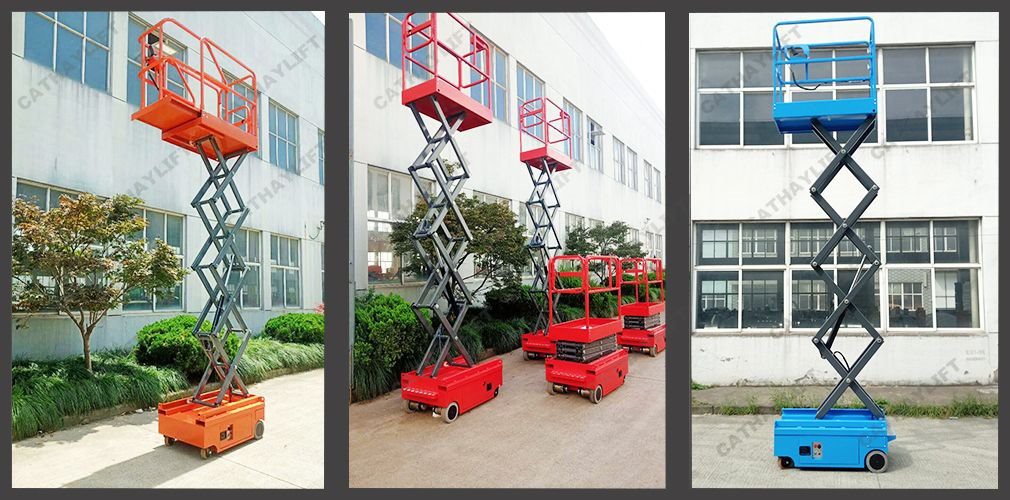

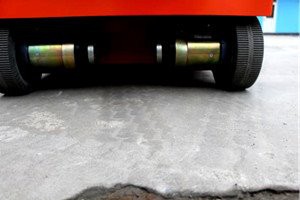

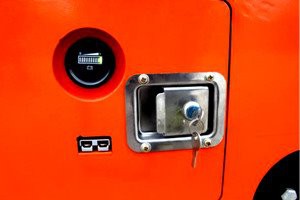

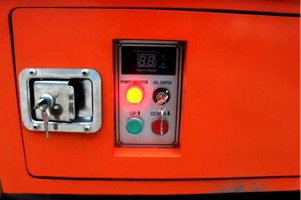

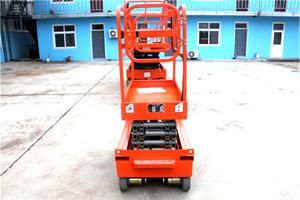

Product Details:

Its advanced safety mechanisms, including comprehensive protective features, ensure secure operation at elevated heights, giving workers peace of mind. Unlike traditional truck-mounted platforms, this self-propelled lift eliminates inefficiencies by allowing free movement at any working height without the need to retract arms or reposition outriggers. This makes it perfect for continuous operations in construction sites, factories, warehouses, and other demanding environments.
