Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of mini automatic scissor lift in China. We warmly welcome you to buy discount mini automatic scissor lift for sale here from our factory. Quality products and reasonable price are available.

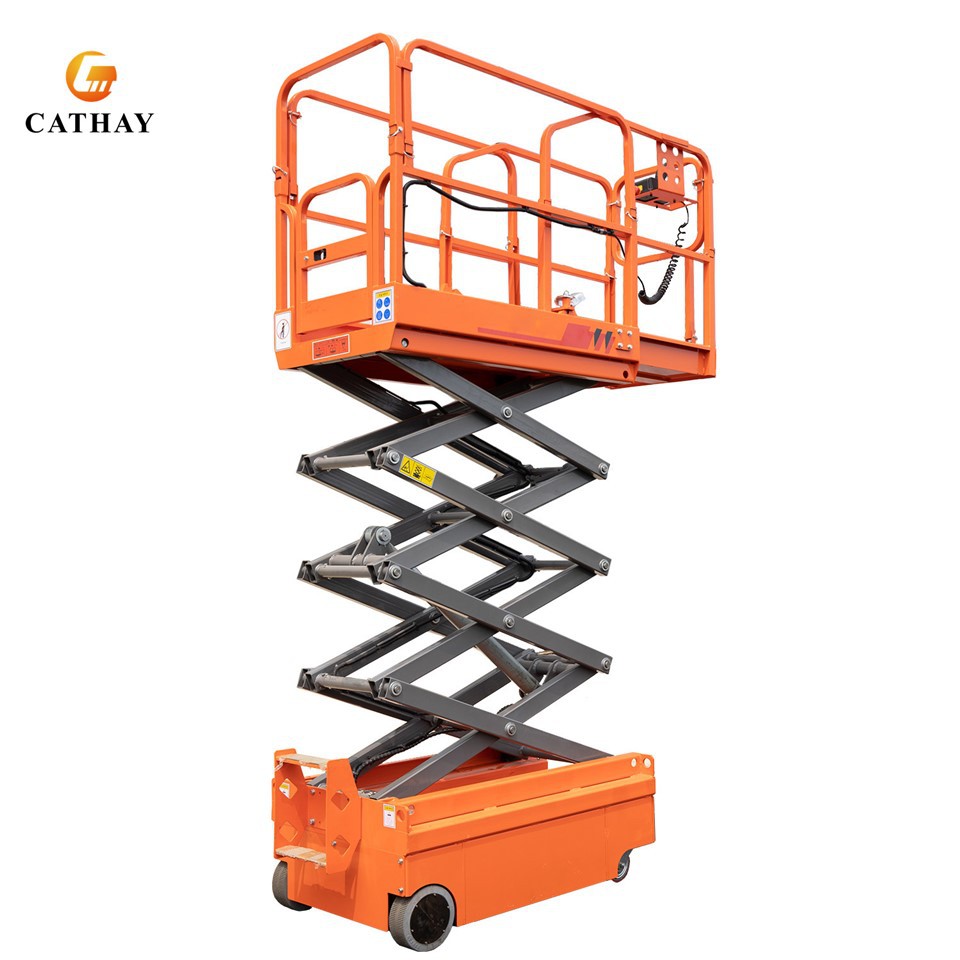

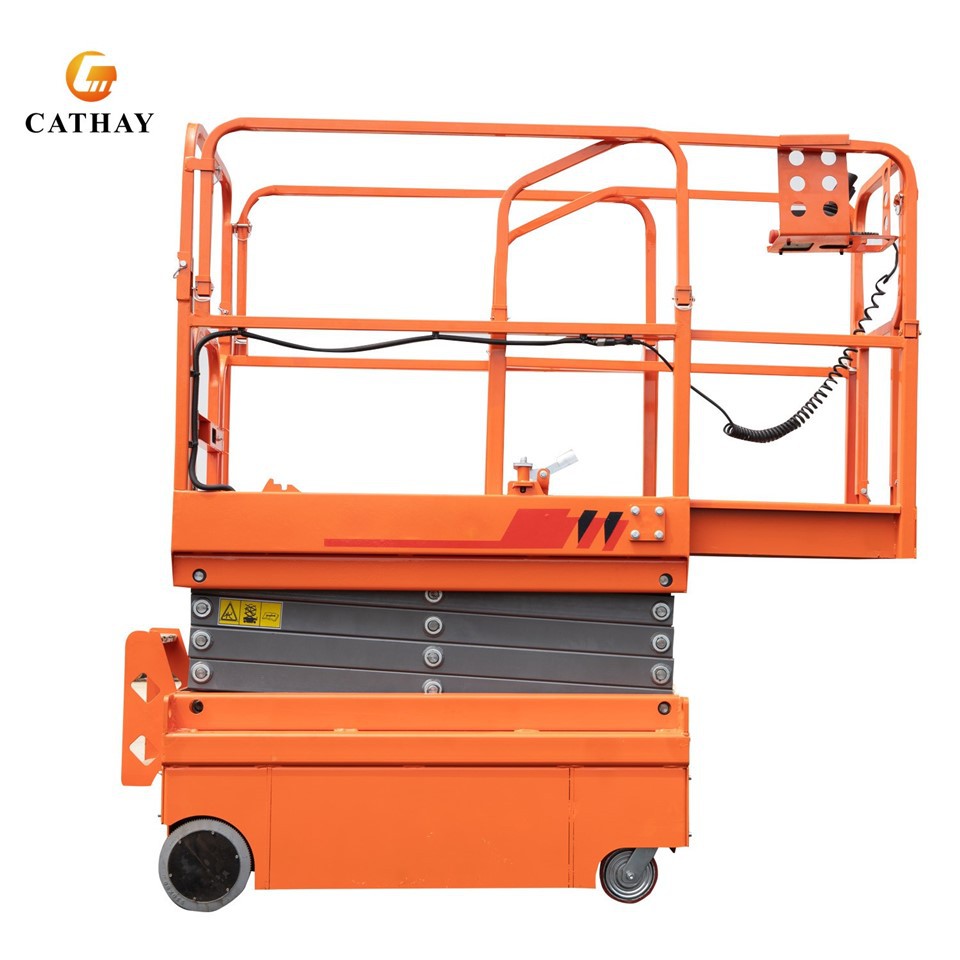

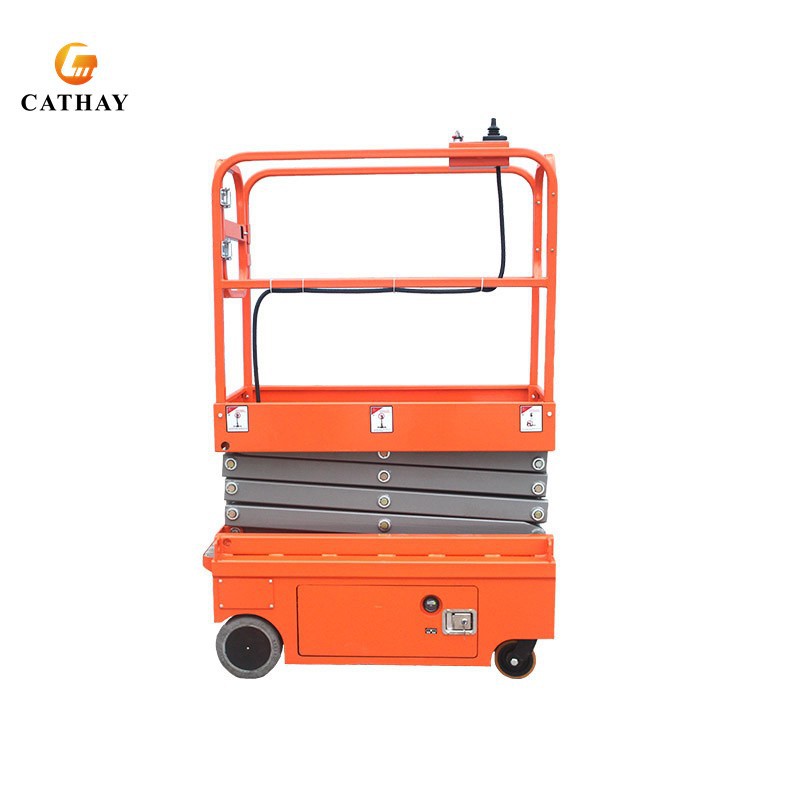

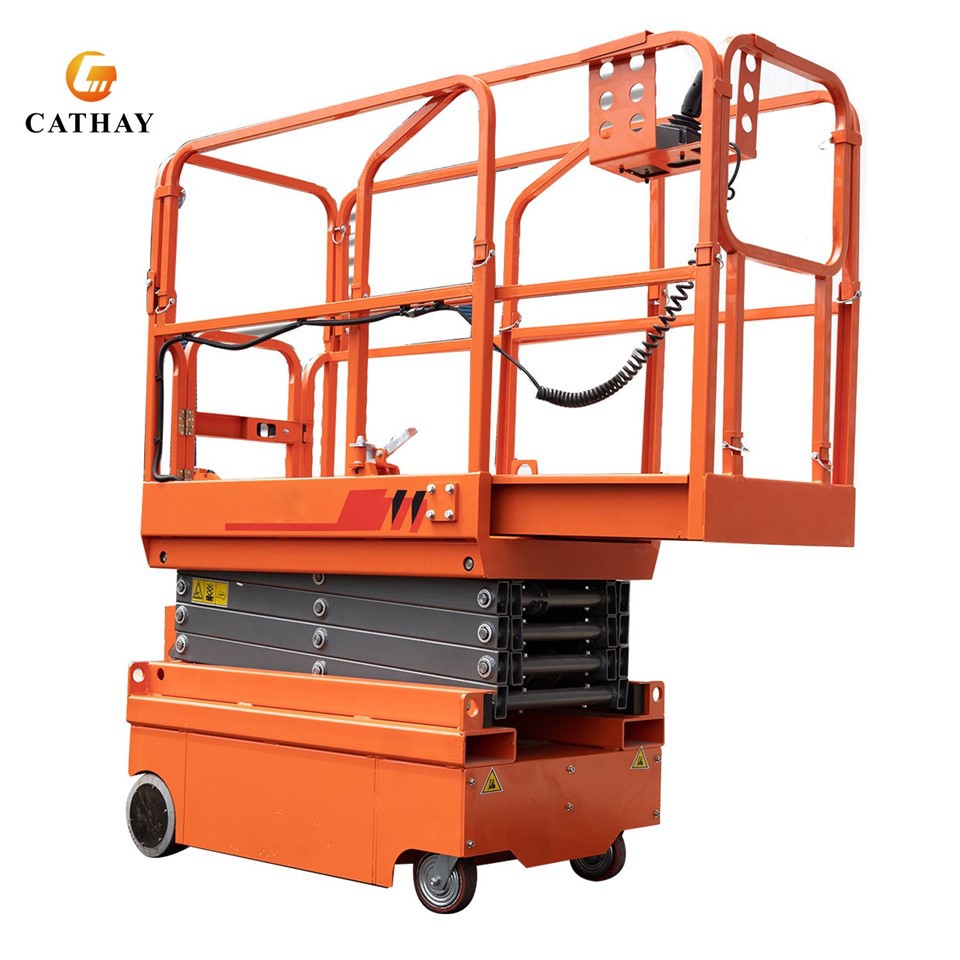

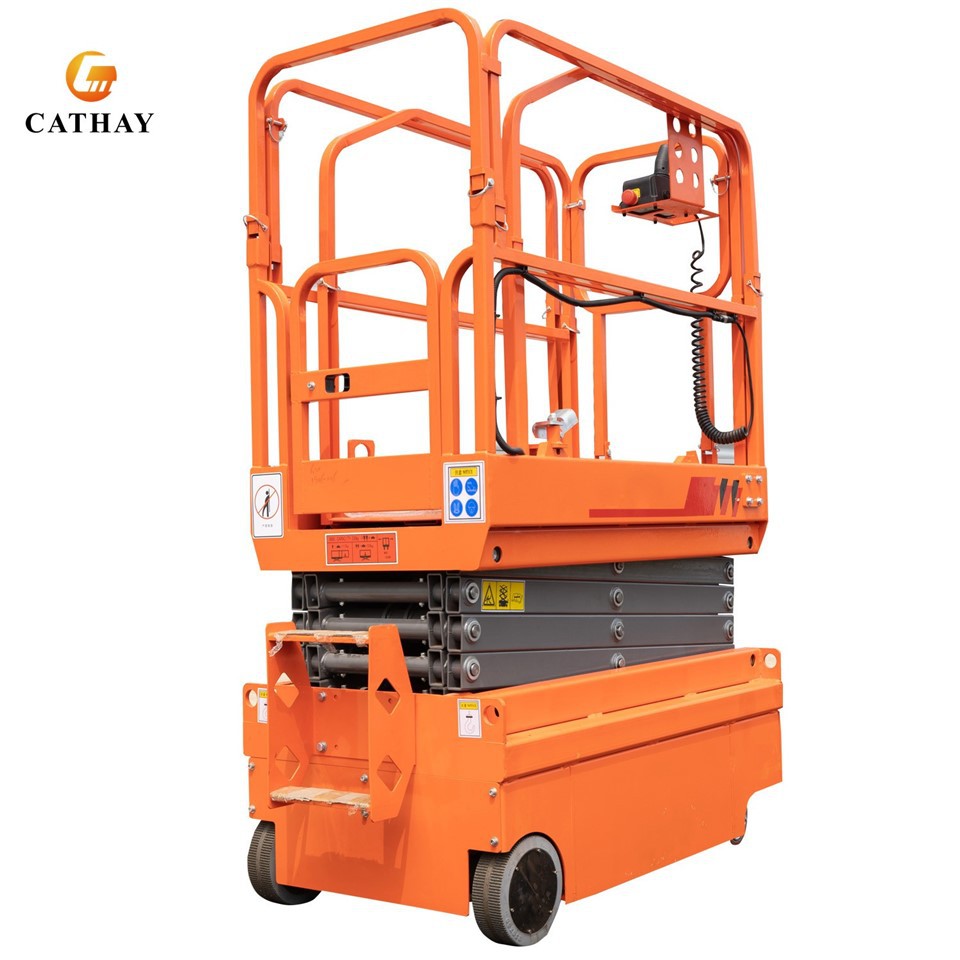

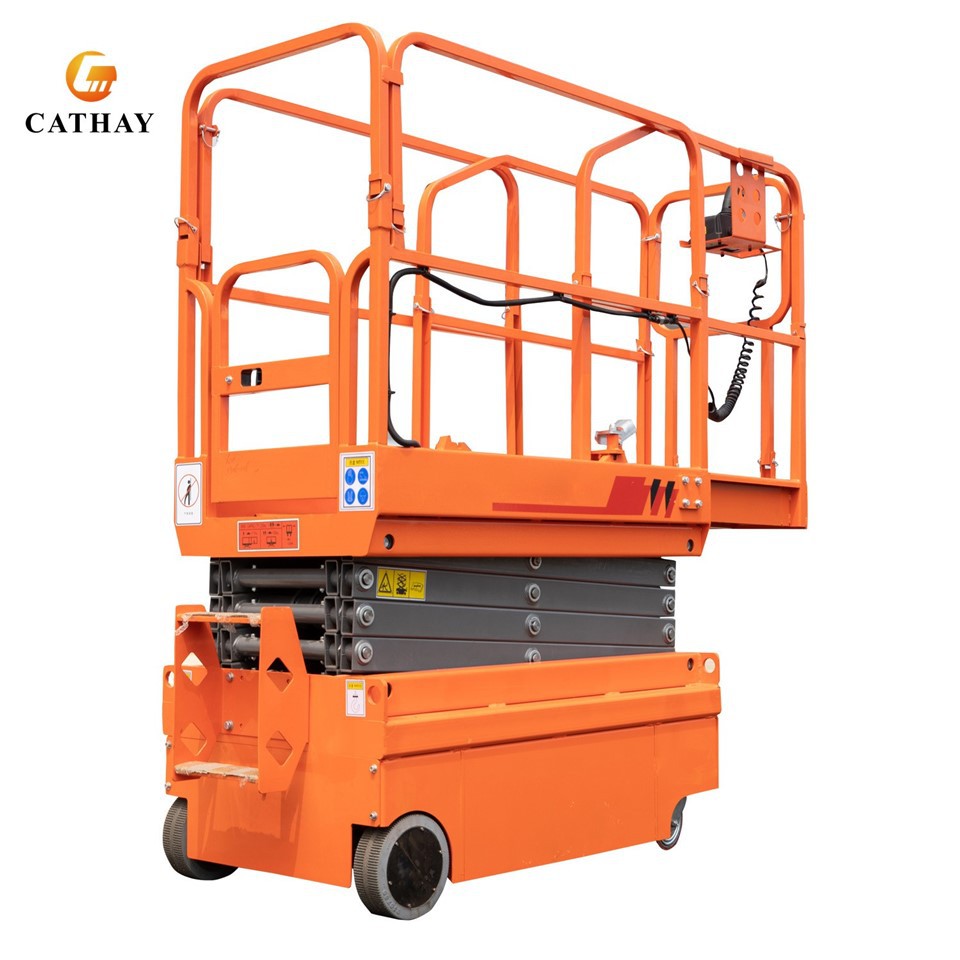

Mini Self Propelled Scissor Lift
CATHAYLIFT mini self-propelled scissor lift is the optimal solution for a variety of operating scenarios such as equipment maintenance, engineering construction, warehousing and logistics. Its compact size makes equipment storage and transportation more convenient, and it can smoothly enter and exit conventional channels and vertical transportation spaces, significantly enhancing the applicability of the equipment under different working conditions. The stable structure design ensures stable performance in long-term use, and with the lightweight body structure, the operator can easily complete position adjustment and precise positioning. This model is also equipped with a modular extension platform system, which can flexibly expand the operating area according to actual needs, creating a more efficient three-dimensional space solution for diversified mission scenarios.

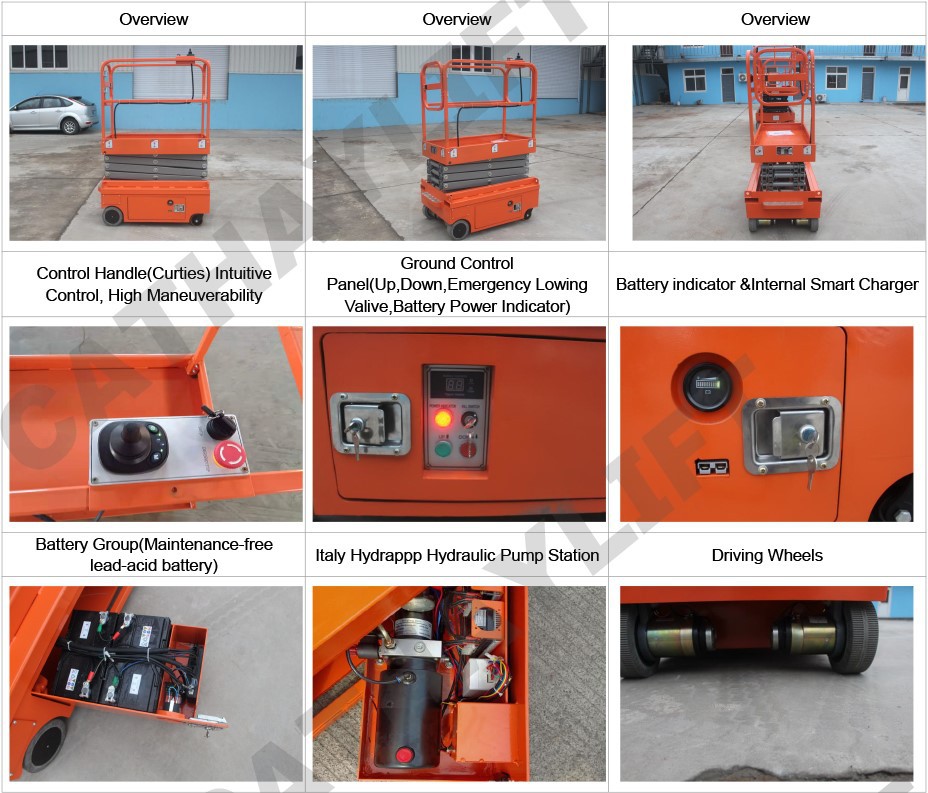

Product Details:

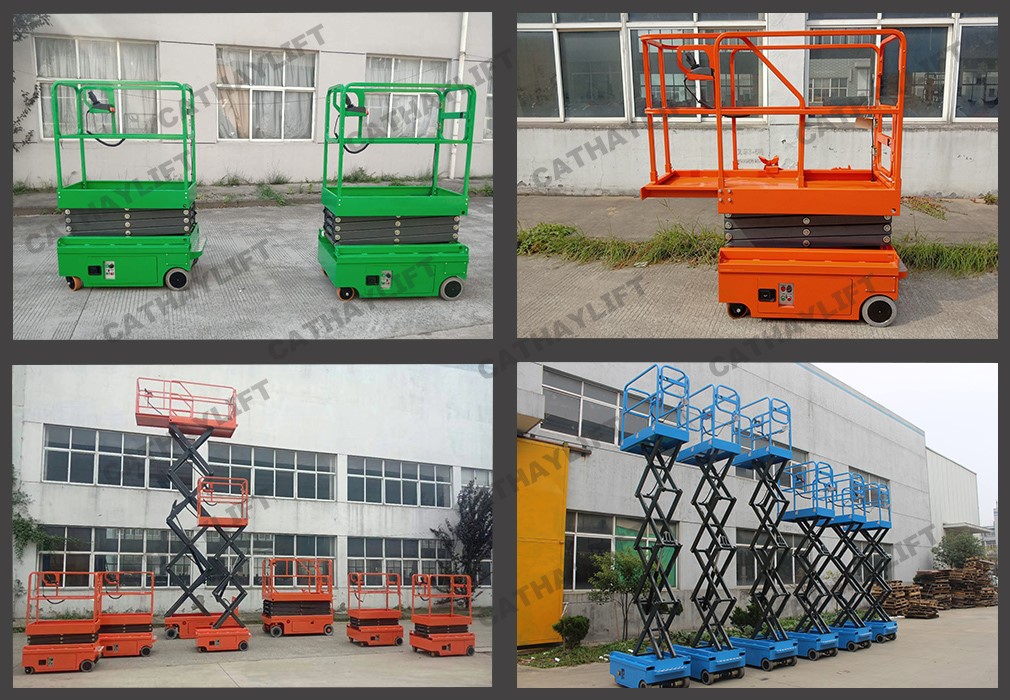

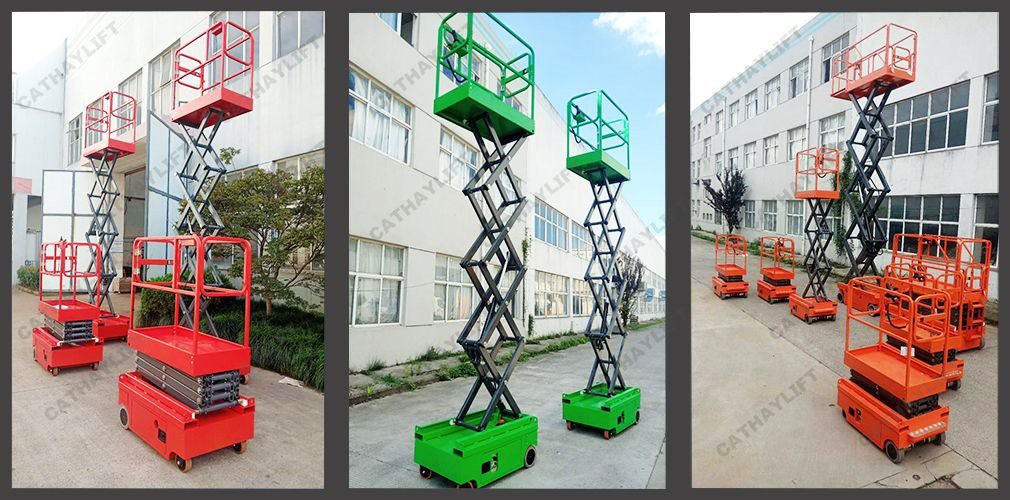

Real Order:
|
Model Type |
CLMS30 |
CLMS39 |
CLMS48 |
|
Max. Platform Height (mm) |
3000 |
3900 |
4800 |
|
Max. Working Height (mm) |
5000 |
5900 |
6800 |
|
Lift Rated Capacity (kg) |
300 |
300 |
300 |
|
Ground Clearance (mm) |
60 |
||
|
Platform Size (mm) |
1170*600 |
||
|
Wheelbase (mm) |
990 |
||
|
Min. turning radius (mm) |
1200 |
||
|
Max. Drive peed(Platform Lifted) |
4km/h |
||
|
Max. Drive Speed(Platform down) |
0.8km/h |
||
|
Lifting/falling speed (SEC) |
20/30 |
||
|
Max. Travel Grade (%) |
10-15 |
||
|
Drive motors (V/KW) |
2×24/0.4 |
||
|
Lifting motor (V/KW) |
24/0.8 |
||
|
Battery (V/AH) |
2×12/ 80 |
||
|
Charger (V/A) |
24/15A |
||
|
Max allowable working angle |
2° |
||
|
Driving wheel(mm) |
Φ230×80 |
||
|
Front wheel(mm) |
Φ150×60 |
||
|
Overall Length (mm) |
1300 |
||
|
Overall Width (mm) |
760 |
||
|
Overall Height (mm) |
1880 |
1980 |
2040 |
|
Overall Net Weight (kg) |
490 |
600 |
760 |
