Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of lightweight mini scissor lift in China. We warmly welcome you to buy discount lightweight mini scissor lift for sale here from our factory. Quality products and reasonable price are available.

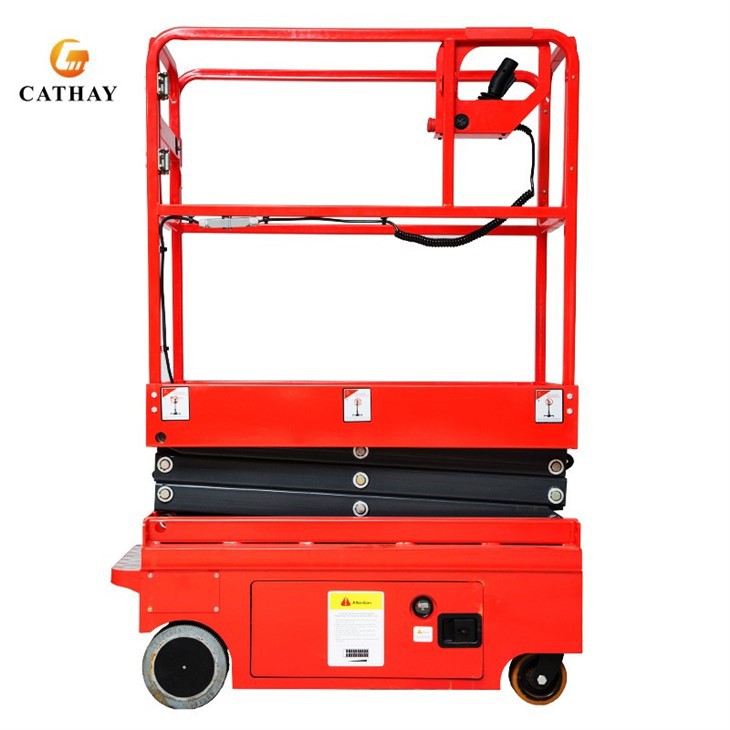

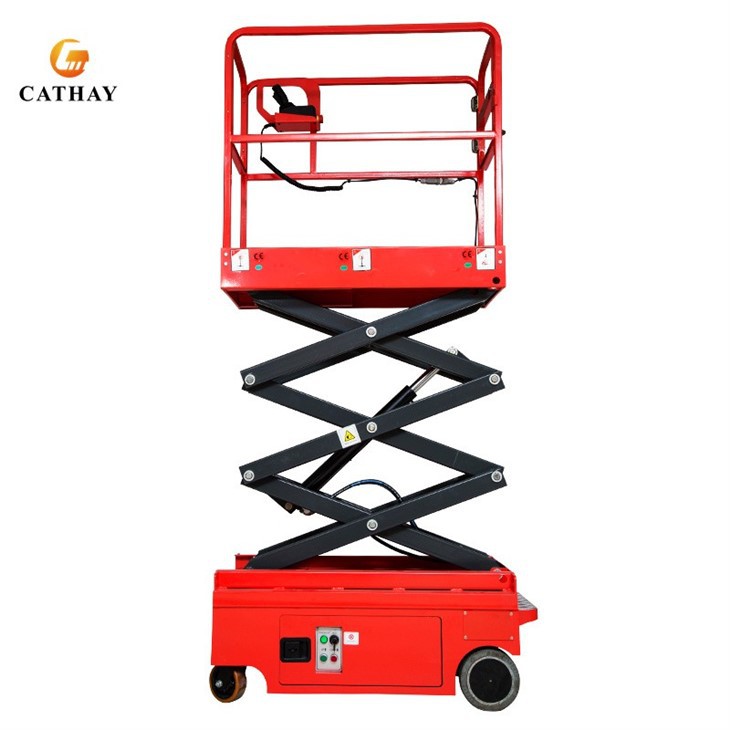

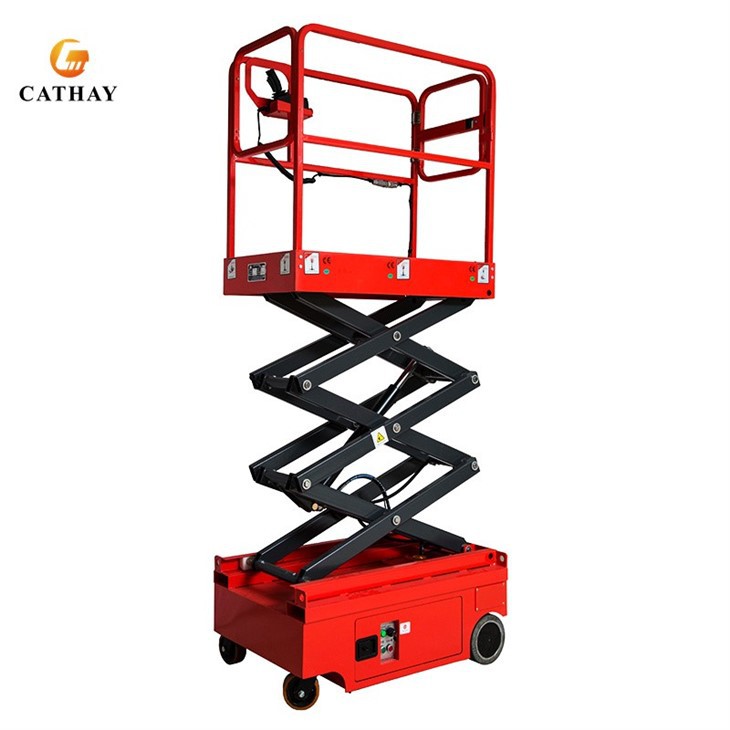

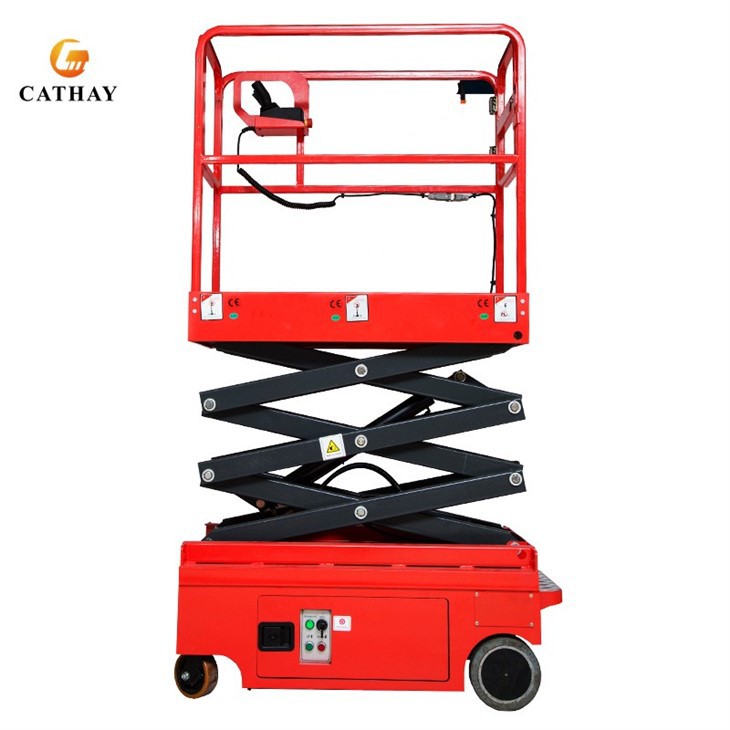

Lightweight Mini Scissor Lift
Crafted from high-strength manganese steel rectangular tubing, CATHAYLIFT's Lightweight Mini Scissor Lift is built to last, offering exceptional durability and resilience. Its three-part construction, comprising a sturdy base, powerful scissor mechanism, and a spacious workbench, delivers an exceptional balance of strength and stability. The integration of premium components, such as the Bucher pump station and NOK seals, guarantees exceptional sealing performance and leak-free operation. With its user-friendly design, the Mini Scissor Lift requires only a single operator to complete a range of tasks, including lifting, forward/backward movement, and steering, all while working at heights. This intuitive operation reduces manpower requirements and minimizes labor intensity, significantly boosting efficiency and productivity compared to traditional hydraulic platforms.
|
Model Type |
CLM30 |
CLM39 |
CLM48 |
|
Max. platform height (MM) |
3000 |
3900 |
4800 |
|
Working height (MM) |
5000 |
5900 |
6800 |
|
Min. platform height (MM) |
630 |
700 |
780 |
|
Platform size (MM) |
1170×600 |
1170*600 |
1170*600 |
|
Rated capacity (KG) |
300 |
240 |
240 |
|
Lifting time (S) |
33 |
40 |
40 |
|
Descent time (S) |
30 |
30 |
30 |
|
Lifting motor (V/KW) |
12/0.8 |
||
|
Battery charger (V/A) |
12/15 |
||
|
Overall length (MM) |
1300 |
||
|
Overall width (MM) |
740 |
||
|
Guide rail height(MM) |
1100 |
||
|
Overall Height with Guardrail (MM) |
1650 |
1700 |
1870 |
|
Overall Net Weight(KG) |
360 |
420 |
450 |
Product Details:
Overview
Overview
Overview
Contraol Panel On The Platform
Ground Control Panel(Up, Down, Emergency Lowing Valive)
Ladder for eay to climp
Battery Group (Maintenance-free lead-acid battery)
Italy Hydrappp Hydraulic Pump Station
Support Legs (3.9m model)
Advantages
- Unwavering Stability: The robust hydraulic disc brake system ensures reliable braking performance, even on a 6-degree slope. This advanced braking technology provides peace of mind, guaranteeing the safety of operators and equipment during operation.
- Intelligent Charging System: The fully automatic charger simplifies battery management, eliminating the need for manual intervention. The system automatically initiates and completes the charging process, ensuring optimal battery performance and extending its lifespan. Once fully charged, the charger automatically stops, preventing overcharging and maximizing battery longevity.
- Versatile Work Platform: The removable platform allows for increased versatility, expanding the scope of your projects and meeting the specific needs of different users. This adaptable design enhances the Lift's functionality and adaptability, enabling you to tackle a wider range of tasks with ease.
- Effortless Operation: Our stepless speed change system empowers you with complete control through a single operating handle on the workbench. This intuitive design eliminates complex controls, enabling intuitive operation for all tasks. The motor's stepless speed change capability also contributes to a longer service life for both the battery and motor, ensuring maximum efficiency and minimizing energy consumption.

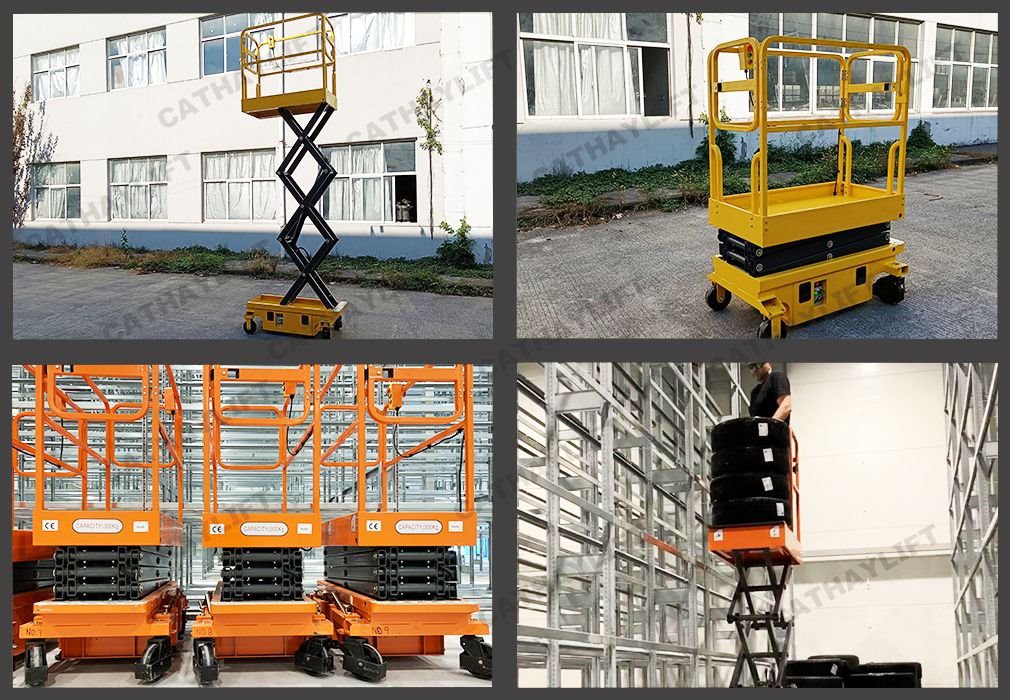

Real Order:
