Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of mini narrow scissor lift in China. We warmly welcome you to buy discount mini narrow scissor lift for sale here from our factory. Quality products and reasonable price are available.

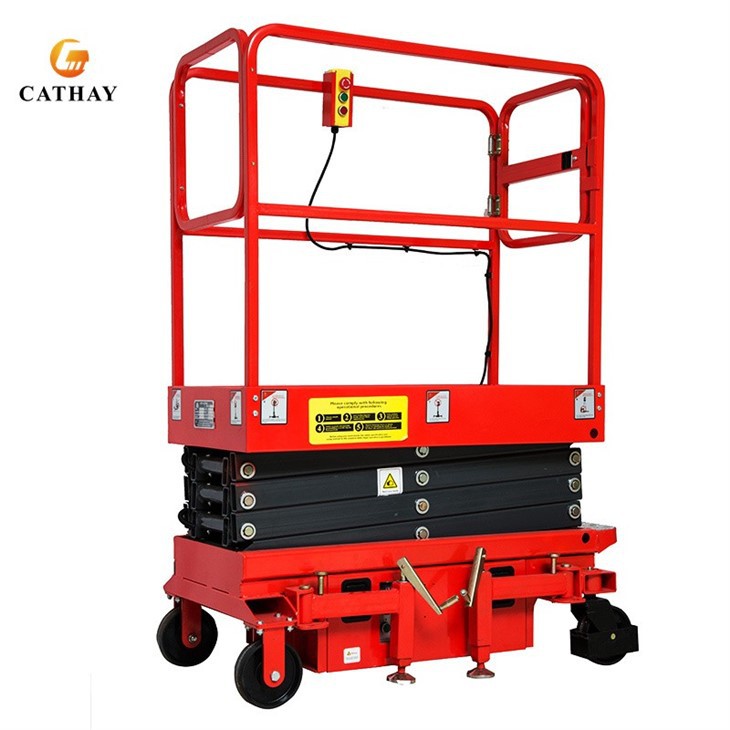

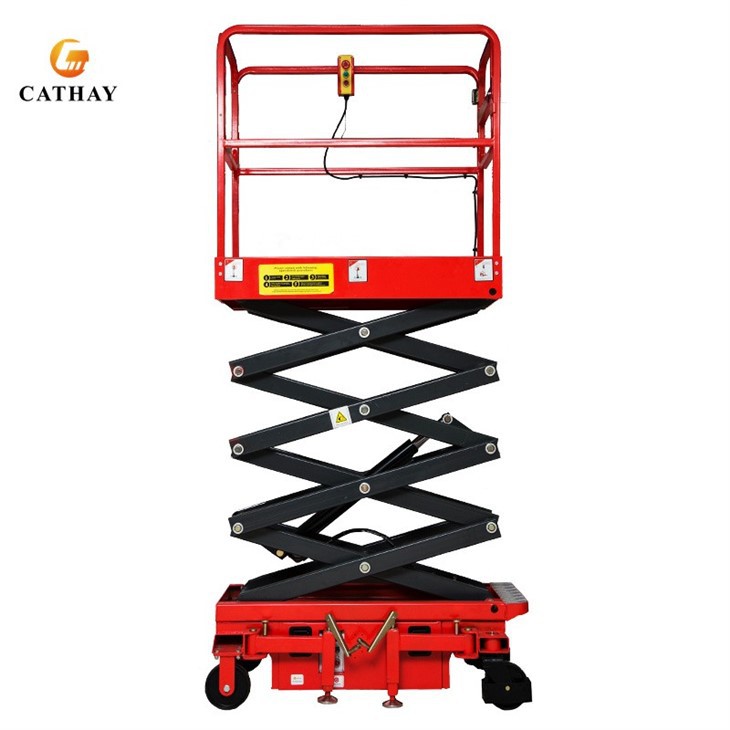

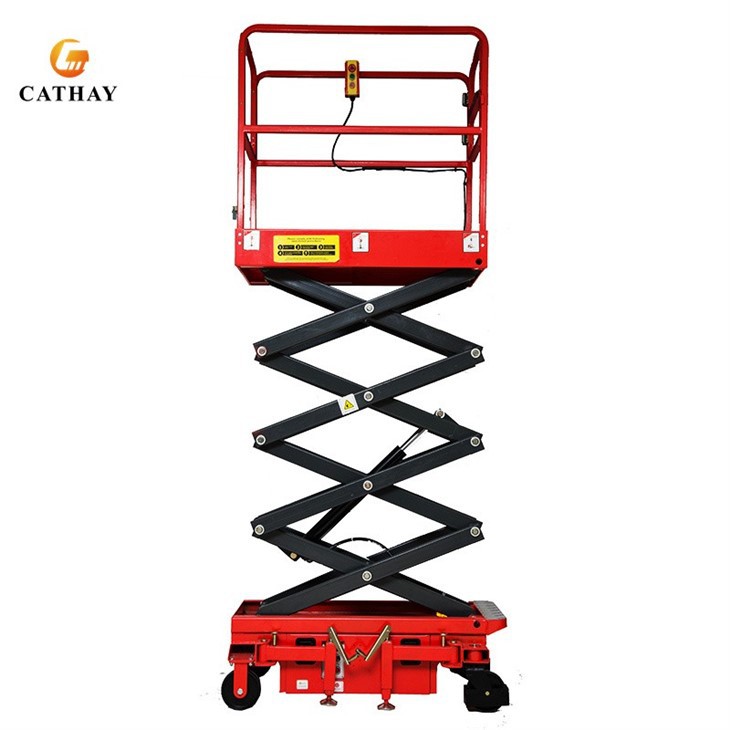

Mini Narrow Scissor Lift
Compared to traditional hydraulic platforms, CATHAYLIFT's Mini Narrow Scissor Lift reduces the need for multiple operators, minimizing labor intensity and maximizing productivity. Ideal for a wide range of applications, including airport terminals, stations, docks, shopping malls, stadiums, residential properties, factories, and mines, CATHAYLIFT's Mini Narrow Scissor Lift empowers you to reach new heights with ease and precision.
|
Model type |
CLMS30 |
CLMS39 |
CLMS48 |
|
Max. platform height (mm) |
3000 |
3900 |
4800 |
|
Max. working height (mm) |
5000 |
5900 |
6800 |
|
Lift rated capacity (kg) |
300 |
300 |
300 |
|
Ground clearance (mm) |
60 |
||
|
Platform size (mm) |
1170*600 |
||
|
Wheelbase (mm) |
990 |
||
|
Min. turning radius (mm) |
1200 |
||
|
Max. drive peed (platform lifted) |
4km/h |
||
|
Max. drive speed (platform down) |
0.8km/h |
||
|
Lifting/falling speed (SEC) |
20~40/30~40 |
||
|
Max. travel grade (%) |
10-15 |
||
|
Drive motor (V/KW) |
2×24/0.3 |
||
|
Lifting motor (V/KW) |
24/0.8 |
||
|
Battery (V/AH) |
2×12/ 80 |
||
|
Charger (V/A) |
24/15A |
||
|
Max allowable working angle |
2° |
||
|
Overall Length (mm) |
1180 |
||
|
Overall Width (mm) |
760 |
||
|
Overall Height (mm) |
1830 |
1930 |
2030 |
|
Overall Net Weight (kg) |
490 |
600 |
710 |
Product Details:
Features & Advantages:
- Uncompromising Braking: The hydraulic disc brake system ensures the lift remains securely in place, even on a 6-degree incline. Wheels are constantly engaged, providing a reliable braking force at all times.
- Intelligent Charging: The fully automatic charger takes the guesswork out of battery management. It meticulously monitors the charging process, automatically stopping when the battery is fully charged, ensuring optimal battery life and eliminating the risk of overcharging.
- Overload Protection: This intelligent feature functions as a vigilant guardian, safeguarding both the lift and its operator. It prevents overloading, ensuring safe operation and preventing potentially dangerous situations.
- Self-Diagnosis: A Clear View of Health: The self-diagnosis function provides real-time insights into the lift's operational status, enabling proactive maintenance and minimizing downtime. This feature empowers users to stay ahead of potential issues, ensuring smooth and reliable performance.
Real Order:
