Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of mobile hydraulic lift platform in China. We warmly welcome you to buy discount mobile hydraulic lift platform for sale here from our factory. Quality products and reasonable price are available.

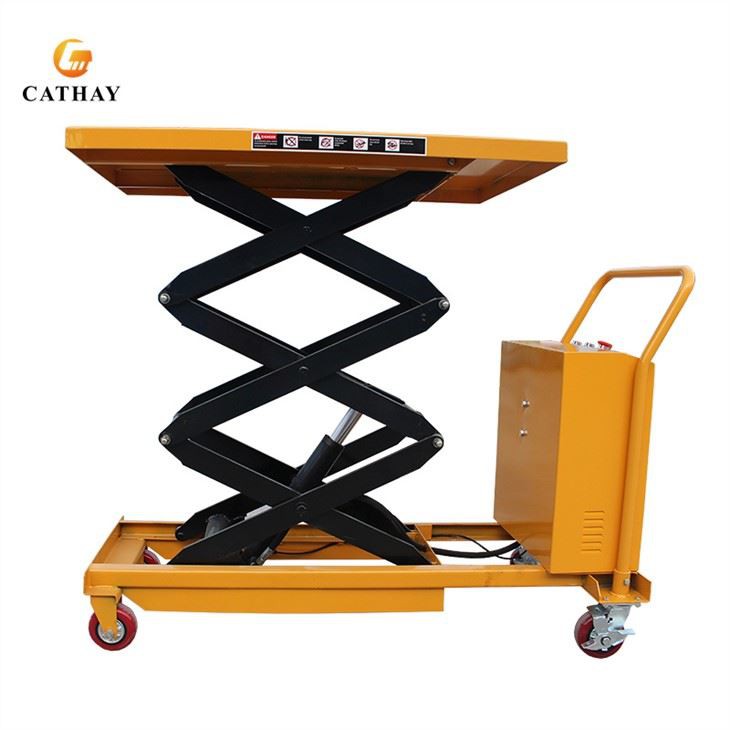

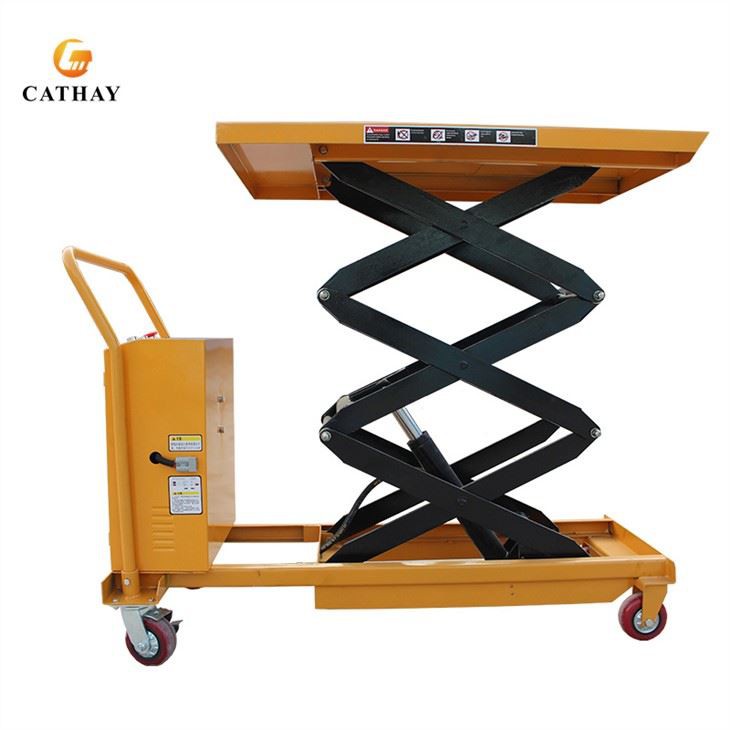

Mobile hydraulic Lift Platfrom has the advantages of simple operation, convenient lifting and moving, beautiful appearance and light weight, which can greatly improve work efficiency.
Model | Load Capacity | Lowed Platform Height | Max. | Platform Size | Lifting time | DC battery | Net weight |
C-E700 | 700kg | 450 | 1230 | 1143*635 | 5 s | 12V 80Ah | 160 |
C-E1000 | 1000kg | 430 | 1220 | 1200*800 | 5 s | 12V 80Ah | 225 |

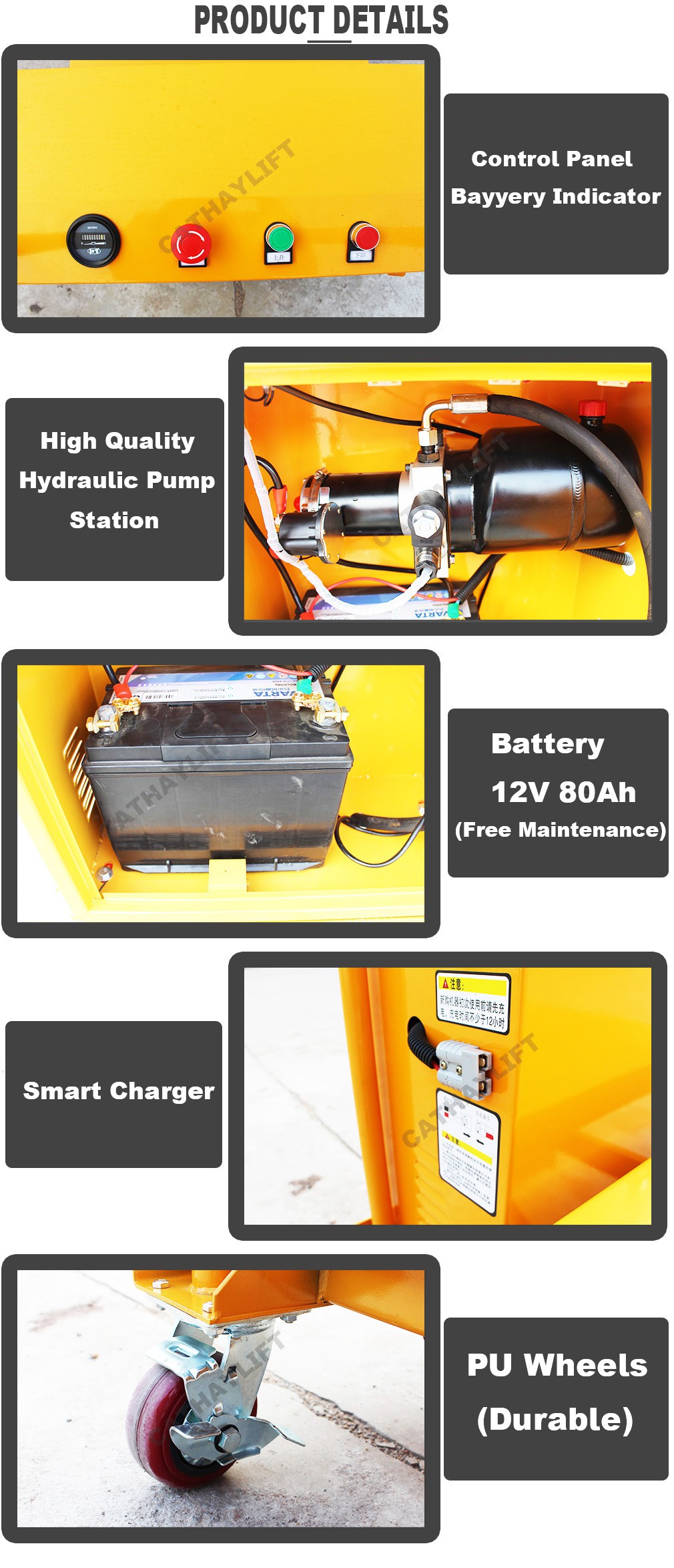

Main Component:
● The mechanical structure consists of a chassis, a scissor arm frame and a workbench. The scissor arm is made of Q345B high-strength steel plates produced by Shanghai Baosteel and welded by gas shielding. High strength and good elasticity; the intermediate shafts are surface-treated and plated with hard chrome, and the oil-free bearings produced by high-tech nanotechnology are added between the key shafts and the bushings to enhance the rotation flexibility, wear resistance, and make the equipment run more smoothly. Extended service life.
● The hydraulic system is composed of a DC power unit, a special hydraulic cylinder, a high-pressure oil pipe, etc. The DC motor drives the hydraulic pump, and the pressure generated from the oil suction from the oil tank pushes the piston rod of the hydraulic cylinder to move, and the lifting platform rises vertically under the action of the piston rod. When the lift table descends, the hydraulic oil is under the control of the speed limiting valve and the flow valve, and then the solenoid valve is opened through the electrical control to return the oil to the oil tank. The lifting platform is provided with overload and overflow protection, and the hydraulic cylinder is provided with a descending speed limiting device, which can ensure that the oil pipe can be lowered normally even in the event of rupture.
● The electrical control system consists of DC motors, fuses, relays, DC contactors, limit switches, control buttons, chargers, etc. The control box and working platform are controlled by 24V low-voltage circuit. The control method is self-protection control. The electrical control action is sensitive, safe and reliable. When the staff on the lifting platform has a sudden power failure or a sudden failure of the lifting platform, so that the lifting platform cannot be lowered, the manual unloading valve can be adjusted until the lifting platform descends smoothly.
Instruction:
● Before operating the car, you should read the manual and master the performance of the car.
● It is forbidden for people's hands or feet to enter the coverage area of the table, and it is not allowed to load goods while moving the car body.
● Do not overload, otherwise the car will not be able to be used normally; no partial load is allowed, and the center of gravity of the cargo should be in the platform.
● Do not load loose or unstable goods; do not leave the goods on the car body for a long time, so as not to reduce the life of the car.
● When the vehicle is not in operation, lower the platform to its lowest position and store it in a dry, well-ventilated room.
● It is strictly forbidden to carry people.
● The car is suitable for use on flat, hard ground.
● After the platform is lifted, the cargo on the car body must not move sideways; when loading the cargo, the brakes must be braked to prevent the car body from moving.
