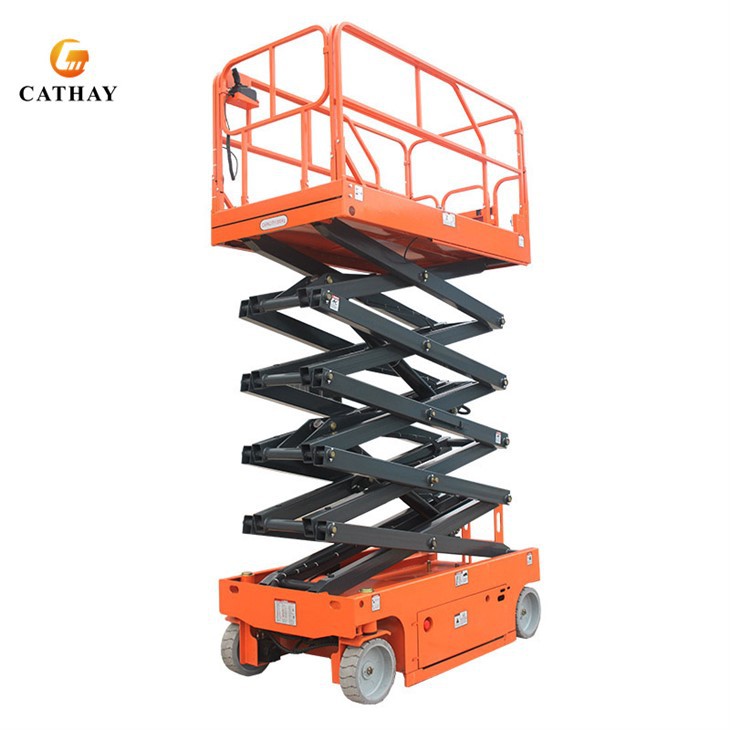

Narrow Scissor Lift
The CATHAYLIFT Narrow Scissor Lift offers a working height range from 6m to 16m and a load capacity of 227kg to 300kg. This compact and highly flexible lift ensures excellent safety with robust protection features. It supports multidirectional movement, allowing it to move forward, backward, up, and down. The walking speed is manually adjustable, enabling fast or slow operation as needed. Designed for high efficiency in confined spaces, the CATHAYLIFT Narrow Scissor Lift is ideal for various industrial and maintenance tasks, providing reliability and convenience in a compact form factor..
|
Model |
CLS06 |
CLS08 |
CLS10 |
CLS12 |
CLS14 |
|
Lifting Height (mm) |
6000 |
8000 |
10000 |
12000 |
13800 |
|
Lifting capacity |
300 |
300 |
300 |
300 |
227 |
|
Max height-guardrail unfold (mm) |
2150 |
2275 |
2400 |
2525 |
2590 |
|
Max height-guardrail folded (mm) |
1190 |
1315 |
1440 |
1565 |
2050 |
|
Overall Length (mm) |
2400 |
2640 |
|||
|
Overall Width (mm) |
1150 |
1130 |
|||
|
Platform Size (mm) |
2270×1150 |
2840x1390 |
|||
|
Platform extend size (mm) |
900 |
||||
|
Min ground clearance (mm) |
110/20 |
||||
|
Wheelbase (mm) |
1850 |
||||
|
Min turn radius-inner wheel (mm) |
0 |
||||
|
Min turn radius-outer wheel (mm) |
2100 |
2700 |
|||
|
Power source (v/kw) |
24/3.0 |
24/4.5 |
|||
|
Running speed-folding (km/h) |
4 |
||||
|
Running speed-rising (km/h) |
0.8 |
||||
|
Rising/falling speed (sec) |
40/50 |
70/80 |
|||
|
Battery (V/AH) |
4×12/135 |
4x12/150 |
|||
|
Charger (V/A) |
24/25 |
24v/30 |
|||
|
Max climbing ability (%) |
20 |
||||
|
Max working allowable angle |
2-3° |
||||
|
Way of control |
Electro-hydraulic proportion control |
||||
|
Driver |
Double front-wheel |
||||
|
Hydraulic drive |
Double rear-wheel |
||||
|
Wheel size-stuffed&no mark |
Φ381×127 |
||||
|
Whole weight (kg) |
1900 |
2080 |
2490 |
2760 |
3320 |
Product Details:
Overview
Overview
Overview
Control Handle(Curties) Intuitive Control, High Maneuverability
Ground Control Panel(Up,Down,Emergency Lowing Valive,Battery Power Indicator)

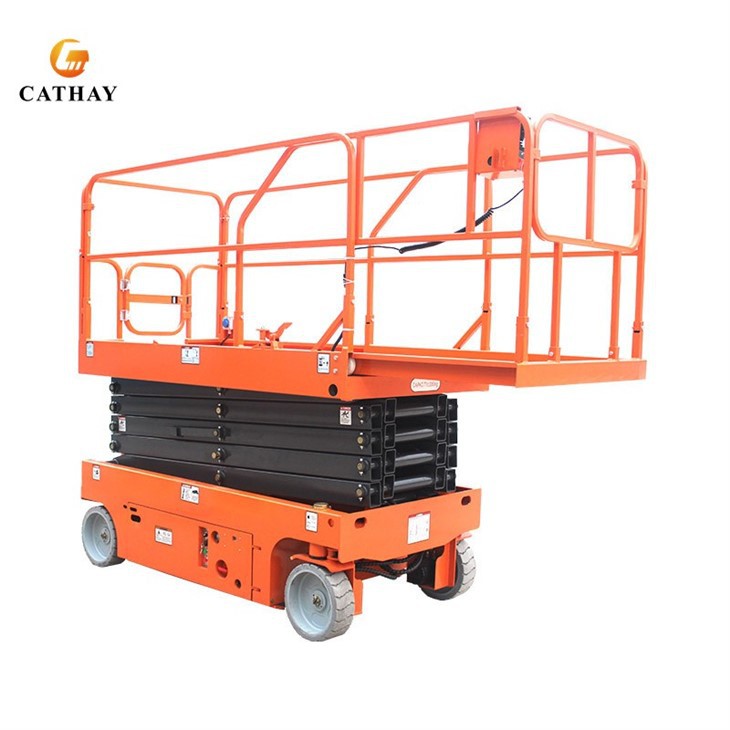

Fordable Guardrails&900mm Extra Extendable Platform
Trojian Battery(America)Check Regularly, Add Distilled Water
Italy Hydrappp Hydraulic Pump Station And Italy Doyle Hydraulic Valve
Smart Charger(Internal)
Buzzer, Tilt Sensor Strobe Light
Hydraulic Steering(Stable And High Maneuverability)
Manually Release The Brake(Automatic Braking System)
Advantages:
Versatile Working Range: The working height ranges from 3m to 16m, with a load capacity of 227kg to 450kg. The working surface can be extended to expand the range for special processing requirements.
Enhanced Safety Features: Equipped with high-quality pressure-resistant oil cylinders to prevent leaks, an emergency descent rope, and a buzzer device to warn personnel during operation.
Ease of Movement: Multidirectional mobility with adjustable speed, making it easy to navigate forward, backward, up, and down.
User-Friendly Operation: Integrated control handle, horn button, and turtle speed switch simplify the control of platform lifting and movement.
Durability and Efficiency: High-power battery pack for continuous operation up to 8 hours, imported motors for power and durability, and markless rubber wheels suitable for various surfaces.
