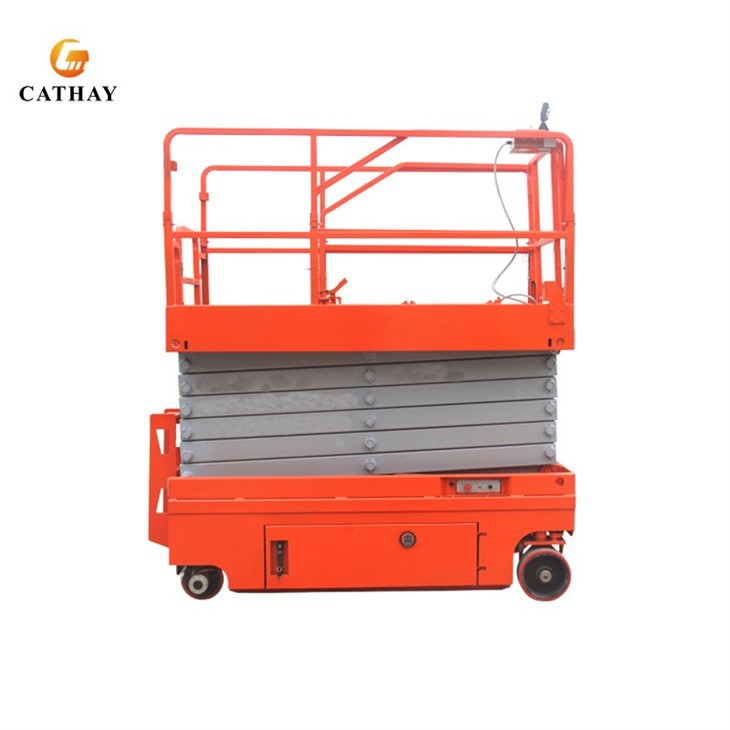

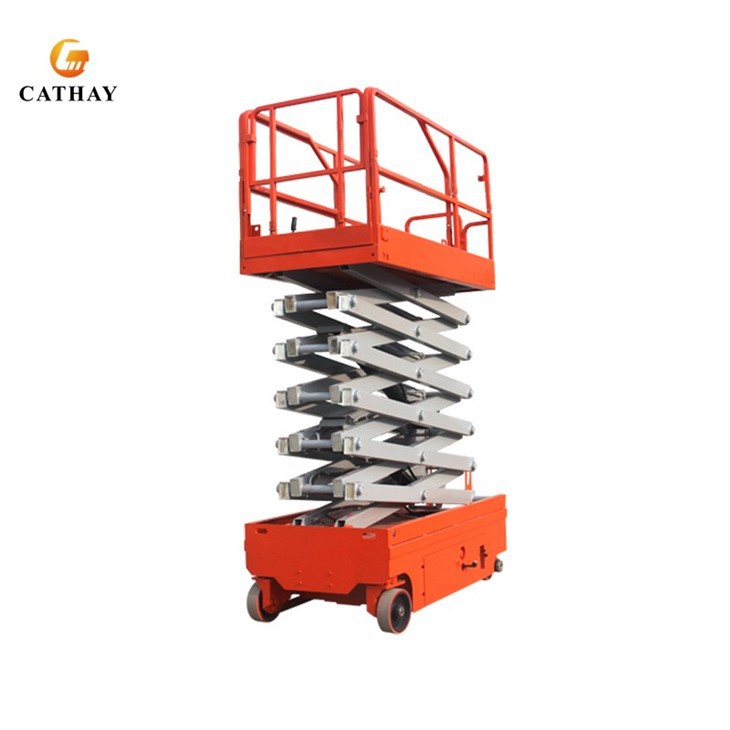

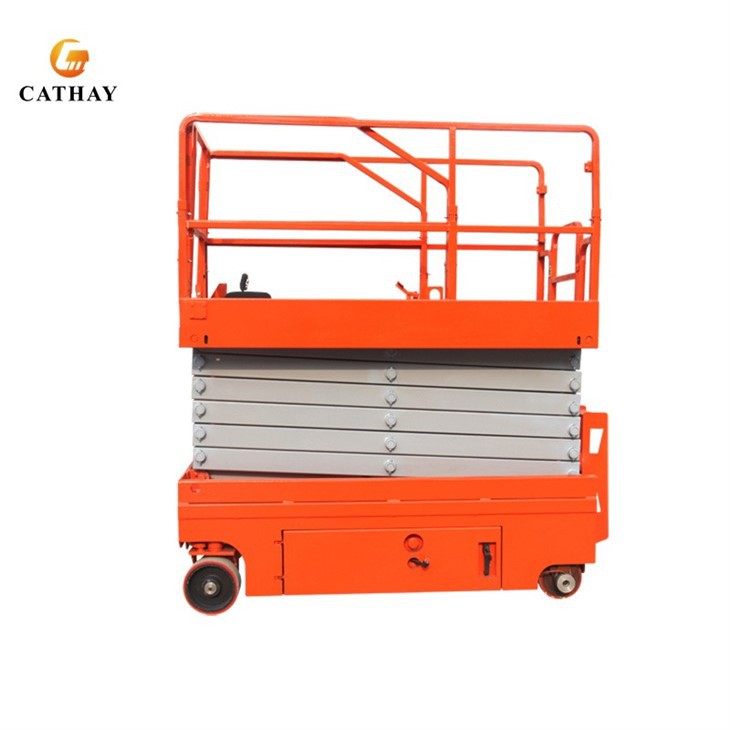

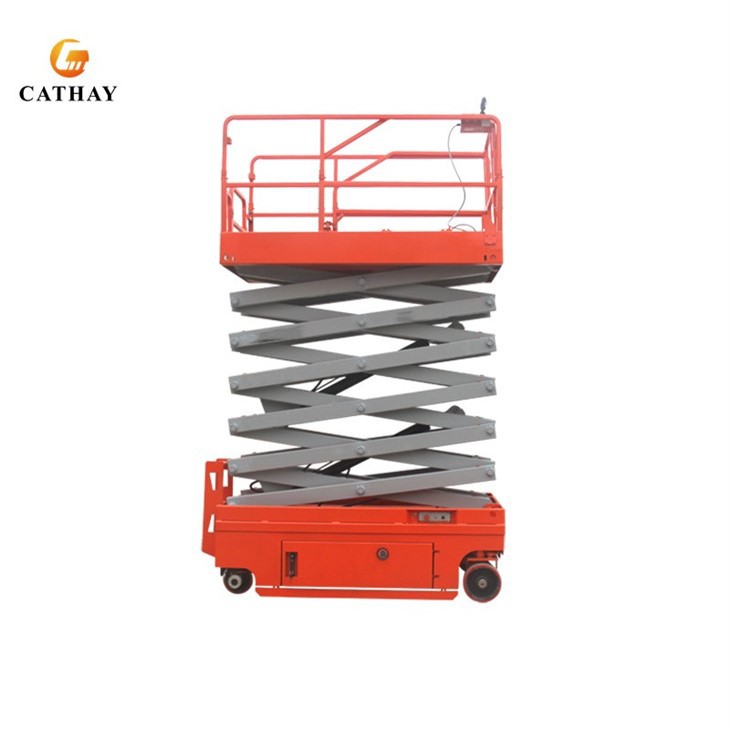

Scissor Lifting Platform
This meticulously crafted CATHAYLIFT Scissor Lifting Platform brings together advanced features and capabilities to ensure unparalleled operational ease and security. It is a testament to innovative design, integrating advanced safety features and operational efficiency. It represents a leap forward in lifting technology, tailor-made for industries seeking reliability and performance in high-reach tasks.
|
Model |
CLS06 |
CLS08 |
CLS10 |
CLS12 |
CLS14 |
|
Lifting Height (mm) |
6000 |
8000 |
10000 |
12000 |
13800 |
|
Lifting capacity |
300 |
300 |
300 |
300 |
227 |
|
Max height-guardrail unfold (mm) |
2150 |
2275 |
2400 |
2525 |
2590 |
|
Max height-guardrail folded (mm) |
1190 |
1315 |
1440 |
1565 |
2050 |
|
Overall Length (mm) |
2400 |
2640 |
|||
|
Overall Width (mm) |
1150 |
1130 |
|||
|
Platform Size (mm) |
2270×1150 |
2840x1390 |
|||
|
Platform extend size (mm) |
900 |
||||
|
Min ground clearance (mm) |
110/20 |
||||
|
Wheelbase (mm) |
1850 |
||||
|
Min turn radius-inner wheel (mm) |
0 |
||||
|
Min turn radius-outer wheel (mm) |
2100 |
2700 |
|||
|
Power source (v/kw) |
24/3.0 |
24/4.5 |
|||
|
Running speed-folding (km/h) |
4 |
||||
|
Running speed-rising (km/h) |
0.8 |
||||
|
Rising/falling speed (sec) |
40/50 |
70/80 |
|||
|
Battery (V/AH) |
4×12/135 |
4x12/150 |
|||
|
Charger (V/A) |
24/25 |
24v/30 |
|||
|
Max climbing ability (%) |
20 |
||||
|
Max working allowable angle |
2-3° |
||||
|
Way of control |
Electro-hydraulic proportion control |
||||
|
Driver |
Double front-wheel |
||||
|
Hydraulic drive |
Double rear-wheel |
||||
|
Wheel size-stuffed&no mark |
Φ381×127 |
||||
|
Whole weight (kg) |
1900 |
2080 |
2490 |
2760 |
3320 |
Product Details:
Overview
Overview
Overview

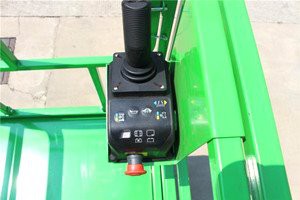

Control Handle(Curties) Intuitive Control, High Maneuverability

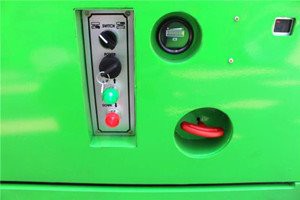

Ground Control Panel(Up,Down,Emergency Lowing Valive,Battery Power Indicator)
Fordable Guardrails&900mm Extra Extendable Platform

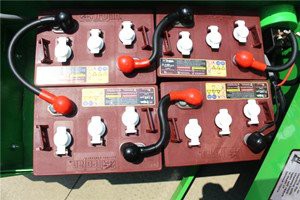

Trojian Battery(America)Check Regularly, Add Distilled Water

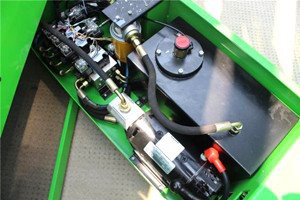

Italy Hydrappp Hydraulic Pump Station And Italy Doyle Hydraulic Valve
Smart Charger(Internal)
Buzzer, Tilt Sensor Strobe Light

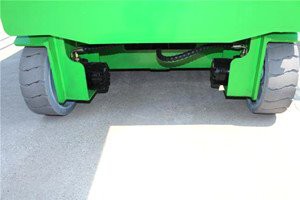

Hydraulic Steering(Stable And High Maneuverability)
Manually Release The Brake(Automatic Braking System)
Advantages:
● Streamlined Hydraulic Functionality: The CATHAYLIFT Scissor Lifting Platform is anchored by an advanced check valve mechanism, deftly channeling hydraulic oil to deliver smooth, controlled ascent and descent, epitomizing precise maneuverability.
● Safety Mechanisms Galore: A relief valve is integrated to vigilantly monitor hydraulic flow, serving as an effective overflow safeguard. This component helps maintain the lift within operational safety boundaries, averting any chance of overburdening the system.
● Controlled Velocity Adjustment: The inclusion of a speed regulating valve permits meticulous adjustments to the hydraulic oil velocity, modulating the lifting platform's speed. This adaptability ensures operations are consistently stable and can be tailored to specific job requirements.
● Maximum Pressure Shield: A hydraulic valve provides utmost protection against pressure surges, standing as a robust barrier for the system's preservation and seamless functioning.
● Explosion-Proof Assurance: An explosion-proof valve heightens safety by preventing oil pipe ruptures, offering an added layer of protection against unforeseen events.
● Automatic Brake with Manual Release: The built-in automatic brake system enhances safety, complemented by a manual brake release for traction when powered off-ideal for swift mobilization or in emergency scenarios.
● Pothole Protection System: A pioneering system activates upon elevation, deploying flaps to detect misalignments or obstacles, ensuring stability. It prevents elevation in potentially hazardous conditions, allowing only descent and movement until safety parameters are met.
● Emergency Descent Lock: In case of malfunction, an emergency descent lock activates, preventing unintended descent, thus prioritizing user safety above all else.

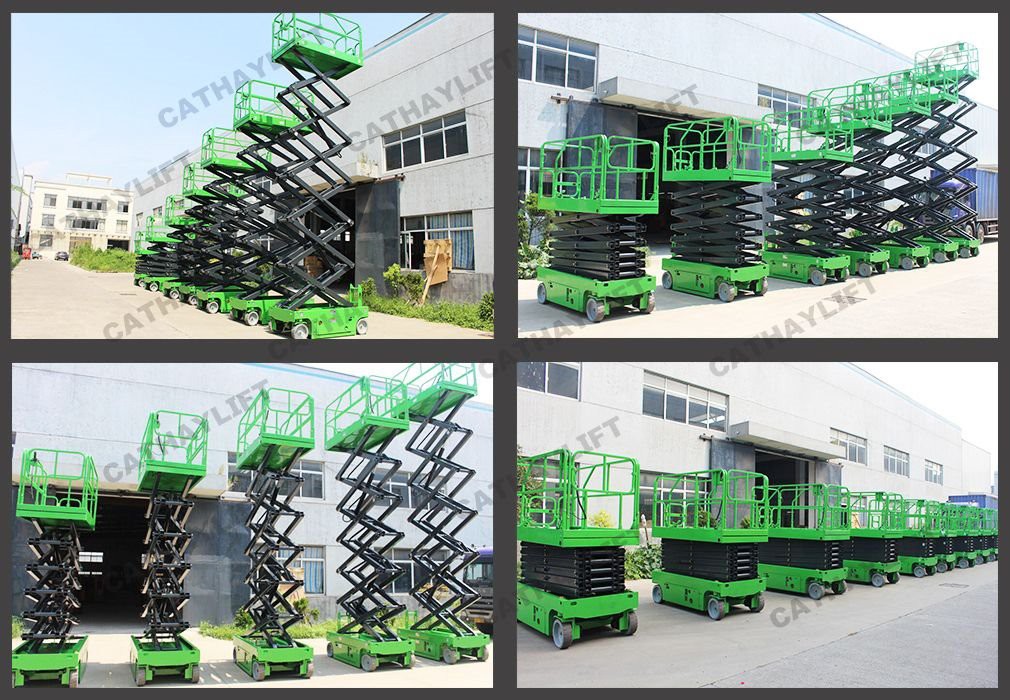

Real Order:
