Portable Mobile Car Electric Station

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of portable mobile car electric station in China. We warmly welcome you to buy discount portable mobile car electric station for sale here from our factory. Quality products and reasonable price are available.

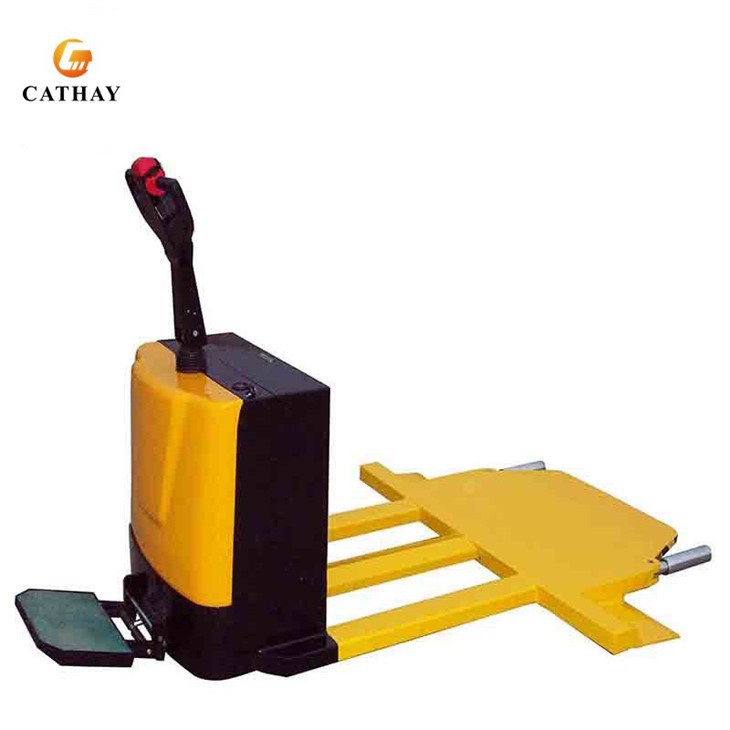

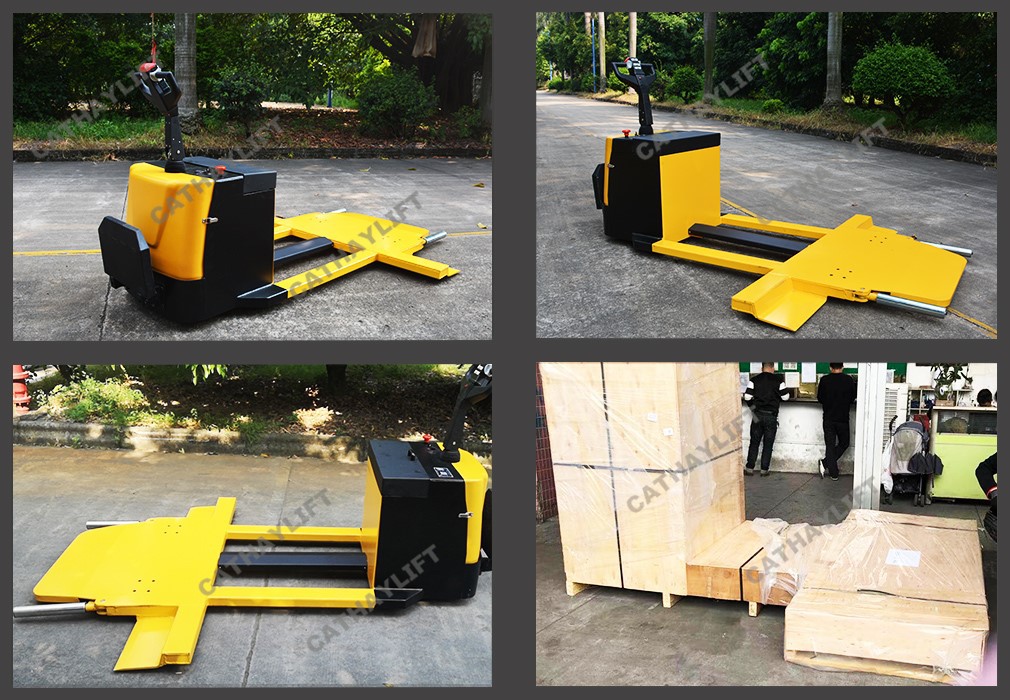

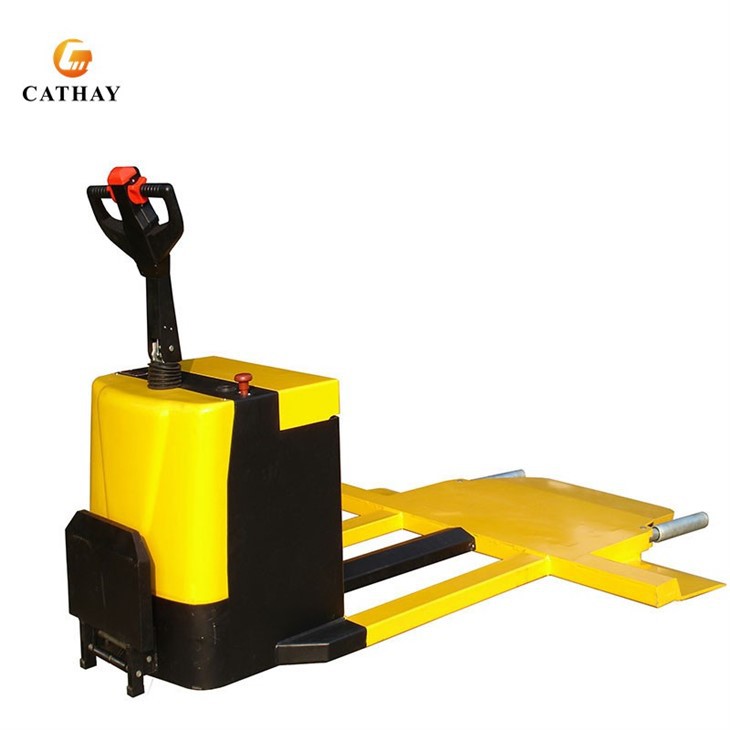

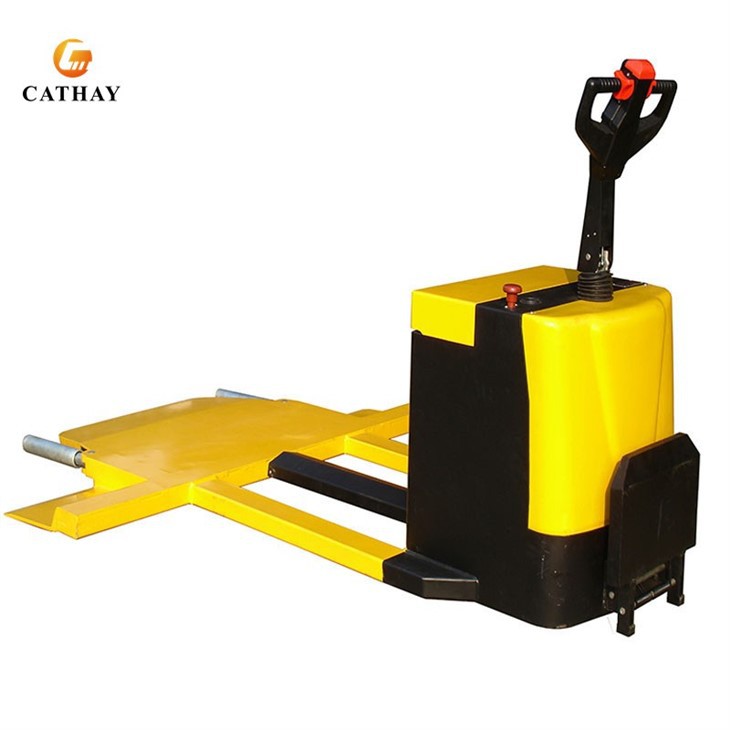

The CATHAYLIFT electro-hydraulic Vehicle shifter is a professional device developed for car manufacturers, parking lots, communities, showrooms and automotive related industries. The system supports moving and steering control under no-fire starting state, and is equipped with intelligent charging module, which has zero emission, low noise and high load characteristics. The device is flexible, easy to operate, safe and reliable, especially suitable for automobile sales, maintenance services, community property and parking management and other application scenarios. One person can complete the operation process: After positioning the device to the bottom of the front wheel, the front cylinder drives the support arm to clamp the tire, which can realize the displacement control of the vehicle such as translation and steering.

• All control functions including lifting, lowering, forward/reverse movement, horn activation, and steering are integrated into a single-handle operator interface. This unified control system ensures simple operation, enhanced maneuverability, responsive handling, quiet performance(<75dB), and precise positioning capabilities.
• Constructed with premium steel alloys and protected by advanced powder coating technology, the equipment demonstrates exceptional corrosion resistance and permanent anti-rust properties throughout its service life.
• With load capacities spanning 1,500-4,500kg, the system comprehensively addresses fundamental material handling requirements across diverse industrial applications.
• Incorporates CATHAYLIFT's proprietary hydraulic system featuring modular integration of DC motor, electromagnetic valves, gear pump, and reservoir. The system employs plunger-type cylinders operating at 16MPa working pressure for optimal power transmission.
• Complies with ISO performance standards for gradeability: achieves 10% unloaded and 5% loaded climbing capacity.
• Equipped with premium traction battery packs (IP54 rated) paired with high-torque drive motors, ensuring superior acceleration and sustained gradeability. The intelligent charging system includes cabinet-style microprocessor-controlled chargers (AC220V/DC24V/40Ah, EU plug) employing pulse-charge technology with automatic voltage/temperature compensation. This advanced charging methodology features sulfation recovery, thermal management, and three-stage charging (bulk-absorption-float), achieving 6-8hr full charge cycles with emergency fast-charge capability. Battery performance parameters: 8-10hr runtime, 80% quick charge in 4-6hrs, current-regulated charging curve with automatic current tapering.
