Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric hydraulic car mover in China. We warmly welcome you to buy discount electric hydraulic car mover for sale here from our factory. Quality products and reasonable price are available.

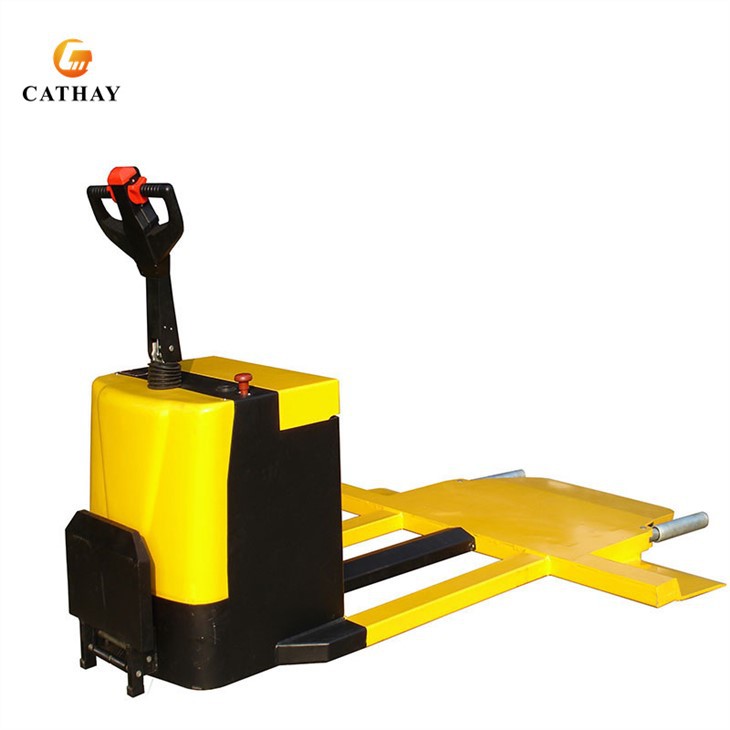

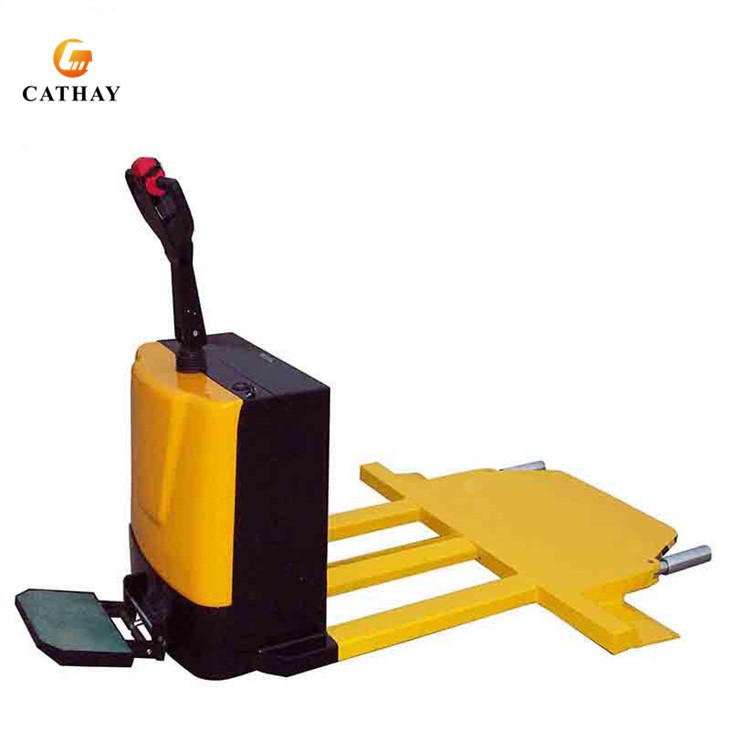

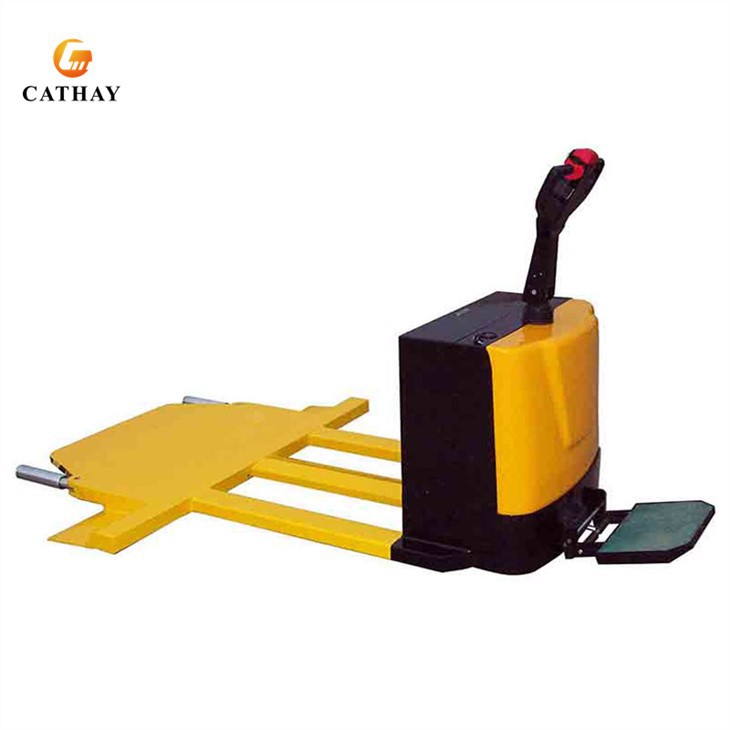

CATHAYLIFT Electric Hydraulic Car Mover is specially designed for various car manufacturers, parking lots, communities, showrooms and various automotive industries. It can realize ignition-free shift steering, equipped with smart chargers, no exhaust gas, low noise, and large load-bearing capacity. , Easy and dexterous operation, high safety performance, especially suitable for car sales industry, maintenance industry, residential quarters, parking lots and other parking locations. It can be operated by a single person, just move it to the front wheel of the car so that the front cylinder pushes the strut to clamp the tire to achieve movement, steering and other actions.
Model | ECM-1500 | ECM-2500 | ECM-3500 | ECM-4500 |
Loading Capacity | 1500KG | 2500KG | 3500KG | 4500KG |
Battery | 2x12V/100AH | 2x12V/210AH | 2x12V/210AH | 2x12V/280AH |
Charger | 24V/15A | 24V/30A | 24V/30A | 24V/40A |
Driving Motor | DC24V/700W | DC24V/1200W | DC24V/1500W | DC24V/1500W |
Lifting Motor | 24V/1300W | 24V/2000W | 24V/2000W | 24V/2000W |
Climbing Capacity(unloaded) | 10% | 10% | 10% | 10% |
Climbing Capacity(loaded) | 5% | 5% | 5% | 5% |
Materials | Steel panel 6mm | |||
Battery Power Indicator | Yes | |||
Driving Wheel | PU | |||
Driving speed | 0~6.5Km/h E-CVT | |||
Lifting height | 115mm | |||
Braking type | Electromagnetic braking | |||
Street Request | 2000mm can move Forward and Backward | |||
Advantages:
1. Single-person operation, lifting, lowering, forward and backward, whistle and steering are all concentrated on the steering handle. The operation is simple and convenient, with high mobility, intuitive operation, high sensitivity, and low noise. The vehicle can be transported to the designated location.
2. Using high-quality steel, never change, surface spray treatment, corrosion-resistant, rust-proof.
3. 1500kg~4500kg can basically meet all basic vehicle needs
4. The special hydraulic system developed by CATHAYLIFT is adopted. The DC motor, DC contactor, control valve, gear pump, and oil tank are assembled into an integrated structure. The oil cylinder is a plunger-type oil cylinder. The pressure was 16MPa.
5. In line with international standard climbing ability: 10% no-load and 5% load.
6. Select the traction battery pack with good quality, high insulation grade, special drive wheel motor, and large capacity. After they are matched, the pallet truck has good acceleration performance and climbing ability, which greatly prolongs the continuous working time. Each set is equipped with a cabinet-type intelligent microcomputer charger (AC220V/DC24V/40Ah) EU Plug, and a charger power connection line. (Already installed on the charger) they use micro-processing technology, pulse charging method, automatic temperature compensation of charging voltage, low battery temperature rise during charging, high charging efficiency, and repair function for battery packs, which can revive passivated batteries and increase battery life . Working Time: 8~10 hours. The charging time of the battery is generally 6~8 hours. When the battery is charged, the current changes with the length of the charging time. During the initial charging, the current is relatively large. As the battery power increases, the charging current automatically decreases. When the battery capacity reaches 80%, the charger outputs a small current to continue to charge the battery slowly. At this time, the required charging time will be longer, It can be quickly charged in an emergency for using.

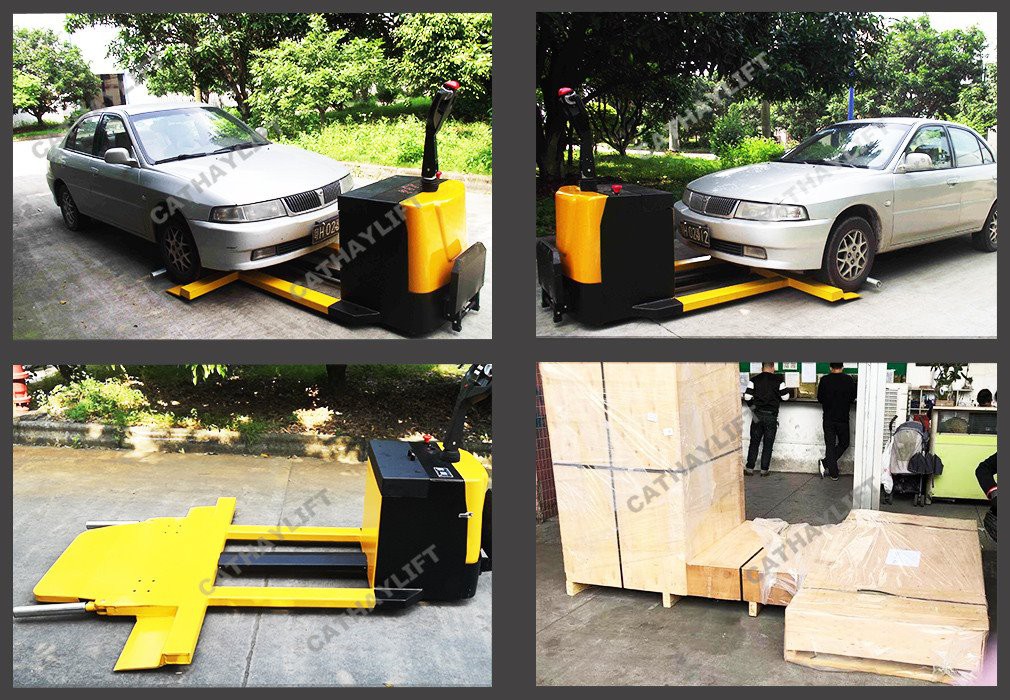

Real Order
