Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of diesel articulating boom lift in China. We warmly welcome you to buy discount diesel articulating boom lift for sale here from our factory. Quality products and reasonable price are available.

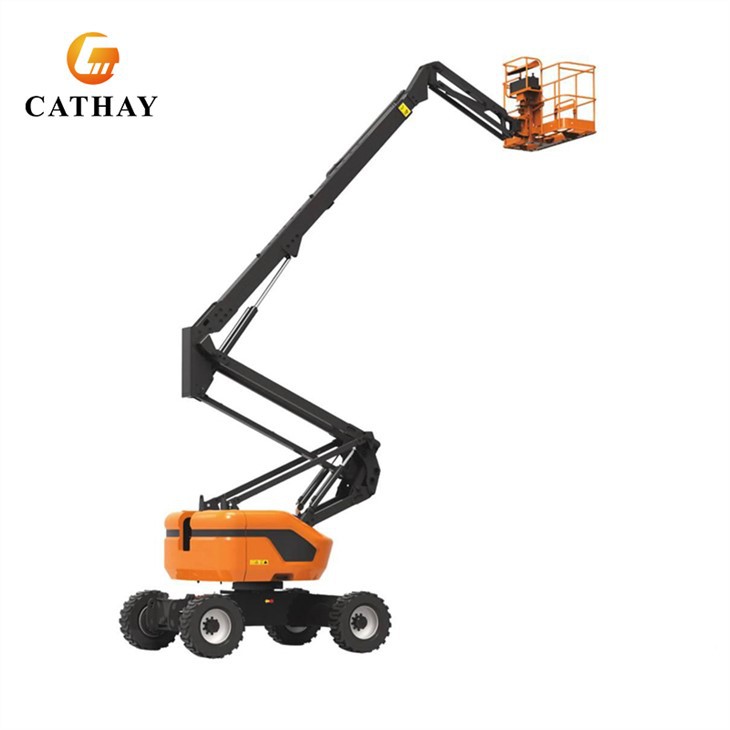

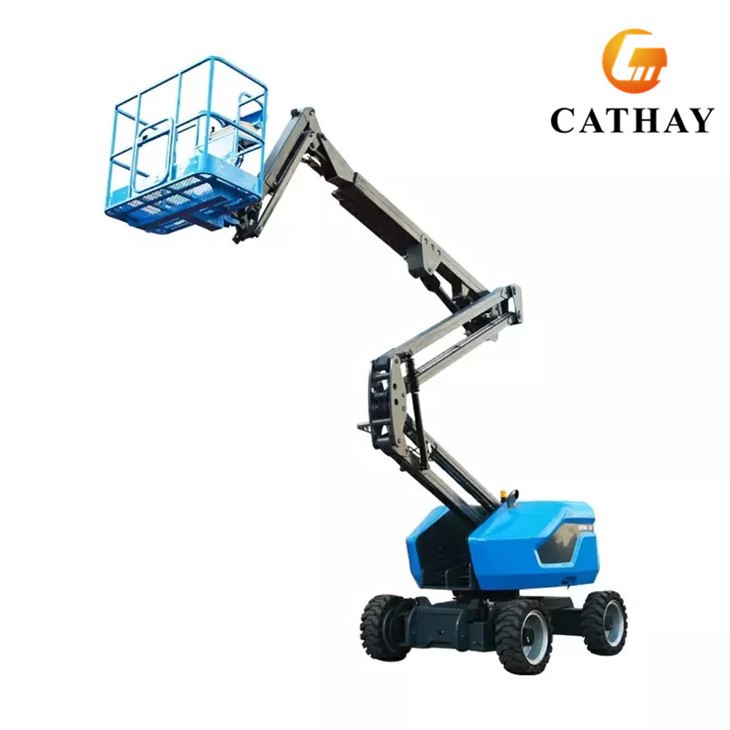

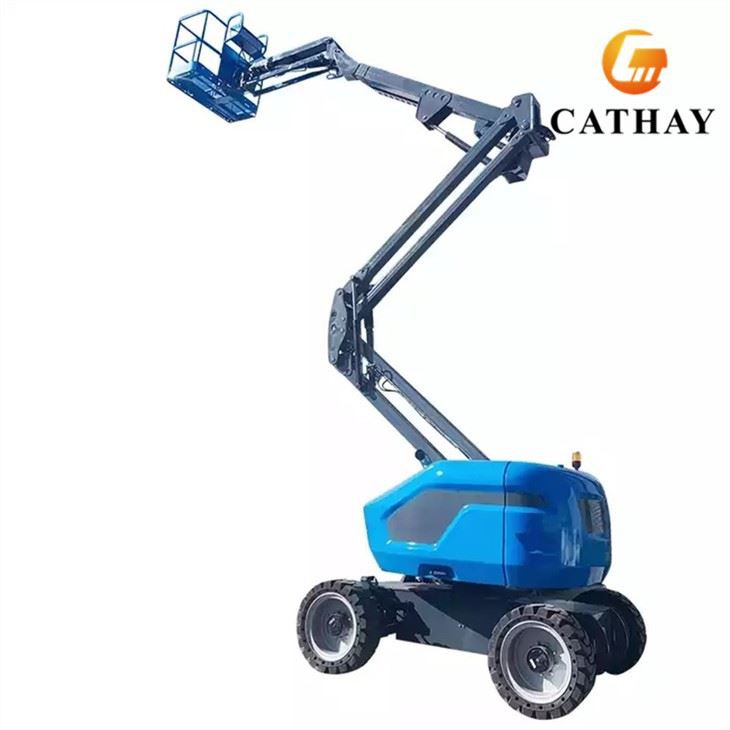

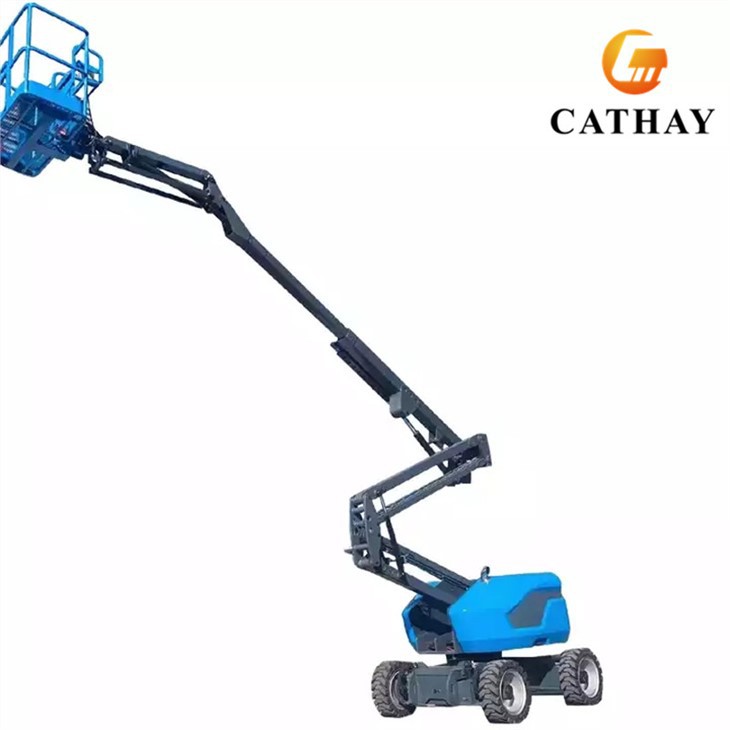

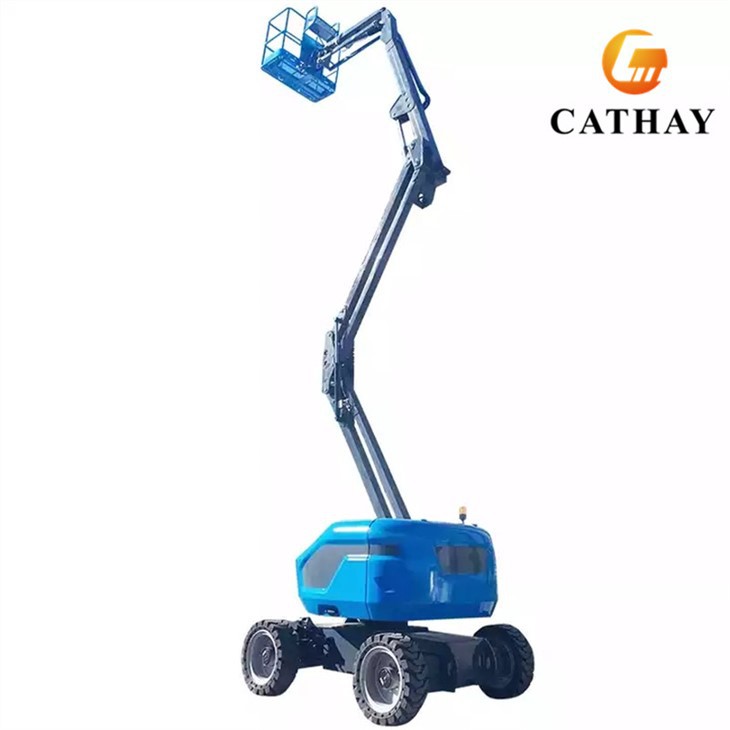

CATHAYLIFT CABL series Diesel Articulating Boom lift aerial make many difficult and dangerous jobs easier. For example indoor and outdoor cleaning (ceilings, curtain walls, glass windows, eaves, awnings, chimneys, etc.), installation and maintenance of billboards, street lights, and traffic Installation and maintenance of signs, etc. The characteristics of this aerial lift platform are small, flexible, convenient, and fast. The self-propelled aerial work platform can be used instead of scaffolding to reach the height you need and solve your problems. At the same time, it can also save you money and valuable time. It is especially suitable for a wide range of high-altitude continuous operations such as airport terminals, stations, docks, shopping malls, stadiums, residential properties, factories, and mines.
Model | CABL-12D | CABL-16D | CABL-20D | CABL-24D | CABL-25D | CABL-30D | CABL-38D | CABL-40D | CABL-45D |
Working Height Max | 14 m | 18 m | 22 m | 26.2 m | 27.1 m | 32 m | 40.1 m | 42.3 m | 47.8 m |
Platform Height Max | 12 m | 16 m | 20 m | 24.2 m | 25.1 m | 30 m | 38.1m | 40.3 m | 45.8 m |
Working Radius Max | 8 m | 9.8 m | 12.6 m | 15.8 m | 16 m | 20.2 m | 21.6 m | 21.6 m | 23 m |
Lifting capacity | 200kg | 230 kg | 230 kg | 230 kg | 230 kg | 480 kg | 480 kg | 480kg | 480 kg |
Crossing Height | 5m | 7.75 m | 9.2 m | 9.8 m | 9.2 m | 12.2m | 19.5m | 19.5m | 19.5m |
Length( stowed) Ⓓ | 5.3m | 7.7 m | 9.07 m | 9.92 m | 9.75 m | 12.52 m | 11.37 m | 12.15m | 11.6m |
Width (stowed) Ⓔ | 2m | 2.28 m | 2.38 m | 2.48 m | 2.58 m | 2.5 m | 2.5 m | 2.49m | 2.5 m |
Height(stowed) Ⓒ | 2.26m | 2.38 m | 2.49 m | 2.82 m | 2.8 m | 3.17 m | 3.17 m | 3.17m | 5.1 m |
Platform Ⓑ*Ⓐ | 1.1*0.67m | 1.83*0.76 m | 1.83*0.76 m | 1.83*0.76 m | 1.83*0.76 m | 2.44×0.91m | 2.44×0.91m | 2.44*0.91m | 2.44×0.91m |
Drive*Steering | 4WD*2WS / 4WD*4WS (WD: wheel drive, WS: wheel steering) | ||||||||
Features & Advantages:
1. Programmable controller (PLC) control, precise and reliable control.
2. Fault code display for easy maintenance.
3. Safety margin limit.
4. With the automatic diagnosis function, when the key part of the control system fails, the system automatically enters the security inspection mode.
5. Single-handle operation, easy to achieve vertical lifting and horizontal movement.
6. Automatic throttle control, which automatically adjusts the throttle according to the operation action.
7. Automatically shut off when the oil pressure is low and the water temperature is high, and the air filter element is blocked to alarm to protect the engine.
8. High-pressure filter element blockage alarm to ensure a smooth hydraulic system.
9. The engine is installed on the side, with a bracket, which can be rotated out, which is convenient for maintenance and maintenance.
10. The working bucket rotates ±90°.
11. The whole vehicle has good sealing performance, dustproof and soundproof, suitable for harsh working environments.
Main Configuration:
Basket (side swing ±90°)
Proportional control handle: SAUER DANFOSS USA
Program controller: EPEC Finland
Length angle sensor: BPE Italy
Hydraulic valve:
Oil-control: Italy
Hydroforce: United States
Pump station:
SAUER DANFOSS USA
Salami Italy
Swing motor: HELAC USA
Walking reducer:
Brevini Italy
PMP Italy
Omni USA
Engine: Cummins USA
