Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of elevating work platform in China. We warmly welcome you to buy discount elevating work platform for sale here from our factory. Quality products and reasonable price are available.
Thanks to its excellent all-terrain capability, which allows it to operate on the roughest terrains, proportional control, and synchronized movements allow for greater safety and comfort for the crew.
Model | CABL-12D | CABL-16D | CABL-20D | CABL-24D | CABL-25D | CABL-30D | CABL-38D | CABL-40D | CABL-45D |
Working Height Max | 14 m | 18 m | 22 m | 26.2 m | 27.1 m | 32 m | 40.1 m | 42.3 m | 47.8 m |
Platform Height Max | 12 m | 16 m | 20 m | 24.2 m | 25.1 m | 30 m | 38.1m | 40.3 m | 45.8 m |
Working Radius Max | 8 m | 9.8 m | 12.6 m | 15.8 m | 16 m | 20.2 m | 21.6 m | 21.6 m | 23 m |
Lifting capacity | 200kg | 230 kg | 230 kg | 230 kg | 230 kg | 480 kg | 480 kg | 480kg | 480 kg |
Length( stowed) Ⓓ | 5.3m | 7.7 m | 9.07 m | 9.92 m | 9.75 m | 12.52 m | 11.37 m | 12.15m | 11.6m |
Width (stowed) Ⓔ | 2m | 2.28 m | 2.38 m | 2.48 m | 2.58 m | 2.5 m | 2.5 m | 2.49m | 2.5 m |
Height(stowed) Ⓒ | 2.26m | 2.38 m | 2.49 m | 2.82 m | 2.8 m | 3.17 m | 3.17 m | 3.17m | 5.1 m |
Wheelbase Ⓕ | 2.4m | 2.45m | 2.45m | 3 m | 3 m | 3.66 m | 3.96 m | 3.96m | 5.6 m |
Ground clearance Ⓖ | 200mm | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.38 m |
Platform Ⓑ*Ⓐ | 1.1*0.67m | 1.83*0.76 m | 1.83*0.76 m | 1.83*0.76 m | 1.83*0.76 m | 2.44×0.91m | 2.44×0.91m | 2.44*0.91m | 2.44×0.91m |
Drive*Steering | 4WD*2WS / 4WD*4WS (WD: wheel drive, WS: wheel steering) | ||||||||
Features & Advantages:
● Adopt PLC and CAN bus control modes to simplify the circuit and facilitate maintenance and repair. The metal air-proof plug is adopted, and the protection level reaches IP65.
● The telescopic, luffing, slewing, and platform walking of the boom are all controlled by electric hydraulic proportional control, which can realize stepless speed regulation.
● When the equipment walks and turns, it will give out a sound and light alarm.
● The lower console has a timer and the upper console has a power meter.
● All actions are controlled by the operating handle on the workbench. The motor is infinitely variable, which effectively prolongs the service life of the battery and the motor. The motor only consumes energy during work. Using a multi-motor structure, walking and lifting are completed by different motors. When the boom is in any position, the work platform can walk safely, and the walking speed decreases with the increase of the lifting height.
● The machine is equipped with an intelligent charging system, using a fully automatic charger, which can automatically complete the whole process of charging, and will automatically stop charging when the battery is fully charged.
● The main hydraulic components and control components are imported brand products with high reliability.
● Hydraulic pump has automatic pressure compensation and load sensing functions to ensure that the oil pump and engine will not be damaged due to overload.
● Equipped with the manual emergency lowering device, when the engine or main oil pump fails, the working bucket can be safely lowered to the ground.
● The boom telescopic, luffing, slewing, and platform walking can perform multiple jobs at the same time.
● The bucket leveling adopts the static pressure leveling system. Compared with the traditional electro-hydraulic leveling system, the static pressure leveling system runs more smoothly and has higher reliability. More importantly, it can avoid malfunction caused by electrical faults.
● There is a foot switch on the platform, which can only be operated by stepping on the foot switch.
● When the machine is parked on the ground with an unevenness exceeding 3°, the movement of the boom will be restricted.
● Comply with EU EN280 standards and obtain CE certification.

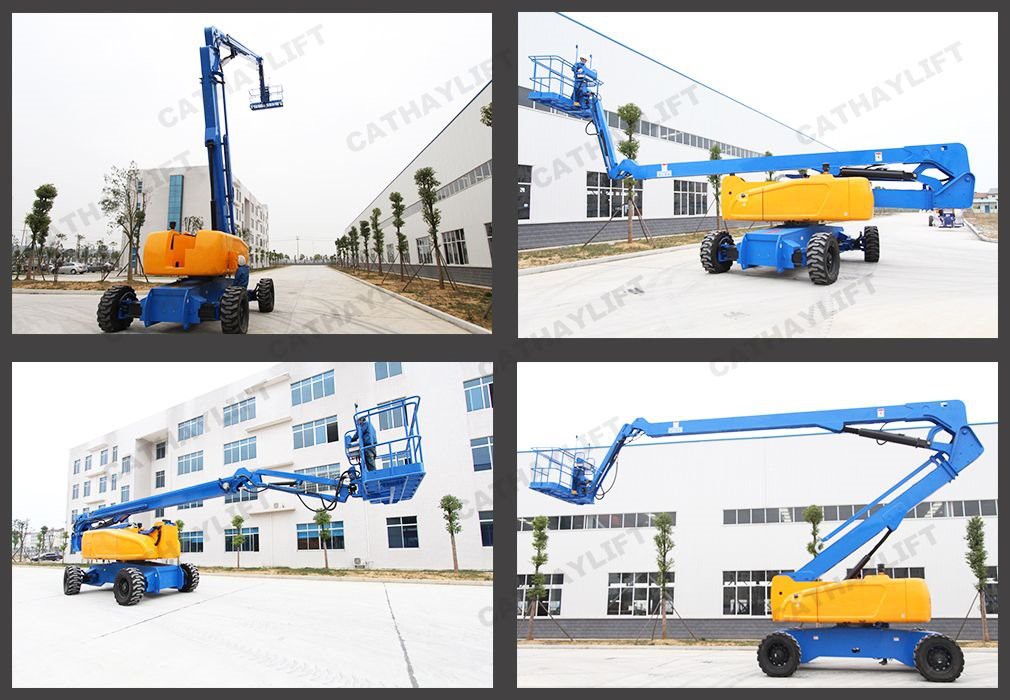

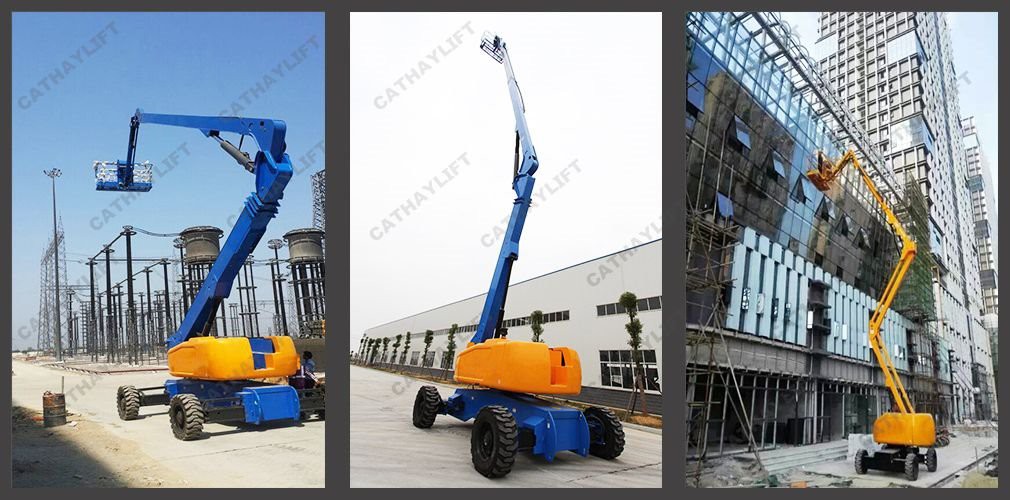

Real Order:
