Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric articulating boom lift in China. We warmly welcome you to buy discount electric articulating boom lift for sale here from our factory. Quality products and reasonable price are available.

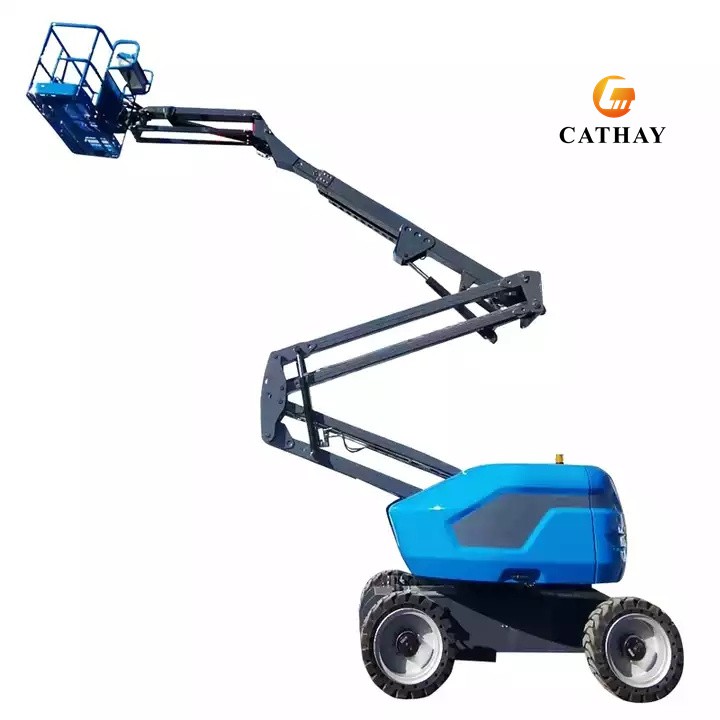

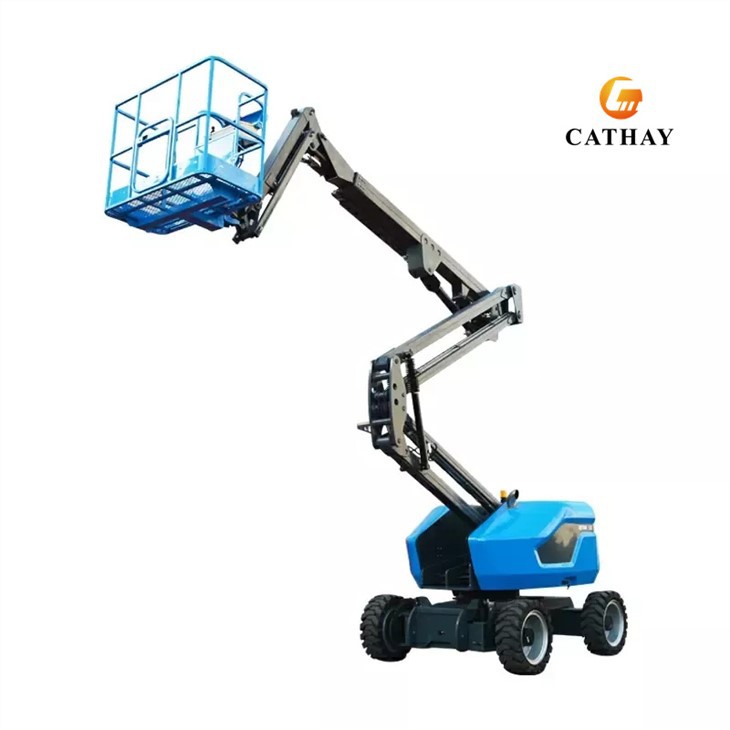

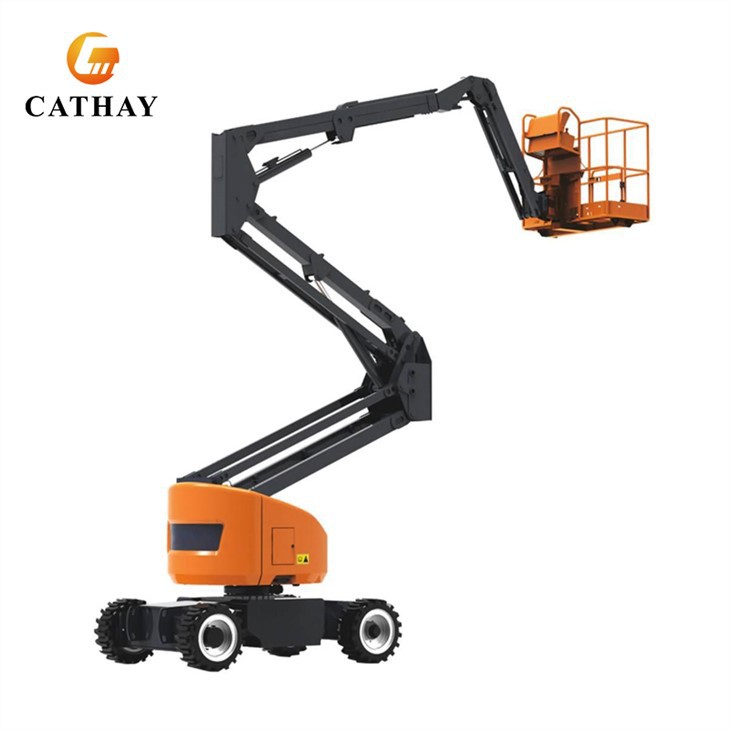

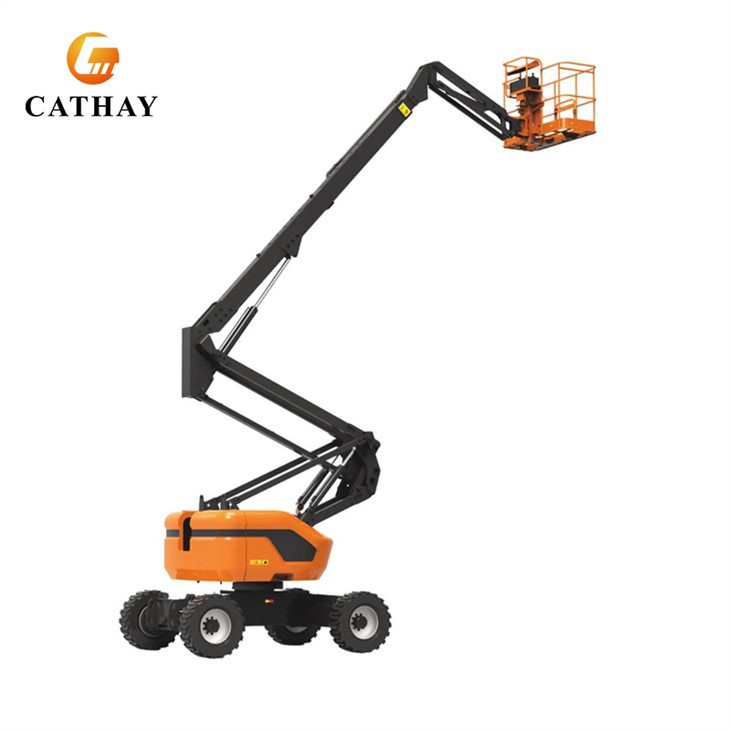

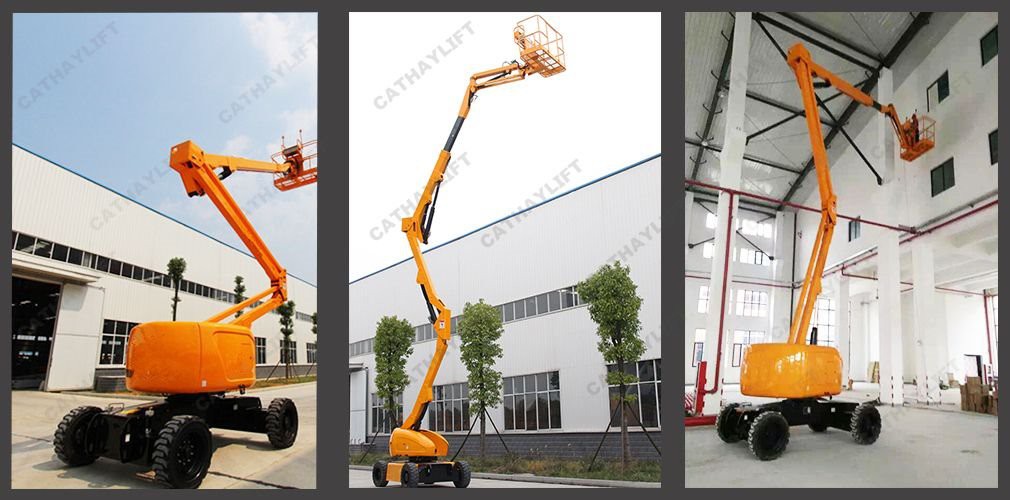

The Electri Knuckle boom lift is a lifting device used for high-altitude work. It can cross obstacles and perform high-altitude work. When the platform is lifted to any position, it can be operated while walking. It has a compact structure and flexible steering. Access and congested work areas, backup power unit, operable work platform reset, easy transportation, can be moved anywhere, easy-to-identify operation panel, multiple mechanical, electrical and hydraulic safety protection, integrated hydraulic and electrical integration system.
Model | CABL-10B | CABL-12B | CABL-14B | CABL-16B | CABL-18B | CABL-20B |
Working Height | 12 m | 14 m | 16.05 m | 17.8 m | 20 m | 21.9 m |
Platfrom Height | 10 m | 12 m | 14.05 m | 15.8 m | 18 m | 19.9 m |
MaxHorizontaol Reach | 5.8 m | 8 m | 8.1 m | 10 m | 10.8 m | 12.3 m |
Lift capacity | 200kg | 200kg | 230kg | 230kg | 230kg | 230kg |
Crossing height | 4.78 m | 5 m | 7.6 m | 7.6 m | 9.2 m | 9.2 m |
Length (stowed) Ⓓ | 4.35m | 5.3 m | 6.24 m | 7.9 m | 8.1 m | 9.2 m |
Width (stowed) Ⓔ | 1.5m | 2 m | 1.75 m | 2 m | 2.38 m | 2.38 m |
Height(stowed) Ⓒ | 1.99 m | 2.05 m | 2 m | 2 m | 2.38 m | 2.34 m |
Wheel base Ⓕ | 1.65 m | 2 m | 2 m | 2.2 m | 2.6 m | 2.6 m |
Ground clearance Ⓖ | 0.15 m | 0.2 m | 0.2 m | 0.2 m | 0.3 m | 0.3 m |
Platform measurement | 1.1*0.65 m | 1.1*0.65 m | 1.53*0.76 m | 1.53*0.76 m | 1.53*0.76 m | 1.53*0.76 m |
Tail swing | 0.25 m | 0.13 m | 0 m | 0 m | 0.33 m | 0.33 m |
Grade ability | 25% | 25% | 30% | 30% | 25% | 25% |
Travel speed (stowed) | 3 km/h | 3 km/h | 5 km/h | 5 km/h | 5 km/h | 5 km/h |
Travel speed (raised) | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h | 0.8 km/h |
Solid tire | Φ590*190 | Φ590*190 | 28×9-15 | 28×9-15 | 33×12-20 | 33×12-20 |
Vertical jib rotation | 140° | 140° | 140° | 140° | 140° | 140° |
Turntable swing | ±80 ° | ±80 ° | ±80 ° | ±80 ° | ±80 ° | ±80 ° |
Platform rotation | 355° | 355° | 355° | 355° | 355° | 355° |
Platfrom leveling | Automatic leveling | |||||
Total weight | 4800 kg | 5500 kg | 6270 kg | 6720 kg | 8080 kg | 8200 kg |
Control voltage | 24v DC | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC |
Driving electric motor | 6.5 kw*2 | 6.5 kw*2 | 6.5 kw*2 | 6.5 kw*2 | 6.5 kw*2 | 6.5 kw*2 |
Pump electric motor | 7.5kw | 7.5kw | 5 kw | 5 kw | 5 kw | 5 kw |
1*40'HQ | 1*40'HQ | 1*40'HQ | 1*40'HQ | 1*40'HQ | 1*40'HQ | 1*40'HQ |
Wheel*Drive*Steering | 4WD*2WS / 4WD*4WS (WD: wheel drive,WS: wheel steering) | |||||
Features & Advantages:
1.The crank arm provides multi directional positioning for up, outward and span, allowing you to reach where you want in a variety of ways.
2.Standard configuration of four-bar weighing device; overload protection, platform amplitude and height automatic detection device, automatic control of the boom movement speed and walking speed, high-precision weighing device and other measures to ensure the safety of the operation And smoothness.
3.16m or less and including the electric model is very compact, can pass through a small door opening and can work in a small space.
4.Full-scale control handle and CAN bus and PLC control system, simple control, high positioning accuracy, allowing users to do whatever they want. The stainless steel operating box has a sealed box cover and a box cover to protect the electrical components from moisture and damage.
5.Closed walking system consisting of electric proportional variable pump and hydraulic variable motor and flow distribution valve can meet higher moving speed and lower stable working speed, high efficiency and low heat.
6.AC380V/customized voltage can be connected to the platform according to user requirements and the compressed air pipeline can be configured to meet the special working requirements of the user.
7.Closed walking system, convenient speed regulation and large speed regulation range; the hydraulic system of the boom is a double spool circuit, which has higher safety. Hydraulic components are pure European and American brands.
8.The four-wheel drive power is strong and the climbing degree is large.
9.The angle of the flying arm varies from -55° to +75°, so you can reach the place you want without going to the main arm.
10.Easy to maintain and repair.
11.The oscillating axle can sense the terrain, and the four-wheel landing can be ensured on the uneven road without reducing the driving force.
12.The piston rod of the cylinder has protective sleeves, and the head of the boom has dust proof devices.
13.The table has a rotation range of ±80°, making your work more flexible.
14.The output gear of the rotary reducer is eccentric 2.5mm, and the flank clearance can be adjusted to reduce the free rotation angle of the boom.
15.Prevent the machine from moving once the work basket hit obstacles.
16.Ensure that the boom retracts when the engine and oil pump fail.
17.The electric crank arm type uses the battery as the power source, with low noise and no emission. It is suitable for indoor and some special requirements.
18.Provide an option for the generator set to use the generator to generate electricity to charge the battery. It is suitable for occasions where field work cannot be charged in time.
19.The electric type has a smaller width and height (receiving state), which is more suitable for indoor work.

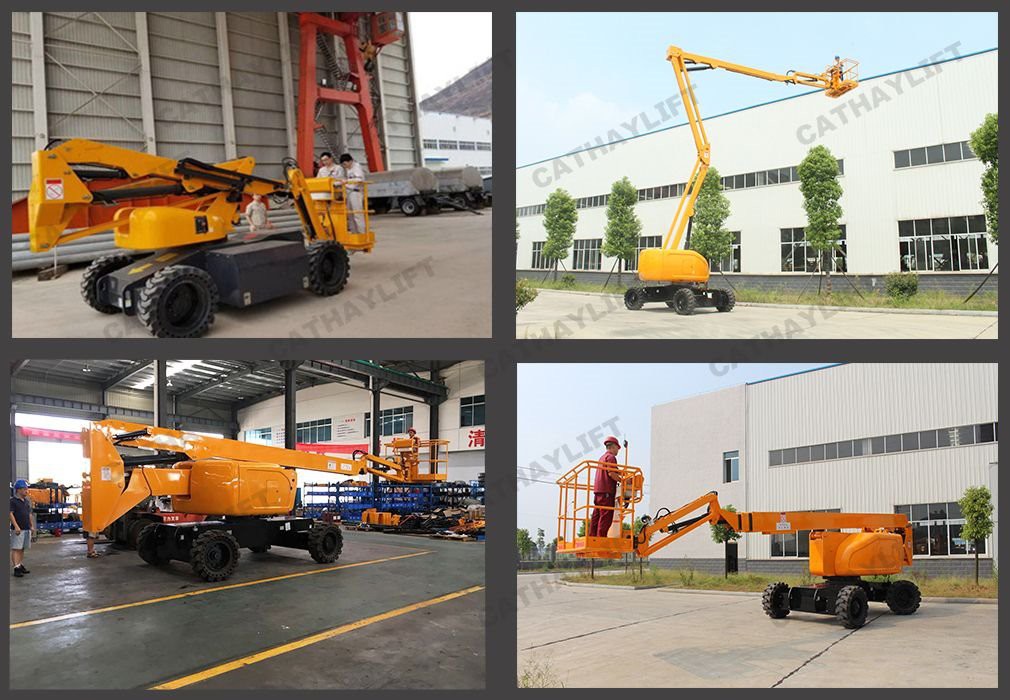

Real Order:
