Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of hybrid articulated boom lift in China. We warmly welcome you to buy discount hybrid articulated boom lift for sale here from our factory. Quality products and reasonable price are available.

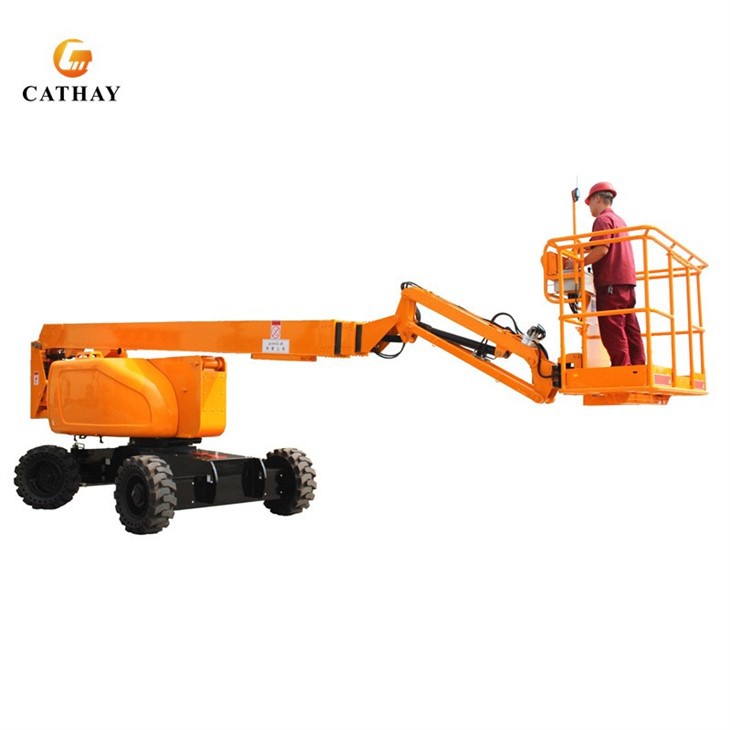

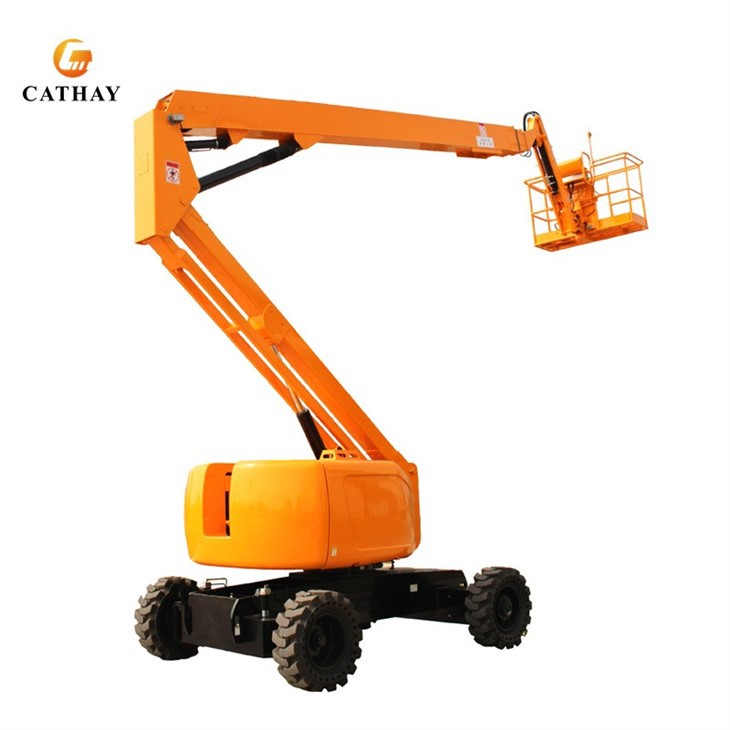

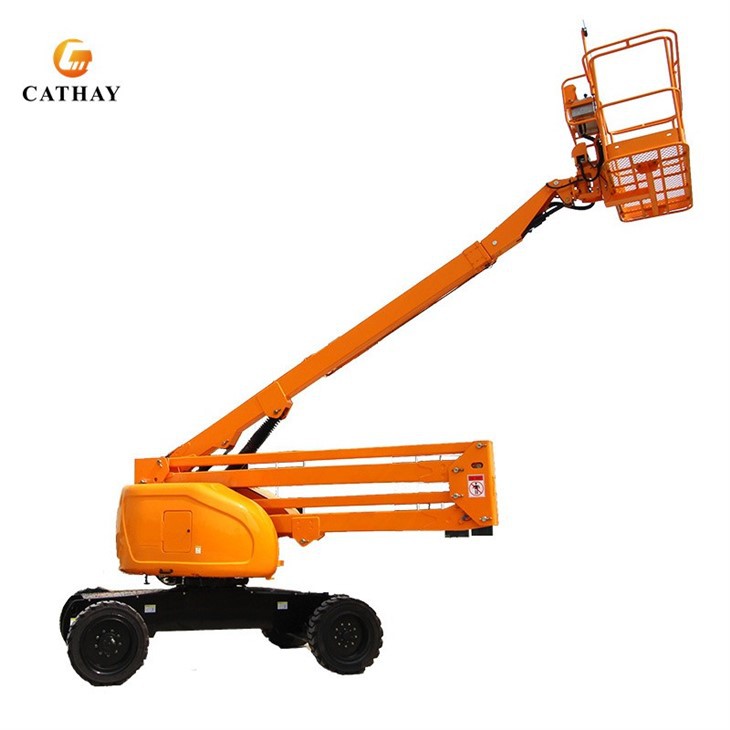

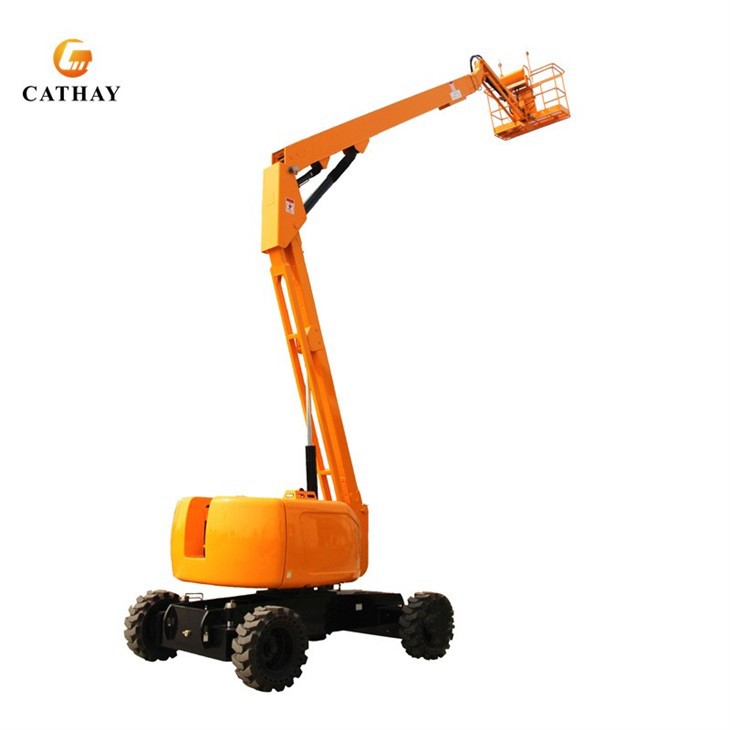

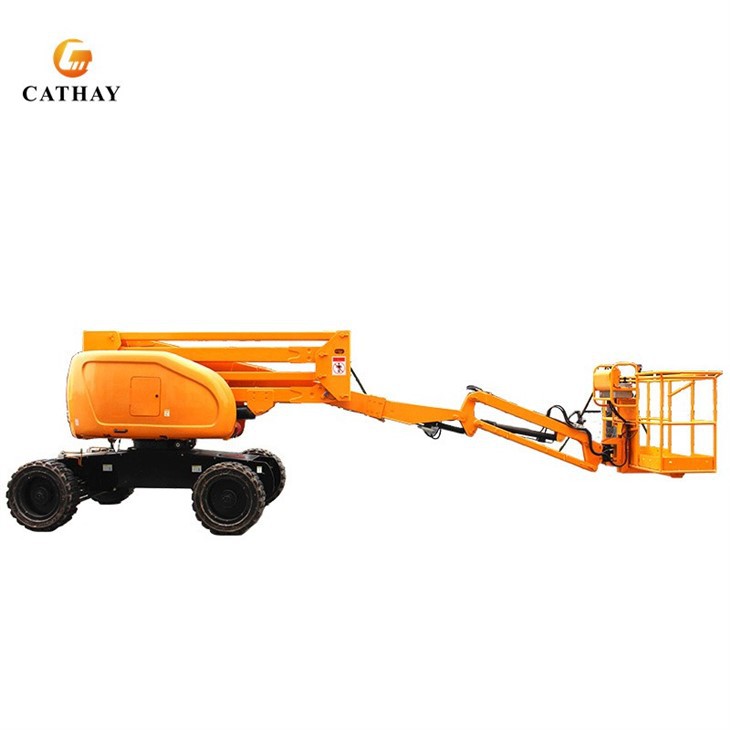

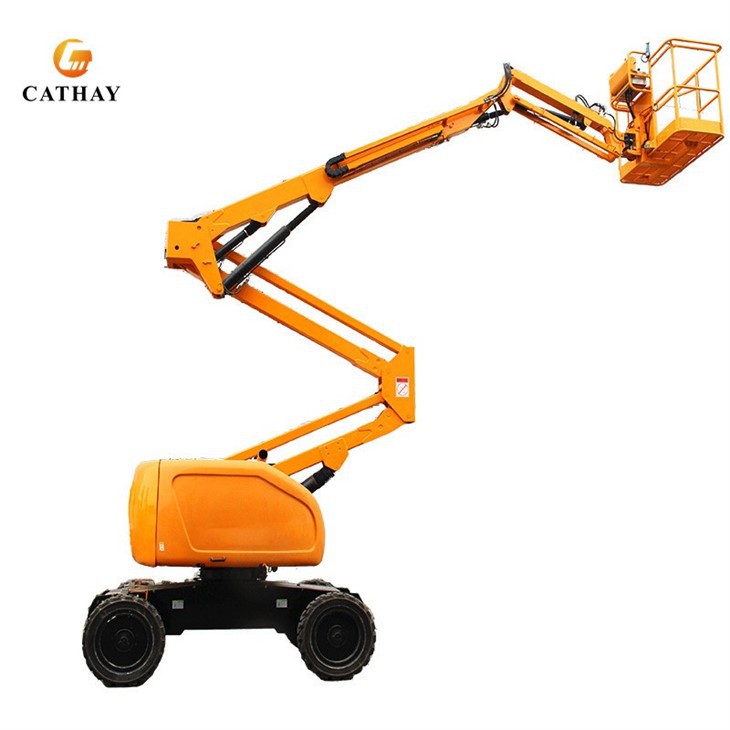

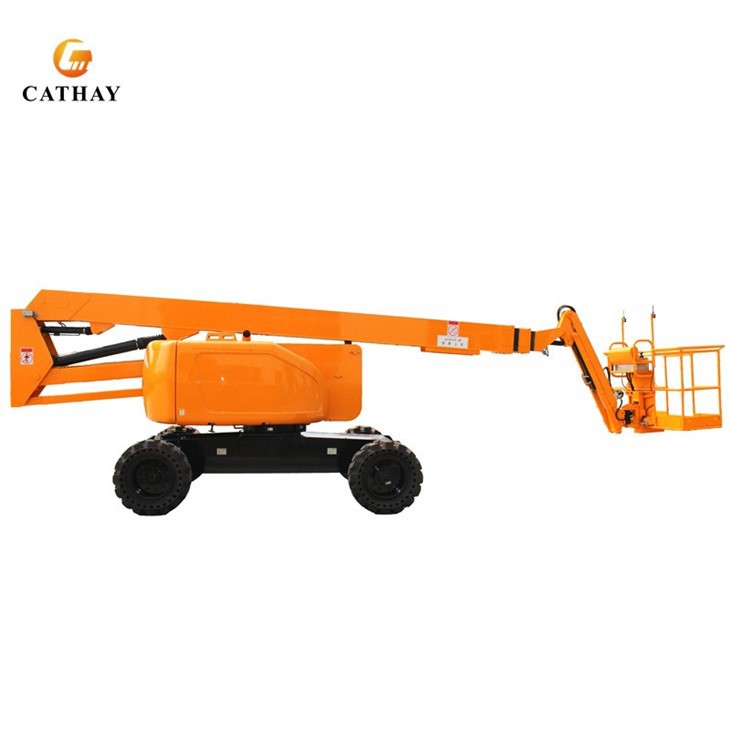

CATHAYLIFT CABL series of articulated boom aerial work platforms effectively solve the safety hazards and operational difficulties of various types of aerial work. Its application scope covers the maintenance of buildings inside and outside (including ceilings, facade decorations, skylights, eaves components, exhaust ducts, etc.), as well as the installation of signs and signs for municipal facilities, and the maintenance of lighting devices. With its compact structural design and maneuverability advantages, the equipment can quickly respond to the operational needs of different spaces. The self-propelled lifting system can completely replace the traditional scaffolding construction method, significantly improving the operating efficiency while reducing construction costs and periodic losses. It is particularly suitable for places such as transportation hubs (such as airports, railway stations, ports), commercial complexes, cultural and sports venues, residential communities, and industrial plants where aerial work needs to be carried out frequently.
Features & Advantages:
- Intelligent program control system ensures accurate and stable operation
- Intelligent fault prompt system simplifies maintenance process
- Multiple safety protection mechanisms
- Equipped with intelligent detection module, automatically switches to safety protection mode when core components are abnormal
- Integrated control handle realizes synchronous control of vertical lifting and lateral translation
- Intelligent power matching system automatically adjusts output power according to the working status
- Key parameter abnormal warning (such as insufficient lubrication pressure, overheating of cooling system, excessive intake resistance), triggering automatic protection mechanism
- Hydraulic circuit filtration warning to ensure stable operation of transmission system
- Side-mounted power unit is equipped with rotatable maintenance bracket for daily maintenance of equipment
- The working platform has the ability to rotate 90° in both directions
- Fully enclosed protection structure with dust and noise reduction characteristics, adapting to complex working conditions
Main Configuration:
Basket (side swing ±90°)
Proportional control handle: SAUER DANFOSS USA
Program controller: EPEC Finland
Length angle sensor: BPE Italy
Hydraulic valve:
Oil-control: Italy
Hydroforce: United States
Pump station:
SAUER DANFOSS USA
Salami Italy
Swing motor: HELAC USA
Walking reducer:
Brevini Italy
PMP Italy
Omni USA
Engine: Cummins USA
Real Order:
|
Model |
CABL-12D |
CABL-16D |
CABL-20D |
CABL-24D |
CABL-25D |
CABL-30D |
CABL-38D |
CABL-40D |
CABL-45D |
|
Working Height Max |
14 m |
18 m |
22 m |
26.2 m |
27.1 m |
32 m |
40.1 m |
42.3 m |
47.8 m |
|
Platform Height Max |
12 m |
16 m |
20 m |
24.2 m |
25.1 m |
30 m |
38.1m |
40.3 m |
45.8 m |
|
Working Radius Max |
8 m |
9.8 m |
12.6 m |
15.8 m |
16 m |
20.2 m |
21.6 m |
21.6 m |
23 m |
|
Lifting capacity |
200kg |
230 kg |
230 kg |
230 kg |
230 kg |
480 kg |
480 kg |
480kg |
480 kg |
|
Crossing Height |
5m |
7.75 m |
9.2 m |
9.8 m |
9.2 m |
12.2m |
19.5m |
19.5m |
19.5m |
|
Length( stowed) Ⓓ |
5.3m |
7.7 m |
9.07 m |
9.92 m |
9.75 m |
12.52 m |
11.37 m |
12.15m |
11.6m |
|
Width (stowed) Ⓔ |
2m |
2.28 m |
2.38 m |
2.48 m |
2.58 m |
2.5 m |
2.5 m |
2.49m |
2.5 m |
|
Height(stowed) Ⓒ |
2.26m |
2.38 m |
2.49 m |
2.82 m |
2.8 m |
3.17 m |
3.17 m |
3.17m |
5.1 m |
|
Platform Ⓑ*Ⓐ |
1.1*0.67m |
1.83*0.76 m |
1.83*0.76 m |
1.83*0.76 m |
1.83*0.76 m |
2.44×0.91m |
2.44×0.91m |
2.44*0.91m |
2.44×0.91m |
|
Drive*Steering |
4WD*2WS / 4WD*4WS (WD: wheel drive, WS: wheel steering) |
||||||||
