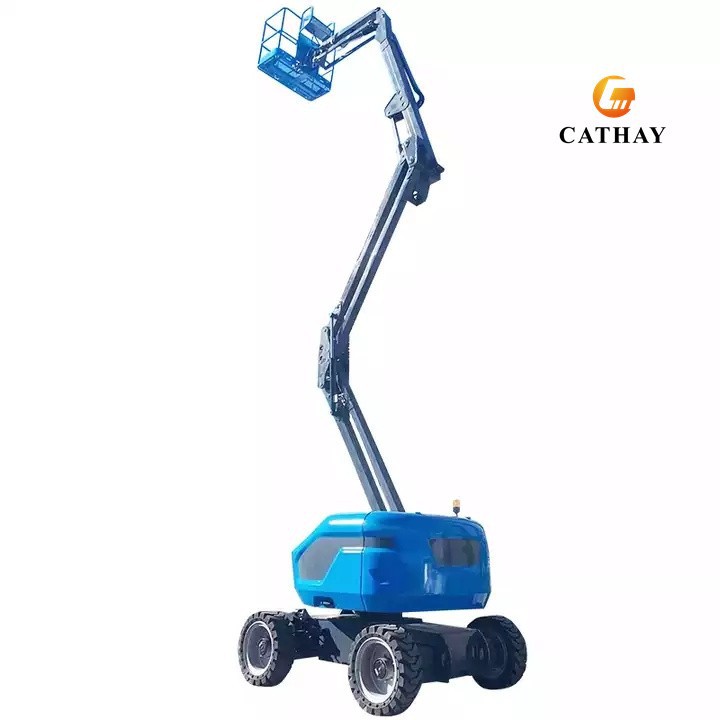

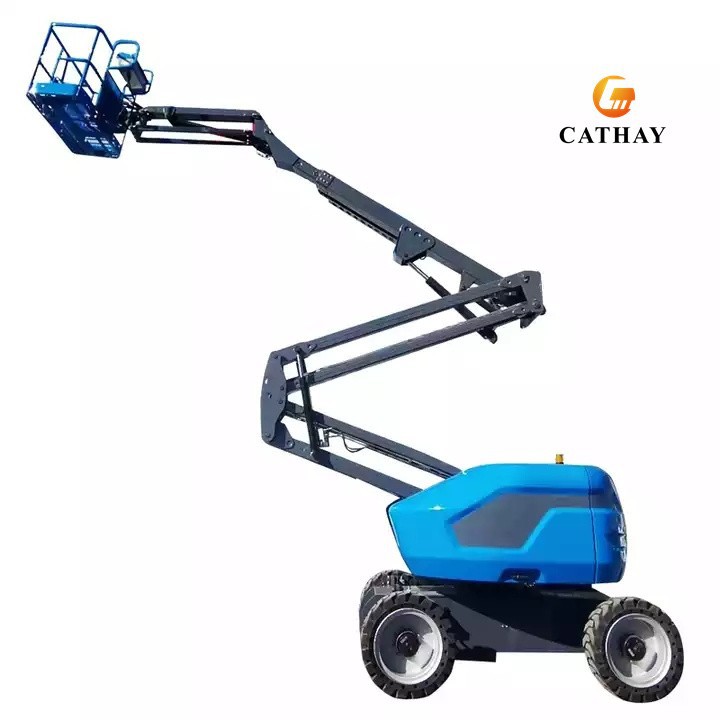

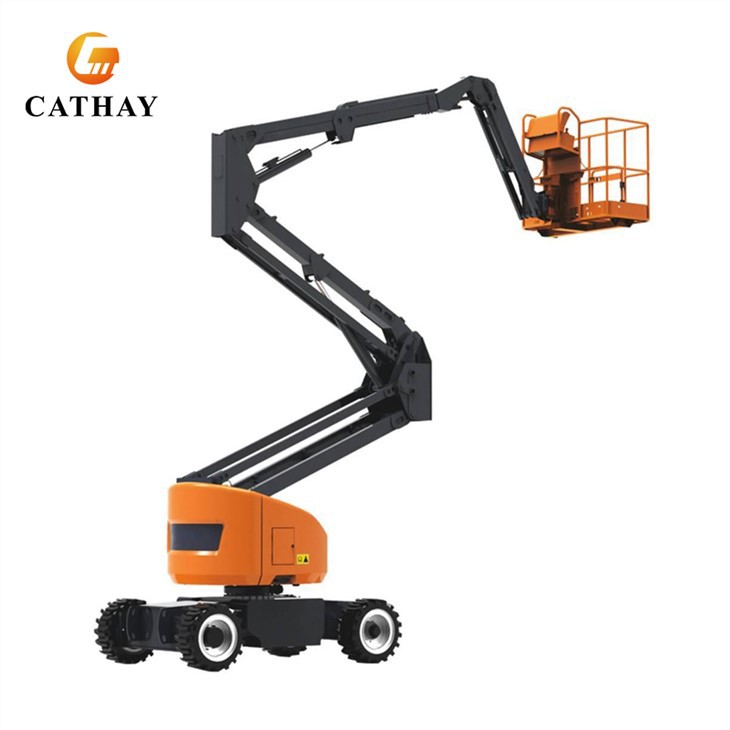

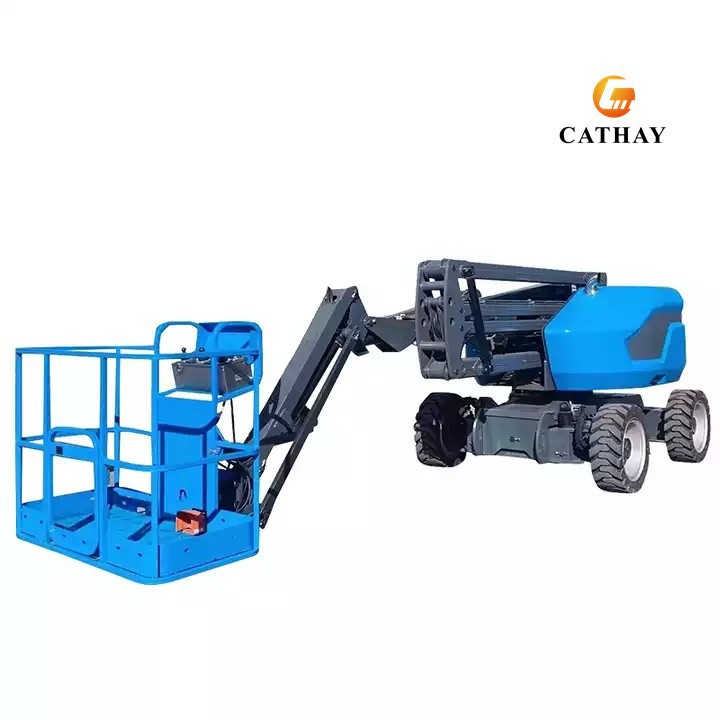

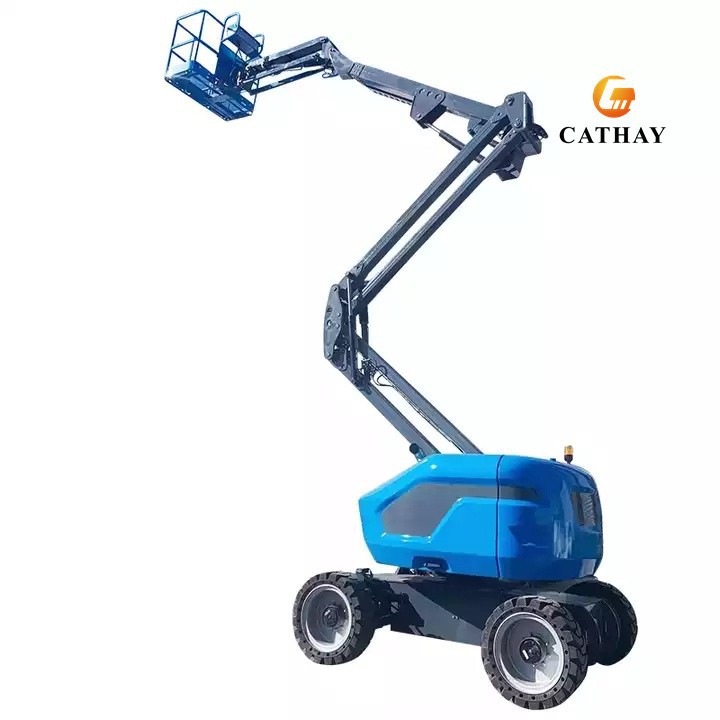

10~20m Articulated Self-propelled Knuckle Boom Lift
knuckle boom lift, Lifting height 10~20m, load 230kg, battery power. 360° turntable design improves work flexibility. It can control its movement and steer on the platform. When working, it can not only maintain the lifted state automatically, but also realize the adjustment requirements of any height, any position, and any direction in the space during lifting. The speed control is sensitive and micro It has good mobility and is widely used in various places that require people to work at heights.
|
Model |
CABL-10B |
CABL-12B |
CABL-14B |
CABL-16B |
CABL-18B |
CABL-20B |
|
Working Height |
12 m |
14 m |
16.05 m |
17.8 m |
20 m |
21.9 m |
|
Platform Height |
10 m |
12 m |
14.05 m |
15.8 m |
18 m |
19.9 m |
|
MaxHorizontaol Reach |
5.8 m |
8 m |
8.1 m |
10 m |
10.8 m |
12.3 m |
|
Lift capacity |
200kg |
200kg |
230kg |
230kg |
230kg |
230kg |
|
Crossing height |
4.78 m |
5 m |
7.6 m |
7.6 m |
9.2 m |
9.2 m |
|
Length( stowed) Ⓓ |
4.35m |
5.3 m |
6.24 m |
7.9 m |
8.1 m |
9.2 m |
|
Width (stowed) Ⓔ |
1.5m |
2 m |
1.75 m |
2 m |
2.38 m |
2.38 m |
|
Height(stowed) Ⓒ |
1.99 m |
2.05 m |
2 m |
2 m |
2.38 m |
2.34 m |
|
Wheelbase Ⓕ |
1.65 m |
2 m |
2 m |
2.2 m |
2.6 m |
2.6 m |
|
Ground clearance Ⓖ |
0.15 m |
0.2 m |
0.2 m |
0.2 m |
0.3 m |
0.3 m |
|
Platform measurement |
1.1*0.65 m |
1.1*0.65 m |
1.53*0.76 m |
1.53*0.76 m |
1.53*0.76 m |
1.53*0.76 m |
|
Tail swing |
0.25 m |
0.13 m |
0 m |
0 m |
0.33 m |
0.33 m |
|
Grade ability |
25% |
25% |
30% |
30% |
25% |
25% |
|
Travel speed(stowed) |
3 km/h |
3 km/h |
5 km/h |
5 km/h |
5 km/h |
5 km/h |
|
Travel speed(raised ) |
0.8 km/h |
0.8 km/h |
0.8 km/h |
0.8 km/h |
0.8 km/h |
0.8 km/h |
|
Solid tire |
Φ590*190 |
Φ590*190 |
28×9-15 |
28×9-15 |
33×12-20 |
33×12-20 |
|
Vertical jib rotation |
140° |
140° |
140° |
140° |
140° |
140° |
|
Turntable swing |
±80 ° |
±80 ° |
±80 ° |
±80 ° |
±80 ° |
±80 ° |
|
Platform rotation |
355° |
355° |
355° |
355° |
355° |
355° |
|
Platform leveling |
Automatic leveling |
|||||
|
Total weight |
4800 kg |
5500 kg |
6270 kg |
6720 kg |
8080 kg |
8200 kg |
|
Control voltage |
24v DC |
24V DC |
24V DC |
24V DC |
24V DC |
24V DC |
|
Driving electric motor |
6.5 kw*2 |
6.5 kw*2 |
6.5 kw*2 |
6.5 kw*2 |
6.5 kw*2 |
6.5 kw*2 |
|
Pump electric motor |
7.5kw |
7.5kw |
5 kw |
5 kw |
5 kw |
5 kw |
|
1*40’HQ |
1*40’HQ |
1*40’HQ |
1*40’HQ |
1*40’HQ |
1*40’HQ |
1*40’HQ |
|
Wheel*Drive*Steering |
4WD*2WS / 4WD*4WS (WD: wheel drive,WS: wheel steering) |
|||||

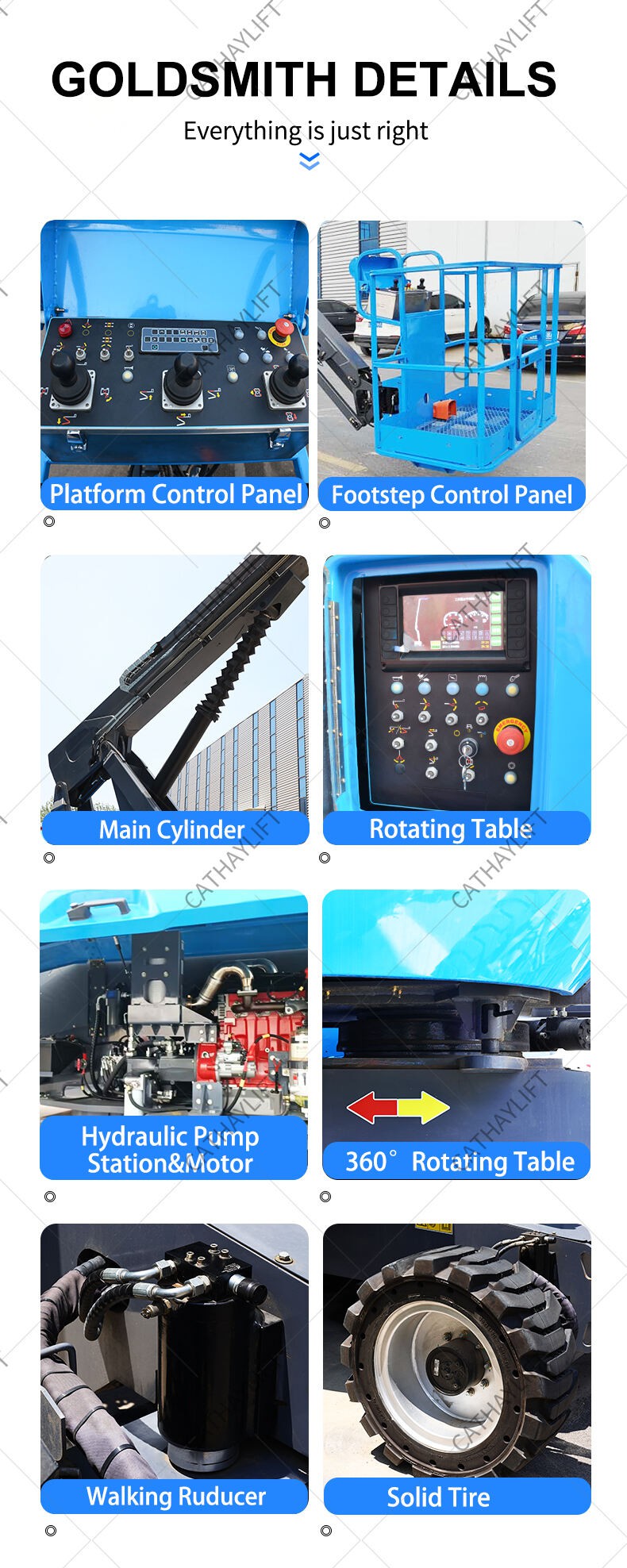

Details Images
Advantages:
CABL series are obtained and strictly comply with the CE test, and we have carried out more stringent product requirements. Steps for indoor testing, our load test is 150% of the standard load, and the load block is placed on the side that is most prone to rollover, the tilt angle of the platform is adjusted to 2 degrees, and the tilt angle visible to the human eye is 0.5 Degree, we add 1.5 degrees on the basis of 0.5 degrees, and the horizontal force is 1.1 times the standard of the product. After satisfying such conditions, we conduct tests and ensure that no eccentric loading, tipping, or permanent deformation will occur. In outdoor testing, we also need to add a wind test, the use of products requires wind force less than or equal to 5. For the tubing burst test of the product, according to the CE standard, when the tubing bursts, it should momentarily stand still and wait for the arrival of rescuers. However, many low-end products will not immediately stop after the burst of the tubing, but will slowly decline. This is a very dangerous and unsafe factor. Because there is an explosion-Proof in our cylinder, we can guarantee the safety and stability of our products.

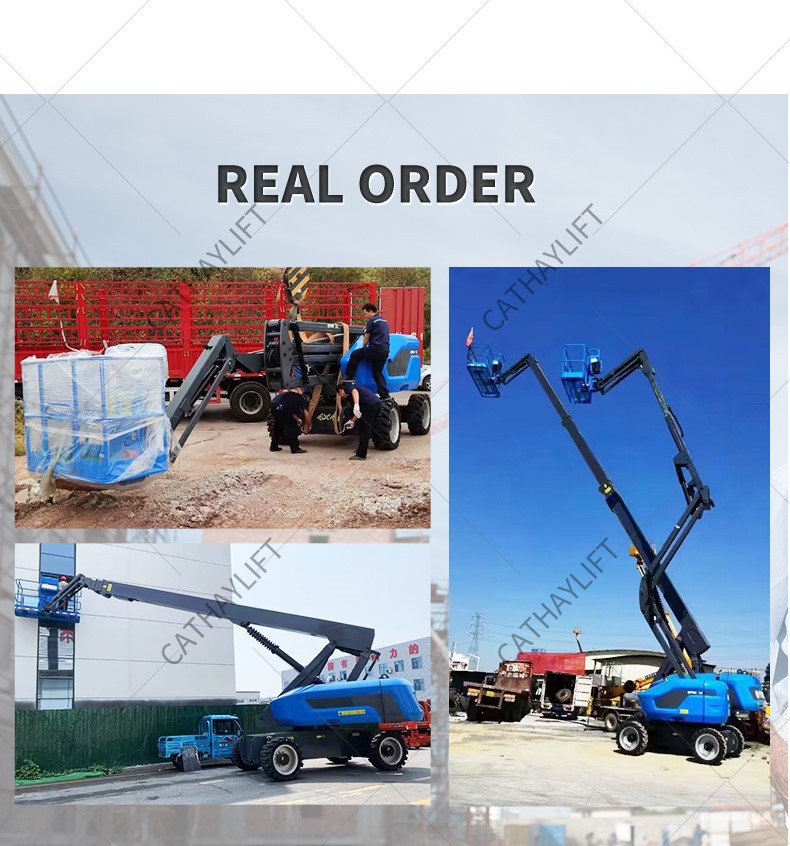

Real Order
