Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of self-propelled articulating boom lift in China. We warmly welcome you to buy discount self-propelled articulating boom lift for sale here from our factory. Quality products and reasonable price are available.

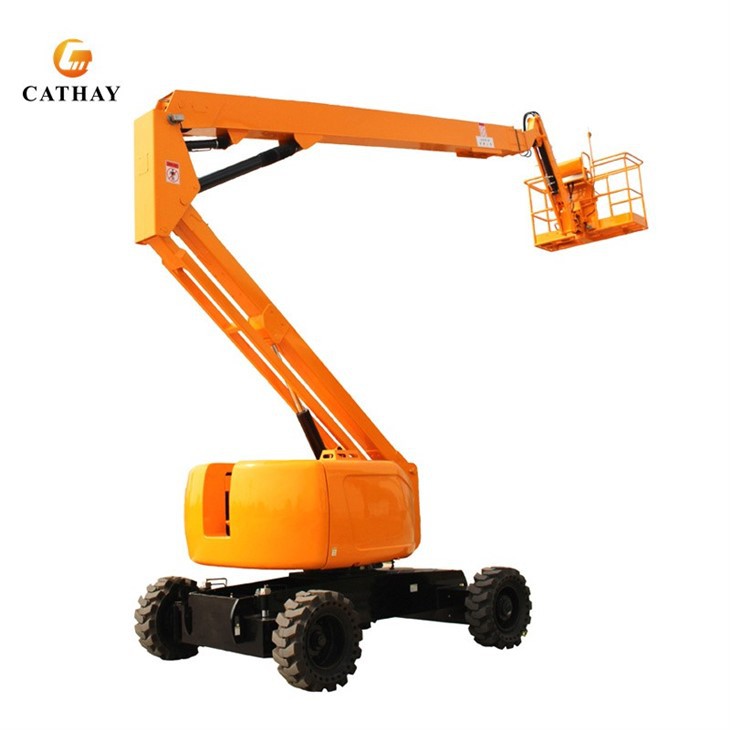

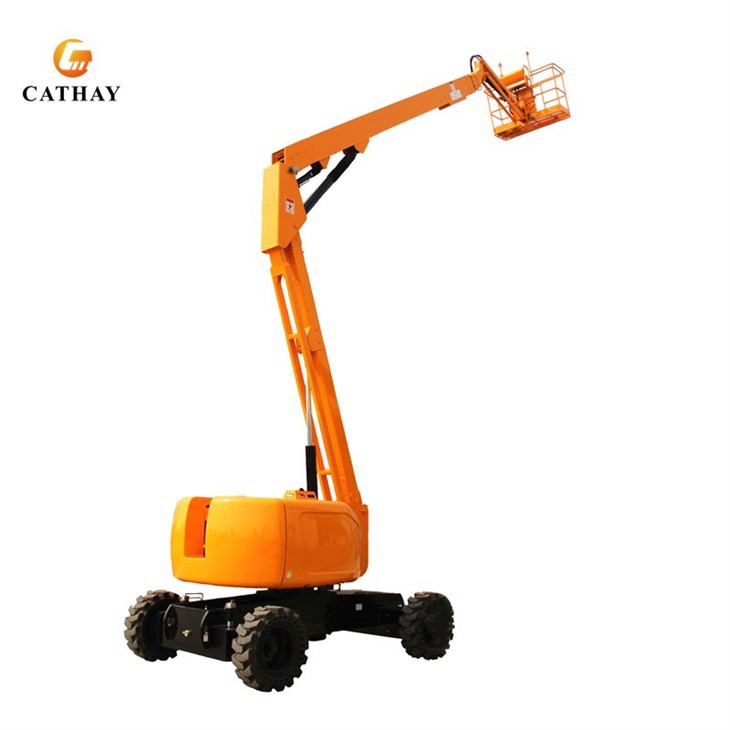

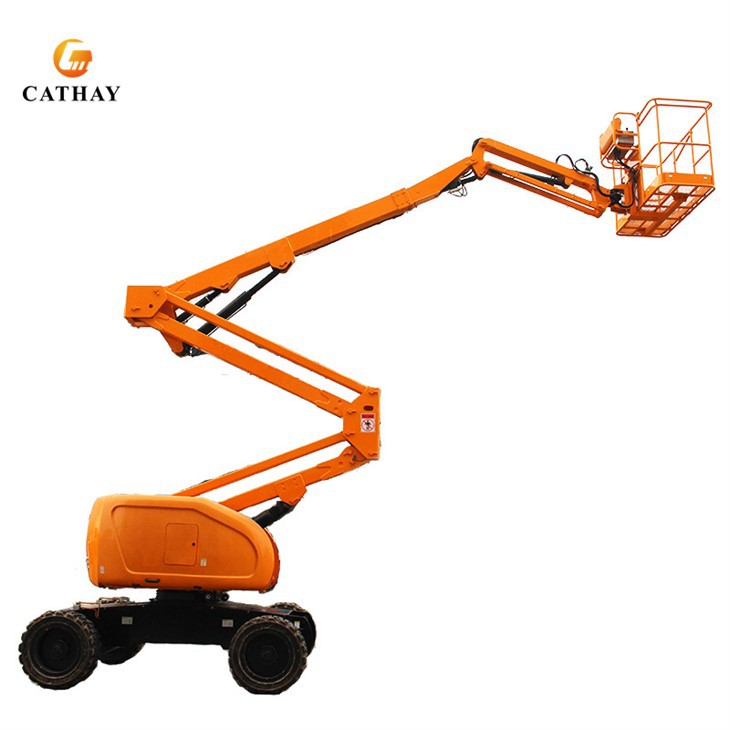

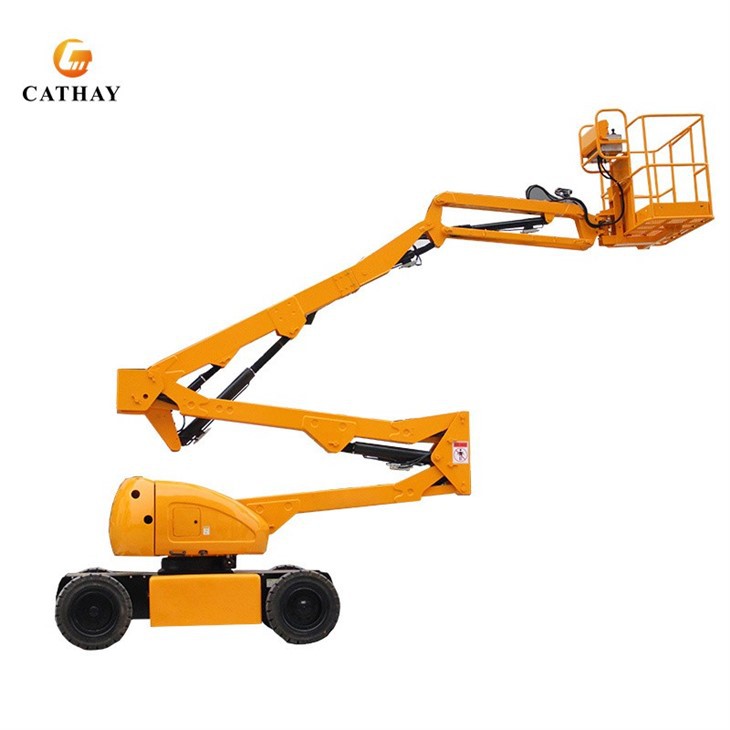

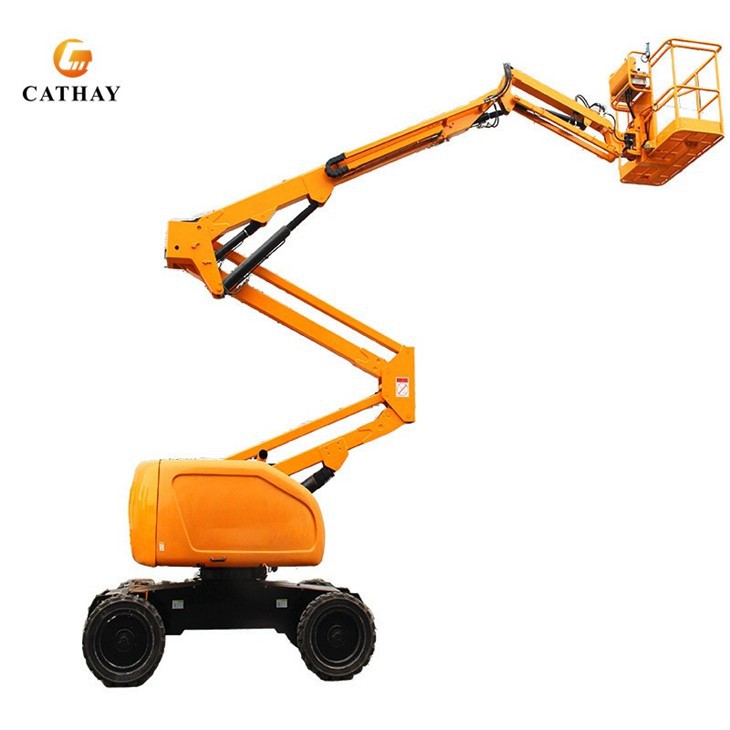

Self-propelled Articulating Boom Lift
CATHAYLIFT CABL series: revolutionizing high-altitude operations with unparalleled efficiency and safety. Designed to tackle challenging tasks with ease, these diesel articulating boom aerial work platforms boast a remarkable lifting height ranging from 12 to 45 meters, coupled with a robust load capacity of 480kg. Whether it's airport terminals, stations, or bustling shopping malls, these platforms streamline operations, saving both time and money. Ideal for a myriad of environments including residential properties, factories, and mines, the CABL series ensures seamless execution of high-altitude tasks, making the seemingly daunting, routine.
|
Model |
CABL-12D |
CABL-16D |
CABL-20D |
CABL-24D |
CABL-25D |
CABL-30D |
CABL-38D |
CABL-40D |
CABL-45D |
|
Working Height Max |
14 m |
18 m |
22 m |
26.2 m |
27.1 m |
32 m |
40.1 m |
42.3 m |
47.8 m |
|
Platform Height Max |
12 m |
16 m |
20 m |
24.2 m |
25.1 m |
30 m |
38.1m |
40.3 m |
45.8 m |
|
Working Radius Max |
8 m |
9.8 m |
12.6 m |
15.8 m |
16 m |
20.2 m |
21.6 m |
21.6 m |
23 m |
|
Lifting capacity |
200kg |
230 kg |
230 kg |
230 kg |
230 kg |
480 kg |
480 kg |
480kg |
480 kg |
|
Crossing Height |
5m |
7.75 m |
9.2 m |
9.8 m |
9.2 m |
12.2m |
19.5m |
19.5m |
19.5m |
|
Length( stowed) Ⓓ |
5.3m |
7.7 m |
9.07 m |
9.92 m |
9.75 m |
12.52 m |
11.37 m |
12.15m |
11.6m |
|
Width (stowed) Ⓔ |
2m |
2.28 m |
2.38 m |
2.48 m |
2.58 m |
2.5 m |
2.5 m |
2.49m |
2.5 m |
|
Height(stowed) Ⓒ |
2.26m |
2.38 m |
2.49 m |
2.82 m |
2.8 m |
3.17 m |
3.17 m |
3.17m |
5.1 m |
|
Platform Ⓑ*Ⓐ |
1.1*0.67m |
1.83*0.76 m |
1.83*0.76 m |
1.83*0.76 m |
1.83*0.76 m |
2.44×0.91m |
2.44×0.91m |
2.44*0.91m |
2.44×0.91m |
|
Drive*Steering |
4WD*2WS / 4WD*4WS (WD: wheel drive, WS: wheel steering) |
||||||||
CATHAYLIFT CABL series: designed for efficiency and safety in demanding work environments.
- Precise PLC Control: Enjoy precise and reliable control with programmable controller technology.
- Maintenance Made Easy: Simplify maintenance with fault code displays, facilitating quick troubleshooting.
- Safety Margin Restrictions: Stay within safe limits with built-in safety margin restrictions.
- Automatic Diagnosis: Swiftly detect failures with automatic diagnosis, ensuring uninterrupted operations.
- Single Handle Operation: Effortlessly maneuver with single-handle operation for vertical and horizontal movement.
- Adaptive Throttle Control: Optimize performance with automatic throttle adjustment based on actions.
- Engine Protection Features: Ensure engine longevity with automatic shutdown for low oil pressure, high water temperature, and air filter alarms.
- Hydraulic System Integrity: Maintain smooth hydraulic performance with high-pressure filter element clogging alarms.
- Easy Maintenance Access: Simplify servicing with a rotatable engine bracket for convenient maintenance.
- Versatile Working Bucket: Enhance flexibility with ±90° rotating working bucket for dynamic positioning.
- Robust Sealing Performance: Withstand harsh conditions with dustproof, soundproof sealing, ensuring reliability.
Main Configuration:
Basket (side swing ±90°)
Proportional control handle: SAUER DANFOSS USA
Program controller: EPEC Finland
Length angle sensor: BPE Italy
Hydraulic valve:
Oil-control: Italy
Hydroforce: United States
Pump station:
SAUER DANFOSS USA
Salami Italy
Swing motor: HELAC USA
Walking reducer:
Brevini Italy
PMP Italy
Omni USA
Engine: Cummins USA
Real Order:
