Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of articulating cherry picker in China. We warmly welcome you to buy discount articulating cherry picker for sale here from our factory. Quality products and reasonable price are available.

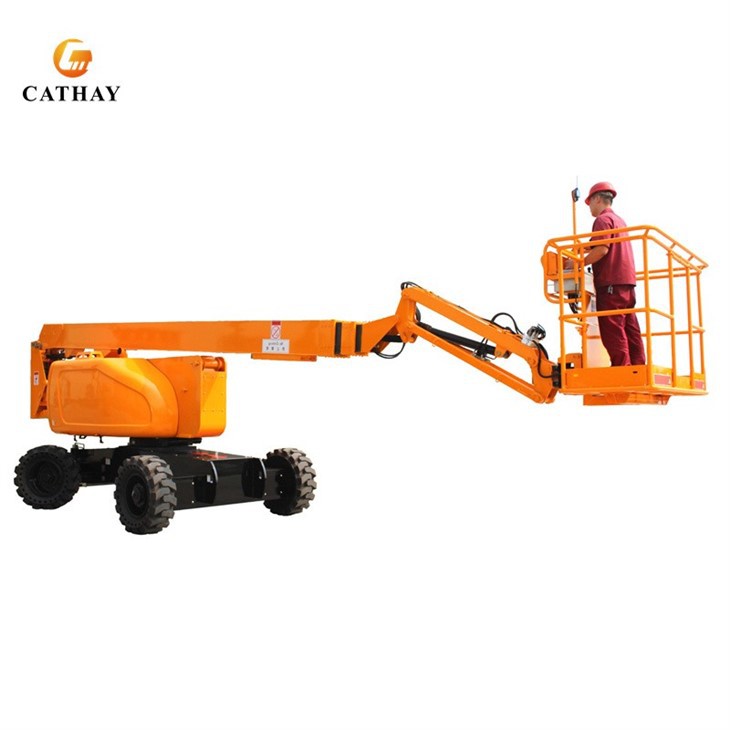

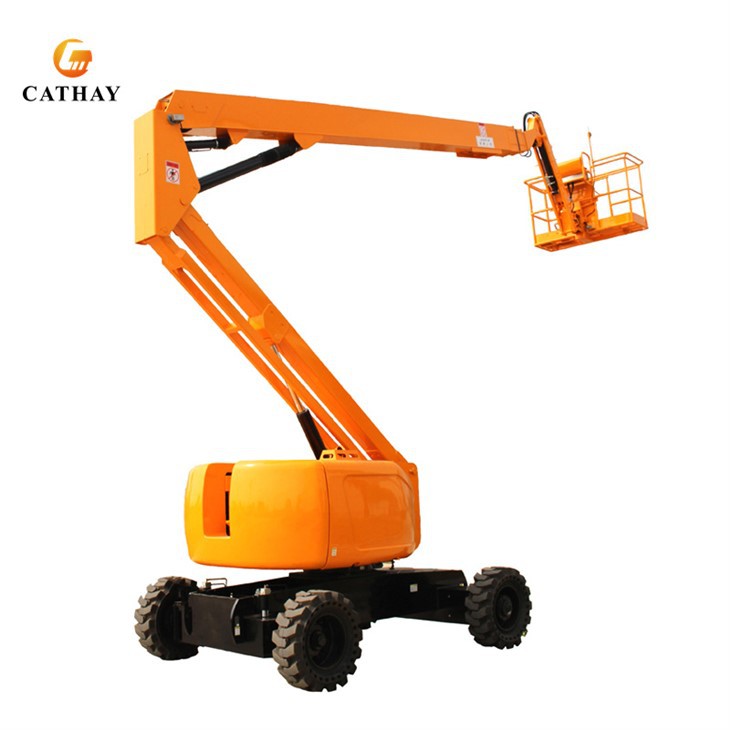

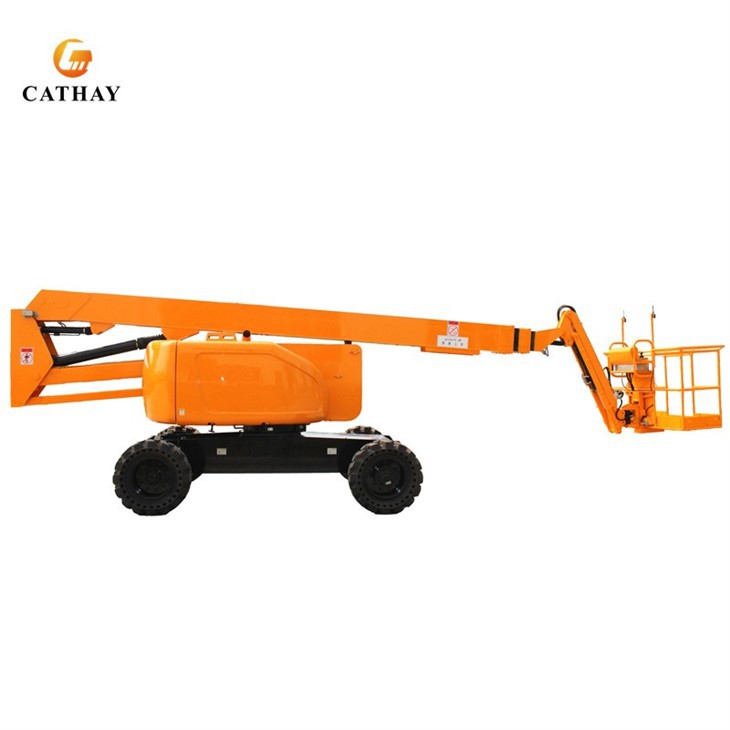

The CATHAYLIFT Articulating Cherry Picker stands out as a reliable and efficient solution for various applications. Its advanced control system, combined with automatic diagnostic and protective features, ensures both safety and ease of maintenance. The user-friendly single-handle operation and automatic throttle adjustment make it a highly efficient tool, while the accessible engine design and high-pressure filter alerts simplify upkeep. Additionally, the rotating work bucket and excellent sealing performance ensure versatility and durability in challenging conditions. Choose the CATHAYLIFT Articulating Cherry Picker for a blend of cutting-edge technology and practical functionality, designed to meet your highest standards.
|
Model |
CABL-12D |
CABL-16D |
CABL-20D |
CABL-24D |
CABL-25D |
CABL-30D |
CABL-38D |
CABL-40D |
CABL-45D |
|
Working Height Max |
14 m |
18 m |
22 m |
26.2 m |
27.1 m |
32 m |
40.1 m |
42.3 m |
47.8 m |
|
Platform Height Max |
12 m |
16 m |
20 m |
24.2 m |
25.1 m |
30 m |
38.1m |
40.3 m |
45.8 m |
|
Working Radius Max |
8 m |
9.8 m |
12.6 m |
15.8 m |
16 m |
20.2 m |
21.6 m |
21.6 m |
23 m |
|
Lifting capacity |
200kg |
230 kg |
230 kg |
230 kg |
230 kg |
480 kg |
480 kg |
480kg |
480 kg |
|
Crossing Height |
5m |
7.75 m |
9.2 m |
9.8 m |
9.2 m |
12.2m |
19.5m |
19.5m |
19.5m |
|
Length( stowed) Ⓓ |
5.3m |
7.7 m |
9.07 m |
9.92 m |
9.75 m |
12.52 m |
11.37 m |
12.15m |
11.6m |
|
Width (stowed) Ⓔ |
2m |
2.28 m |
2.38 m |
2.48 m |
2.58 m |
2.5 m |
2.5 m |
2.49m |
2.5 m |
|
Height(stowed) Ⓒ |
2.26m |
2.38 m |
2.49 m |
2.82 m |
2.8 m |
3.17 m |
3.17 m |
3.17m |
5.1 m |
|
Platform Ⓑ*Ⓐ |
1.1*0.67m |
1.83*0.76 m |
1.83*0.76 m |
1.83*0.76 m |
1.83*0.76 m |
2.44×0.91m |
2.44×0.91m |
2.44*0.91m |
2.44×0.91m |
|
Drive*Steering |
4WD*2WS / 4WD*4WS (WD: wheel drive, WS: wheel steering) |
||||||||
Features & Advantages:
-
Automatic Diagnosis Function: The integrated automatic diagnosis feature promptly switches to security inspection mode if a vital component of the control system malfunctions, ensuring continuous and secure operation.
-
Single-Handle Control: This user-friendly single-handle mechanism enables operators to seamlessly control both vertical lifting and horizontal movements, enhancing operational ease and effectiveness.
-
Automatic Throttle Control: Our cherry picker is equipped with an automatic throttle adjustment feature that reacts to operational commands, maximizing efficiency and fuel savings without requiring manual adjustments.
-
Engine Protection System: The protection mechanism shuts down the engine when detecting low oil pressure or high water temperature. Additionally, an alert system informs operators if the air filter element is clogged, thereby safeguarding the engine from potential harm.
-
Hydraulic System Assurance: An alarm indicating high-pressure filter element blockage ensures the hydraulic system remains functional, preventing unanticipated interruptions due to hydraulic complications.
- Convenient Engine Installation: The engine is conveniently side-mounted and comes with a rotatable bracket, which simplifies maintenance tasks by allowing easy access for servicing.
Main Configuration:
Basket (side swing ±90°)
Proportional control handle: SAUER DANFOSS USA
Program controller: EPEC Finland
Length angle sensor: BPE Italy
Hydraulic valve:
Oil-control: Italy
Hydroforce: United States
Pump station:
SAUER DANFOSS USA
Salami Italy
Swing motor: HELAC USA
Walking reducer:
Brevini Italy
PMP Italy
Omni USA
Engine: Cummins USA
