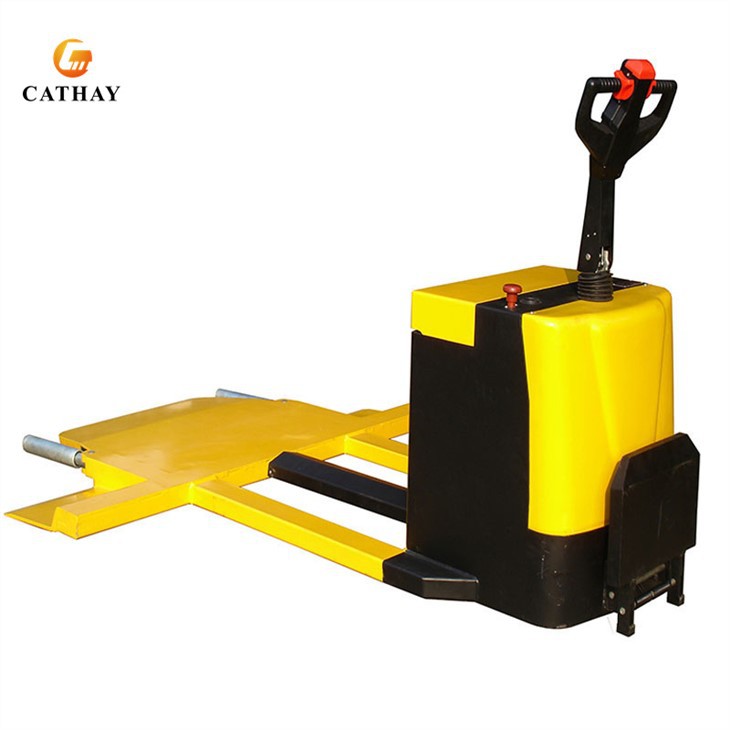

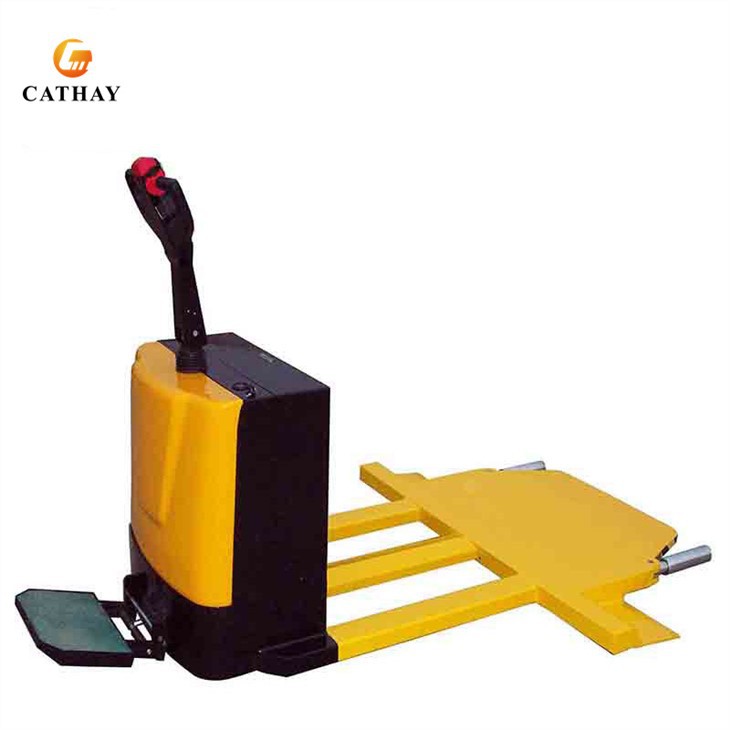

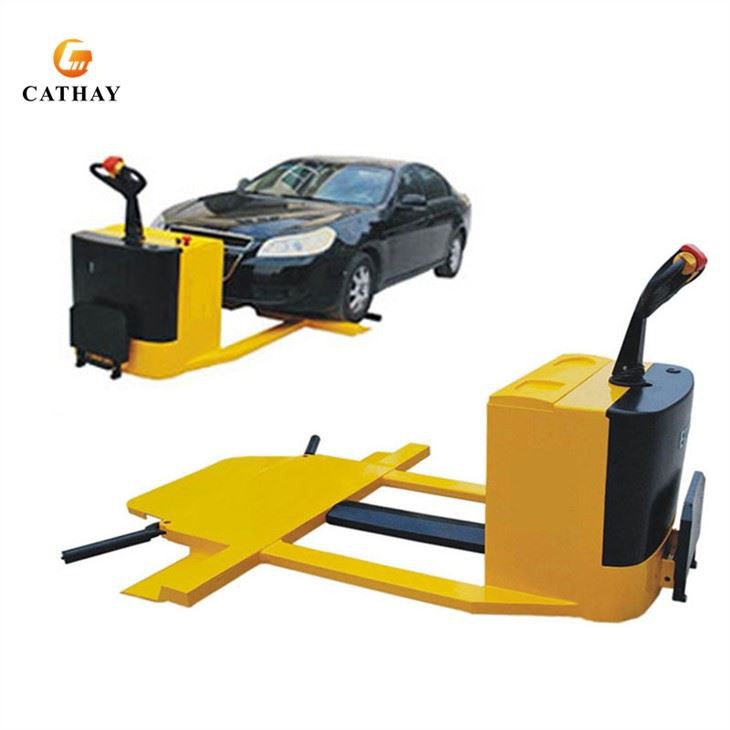

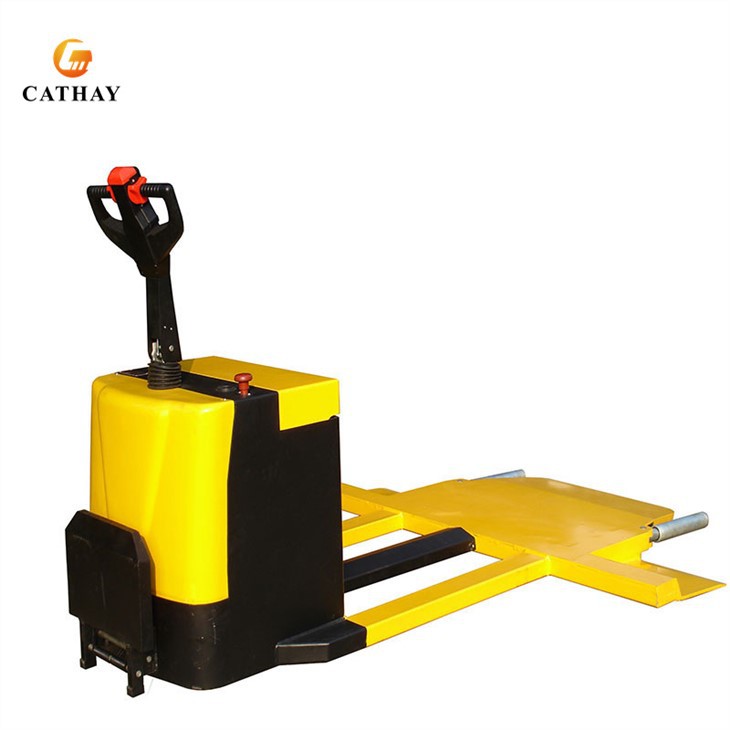

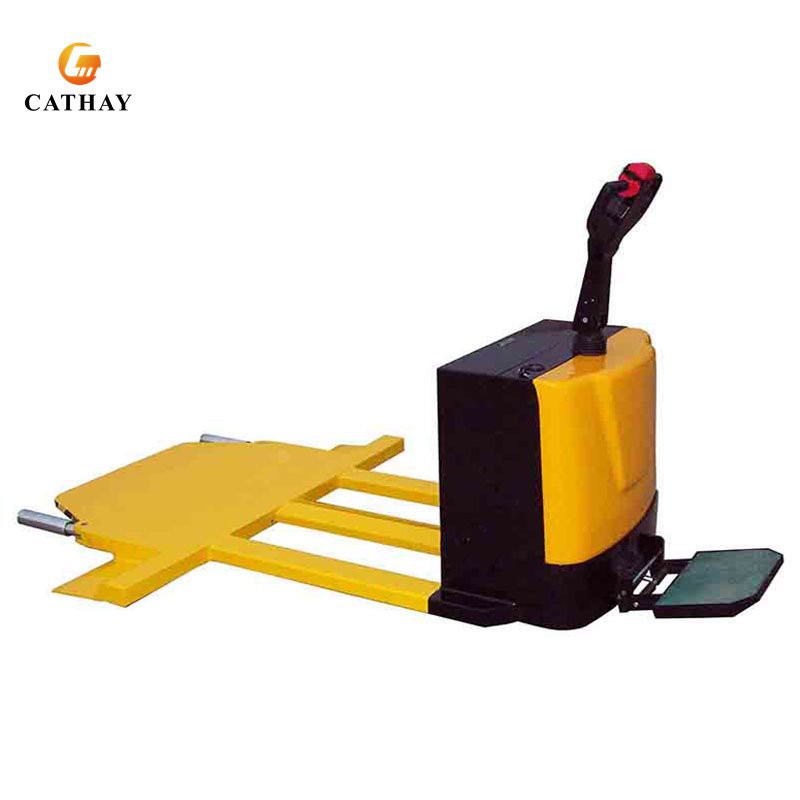

Portable Electric Car Mover

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of portable electric car mover in China. We warmly welcome you to buy discount portable electric car mover for sale here from our factory. Quality products and reasonable price are available.

CATHAYLIFT Portable Electric Car Mover also has the functions of electro-hydraulic lifting and electric stepless speed regulation; on the basis of handling, the handling of motor vehicles has been improved accordingly. It can achieve the functions of transportation and displacement of motor vehicles. The optional foldable rear standing pedal is convenient for the operator to drive with the car and reduces the labor intensity of the worker. Equipped with electric walking mode with stepless speed regulation, high-power DC motor hydraulic station, and ergonomic handle, this model can meet the requirements for small motor vehicles to move, turn, turn around, etc. Action; requirements of strong maneuverability, fast operation, convenient and comfortable operation. This model is equipped with a high-performance power battery and a portable charger. It is especially suitable for small motor vehicles in residential parking lots and underground parking lots, including unpowered movement, in-situ U-turn, and handling and displacement of faulty vehicles in the maintenance industry; accurate handling, movement, and display in the sales industry; unpowered removal in the manufacturing industry , display and other occasions.

● On the basis of handling, the handling of motor vehicles has been improved accordingly. It can achieve the functions of transportation and displacement of motor vehicles.

● Optional foldable standing pedals are available to facilitate the operator to drive at any time and reduce the labor intensity of workers.

● Equipped with stepless speed regulation electric walking mode, high-power DC motor hydraulic station, and ergonomic handle, so that this model can meet the loading and unloading, handling, shifting and other actions of small motor vehicles; strong maneuverability, fast operation and control Convenient and comfortable modern logistics handling requirements.

1. The vehicle should be operated by a special person, and the operator must abide by the safety operation rules. In order to keep the car in good working condition, it should be used in a clean working environment, and the lubrication condition of each rotating part should be checked every day.

2. The operator's front vision must be good, and there must be enough space around the car for other people or other vehicles. If the volume of the cargo to be carried is large and the line of sight is affected, it should be driven with the cargo behind and the person in front. The operating speed must match the surrounding environment. When the vision is poor or there are pedestrians or vehicles approaching, the operator must slow down. When the locomotive wants to overtake or to attract the attention of other vehicles, the horn should be used appropriately.

3. When using the CATHAYLIFT Portable Electric Car Mover, the operator should not ride, sit on the car, or carry people, and should use as little emergency braking, multiple starts and high-speed turns as possible to reduce vehicle damage and accidental injuries. Before exercising, the goods should be placed neatly and stably, and the height above the ground should be 200mm. After the fork is lifted, each person should keep a certain distance from the fork and the cargo.

4. When using the CATHAYLIFT Portable Electric Car Mover, it is not allowed to adjust and increase the pressure of the relief valve of the hydraulic station, and it is not allowed to lift the goods that exceed the rated load, otherwise the vehicle will be damaged.

5. The following operating procedures must be followed when driving on the slope: check whether the cargo is loose, make sure that it will not be scattered and then drive slowly, and never turn on the slope or run diagonally up and down.

6. Due to transportation factors, the capacity of the battery is only about 80% of the new car purchased. Please check the capacity of the battery carefully before use, and add battery fluid to the battery pack. It can be used after it is fully charged.

7. Regularly check each oil pipe joint for leakage, check the capacity of hydraulic oil in the oil tank frequently, and replenish it in time.

8. In order to prevent short-circuit damage of electrical appliances that may occur due to uncleanness of the electric control board, blow it with high-pressure air or lightly brush it with a brush every month. Check whether the lead wires of each connector in the electrical system are burnt, soaked in water, soaked in oil and other debris. If the contacts of the DC contactor are obviously burned, remove the burned contacts and polish them with emery cloth. The contacts or contactors should be replaced with new ones.

9. Regularly check the oil pump, the carbon brushes of the drive motor and the commutator. When the carbon brushes are excessively worn, they should be replaced in time. When the surface of the commutator is rough, it should be polished with abrasive cloth and then wiped with alcohol cotton.

10. Adjustment of the brake (brake): Open the chassis cover, you can see that the drive motor is the upper brake, adjuster, by trying to start the drive motor, adjust the screw on the tail of the motor cover (brake) at the same time, so that the brake pads and the motor friction pads The interval is about 1.5~2.0 mm, and then start to test the braking distance, and try to push it with external force at the motor and power-on state.

11. The battery charging time is generally 6~8 hours. The current changes with the length of the charging time when the battery is charging. During the initial charging, the current is relatively large, and as the battery power increases, the charging current automatically decreases. When the battery capacity reaches 80%, the charger outputs a small current to continue charging the battery slowly. In this case, the charging time required will be longer.

12. It is necessary to prevent battery damage caused by over-discharge of the battery, failure to charge in time and failure to replenish battery fluid in time. When the battery is in use, the electrolyte is heated and evaporated, and the level of the electrolyte decreases, resulting in a large proportion of the electrolyte. Generally, only pure distilled water needs to be supplemented for battery storage and battery discharge, so that the liquid level is about 20mm above the grid. When replacing a single battery, a battery with the same battery capacity and size should be selected. In addition to the positive (+) and negative (-) poles of the battery during battery welding, attention should also be paid to the temperature of the welding torch during welding to prevent the battery plastic casing from being burned out due to overheating. When replenishing the battery fluid, you must do a good job of protection in advance, and wear protective glasses to prevent the battery fluid from splashing out. If the battery fluid is accidentally splashed on the human body, it should be washed with water immediately.

13. After working every day, the CATHAYLIFT Portable Electric Car Mover should be parked on a dry and level field, the fork should be lowered to the lowest position, the power switch should be in the OFF state, and the power switch key should be removed. Check the hydraulic system, transmission system, electrical system, battery capacity and electrolyte capacity respectively, and deal with any abnormal conditions in time. For safety, turn off the power switch and disconnect the power plug between the battery and the electronic control board assembly.
