Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of self propelled vertical boom lift in China. We warmly welcome you to buy discount self propelled vertical boom lift for sale here from our factory. Quality products and reasonable price are available.

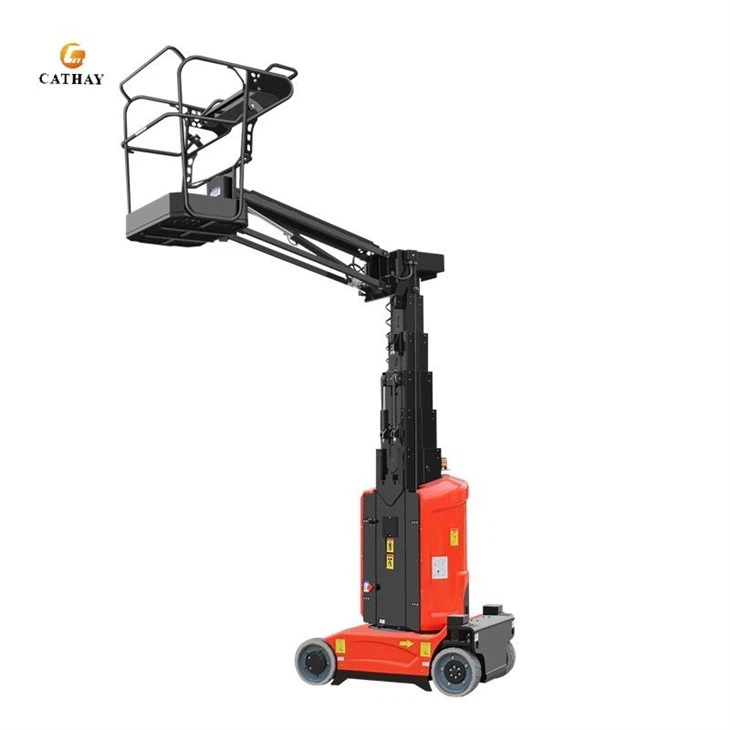

Self Propelled Vertical Boom Lift
One of the standout features of CATHAYLIFT's Self Propelled Vertical Boom Lift is its advanced jib system, which extends from the top of the vertical mast. This articulating arm provides additional reach and precise positioning, allowing operators to navigate around obstacles and access hard-to-reach areas with ease. The jib's versatility makes it an invaluable tool for tasks that require meticulous attention to detail, such as electrical installations, painting, or window cleaning. This product is equipped with robust safety features, including stabilizers, emergency descent systems, and intuitive controls, ensuring a secure working environment for operators. With its combination of innovative design, superior functionality, and unwavering commitment to safety, CATHAYLIFT Self Propelled Vertical Boom Lift is the ultimate choice for professionals seeking a reliable and efficient solution for elevated work.
Product Details
Advantages:
- Versatility: The combination of the vertical mast and jib allows for a range of motion and reach that is useful in various applications, from tight indoor spaces to outdoor job sites.
- Compact Design: These machines are typically designed to be compact, making them suitable for use in confined spaces where larger equipment cannot fit.
- Maneuverability: Being self-propelled, these units can be easily moved around a job site, enhancing productivity and reducing the need for additional equipment or manual labor.
- Safety: Equipped with safety features such as guardrails, harness attachment points, and stability systems, these platforms help ensure the safety of operators working at height.
Real Order
|
MODEL |
CSTAR-8100 |
|
Max. Platform Height |
9.2m |
|
Max. Working Height |
11.2m |
|
Loading capacity |
200kg |
|
Occupants |
2 |
|
Platform Dimension |
0.62*0.87m |
|
Max. Horizontal Reach |
3m |
|
Up and Over Height |
7.89m |
|
Guardrail height |
1.1m |
|
Ground Clearance(Stowed) |
70mm |
|
Ground Clearance(Raised) |
19mm |
|
Wheelbase |
1.22m |
|
Turning Radius(Inside/Outside) |
0.23/1.65m |
|
Turret Rotation |
345° |
|
Jib Movement |
130° |
|
Travel Speed(Stowed) |
4.5km/h |
|
Travel Speed(Raised) |
0.5km/h |
|
Up/Down Speed |
42/385 |
|
Max. Working Slope |
X-2.5°,Y-2.5° |
|
Overall Length |
2.53m |
|
Overall Width |
1.0m |
|
Overall Height(stowed) |
1.99m |
|
Tyres |
φ381*127mm |
|
Driving Motor |
24V/0.9kw |
|
Lifting Motor |
24V/3kw |
|
Battery |
24V/240Ah |
|
Charger |
24V/30A |
|
Weight |
2950kg |
