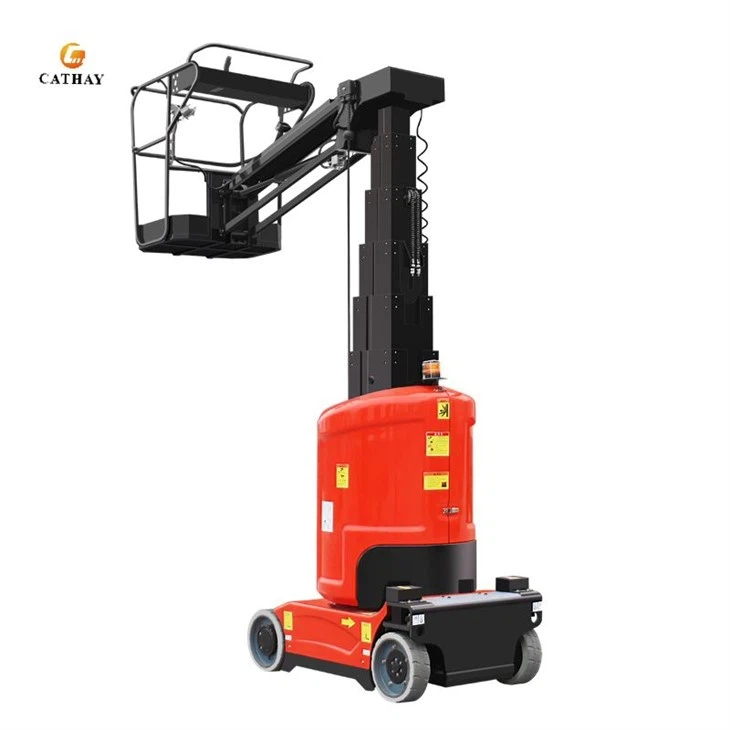

Self-Propelled Vertical Mast with JIB
CATHAYLIFT's Self-Propelled Vertical Mast with JIB is equipped with a host of safety features, including an overweight sensor and an oil pipe explosion-proof system, ensuring the well-being of operators and the longevity of the machine. Its non-marking tires are specifically designed for delicate indoor floors, minimizing potential damage. Moreover, its self-driving design empowers operators to conveniently and swiftly maneuver the machine to the desired work location.
Product Details:
Advantages:
- 130-degree Jib Lifting Range: The 130-degree lifting range of the jib provides exceptional flexibility, enabling multi-angle horizontal crossing operations. This feature opens up possibilities for accessing hard-to-reach areas with ease.
- Emergency Stop Switch: Safety is paramount. The emergency stop switch allows for immediate stoppage of operations in case of an emergency, providing peace of mind and ensuring swift responses.
- Emergency Descent System: In the event of a power outage or other emergency, the emergency descent system allows for a controlled and safe descent of the platform, prioritizing operator security.
- Pothole Protection System: The pothole protection system safeguards the equipment from potential accidents by providing a safety net when the machine encounters uneven terrain or potholes.
- Aluminum Platform Frame: The aluminum platform frame contributes to the machine's lightweight construction, enabling easier maneuverability and reduced stress on the lifting mechanism.
Real Order:
- Oil Pipe Explosion-Proof System: This system safeguards the equipment from catastrophic failures, ensuring continuous operation by preventing oil pipe bursts from causing unexpected descents.
- Standard Lifting Lugs: The standard lifting lugs ensure safe and convenient loading and unloading of the equipment, streamlining transportation and setup processes.
- AC Drive Wheel: The AC drive wheel maximizes power efficiency, delivers strong performance, and ensures a smooth ride with no bumps. Its maintenance-free design contributes to longer operational life and lower overall costs.
|
Model |
CSTAR-8100 |
|
Max. Platform Height |
9.2 m |
|
Max. Working Height |
11.2 m |
|
Loading Capacity |
200 kg |
|
Occupants |
2 |
|
Platform Dimension |
0.62*0.87 m |
|
Max. Horizontal Reach |
3 m |
|
Up and Over Height |
7.89 m |
|
Guardrail Height |
1.1 m |
|
Ground Clearance (Stowed) |
70 mm |
|
Ground Clearance (Raised) |
19 mm |
|
Wheelbase |
1.22 m |
|
Turning Radius (Inside/Outside) |
0.23/1.65 m |
|
Turret Rotation |
345° |
|
JIb Movement |
130° |
|
Travel Speed (Stowed) |
4.5 km/h |
|
Travel Speed (Raised) |
0.5 km/h |
|
Up/Down Speed |
42/385 |
|
Max. Working Slope |
X-2.5°,Y-2.5° |
|
Overall Length |
2.53 m |
|
Overall Width |
1.0 m |
|
Overall Height (stowed) |
1.99 m |
|
Tyres |
φ381*127 mm |
|
Driving Motor |
24V/0.9kw |
|
Lifting Motor |
24V/3kw |
|
Battery |
24V/240Ah |
|
Charger |
24V/30A |
|
Weight |
2950 kg |
