Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of small all terrain scissor lift in China. We warmly welcome you to buy discount small all terrain scissor lift for sale here from our factory. Quality products and reasonable price are available.

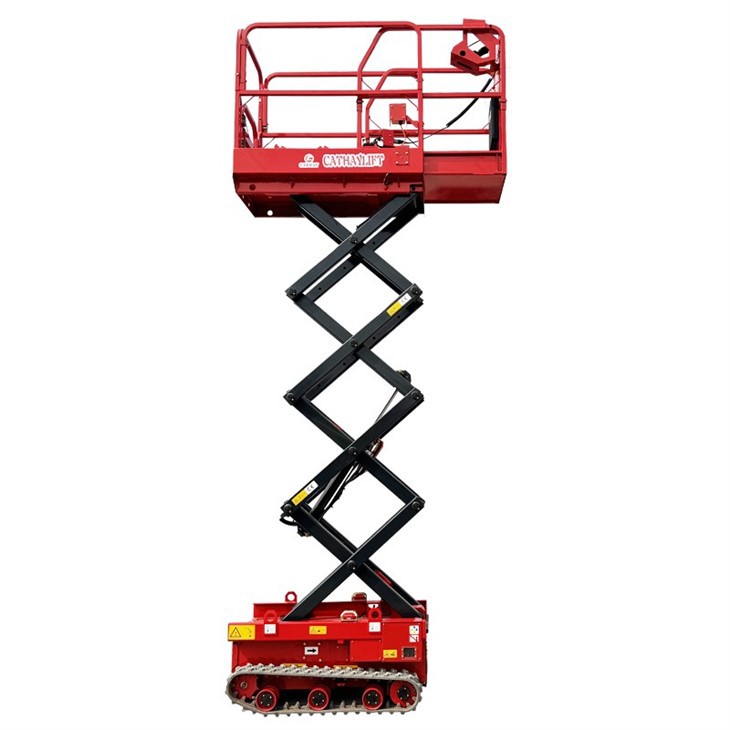

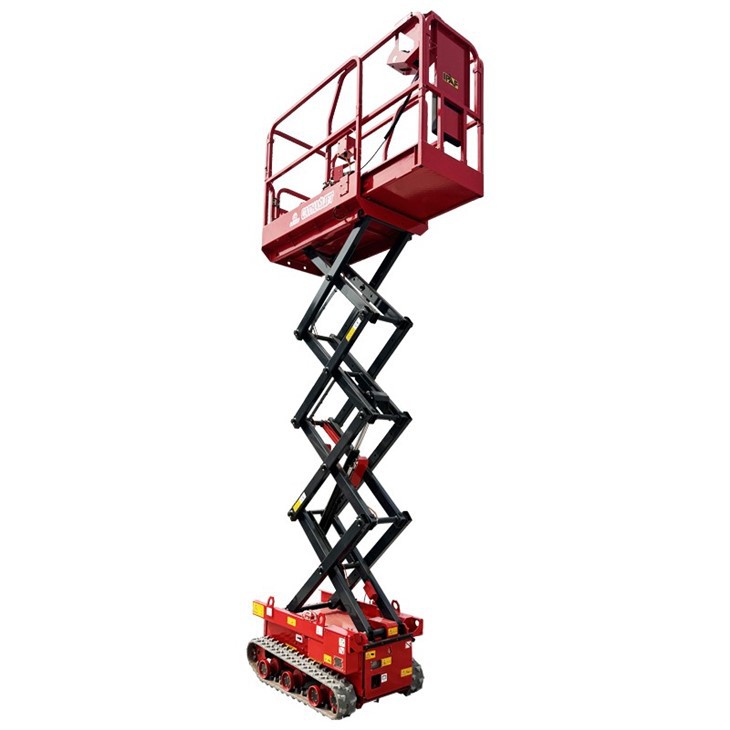

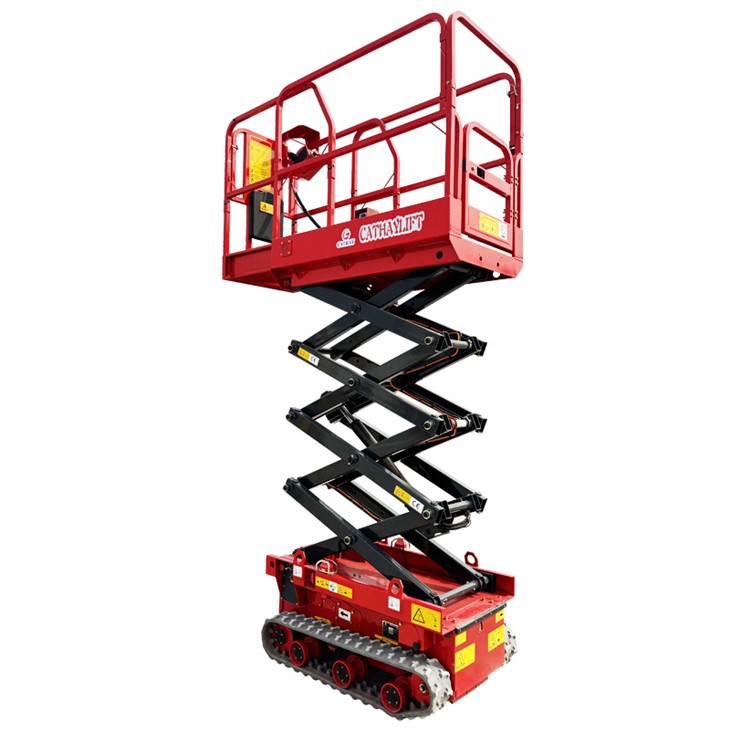

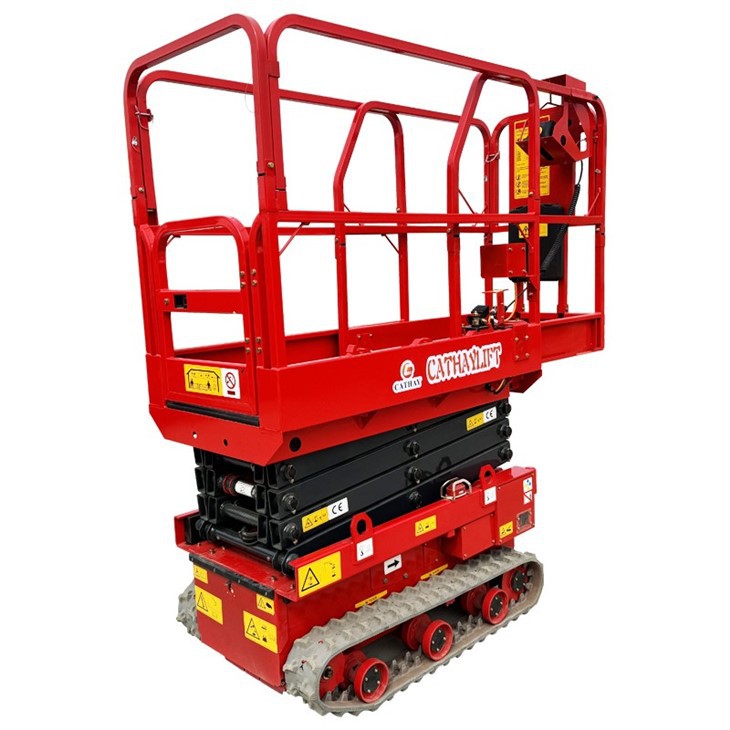

Designed to excel in challenging environments like construction sites and rugged terrain, CATHAYLIFT's Small All Terrain Scissor Lift is packed with features and advantages that ensure superior performance and reliability.
|
Model Type No. |
CLS10D |
CLS13D |
CLS16D |
|
Working Height Maximum |
12 m |
15 m |
18 m |
|
Platform Height Maximum |
10 m |
13 m |
16 m |
|
Lift capacity |
1150 kg |
680kg |
680 kg |
|
Lift capacity (extension deck) |
230 kg |
230kg |
230 kg |
|
Length Ⓓ |
4.2/4.81m |
4.2m /4.81m |
4.2/4.81 m |
|
Width Ⓔ |
2.28 m |
2.28m |
2.28 m |
|
Height(stowed)Ⓒ |
2.81 m |
3.03m |
3.25 m |
|
Wheel baseF |
2.84m |
2.84m |
2.84 m |
|
Travel speed(stowed) |
6.3km/h |
6.3km/h |
6.3km/h |
|
Travel speed(raised ) |
1.1km/h |
1.1km/h |
1.1 km/h |
|
Grade ability |
50% |
50% |
0.45 |
|
weight |
6850kg |
7350 kg |
8850kg |
|
Fuel tank volume |
115L |
115L |
115L |
|
Hydraulic tank volume |
170L |
170L |
170L |
|
Drive mode |
4*4*2 |
4*4*2 |
4*4*2 |
Features&Advantages:
Advanced Power System
- Special Worm Gear Reducer: The lift's power system employs a special worm gear reducer, ensuring efficient lifting operations.
- All-Aluminum Alloy Structure: The casing boasts an all-aluminum alloy structure, providing lateral torque resistance, low noise, and maintenance-free operation.
Precise Speed Control
- Japanese Mitsubishi Frequency Converter: The speed control system features a Mitsubishi frequency converter, utilizing microprocessor control and IGBT technology for flexibility and reliability.
- Comprehensive Protection: The system includes complete protection functions to safeguard both the inverter and the motor.
High-Precision Control
- Position Sensor: Equipped with a high-precision position sensor, the lift outputs coded signals for high-speed processing, enabling stepless adjustment and precise control of the elevator's up and down points.
- Easy Operation: The control system is user-friendly, offering high precision and the capability for multi-break and multi-speed control. It allows for starting at any position and features upper and lower limit protection, ensuring high reliability without stroke phenomena.
Robust Mechanical Components
- Eight Roller System: The mechanical parts feature eight rollers that tightly embrace the square tube guide rail from four directions. This roller system, driven by chains, ensures smooth and stable movement.
- Durable Rollers: Made from special materials, the rollers operate with minimal noise and exhibit an extremely low wear rate, enhancing longevity.
Optional Control Enhancements
- Touch Screen and PLC Control: For advanced control options, users can choose touch screen and PLC control, adding further ease of use and customization to the lift's operations.
Real Order:
