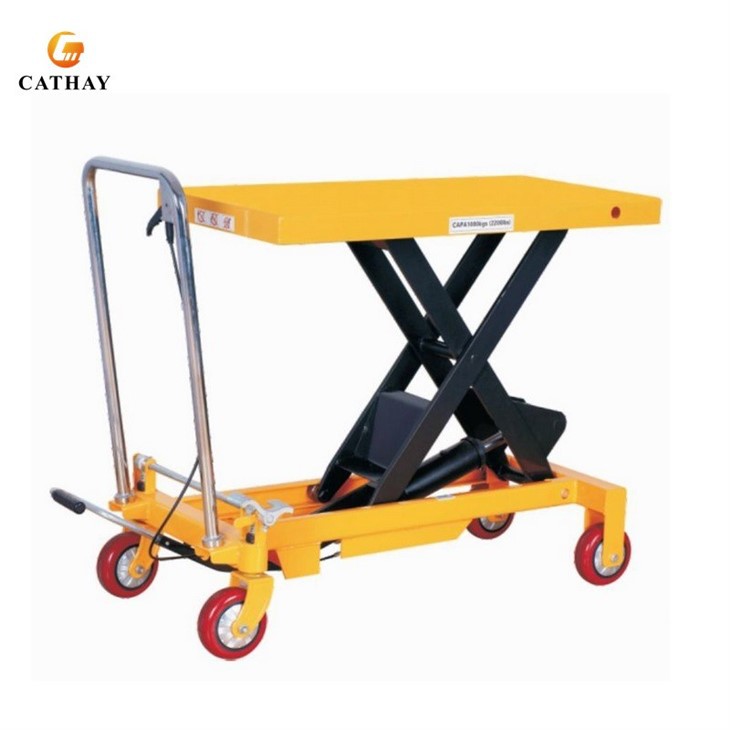

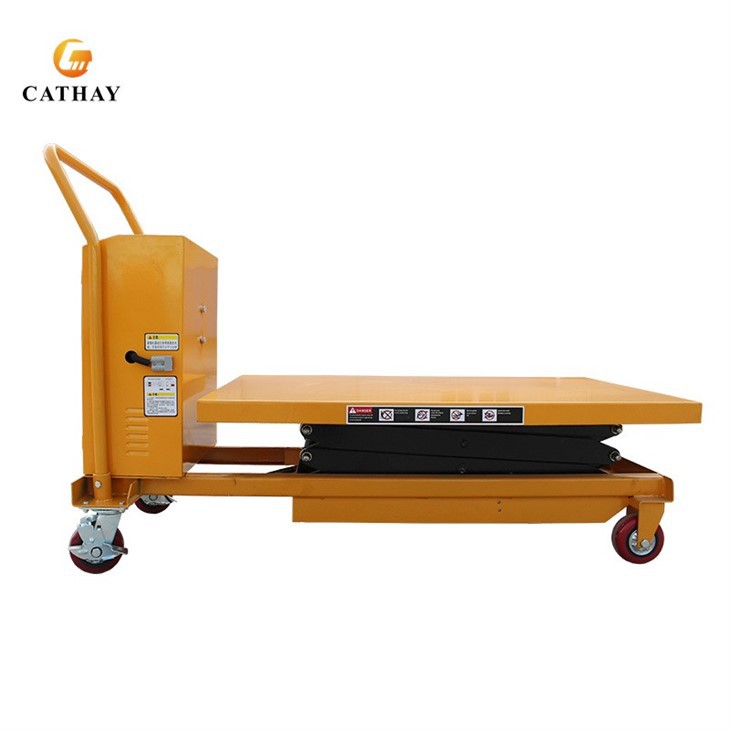

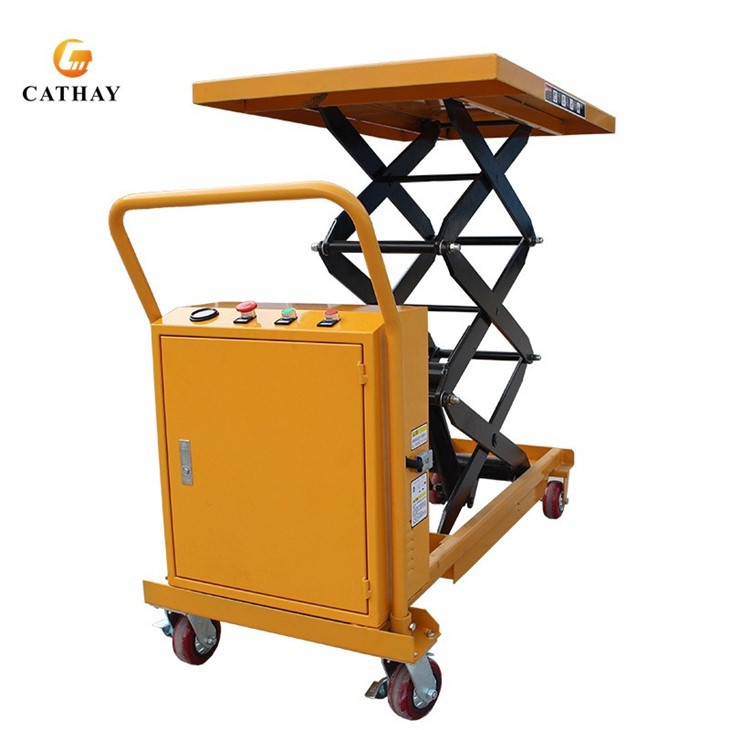

Small Trolley Lift Table
Safety and durability are core features of CATHAYLIFT's Small Trolley Lift Table. Strict guidelines ensure secure usage: hands and feet must remain clear of the platform's coverage area, and loading during movement is prohibited to prevent accidents. Overloading or uneven distribution of weight is not permitted, as it may impair functionality-the cargo's center of gravity must always align with the platform. Unstable or loosely packed items should be avoided to maintain stability, and prolonged storage of goods on the table is discouraged to preserve its lifespan. Additionally, lateral movement of cargo during elevation is unsafe, and the brakes must be engaged when loading to prevent unintended shifts. By adhering to these precautions, users can maximize the table's performance and longevity.
|
Model |
Load capacity |
Lowed platform height |
Max. platform height |
Platform size |
Lifting time |
DC battery |
Net weight |
|
C-E700 |
700 kg |
450 mm |
1230 mm |
1143*635 mm |
5 s |
12V 80Ah |
160 kg |
|
C-E1000 |
1000 kg |
430 mm |
1220 mm |
1200*800 mm |
225 kg |
Product Details:

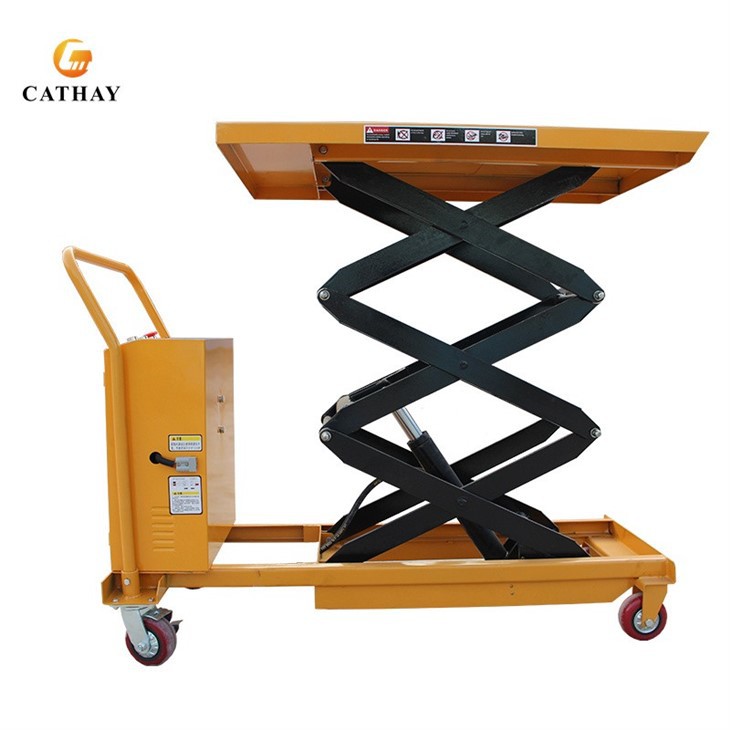

Robust Mechanical Structure
Our Small Trolley Lift Table features a durable mechanical framework comprising a sturdy chassis, a precision-engineered scissor arm mechanism, and a reinforced workbench. The scissor arms are constructed from Q345B high-strength steel plates, sourced from Shanghai Baosteel. These components are welded using gas-shielded welding technology, enhancing strength and elasticity while minimizing deformation. Critical pivot points incorporate hard chrome-plated intermediate shafts for superior corrosion resistance, paired with nanotechnology-based oil-free bearings to reduce friction, improve rotational smoothness, and extend operational lifespan.
Hydraulic System:
The hydraulic lifting mechanism integrates a DC-powered hydraulic pump, a high-performance hydraulic cylinder, and reinforced high-pressure oil lines to ensure stable and powerful elevation. When activated, the DC motor drives the hydraulic pump, drawing oil from the reservoir to pressurize the cylinder, which then extends the piston rod, lifting the platform smoothly. During descent, a precision speed-limiting valve and flow control valve regulate hydraulic oil discharge, while an electrically operated solenoid valve directs oil back into the tank. Safety is prioritized with overload and overflow protection, preventing system damage under excessive loads. Additionally, a fail-safe speed-limiting device ensures controlled descent even in the event of hydraulic line failure, guaranteeing operator safety and equipment protection.

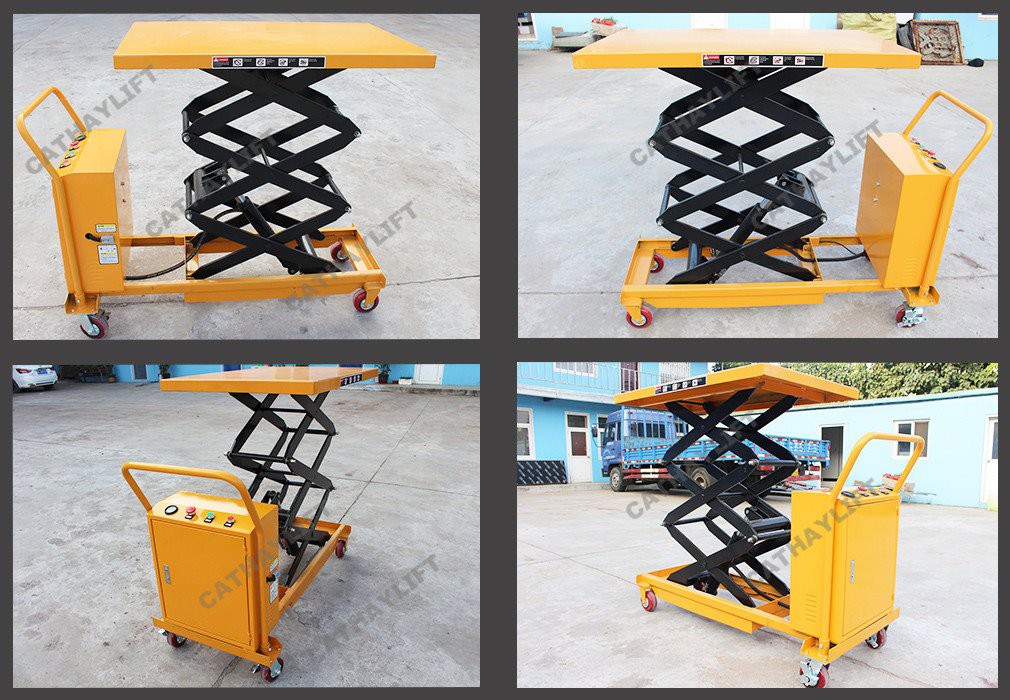

Real Order:
Intelligent Electrical Control System:

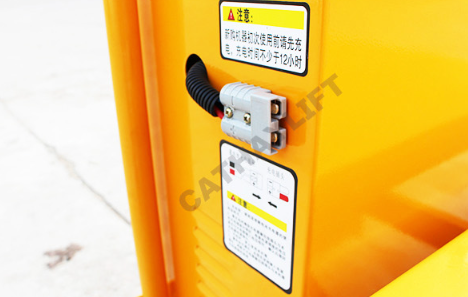

The electrical system employs 24V low-voltage circuitry for enhanced safety, featuring DC motors, fuses, relays, and contactors to manage power distribution. Limit switches prevent over-travel. The self-protecting control mechanism ensures immediate response to operational anomalies, reducing the risk of malfunctions. In emergencies-such as power loss or mechanical failure-a manual pressure relief valve allows for safe, controlled lowering of the platform without reliance on electrical components.
