Wheelchair Elevator

Name: China Wheelchair Elevator Manufacturers Suppliers Factory - Good Price - Cathay Machinery
Brand: Cathaylift
SKU: 259303379

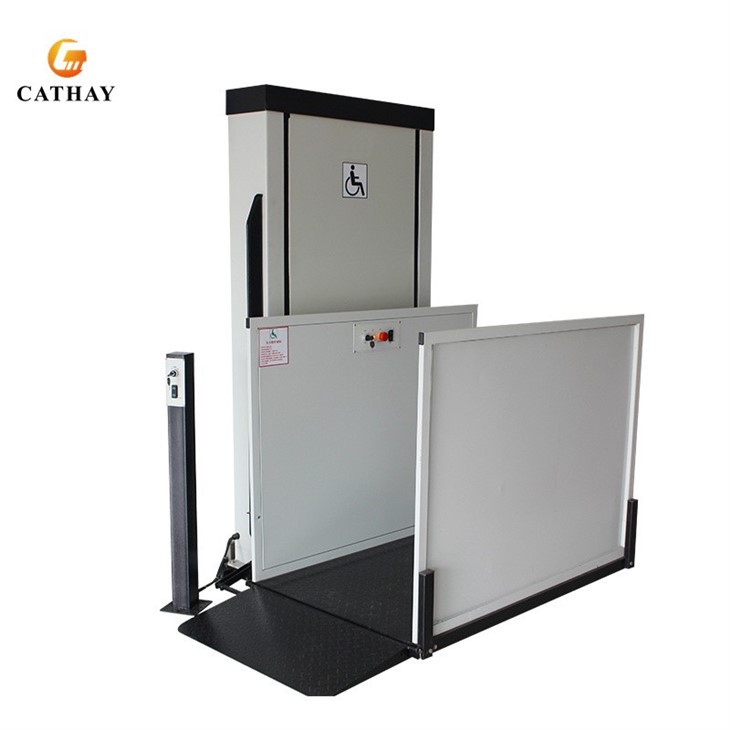

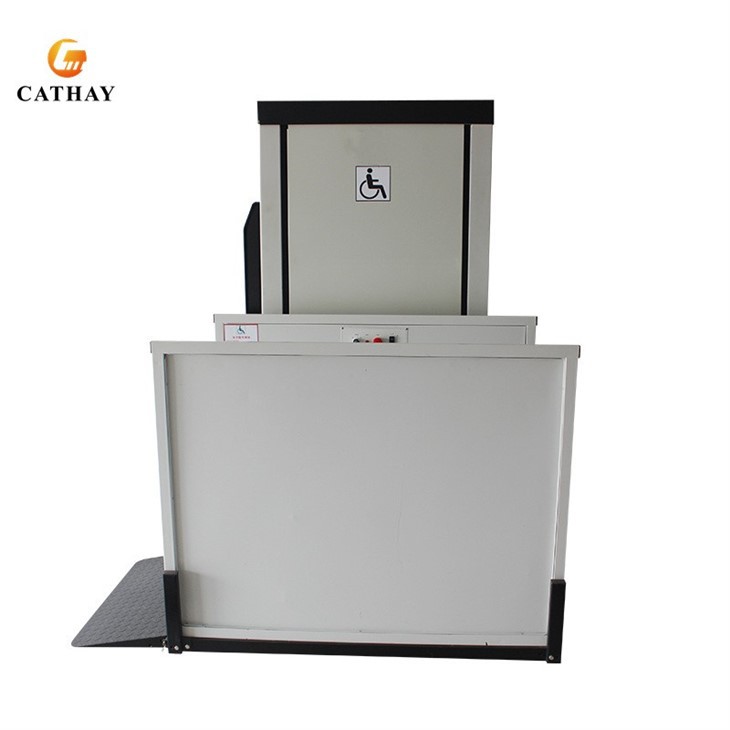

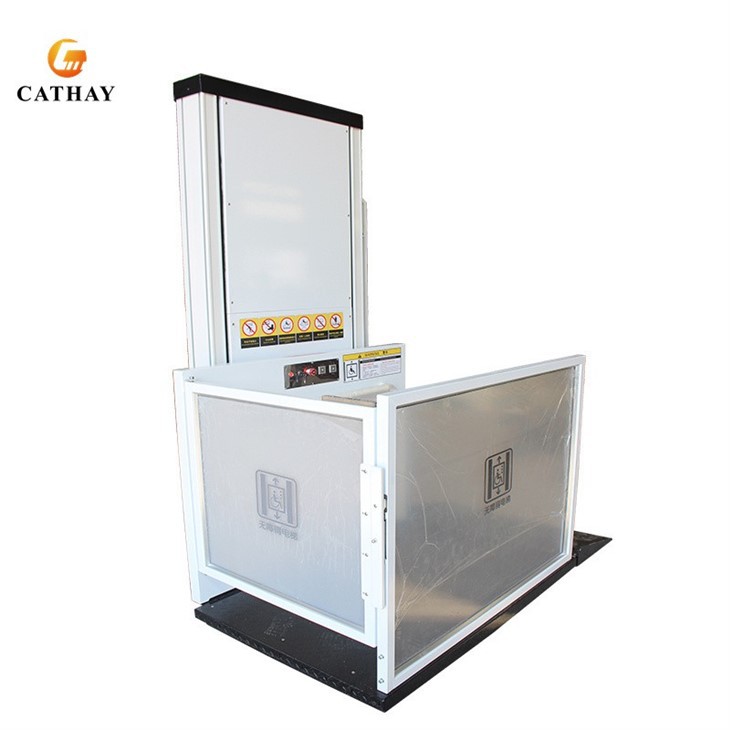

CATHAYLIFT's Wheelchair Elevator, capable of traversing heights between 1 and 6 meters, is meticulously engineered to ensure seamless mobility for individuals with disabilities. Its compact and elegant design, featuring brushed stainless steel and aluminum plate electrostatic sprayed plastic chassis/panel, seamlessly integrates into any environment without compromising aesthetics.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of wheelchair elevator in China. We warmly welcome you to buy discount wheelchair elevator for sale here from our factory. Quality products and reasonable price are available.

Wheelchair Elevator

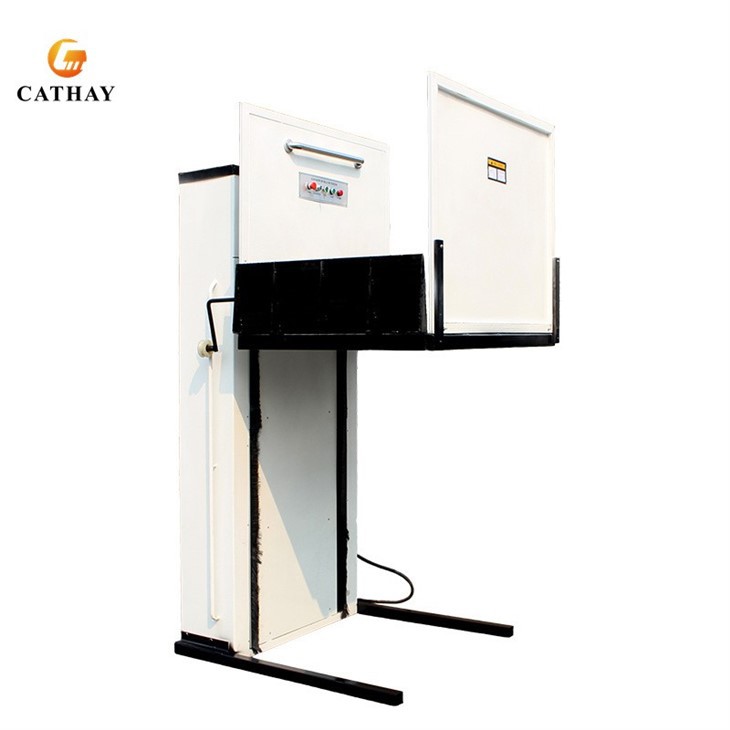

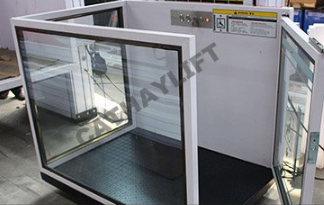

CATHAYLIFT's Wheelchair Elevator is engineered with user-friendliness and ease of maintenance in mind. Its fold-away design allows it to be neatly tucked against the wall when not in use, maximizing space and minimizing obstructions. The lifting platform features a secure system for fixing wheelchair wheels, ensuring a stable and comfortable ride. The intuitive control switch offers effortless operation, granting users the freedom to navigate their environment with confidence.

Model Type	HL10	HL15	HL20	HL25	HL30	HL35	HL40	HL50	HL60
Max. Platform Height (mm)	1000	1500	2000	2500	3000	3500	4000	5000	6000
Load Capacity (kg)	250 kg
N.W/G.W (kg)	350/450	450/550	550/700	700/850	780/900	850/1000	880/1050	1000/1200	1100/1300

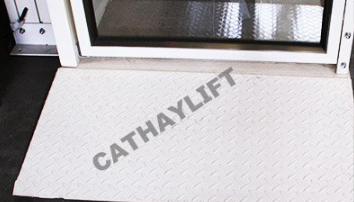

Platform Size	1430*1000 mm skid proof checkered steel
Working Condition	Both indoors and outdoors -20°~70°C
Entrance-Exit Way	Customized 90°or 180°
Installation	No pit installing, easy to install and remove <3.0m, installed directly="" on="" the="" floor.="" >3.0m, installed both on the floor and on the wall.

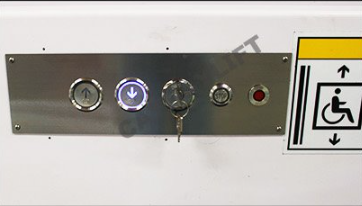

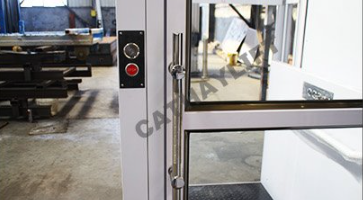

Switches	1.One control panel on the platform 2.Install two column switches on ground, which can be fixed at any floor needed 3.Remote control, user can operate lift within 20m

Product Details

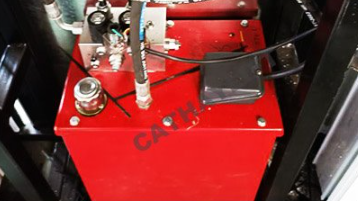

The Wheelchair Elevator's robust construction utilizes C-shaped steel for the lifting platform, guaranteeing stability and safety during operation. Its unique "rocker self-resetting switch operation" eliminates the need for a foundation pit, allowing for direct installation on concrete floors. This streamlined installation process simplifies construction, minimizes disruption, and reduces overall project costs. Furthermore, the lift's innovative design allows for manual lowering of the lifting platform through the manual hydraulic valve, providing an added layer of security and control. Specifically designed for public spaces such as hospitals, schools, hotels, shopping malls, and more, this barrier-free lifting platform provides accessible and comfortable passage for wheelchair users, individuals with disabilities, and those with limited mobility.
