Electric Elevator Lift

Name: China Electric Elevator Lift Manufacturers Suppliers Factory - Good Price - Cathay Machinery
Brand: Cathaylift
SKU: 255831544

Designed with user-friendliness and safety in mind, CATHAYLIFT's Electric Elevator Lift effortlessly elevates individuals in wheelchairs to heights ranging from 1 to 6 meters. Crafted with robust C-shaped steel construction, the platform boasts a "rocker self-resetting switch operation" system, eliminating the need for foundation pits. Its compact size and sleek design, featuring brushed stainless steel and aluminum plate electrostatic sprayed plastic chassis/panel, seamlessly blend into any setting without hindering surrounding aesthetics.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric elevator lift in China. We warmly welcome you to buy discount electric elevator lift for sale here from our factory. Quality products and reasonable price are available.

Electric Elevator Lift

CATHAYLIFT's Electric Elevator Lift simplifies installation through its direct ground mounting, avoiding the need for complex civil engineering. Its outdoor-ready design ensures resistance to water accumulation and rust, simplifying maintenance requirements. The manual hydraulic valve allows for controlled lowering of the platform, offering additional safety and user control. With its hydraulic drive system, the platform provides smooth, stable, and secure lifting, prioritizing the comfort and well-being of its users. CATHAYLIFT's Electric Elevator Lift is a testament to innovative accessibility solutions, enabling individuals with mobility challenges to navigate their surroundings with ease and independence.

Model Type	HL10	HL15	HL20	HL25	HL30	HL35	HL40	HL50	HL60
Max. Platform Height	1000mm	1500mm	2000mm	2500mm	3000mm	3500mm	4000mm	5000mm	6000mm
Load Capacity	250kg								250kg
N.W/G.W(kg)	350/450	450/550	550/700	700/850	780/900	850/1000	880/1050	1000/1200	1100/1300
Machine Size(mm)	200014301300	250014301300	300014301000	350014301000	400014301000	460014301000	510014301000	610014301000	710014301000
Platform size	1430*1000mm skid proof checkered steel
Working Condition	Both indoors and outdoors -20°~70°C
Entrance-Exit Way	It's customized 90°or 180°
Installation	No pit installing, easy to install and remove <3.0m, installed directly="" on="" the="" floor.="">3.0m, installed both on the floor and on the wall.
Switches (See details below)	1.One control panel on the platform 2.Install two column switches on ground, which can be fixed at any floor needed. 3.Remote control, user can operate lift within 20m.

Advantages

Automatic Operation: The platform is equipped with an automatic elevator system that responds to help buttons situated at both ends of the platform. This feature enables on-duty staff to quickly and efficiently assist users, minimizing wait times and fostering a seamless experience.
Versatile Applications: CATHAYLIFT's Electric Elevator Lift is ideal for a wide range of public spaces, including hospitals, schools, hotels, shopping malls, and more. Its durable construction and accessibility features make it an invaluable asset for creating inclusive and barrier-free environments.
Secure and Convenient Operation: The platform features a user-friendly control system, enabling easy operation with the press of a button. Four secure wheel-locking mechanisms ensure the stability of the wheelchair during the lifting process, providing peace of mind for both the user and attendant.

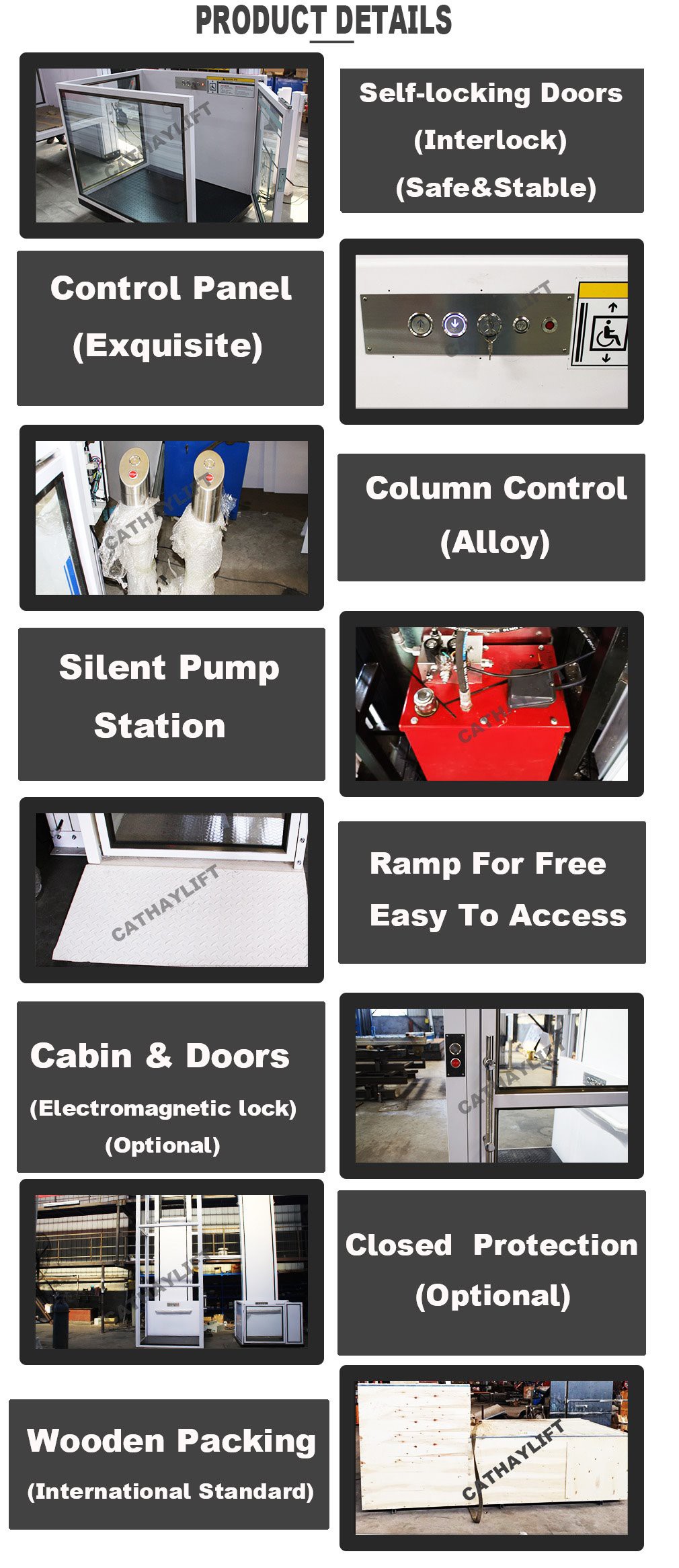

home lift-details
