Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of hydraulic wheelchair lift in China. We warmly welcome you to buy discount hydraulic wheelchair lift for sale here from our factory. Quality products and reasonable price are available.

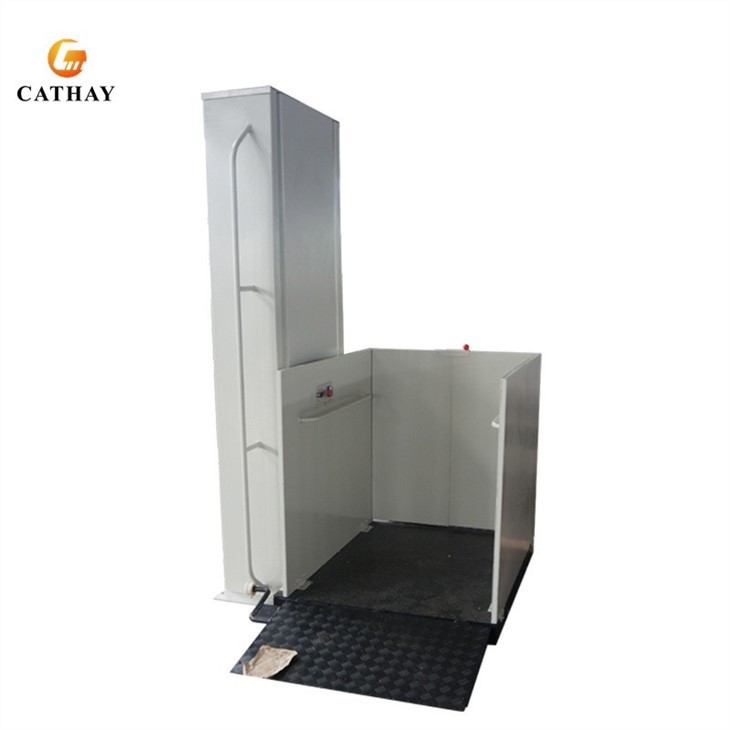

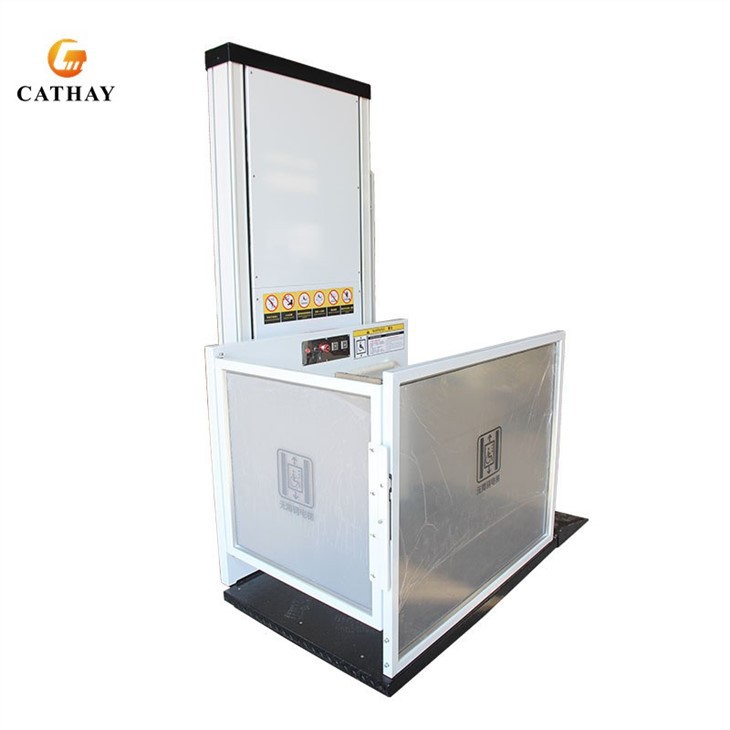

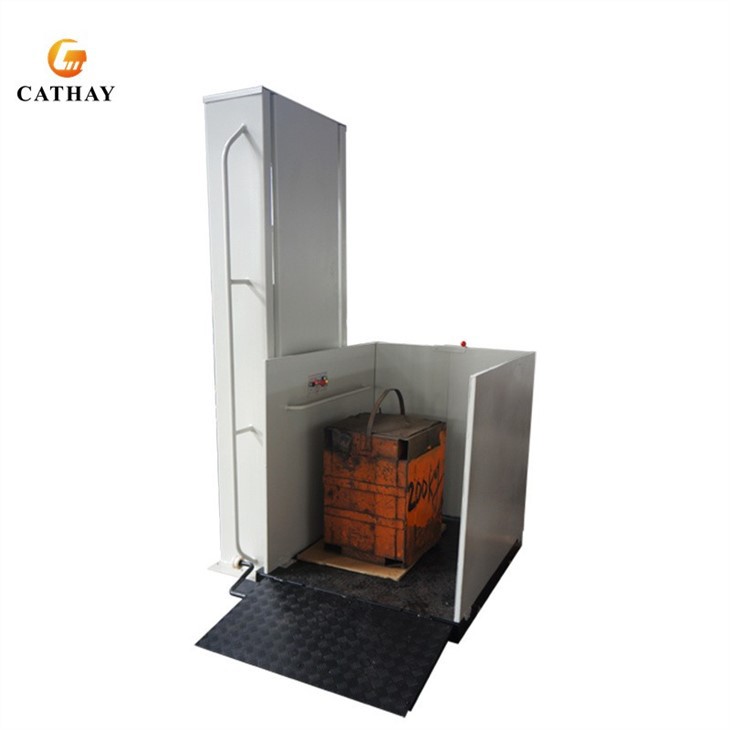

Customized 1~15m 250kg load hydraulic wheelchair lift
The wheelchair lift we produce is mainly composed of a track and a lifting platform, similar to a simple small elevator. The track is inlaid on the wall of the entrance and exit of the passage, and extends down with the slope of the stairs, all the way to the inside of the tunnel. When the lifting platform is in use, after people enter the car, they can control the lifting platform to enter the underground passage after pressing the switch, which is safe and convenient. home lift makes your entry and exits more convenient. This is a multifunctional lifting platform with a simple design and reliable operation. It has a wide range of applications. The vertical lifting platform combined with the platform and the hoistway has a fast and stable running speed. The home lifting platform product has high safety and is easy to install. Small footprint, no machine pit required. It can easily carry multiple passengers, and its load capacity is 200~500kg, and it can also be customized according to the situation. Considering the durability of the product, we have designed a variety of lifts that can work normally under harsh weather conditions, and its reliability is It's something you can trust and it's easy to operate. This is a lifting platform that is very suitable for home use or for the disabled.
|
Model Type |
HL10 |
HL15 |
HL20 |
HL25 |
HL30 |
HL35 |
HL40 |
HL50 |
HL60 |
|
Max. Platform Height |
1000mm |
1500mm |
2000mm |
2500mm |
3000mm |
3500mm |
4000mm |
5000mm |
6000mm |
|
Load Capacity(kg) |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
250kg |
|
N.W/G.W(kg) |
350/450 |
450/550 |
550/700 |
700/850 |
780/900 |
850/1000 |
880/1050 |
1000/1200 |
1100/1300 |
|
Machine Size(mm) |
2000*1430 *1300 |
2500*1430 *1300 |
3000*1430 *1000 |
3500*1430 *1000 |
4000*1430 *1000 |
4600*1430 *1000 |
5100*1430 *1000 |
6100*1430 *1000 |
7100*1430 *1000 |
Products Details
Safety device
1 Circuit protection control to descending
2 Guard plate or handrail protection
3 Operation angle of the rocker
4 Action of the safety touch plate
5 Upper and lower limiter and emergency limit
6 Operation of self-resetting switch
7 Start-delay device
8 The safety voltage of the control circuit is DC24V
9 Over-current protection system
10 The production circuit of the outlet gate is for customer use
Operation Instructions and Functions of Buttons on the Control Panel
1 There are two different control panels that are installed on the top of the major guard plate on the lifting bottom plate.
2 During the process of ascending and descending, the operator must insert the key and screw it in one direction to open the key switch. Then press “1” or “2” to ascend or descend. Stop pressing the “1” or “2” button, the machinery will stop ascending or descending.
3 Press the emergency stop button to stop the machinery emergently and the platform will stop at the selected location of emergency stop and all functions of the lifting platform will be disabled at such moment. In order to release the emergency stop, the operator needs to screw the emergency stop button in one direction, and when the emergency stop button is popped out and reset, the lift platform could operate normally.
Note: turn off the control power and remove the key from the machinery when the lifting machinery is not in use.

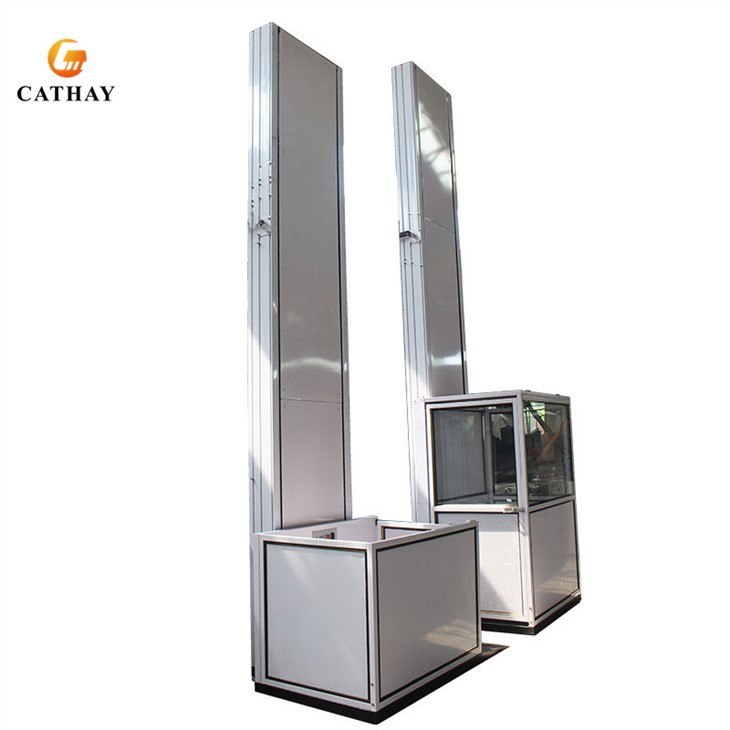

Real Order
