Mini Lift For Home

Name: China Mini Lift For Home Manufacturers Suppliers Factory - Good Price - Cathay Machinery
Brand: Cathaylift
SKU: 197495145

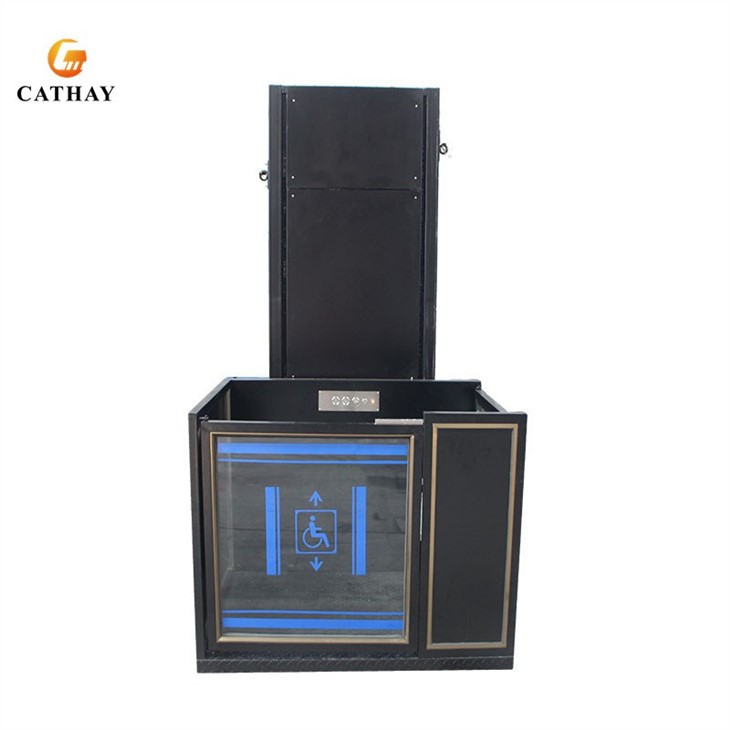

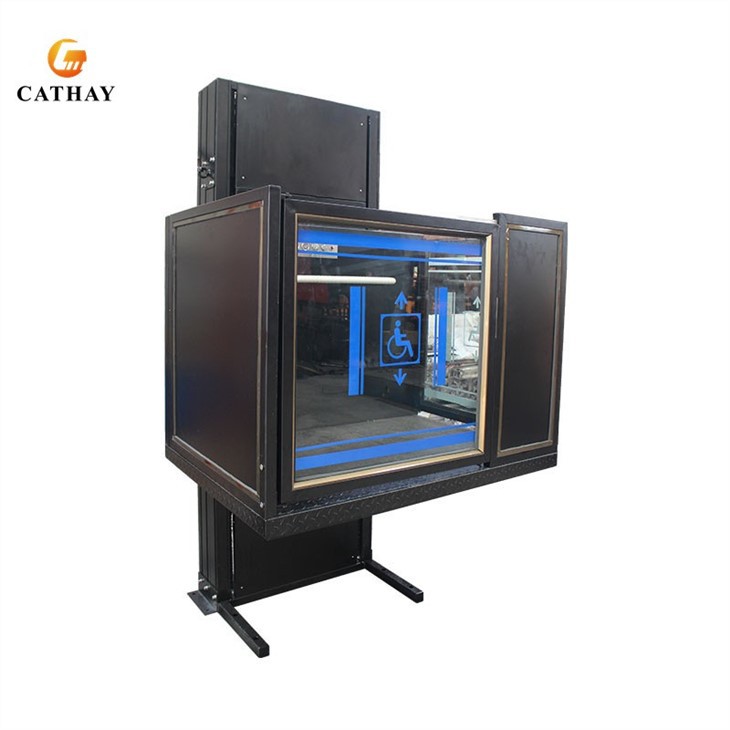

Mini lift for home is specially designed for families, with a small size, simple installation, convenient operation, low noise, stable performance, no need to modify the external building, and occupies a small space. The standard model has a maximum platform height of 6m and a load of 250 kg~300 kg. It can be customized according to the actual space size. The standard configuration includes slopes, column controllers, and remote controllers.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of mini lift for home in China. We warmly welcome you to buy discount mini lift for home for sale here from our factory. Quality products and reasonable price are available.

250kg 1~6m Mini Lift For Home

Cathaylift mini lift for home comes standard in black（RAL9004) or white(RAL9003), One button operation, and three control methods. Safety Equipped with aluminum alloy safety anti-clamping device and platform door self-locking and interlocking device, fully considering the safety, practicality, and efficiency of home use.

Cathay lift Hydraulic wheelchair home lift-Shandong Cathay Machinery Co Ltd 4

Model Type	HL10	HL15	HL20	HL25	HL30	HL35	HL40	HL50	HL60
Max. Platform Height	1000mm	1500mm	2000mm	2500mm	3000mm	3500mm	4000mm	5000mm	6000mm
Load Capacity(kg)	250kg	250kg	250kg	250kg	250kg	250kg	250kg	250kg	250kg
N.W/G.W(kg)	350/450	450/550	550/700	700/850	780/900	850/1000	880/1050	1000/1200	1100/1300
Machine Size(mm)	20001430 1300	25001430 1300	30001430 1000	35001430 1000	40001430 1000	46001430 1000	51001430 1000	61001430 1000	71001430 1000

Products Details

Cathay lift Hydraulic wheelchair home lift-Shandong Cathay Machinery Co Ltd 3

Cathay lift Hydraulic wheelchair home lift-Shandong Cathay Machinery Co Ltd 2

Cathay lift Hydraulic wheelchair home lift-Shandong Cathay Machinery Co Ltd 5

Notes Before Ordering

As different customers have different actual needs, please carefully evaluate the surrounding environment before ordering, and provide us with accurate dimensions, considering the opening and closing direction of the door of the machine platform and the number and position of the doors
Three control modes, remote control, column control, and platform control, three-station setting, an anti-pinch device installed under the Platform to prevent objects or dangers under the elevator from running, the door on the platform is equipped with an electromagnetic lock and self-locking device to ensure that the door is not opened during Elevator lift operation. The doors and protection panels can choose aluminum alloy or tempered glass. The ramp can be a fixed ramp or an automatic ramp, and considering the safety, the fixed ramp is a good choice if the lifting height is more than 3m . Because there will be a loss 1 door if the automatic ramp is, which is dangerous for 3m lifting height.
The standard color is RAL9003 OR RAL9004. If you need to customize another color needs to be charged separately. Will send you the practical videos and photos after we finish it.

Cathay lift Hydraulic wheelchair home lift-Shandong Cathay Machinery Co Ltd 7
