Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of aerial lift rental in China. We warmly welcome you to buy discount aerial lift rental for sale here from our factory. Quality products and reasonable price are available.

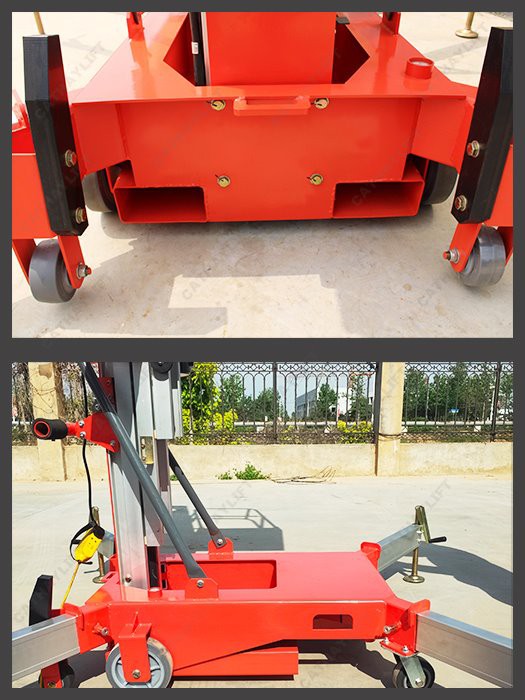

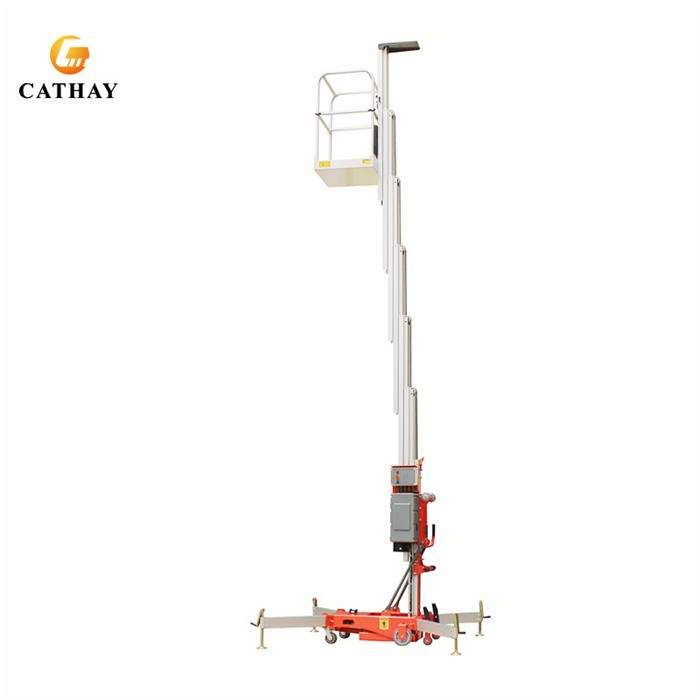

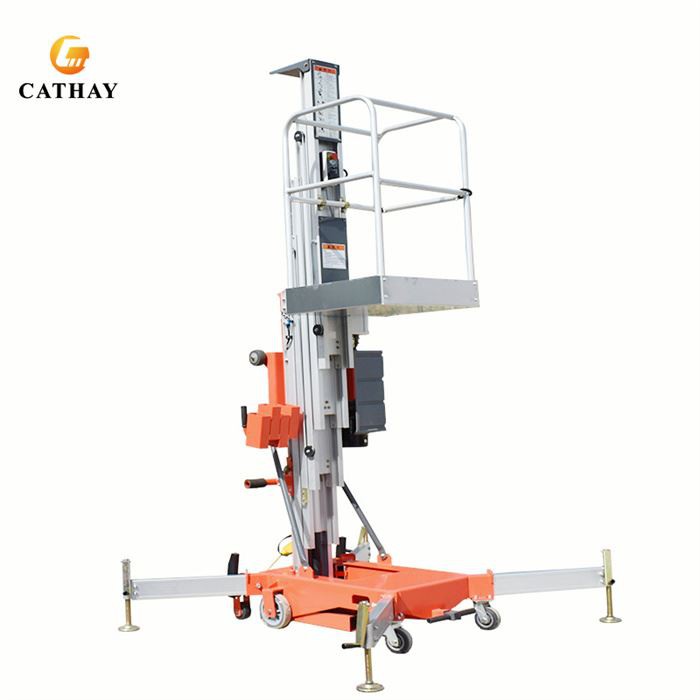

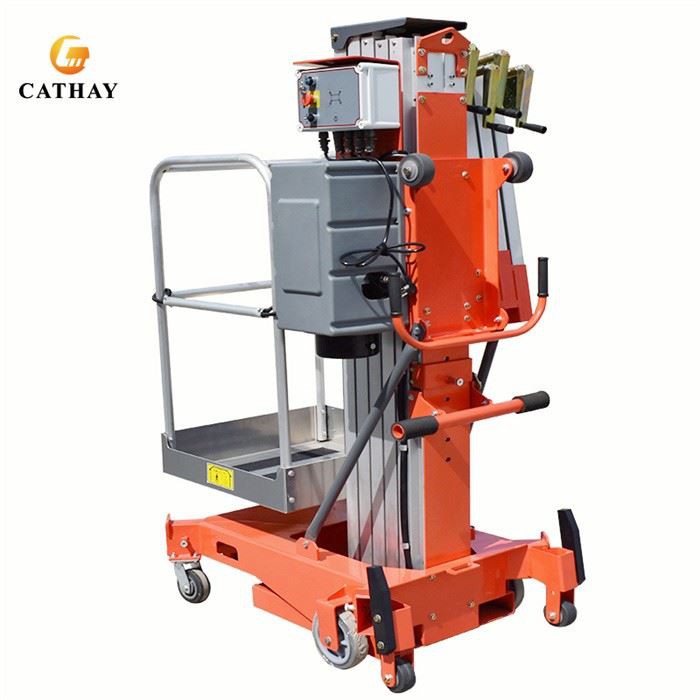

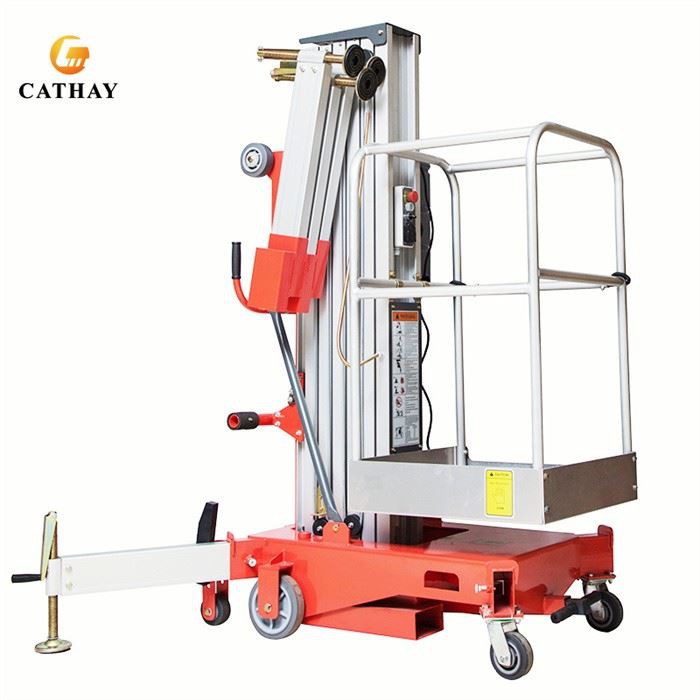

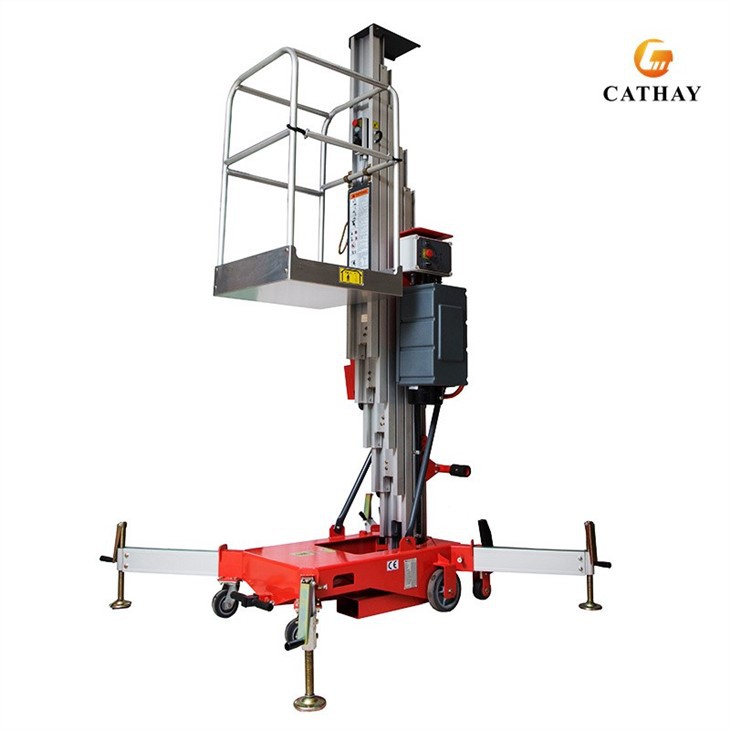

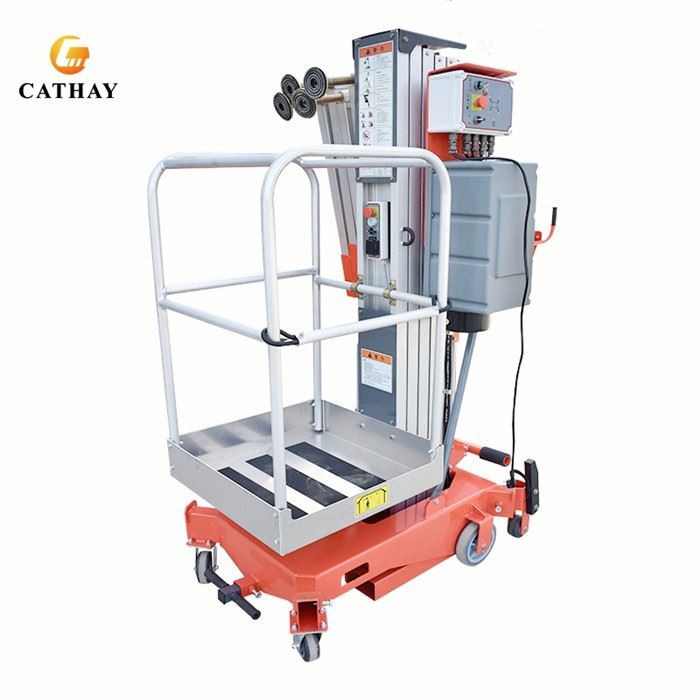

CATHAYLIFT aluminum alloy lift platform adopts aviation aluminum high-quality material, aviation aluminum is known as the best product among aluminum alloys, which makes the appearance and touch of the lift platform more delicate and shiny. Install polyurethane wheels, strong wear-resistant and durable. It is suitable for all kinds of ground, with low walking resistance, low sound and no damage to the ground.
CATHAYLIFT reminds you to make preparations before using the lift table:
1. The four support legs must be opened, and observe whether the level detector is adjusted to the horizontal state.
2. During use, make sure that the guardrail is locked.
3. The movable support plate must be stuck at the bottom of the guardrail to ensure that the guardrail will not fall
Make sure it is correct before using it safely
Model No. | CUP-5H | CUP-6H | CUP-8H | CUP-9H | CUP-10H | CUP-12H | |
Max.Platform Height | 5m | 6m | 8m | 9m | 10m | 12m | |
Max Working Height | 6m | 8m | 10m | 11m | 12m | 14m | |
Load Capacity | 150kg | 150kg | 150kg | 150kg | 136kg | 120kg | |
Platform Size | 0.67*0.66m | ||||||
Occupants | One person | ||||||
Outrigger Coverage | 1.7*1.7m | 1.7*1.7m | 1.6*1.6m | 1.7*1.7m | 1.9*1.7m | 2.3*1.9m | |
Overall Size | 1.24*0.74*1.99m | 1.24*0.74*1.99m | 1.36*0.74*1.99m | 1.4*0.74*1.99m | 1.42*0.74*1.99m | 1.46*0.81*2.68m | |
Net Weight | 300kg | 320kg | 345kg | 365kg | 385kg | 460kg | |
Motor Power | 0.75kw | ||||||
Options | DC | 12v | |||||
DC Motor | 1.5kw | ||||||
Charger | 12v15A | ||||||
Products Details:
Advantages：
1. The full height guardrail self-reset lock helps the staff to automatically lock the guardrail.

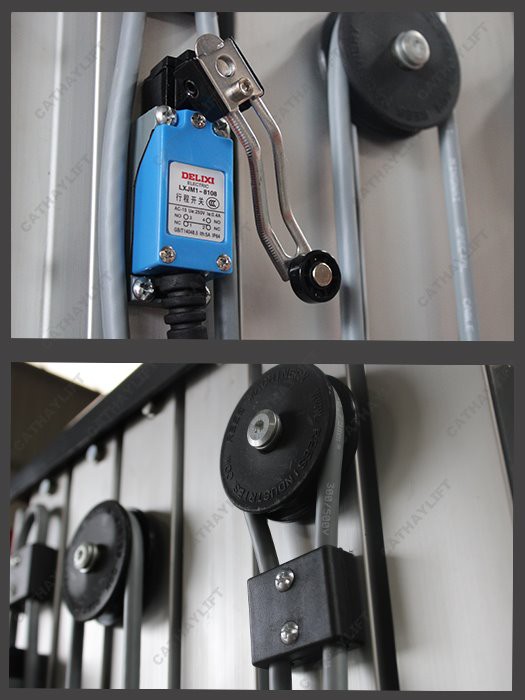

2. The tubing is reasonably fixed to reduce cable wear and increase service life.
3. High-quality hydraulic pump station, safe control of descending speed, and emergency descending switch to ensure normal descending in case of no power.

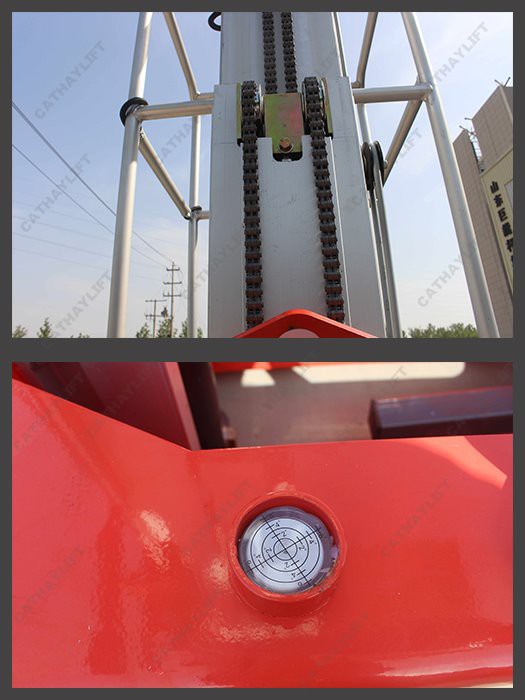

4. Reinforce the chain, so that the aluminum alloy has extremely high stability when lifting and lowering.
5. Maintenance-free battery, easy to work for 8 hours, can work continuously for more than 80 times.
6. Equipped with an emergency stop knob to ensure safe operation, and the lift controller is equipped with 24V safe electricity.

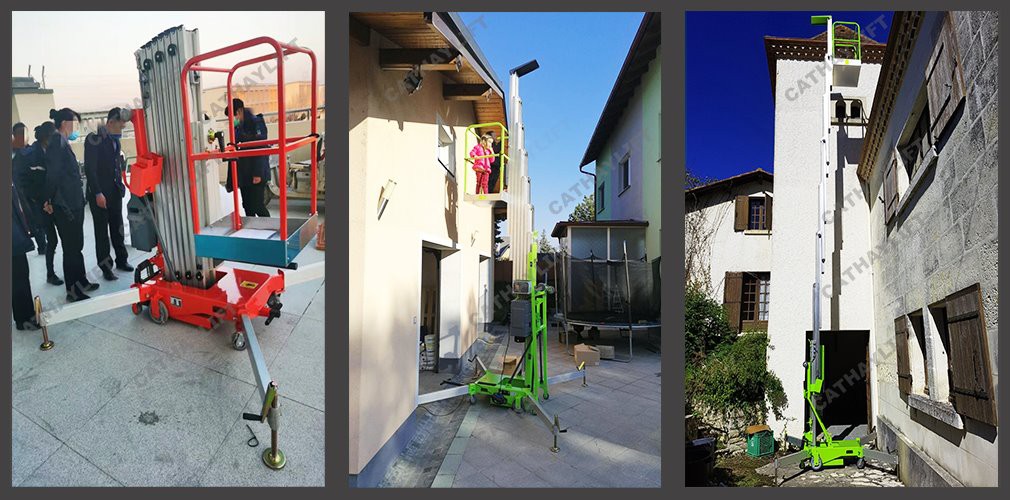

Real Order：
