Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of all terrain self propelled scissor lift in China. We warmly welcome you to buy discount all terrain self propelled scissor lift for sale here from our factory. Quality products and reasonable price are available.

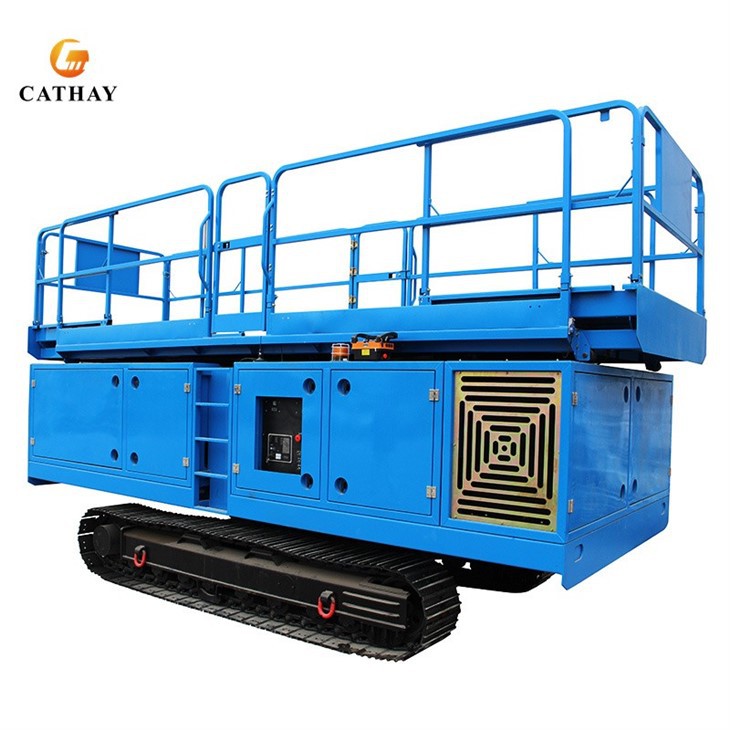

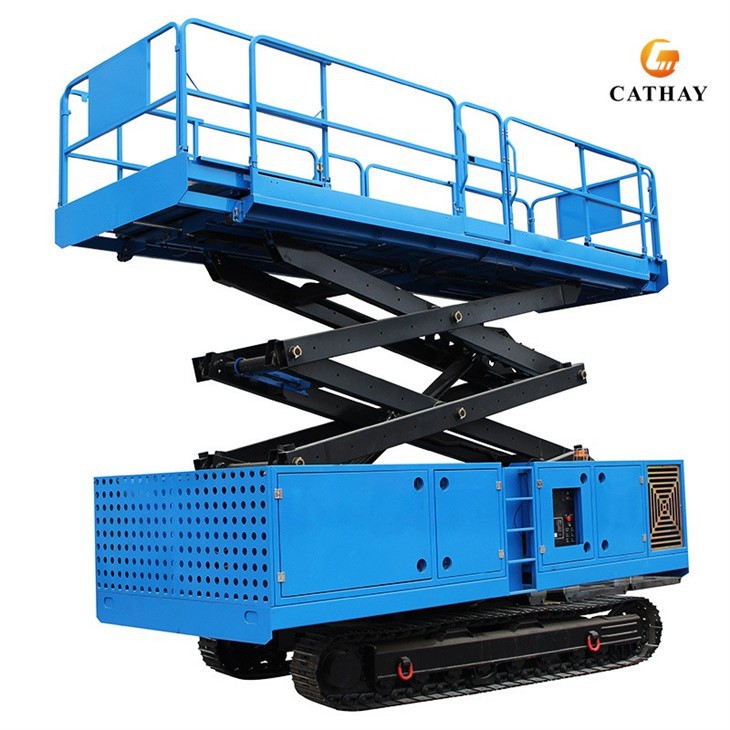

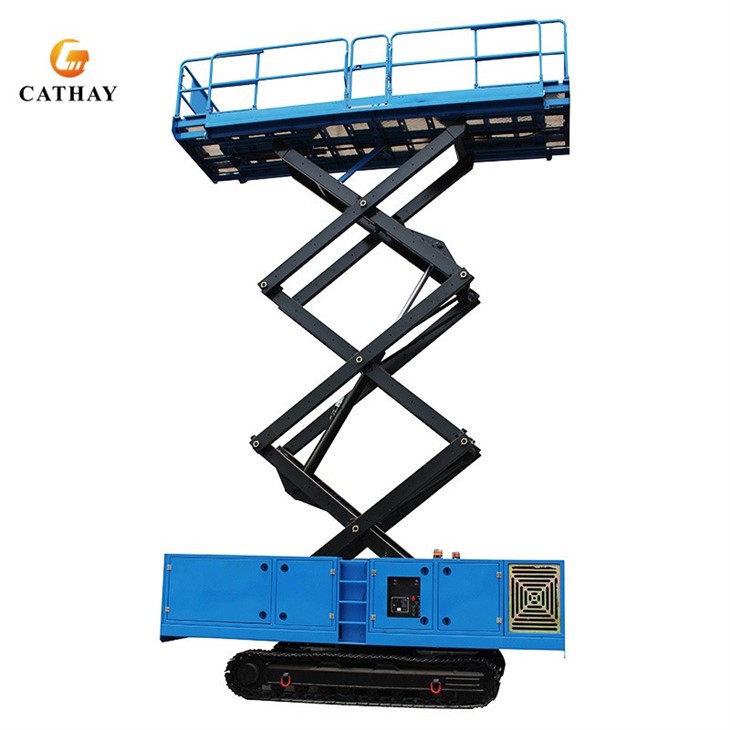

All Terrain Self-propelled Scissor Lift
CATHAYLIFT All Terrain Self-propelled Scissor Lift, a robust solution designed to conquer challenging environments with ease. Engineered to navigate through diverse terrains including swamps, riverbanks, deserts, paddy fields, tropical rainforests, and even ice and snow, this versatile lift ensures accessibility where traditional models fall short. With a lifting range spanning from 4.5 meters to an impressive 16 meters and a maximum load capacity of 450kg, it effortlessly accommodates two operators for high-altitude tasks. Whether it's maintenance, construction, or rescue operations, the CATHAYLIFT All Terrain Self-propelled Scissor Lift redefines mobility and efficiency in elevated work.
|
Model Type |
CL-TC04 |
CL-TC06 |
CL-TC06H |
CL-TC08 |
CL-TC08H |
CL-TC10 |
CL-TC10H |
CL-TC12 |
CL-TC12H |
|
Automatic Leveling Hydraulic Outriggers |
None |
None |
Equipped |
None |
Equipped |
None |
Equipped |
None |
Equipped |
|
Working height |
6.5m |
8m |
8m |
10m |
10m |
12m |
12m |
14m |
14m |
|
Max.lifting height |
4.5m |
6m |
6m |
8m |
8m |
9.75m |
9.75m |
11.75m |
11.75m |
|
Load Capacity |
200Kg |
450Kg |
450Kg |
450Kg |
450Kg |
320Kg |
320Kg |
320Kg |
320Kg |
|
Extendable Platform |
100Kg |
113Kg |
113Kg |
113Kg |
113Kg |
113Kg |
113Kg |
113Kg |
113Kg |
|
Workers on Platform |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
Overall Length |
1.27 |
2.47 |
2.782 |
2.47 |
2.782 |
2.47 |
2.782 |
2.47 |
2.782 |
|
Overall Width |
0.79 |
1.39 |
1.581 |
1.39 |
1.581 |
1.39 |
1.581 |
1.39 |
1.581 |
|
Overall Height |
1.82 |
2.28 |
2.28 |
2.7 |
2.4 |
2.53 |
2.53 |
2.67 |
2.67 |
|
Overall Height |
/ |
1.745 |
1.745 |
1.865 |
1.865 |
1.995 |
1.955 |
2.13 |
2.13 |
|
Platform Size(m) |
1.23*0.655 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
|
Extendable Platform(m) |
0.55 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
|
Min Turning Radius(m) |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
Min Ground Clearance(m) |
0.05 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
|
Lifting Motor |
24v/0.1.2Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
|
Driving Motor |
2X24v/1.5Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
|
Driving Speed |
1.7Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
|
Lifting up/down Speed |
24/20sec |
38/30sec |
38/30sec |
45/36sec |
45/36sec |
70/62sec |
70/62sec |
85/75sec |
85/75sec |
|
Charger |
0.25 |
48V/25A |
48V/25A |
48V/25A |
48V/25A |
48V/25A |
48V/25A |
48V/25A |
48V/25A |
|
Machine Weight |
790Kg |
2400Kg |
2800Kg |
2550Kg |
2950kg |
2840Kg |
3240kg |
3000Kg |
3480kg |
|
Optional 1> |
USA Trojan battery |
||||||||
|
Optional 2> |
Manual outrigger: (only available for crawler type) |
||||||||
|
Optional 3> |
Diesel power,please inquiry us |
||||||||
Product Details:
Overview
Overview
Overview
Smart Control Handle
Ground control on the Chasis
Remote Control(Optional)
Trojian Battery(America)Check Regularly, Add Distilled Water
Italy Hydrappp Hydraulic Pump Station And Italy Doyle Hydraulic Valve
Smart Charger(Internal)
Buzzer, Strobe Light
Automatic Leveling Hydraulic Outriggers(Optional)
Industrial Track
Features&Advantages:
Versatile Terrain Compatibility: All Terrain Self-propelled Scissor Lift excels on various surfaces including swamps, riverbanks, deserts, and tropical rainforests, offering unparalleled adaptability across diverse landscapes.
Impressive Height and Capacity: With a lifting range from 4.5 meters to 16 meters and a maximum load capacity of 450kg, this lift empowers operators to tackle high-altitude tasks with confidence and efficiency.
Ease of Operation: Featuring simple controls and an electric start, the lift is user-friendly, ensuring smooth operation even in challenging environments.
Exceptional Mobility: Capable of traversing deep mud pits, pools, and complex stone pavements, its robust design and traction enable seamless navigation through tough terrain, enhancing productivity on the job.
Compact Maneuverability: With a small turning radius, the lift is ideal for narrow sites, reducing the need for extensive road construction and facilitating access to confined work areas, thereby optimizing project timelines and costs.
