Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of aluminum alloy elevator in China. We warmly welcome you to buy discount aluminum alloy elevator for sale here from our factory. Quality products and reasonable price are available.

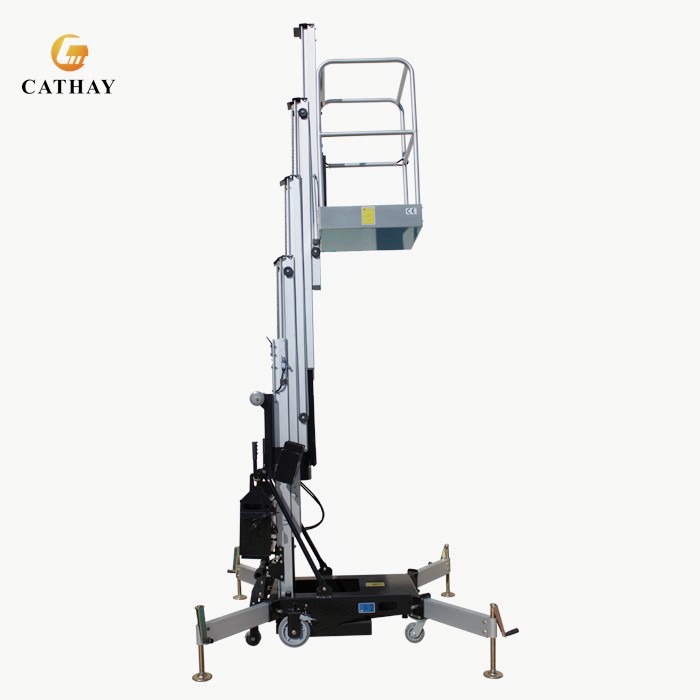

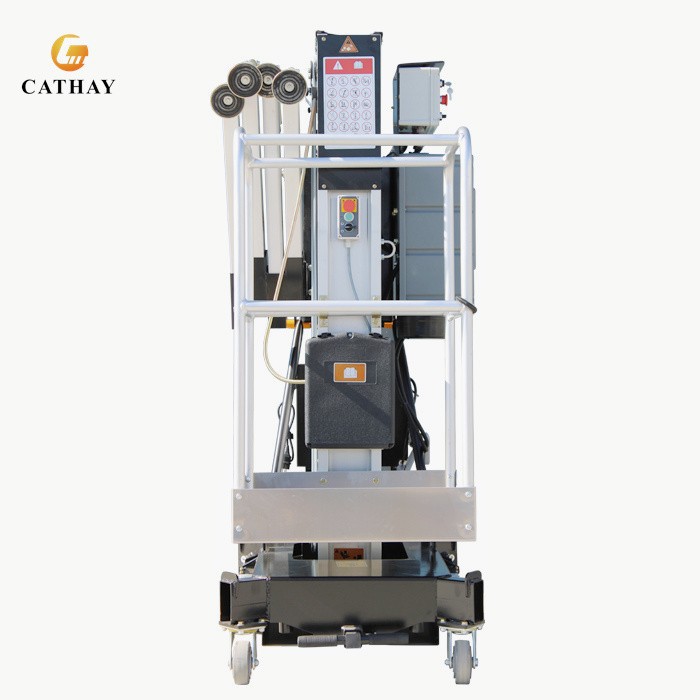

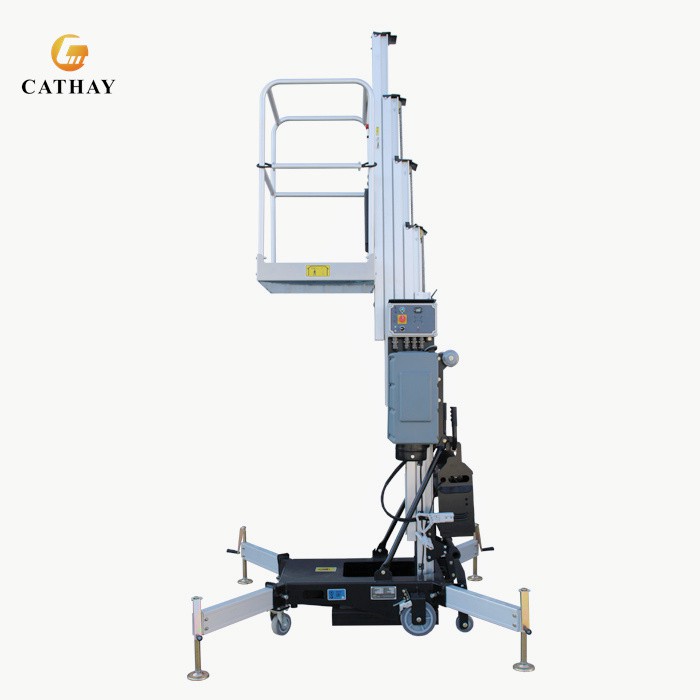

Aluminum Alloy Elevator
CATHAYLIFT prioritizes safety with features like outrigger self-locking, indicator lights, oil cylinder lock valves, leveling indicators, emergency stop buttons, seat belt buckles, and a robust structure. These features provide peace of mind for both workers and employers, ensuring a secure and reliable work environment. Furthermore, our commitment to quality is reflected in the fact that all CATHAYLIFT's Aluminum Alloy Elevators meet the rigorous requirements of the TUV standard EN280 and ISO9001 certification, as well as obtaining CE, RoHS, SGS, and ANSI certifications. Our dedication to excellence ensures that you receive a product that is both dependable and safe, giving you the confidence to achieve your goals effortlessly.
|
Model No. |
CUP-5H |
CUP-6H |
CUP-8H |
CUP-9H |
CUP-10H |
CUP-12H |
|
|
Max. Platform Height |
5m |
6m |
8m |
9m |
10m |
12m |
|
|
Max. Working Height |
6m |
8m |
10m |
11m |
12m |
14m |
|
|
Load Capacity |
150kg |
136kg |
120kg |
||||
|
Platform Size |
0.67*0.66m |
||||||
|
Occupants |
One person |
||||||
|
Outrigger Coverage |
1.7*1.7m |
1.6*1.6m |
1.7*1.7m |
1.9*1.7m |
2.3*1.9m |
||
|
Overall Size |
1.24*0.74*1.99m |
1.36*0.74*1.99m |
1.4*0.74*1.99m |
1.42*0.74*1.99m |
1.46*0.81*2.68m |
||
|
Net Weight |
300kg |
320kg |
345kg |
365kg |
385kg |
460kg |
|
|
Motor Power |
0.75 KW |
||||||
|
Options |
DC |
12 V |
|||||
|
DC Motor |
1.5 KW |
||||||
|
Charger |
12V 15A |
||||||
Products Details
● Easy to transport, handling
● Suitable for delicate flooring
● Quick installation
● Outrigger interlocking and indicator
● Intuitive controls
● Sturdy design
● Convenient storage
Details Images

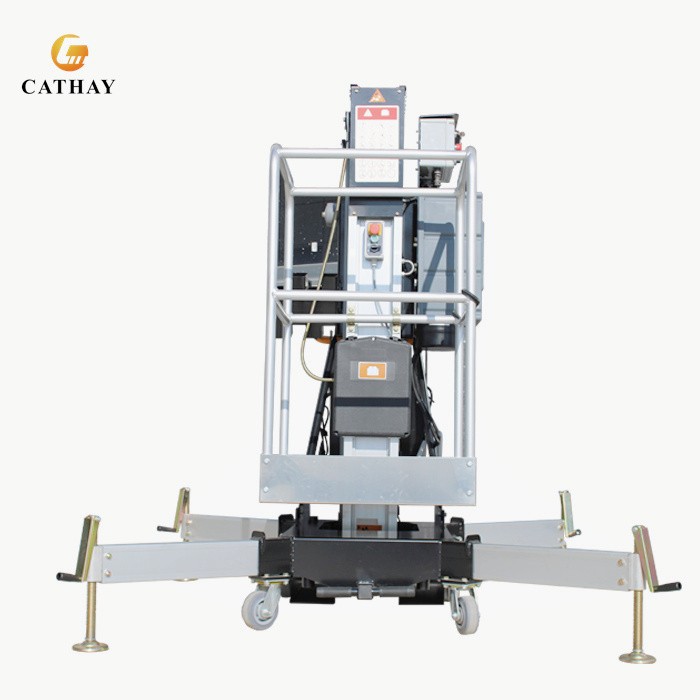

Insert-type outriggers:
Constructed from high-quality aluminum alloy, maximizing the force bearing area and ensuring exceptional stability.
These outriggers are maintenance-free, eliminating the need for ongoing upkeep and ensuring long-lasting performance.
The incorporation of black rubber protection pads on the bottom of the outriggers serves a dual purpose: protecting delicate floors from damage and minimizing potential noise during operation.
Lifting ring,standard forklift hole:
The inclusion of lifting rings and standard forklift holes facilitates effortless loading and unloading using either a crane or forklift, allowing for quick and efficient deployment.
Emergency lowing valuve:
The Emergency Lowing Valve allows for controlled descent in the event of power failure or other emergencies.
This safety feature provides a reliable and secure means of bringing the platform safely to the ground, protecting workers from potential hazards.
Furthermore, the Overload Sensor safeguards against potential accidents by preventing lifting when the load exceeds 1.5 times the rated weight, ensuring operator safety and maintaining the structural integrity of the platform.
Support column/mast:
The Aluminum Alloy Elevator's 200mm ultra-wide high-strength aluminum alloy column minimizes shaking when fully raised, even with heavy loads.
This superior construction, compared to standard aluminum alloys used by other manufacturers, provides unparalleled stability and confidence for workers operating at height.
The reduced shaking minimizes potential instability and ensures a secure and comfortable working environment, enhancing productivity and reducing anxiety for operators.
Application
Packing&Shipping
