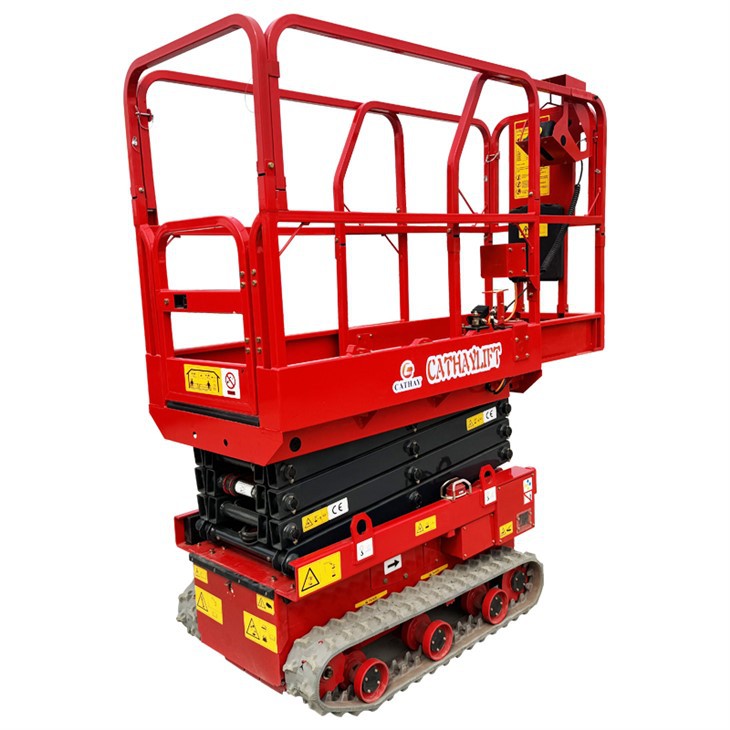

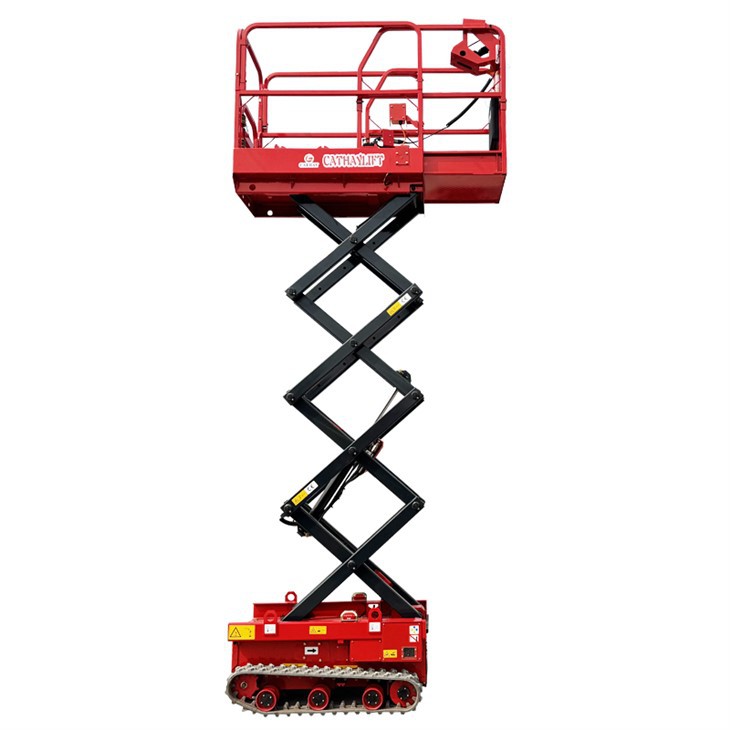

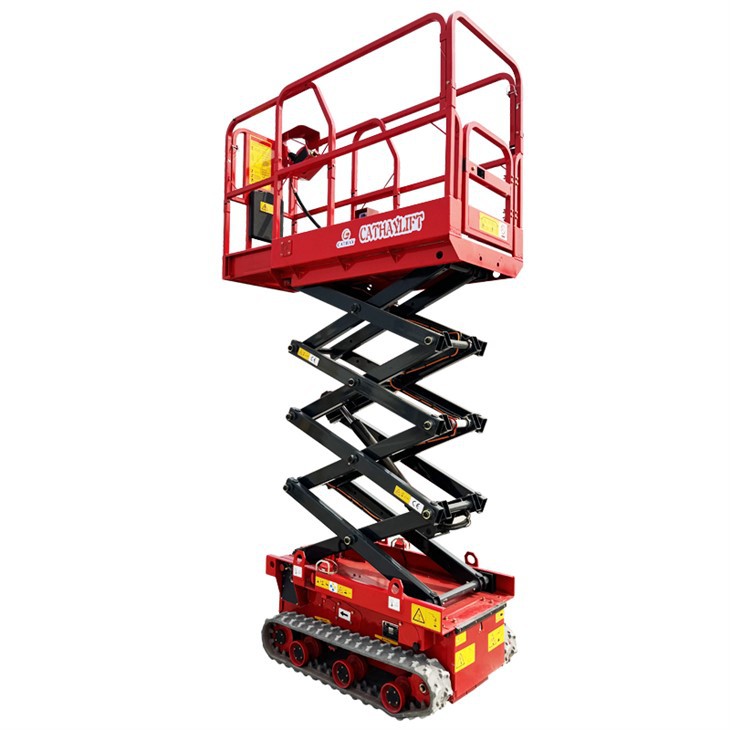

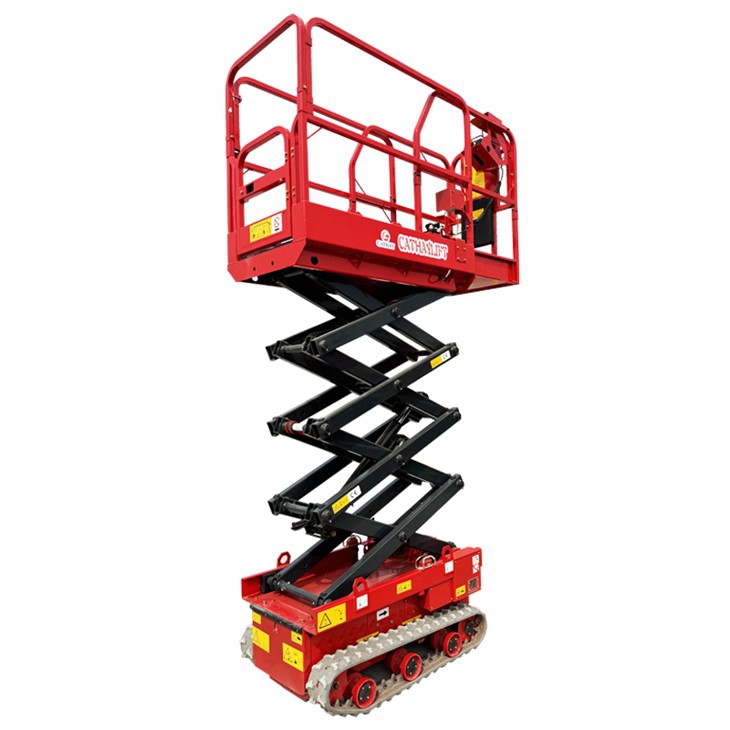

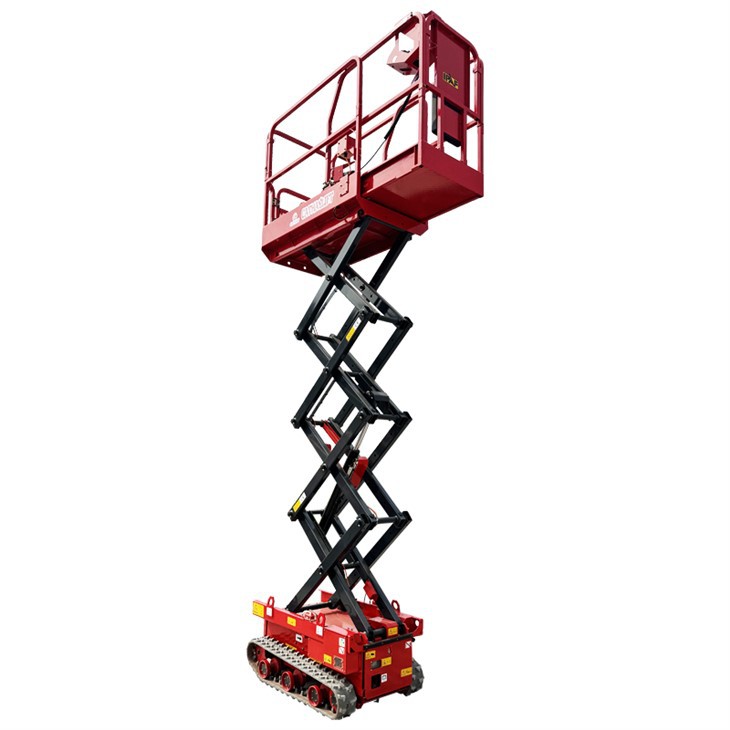

Electric Drive Crawler Scissor Lift
CATHAYLIFT's Electric Drive Crawler Scissor Lift stands out with its exceptional maneuverability and eco-friendly electric drive system, ensuring low noise and zero emissions for indoor or sensitive outdoor applications. For extended runtime, the optional high-performance USA Trojan battery provides long-lasting power, while the diesel power option offers added flexibility for remote or fuel-dependent operations. Additional features like manual outriggers further enhance stability on uneven ground, ensuring safety during lifting tasks. Its 30% climbing capability, combined with strong power and a compact turning radius, allows seamless navigation through narrow and uneven sites, significantly reducing the need for costly road preparation. Equipped with advanced crawler drive technology, it delivers superior traction and stability, making it ideal for cargo yard loading, water conservancy projects, infrastructure construction, and mining operations.
|
Model |
CL-TC04 |
CL-TC06 |
CL-TC06H |
CL-TC08 |
CL-TC08H |
CL-TC10 |
CL-TC10H |
CL-TC12 |
CL-TC12H |
|
Working Height (m) |
6.5 |
8 |
10 |
12 |
14 |
||||
|
Max. Lifting Height (m) |
4.5 |
6 |
8 |
9.75 |
11.75 |
||||
|
Load Capacity (kg) |
200 |
450 |
320 |
||||||
|
Extendable Platform (kg) |
100 |
113 |
|||||||
|
Overall Length (m) |
1.27 |
2.47 |
2.782 |
2.47 |
2.782 |
2.47 |
2.782 |
2.47 |
2.782 |
|
Overall Width (m) |
0.79 |
1.39 |
1.581 |
1.39 |
1.581 |
1.39 |
1.581 |
1.39 |
1.581 |
|
Overall Height (m) |
1.82 |
2.28 |
2.7 |
2.4 |
2.53 |
2.67 |
|||
|
Overall Height (m) |
/ |
1.745 |
1.865 |
1.995 |
2.13 |
||||
|
Platform Size(m) |
1.23*0.655 |
2.27*1.12*0.7 |
|||||||
|
Extendable Platform (m) |
0.55 |
0.9 |
|||||||
|
Min Turning Radius (m) |
0 |
||||||||
|
Min Ground Clearance (m) |
0.05 |
0.15 |
|||||||
|
Lifting Motor |
24V/0.1.2Kw |
48V/4Kw |
|||||||
|
Driving Motor |
2X24 V/1.5Kw |
2X48V/4Kw |
|||||||
|
Driving Speed |
1.7 Km/h |
2.4 Km/h |
|||||||
|
Lifting Up/Down Speed |
24/20sec |
38/30sec |
45/36sec |
70/62sec |
85/75sec |
||||
|
Charger |
0.25 |
48V/25A |
|||||||
|
Machine Weight (kg) |
790 |
2400 |
2800 |
2550 |
2950 |
2840 |
3240 |
3000 |
3480 |
Product Details:
1. Superior Adaptability to Harsh Terrains
- Excellent Ground Pressure Distribution: Low bearing grounding pressure enables smooth operation in deep mud, swamps, pools, and rocky terrain without sinking.
- All-Terrain Mobility: Crawler design allows easy navigation through narrow passages, woodlands, rocky paths, and confined construction sites.
- Small Turning Radius: Enhances maneuverability in tight spaces, reducing the need for extensive road preparation.
2. Robust & Efficient Power System

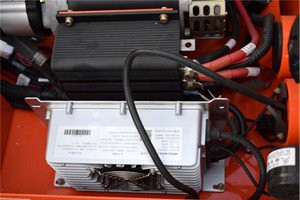

- High-Torque AC Motor Drive: Delivers strong power, high efficiency, and long service life.
- Pure Electric Operation: Zero emissions and low noise make it ideal for indoor use and environmentally sensitive areas.
- Large-Capacity Battery: Optional USA Trojan battery provides extended runtime, while the diesel power option offers flexibility for remote sites.
3. Intelligent Operation & User-Friendly Controls
- Centralized Handle & Electric Start: Simplifies operation with intuitive controls for smooth handling.
- Interactive Touchscreen Display: Enables real-time monitoring, parameter adjustments, and fault diagnostics for efficient maintenance.
- 30% Climbing Capacity: Strong grip and traction allow easy ascent on steep or slippery surfaces.
4. High-Performance Lifting & Transport Capabilities
- Lifting Height Range (4.5m–16m): Suitable for various high-altitude tasks in construction, mining, and infrastructure projects.
- 450kg Load Capacity: Supports two workers with tools, ensuring efficient teamwork.
- Strong Transportation Ability: Ideal for moving materials and equipment across rough or uneven job sites.
