Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of movable scissor lift in China. We warmly welcome you to buy discount movable scissor lift for sale here from our factory. Quality products and reasonable price are available.

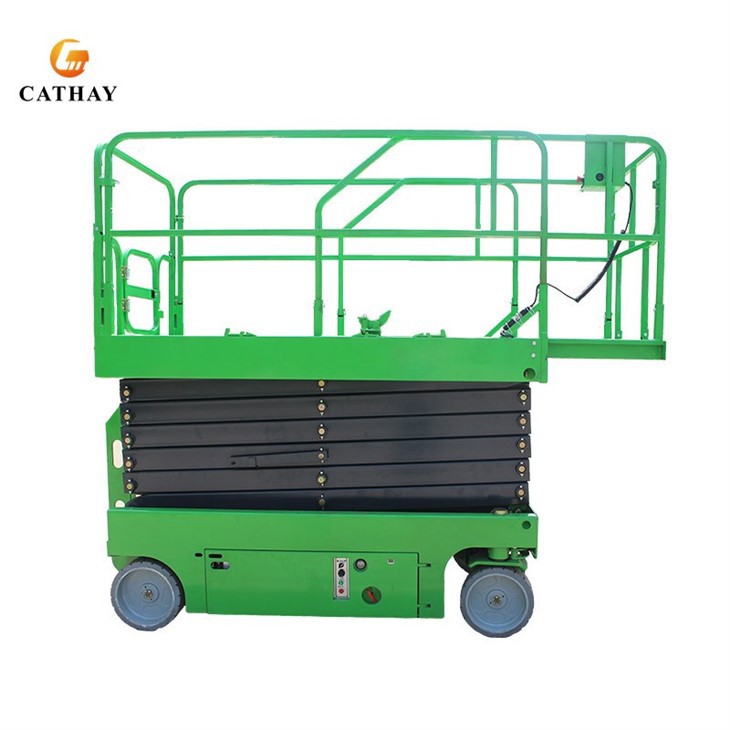

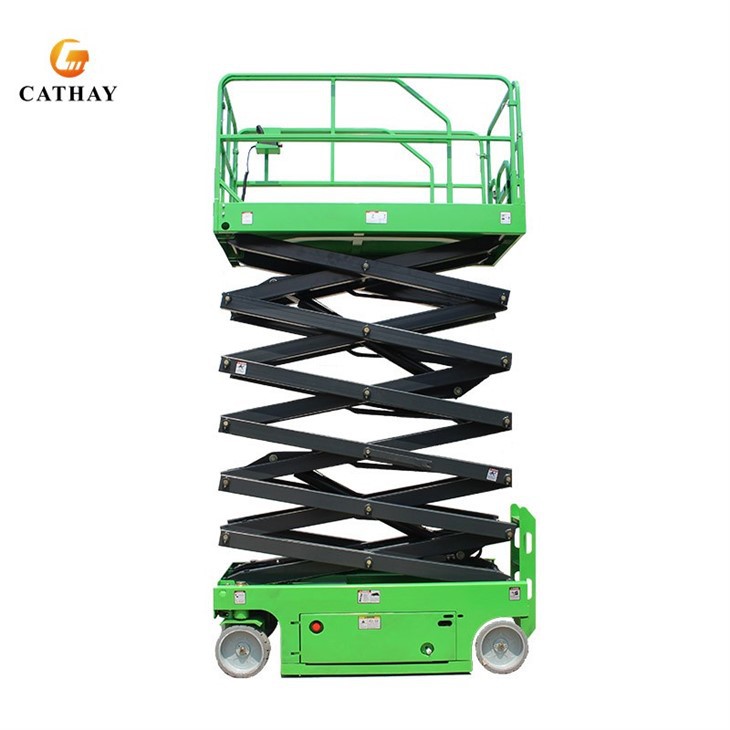

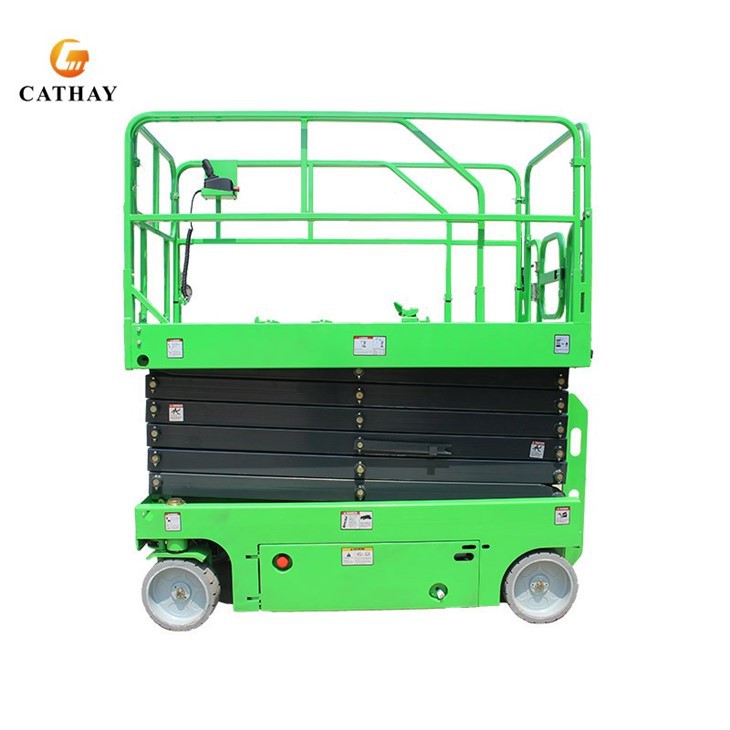

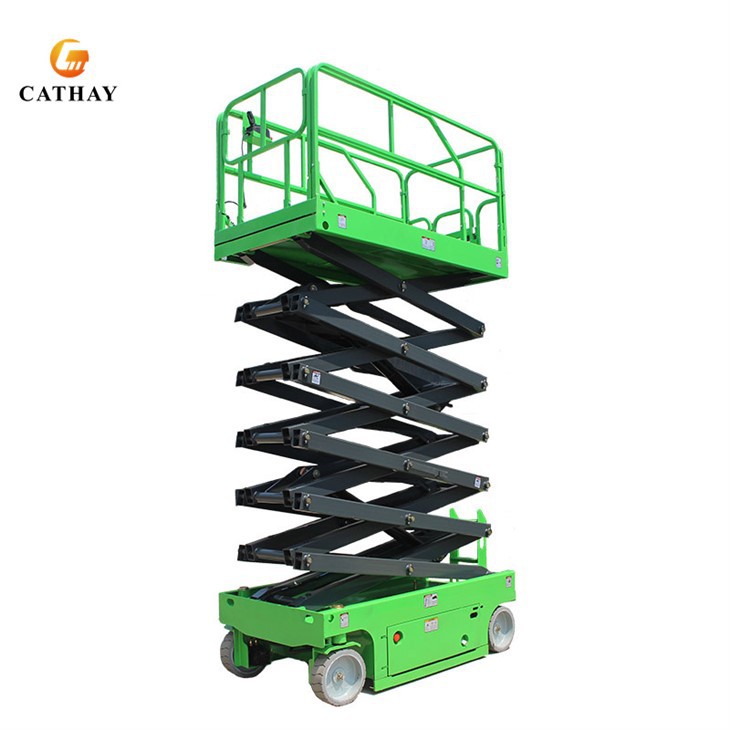

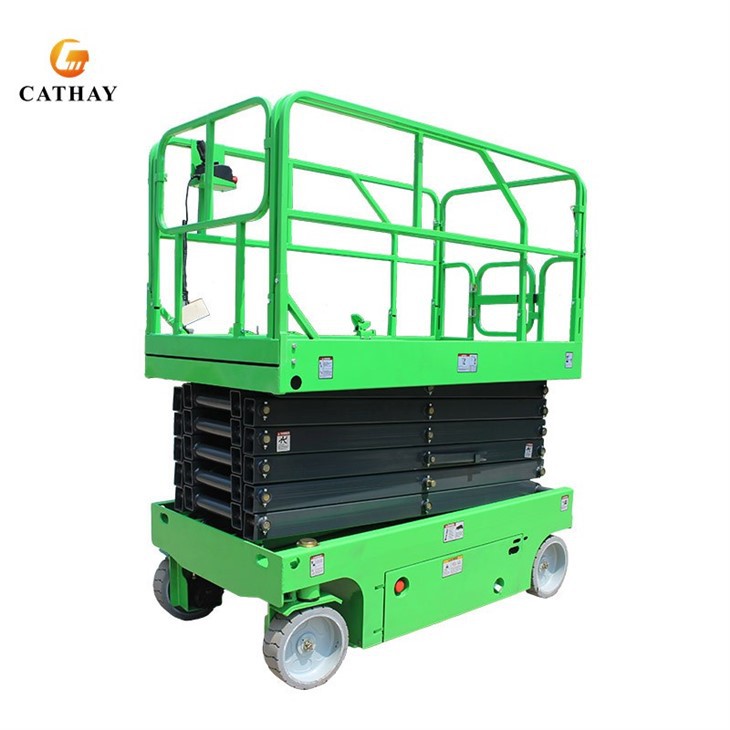

Movable Scissor Lift
Built for precision, CATHAYLIFT's Movable Scissor Lift features proportional control systems that enable smooth, responsive movements, allowing operators to adjust speed seamlessly for tasks requiring meticulous positioning. Its robust DC motor ensures exceptional climbing capability, effortlessly navigating inclines and uneven surfaces, while the compact design enhances maneuverability in confined spaces. Despite its high-end specifications, CATHAYLIFT delivers remarkable cost efficiency, combining premium quality with a competitive price point. Ideal for industries prioritizing sustainability and productivity, this lift minimizes environmental impact while maximizing output.
|
Model |
CLSE6 |
CLSE8 |
|
|
Max. Platform Height |
mm |
6000 |
8000 |
|
Max. Work Height |
8000 |
10000 |
|
|
Max. Machine Height |
7100 |
9100 |
|
|
Min. Platform Height |
1010 |
1200 |
|
|
Ground Clearance |
20 |
||
|
Lift Rated Capacity |
kg |
300 |
|
|
Platform Extend Capacity |
100 |
||
|
Platform Size |
mm |
1880×900 |
|
|
Platform Extend Length |
900 |
||
|
Max. Drive Speed (Platform Stowed) |
km/h |
3~4 |
|
|
Max.Drive Speed (Platform Elevated) |
0.6~1 |
||
|
Min. Turning Radius |
mm |
2000 |
|
|
Max. Climbing Capacity |
% |
10~15 |
|
|
Driving Wheel Size |
mm |
φ305×100 |
|
|
Caster Size |
in |
||
|
Driving Motor |
v/kw |
2×24/0.5 |
|
|
Lifting Motor |
24/2.2 |
||
|
Anerold Battery |
v/Ah |
2×12/150 |
|
|
Charger |
V/A |
24/15 |
|
|
Overall Size (L*W*H) |
mm |
2050*900*2150 |
2050*900*2270 |
|
Net Weight |
kg |
1500 |
1700 |
Product Details:
Advantages:
- Imported Intelligent Control Technology
- At the heart of CATHAYLIFT's Movable Scissor Lift lies imported intelligent control technology, ensuring precise and responsive operation. The proportional control system allows operators to adjust lifting and moving speeds seamlessly, enabling smooth transitions and pinpoint accuracy. This technology enhances workflow efficiency, particularly in tasks requiring delicate positioning or rapid adjustments.

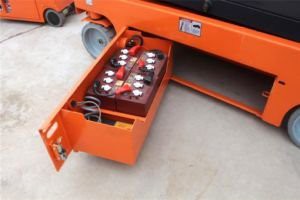

- Eco-Friendly Battery Power
- Powered by high-performance batteries, CATHAYLIFT's Movable Scissor Lift operates with zero emissions and minimal noise, making it ideal for indoor environments like hospitals, warehouses, or retail spaces, as well as outdoor projects in noise-sensitive areas. Its eco-conscious design reduces carbon footprints while maintaining strong, consistent power output for extended work cycles.
- Self-Diagnosis & Maintenance Convenience
- The lift features automated fault diagnosis, instantly identifying issues and displaying fault codes for quick troubleshooting. This reduces downtime and repair costs, while modular design and easy-access components simplify maintenance. Technicians can address problems swiftly without disassembling the entire machine.
- One-Way Extension Platform
- The patented one-way extension platform allows operators to reach workpoints faster and more efficiently. This feature eliminates the need for repositioning the entire machine, saving time in tasks like ceiling repairs, lighting installations, or equipment servicing.

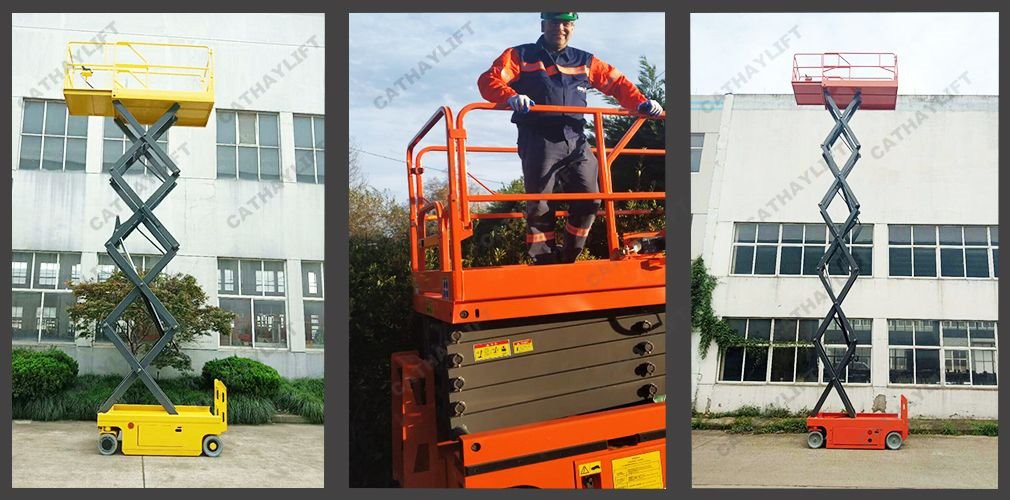

Real Order:
