Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of hydraulic driving scissor lift in China. We warmly welcome you to buy discount hydraulic driving scissor lift for sale here from our factory. Quality products and reasonable price are available.

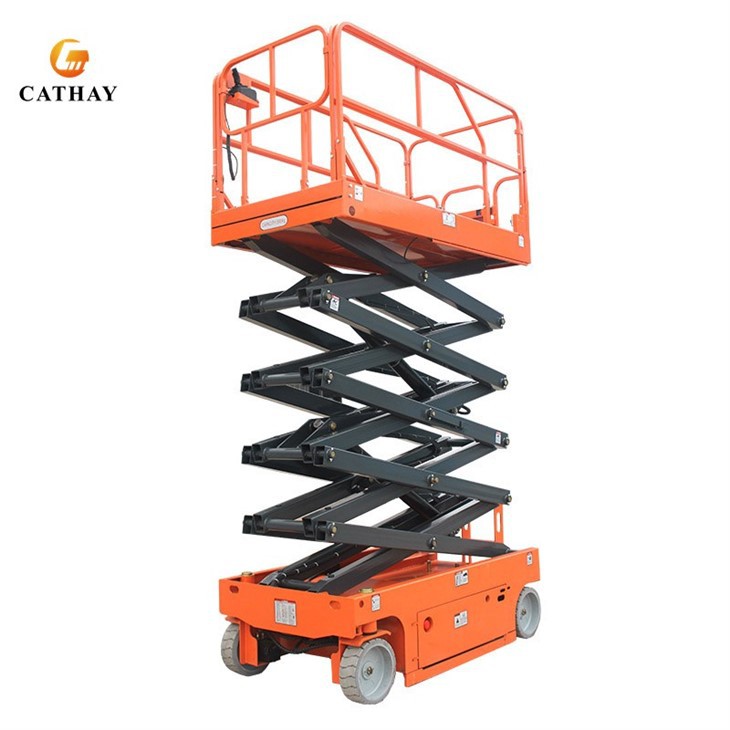

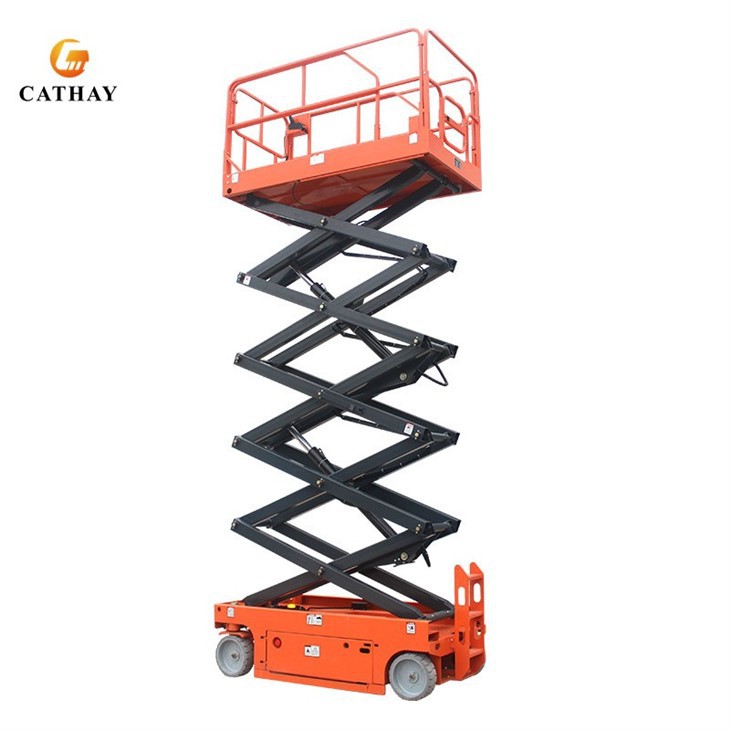

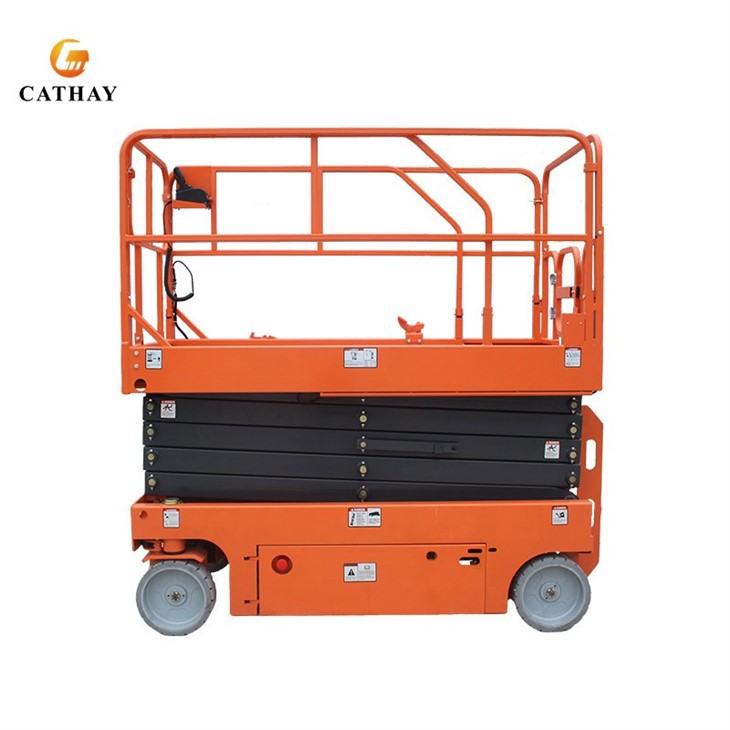

Hydraulic Driving Scissor Lift
Equipped with dual hydrostatic-driven swivel wheels, CATHAYLIFT's Hydraulic Driving Scissor Lift guarantees smooth, precise movement even under full load. Operators benefit from intuitive multi-function joystick control, allowing effortless adjustment of direction, speed, and lifting functions-whether in folded or elevated positions. The lift's rapid ascent capability-reaching 12m in just 110 seconds-minimizes downtime, enhancing productivity in construction, warehousing, and industrial maintenance tasks. Powered by four high-capacity 210Ah rechargeable batteries, it delivers extended operational autonomy, reducing the need for frequent recharging. The intelligent control panel provides real-time monitoring of battery status, system diagnostics, and fault codes, while an emergency stop function ensures immediate response to potential hazards. Additional safety features include automatic warning signals during operation, enhancing worksite awareness.
|
Model |
CLS06 |
CLS08 |
CLS10 |
CLS12 |
CLS14 |
|
Lifting Height (mm) |
6000 |
8000 |
10000 |
12000 |
13800 |
|
Lifting Capacity (kg) |
300 |
227 |
|||
|
Max. Height-Guardrail Unfold (mm) |
2150 |
2275 |
2400 |
2525 |
2590 |
|
Max. Height-Guardrail Folded (mm) |
1190 |
1315 |
1440 |
1565 |
2050 |
|
Overall Length (mm) |
2400 |
2640 |
|||
|
Overall Width (mm) |
1150 |
1130 |
|||
|
Platform Size (mm) |
2270×1150 |
2840x1390 |
|||
|
Platform Extension Size (mm) |
900 |
||||
|
Min Ground Clearance (mm) |
110/20 |
||||
|
Wheelbase (mm) |
1850 |
||||
|
Min Turn Radius-Outer Wheel (mm) |
2100 |
2700 |
|||
|
Power Source (v/kw) |
24/3.0 |
24/4.5 |
|||
|
Running Speed-Folding (km/h) |
4 |
||||
|
Running Speed-Rising (km/h) |
0.8 |
||||
|
Rising/Falling Speed (sec) |
40/50 |
70/80 |
|||
|
Battery (V/AH) |
4×12/135 |
4x12/150 |
|||
|
Charger (V/A) |
24/25 |
24/30 |
|||
|
Max. Climbing Ability (%) |
20 |
||||
|
Max. Working Allowable Angle |
2~3° |
||||
|
Way of Control |
Electro-hydraulic proportion control |
||||
|
Driver |
Double front-wheel |
||||
|
Hydraulic drive |
Double rear-wheel |
||||
|
Wheel Size-Stuffed & No Mark |
Φ381×127 |
||||
|
Whole Weight (kg) |
1900 |
2080 |
2490 |
2760 |
3320 |
Product Details:
✔ Automated Speed Adjustment – The CURTIS controller automatically reduces horizontal travel speed when the platform exceeds 2.5m, preventing instability risks.
✔ Anti-Rollover Protection – If the lift tilts beyond 5° on a slope, the system blocks further movement and lifting, ensuring operator safety.
✔ Road Bump Protection – Two extendable protective beams deploy when the platform rises, shielding the lift from obstacles, and retract when lowered.
✔ High-Traction Tread Wheels – Large-diameter elastic gray rubber wheels provide excellent grip while preventing floor damage, making it perfect for:
- Offices, supermarkets, shopping malls
- Airports, train stations, concert/sports venues
- Construction, maintenance, and assembly work
✔ Smooth Hydrostatic Drive – Dual independently driven swivel wheels ensure precise maneuvering even in tight spaces.

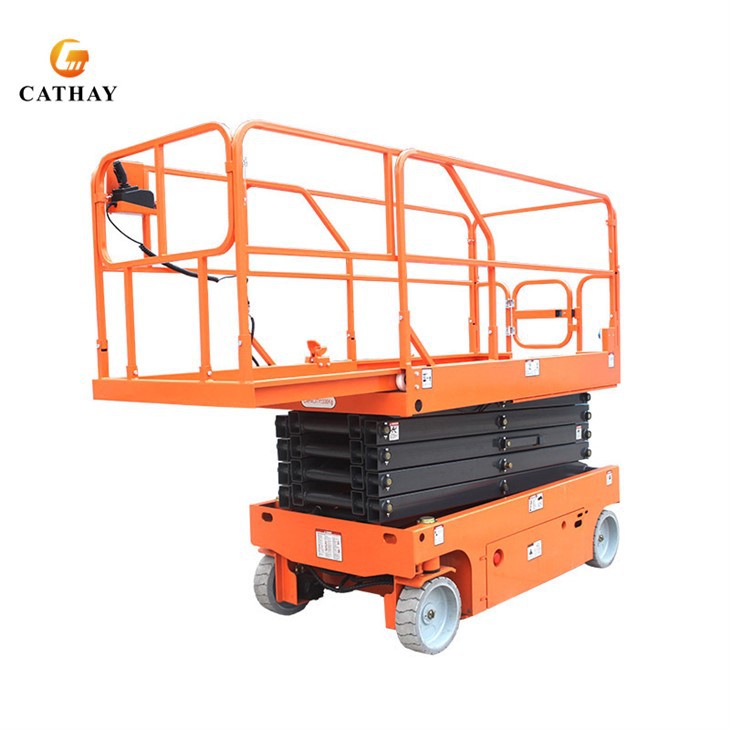

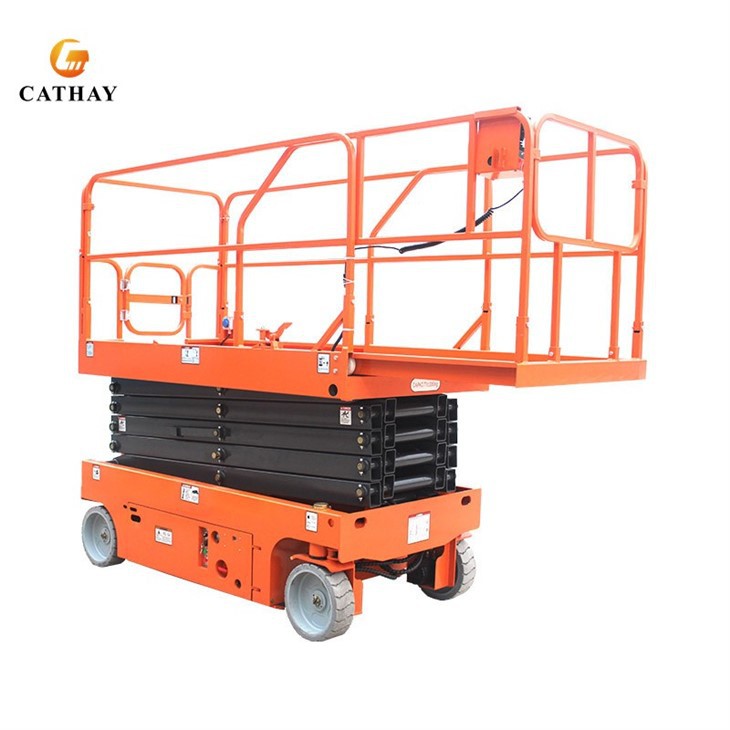

✔ Telescoping Platform Section – Extends 30% longer, significantly expanding the operator's work area for enhanced productivity.
✔ Multi-Function Joystick – Allows full control over lifting, movement, speed, and emergency stops from the platform.
✔ Real-Time Diagnostics – Displays battery status, error codes, and system alerts for proactive maintenance.
✔ 210Ah x 4 Batteries – Delivers extended runtime for uninterrupted operations.
✔ Rapid Lifting Speed – Reaches 12m in just 110 seconds, minimizing downtime.
✔ Revolving Access Doors – All critical hydraulic and electrical systems are housed in easy-access compartments for quick servicing.
✔ Heavy-Duty Steel Structure – Ensures long-term durability even in harsh work environments.
