Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of hydraulic fully automatic scissor lift in China. We warmly welcome you to buy discount hydraulic fully automatic scissor lift for sale here from our factory. Quality products and reasonable price are available.

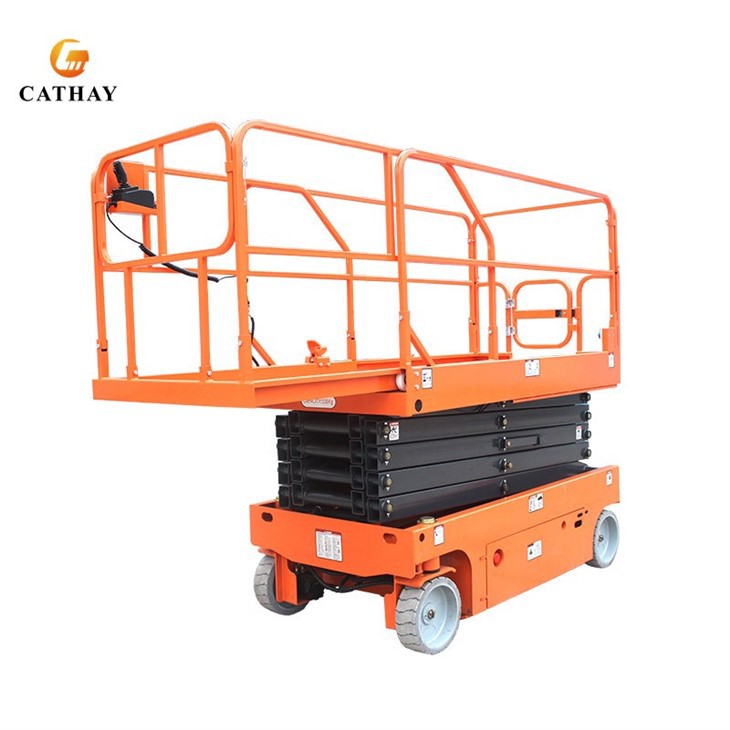

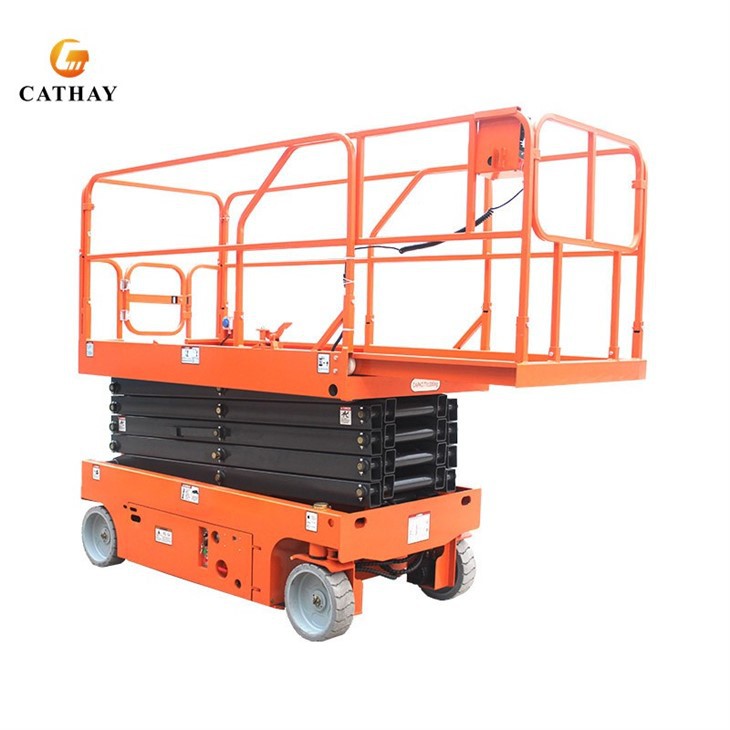

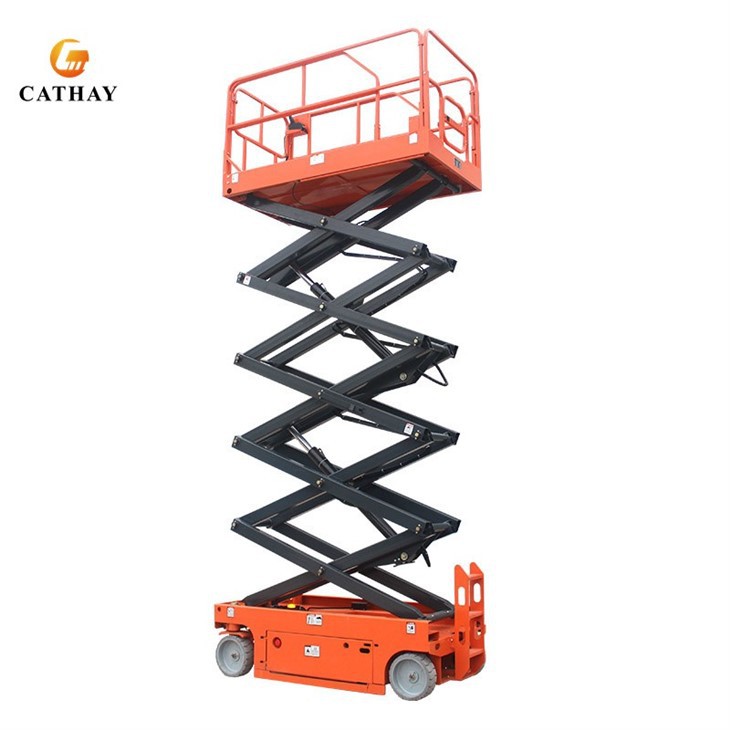

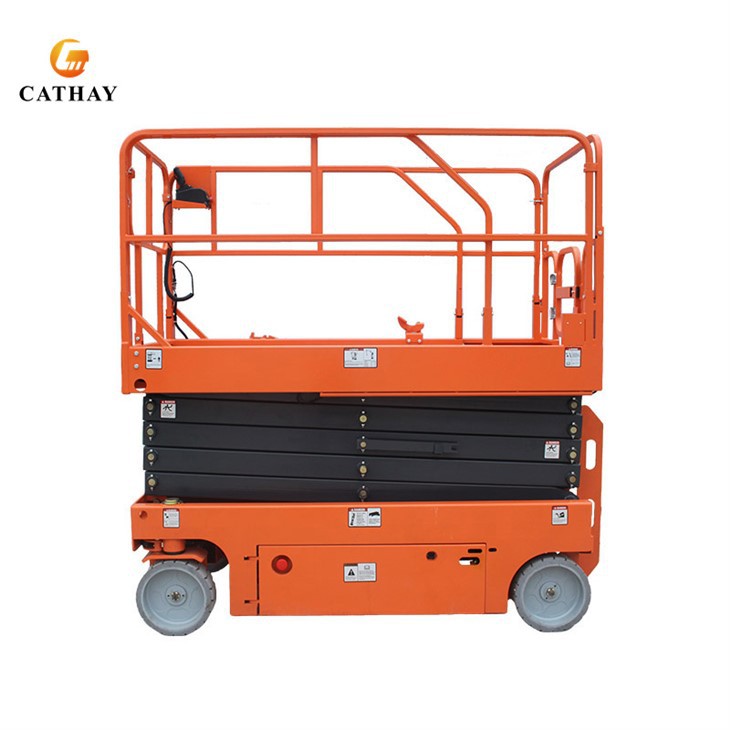

Hydraulic Driving Scissor Lift
CATHAYLIFT's hydraulically driven scissor lifts feature dual hydrostatically driven swivel wheels, ensuring smooth and precise movement even when fully loaded. Whether folded or raised, operators easily control direction, speed and lift functions via the intuitive multi-function joystick. Its rapid ascent capability is outstanding, reaching 12 meters in just 110 seconds, effectively reducing downtime in construction, warehousing and industrial maintenance. Four 210Ah high-capacity batteries provide longer continuous working time and reduce charging frequency.
The smart control panel displays battery status, system diagnostics and fault codes in real time, while the emergency stop ensures immediate response to potential hazards. Safety designs like automatic warning signals during operation enhance on-site alertness.
Product Details:
✔Automatic Speed Regulation – When the platform exceeds 2.5 meters, the CURTIS controller automatically reduces horizontal travel speed to avoid unstable situations.
✔Anti-Tipping Protection – If the lift tilts more than 5° on a slope, the system stops moving and lifting, ensuring operator safety.
✔Anti-collision Protection – Two retractable protection beams deploy when the platform is raised to prevent collision damage; when lowered, the beams retract.
✔HIGH TRACTION TIRES – Large diameter flexible grey rubber tires provide excellent grip while preventing ground damage.
✔Smooth Hydrostatic Drive – Dual independently driven swivel wheels ensure precise maneuvering even in tight spaces.
- Telescopic Platform Section – 30% longer, significantly increasing operator working area and efficiency.
- Multi-function Joystick – Provides full control of lift, movement, speed and emergency stop while on the platform.
- Real-time Diagnostics – Displays battery status, error codes, and system alerts for proactive maintenance.
- 210Ah x 4 Batteries – Extended runtime for continuous operation.
- Fast lifting and lowering speeds – reach 12 meters in just 110 seconds, minimizing downtime.
- Swinging Access Doors – All critical hydraulic and electrical systems are located in easily accessible compartments for easy maintenance.
- Heavy-duty steel construction – ensures long-term durability even in harsh working conditions.
|
Model |
CLS06 |
CLS08 |
CLS10 |
CLS12 |
CLS14 |
|
Lifting Height (mm) |
6000 |
8000 |
10000 |
12000 |
13800 |
|
Lifting Capacity (kg) |
300 |
227 |
|||
|
Max. Height-Guardrail Unfold (mm) |
2150 |
2275 |
2400 |
2525 |
2590 |
|
Max. Height-Guardrail Folded (mm) |
1190 |
1315 |
1440 |
1565 |
2050 |
|
Overall Length (mm) |
2400 |
2640 |
|||
|
Overall Width (mm) |
1150 |
1130 |
|||
|
Platform Size (mm) |
2270×1150 |
2840x1390 |
|||
|
Platform Extension Size (mm) |
900 |
||||
|
Min Ground Clearance (mm) |
110/20 |
||||
|
Wheelbase (mm) |
1850 |
||||
|
Min Turn Radius-Outer Wheel (mm) |
2100 |
2700 |
|||
|
Power Source (v/kw) |
24/3.0 |
24/4.5 |
|||
|
Running Speed-Folding (km/h) |
4 |
||||
|
Running Speed-Rising (km/h) |
0.8 |
||||
|
Rising/Falling Speed (sec) |
40/50 |
70/80 |
|||
|
Battery (V/AH) |
4×12/135 |
4x12/150 |
|||
|
Charger (V/A) |
24/25 |
24/30 |
|||
|
Max. Climbing Ability (%) |
20 |
||||
|
Max. Working Allowable Angle |
2~3° |
||||
|
Way of Control |
Electro-hydraulic proportion control |
||||
|
Driver |
Double front-wheel |
||||
|
Hydraulic drive |
Double rear-wheel |
||||
|
Wheel Size-Stuffed & No Mark |
Φ381×127 |
||||
|
Whole Weight (kg) |
1900 |
2080 |
2490 |
2760 |
3320 |
