Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of hydraulic self propelled scissor lift in China. We warmly welcome you to buy discount hydraulic self propelled scissor lift for sale here from our factory. Quality products and reasonable price are available.

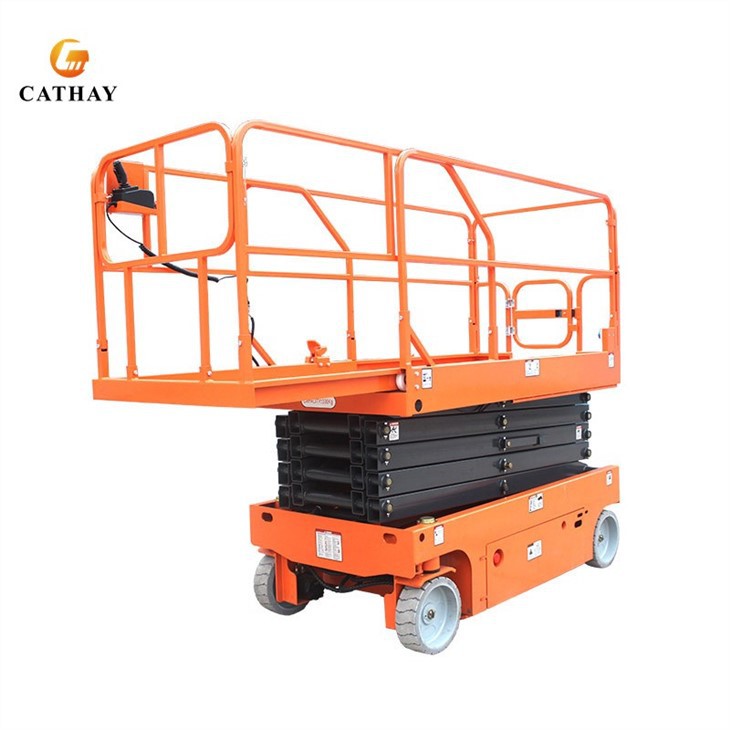

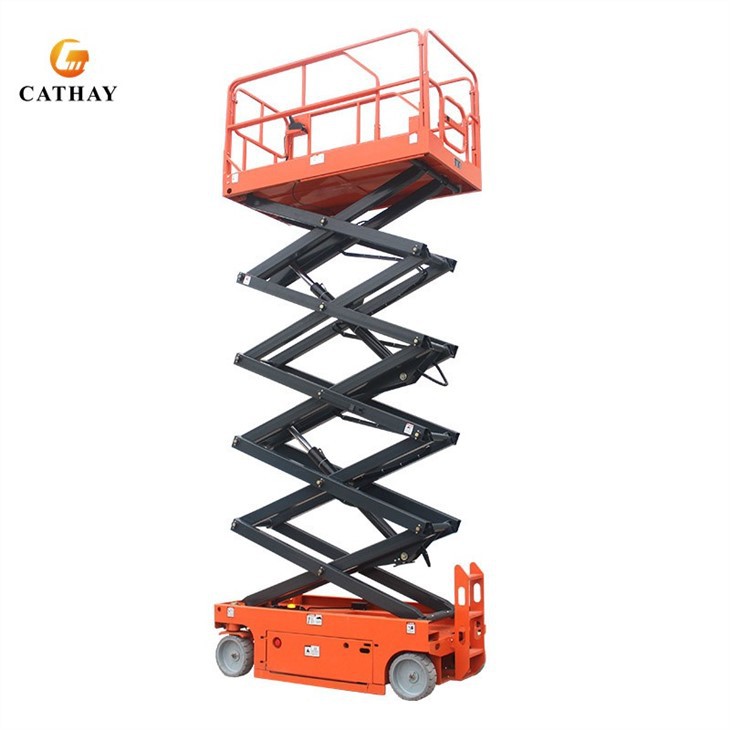

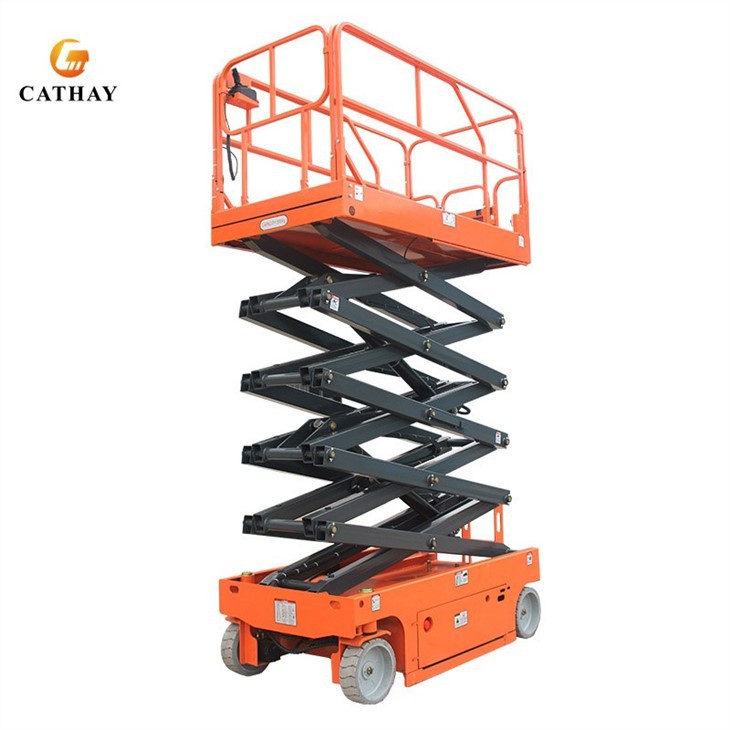

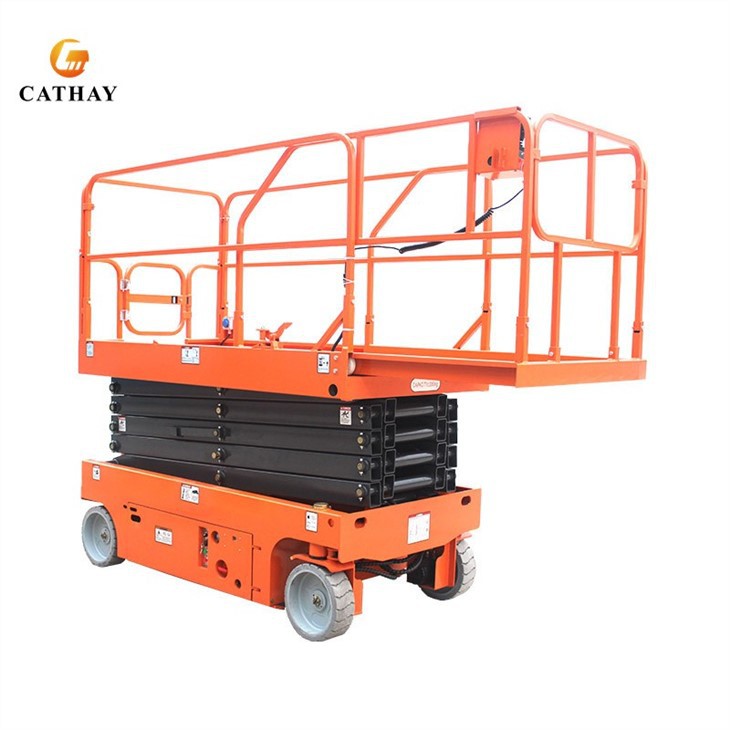

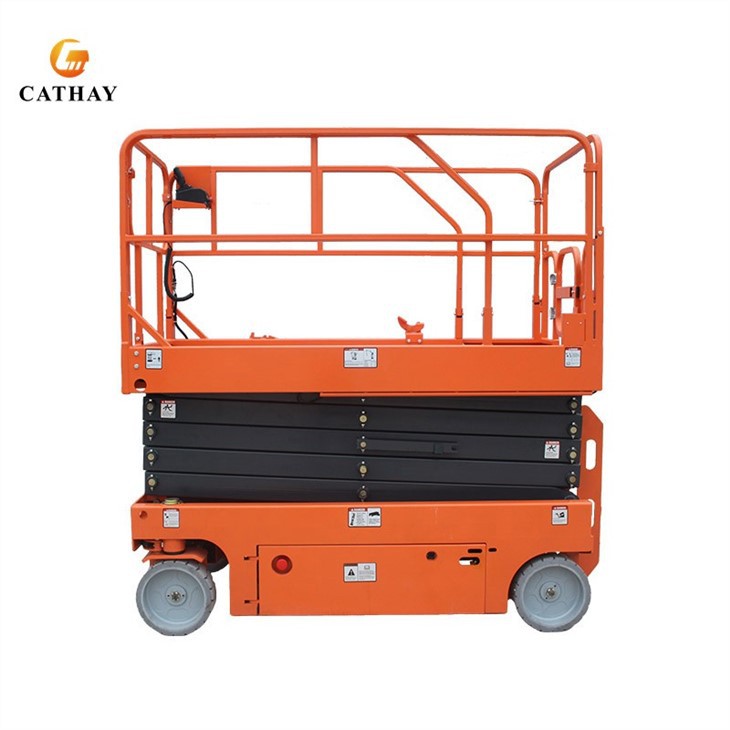

3~14m Hydraulic Self Propelled Scissor Lift
Hydraulic Self Propelled Scissor Lift is an innovative aerial work platform that has transformed high-altitude operations. This platform is a self-propelled scissor-type aerial work platform that relies on its own power to move around the work site. Its hydraulic system and advanced technology make it highly efficient and reliable for various high-altitude operations.
Products Details
Advantages Of Bullet-Points
- Can be operated by a single person, making it highly efficient for various high-altitude operations.
- Safety is a top priority, with no need for hydraulic outrigger leveling and low operating noise and small vibration.
- High-quality electrical accessories and a super pumping station with high output power provide continuous working time for operators.
- Simple and easy to operate, with various safety features like liquid level alarm, balance valve, automatic safety plate, and other alarm devices.
- Suitable for different work environments and industries, enhancing productivity and efficiency.
- DC power supply and manual control reduce obstacles and power supply problems during movement.
- Simple structure means lift arrives complete and ready to use right out of the warehouse.
- Self-propelled function makes it easy to move around the work site without manual traction.
- Flexible and easy-to-operate design makes it perfect for indoor and outdoor work.
- Extendable platform allows multiple workers to work together, increasing productivity and efficiency.
- Widened platform can accommodate more workers and equipment, ensuring quick and safe completion of the job.
- Reliable and efficient - the perfect investment for your high-altitude work needs.
- Make the ultimate investment for your high-altitude operation needs - get the Hydraulic Self Propelled Scissor Lift today!
Real Order
|
Model |
CLS06 |
CLS08 |
CLS10 |
CLS12 |
CLS14 |
|
Lifting Height (mm) |
6000 |
8000 |
10000 |
12000 |
13800 |
|
Lifting capacity |
300 |
300 |
300 |
300 |
227 |
|
Max height-guardrail unfold (mm) |
2150 |
2275 |
2400 |
2525 |
2590 |
|
Max height-guardrail folded (mm) |
1190 |
1315 |
1440 |
1565 |
2050 |
|
Overall Length (mm) |
2400 |
2640 |
|||
|
Overall Width (mm) |
1150 |
1130 |
|||
|
Platform Size (mm) |
2270×1150 |
2840x1390 |
|||
|
Platform extension size (mm) |
900 |
||||
|
Min ground clearance (mm) |
110/20 |
||||
|
Wheelbase (mm) |
1850 |
||||
|
Min turn radius-inner wheel (mm) |
0 |
||||
|
Min turn radius-outer wheel (mm) |
2100 |
2700 |
|||
|
Power source (v/kw) |
24/3.0 |
24/4.5 |
|||
|
Running speed-folding (km/h) |
4 |
||||
|
Running speed-rising (km/h) |
0.8 |
||||
|
Rising/falling speed (sec) |
40/50 |
70/80 |
|||
|
Battery (V/AH) |
4×12/135 |
4x12/150 |
|||
|
Charger (V/A) |
24/25 |
24v/30 |
|||
|
Max climbing ability (%) |
20 |
||||
|
Max working allowable angle |
2-3° |
||||
|
Way of control |
Electro-hydraulic proportion control |
||||
|
Driver |
Double front-wheel |
||||
|
Hydraulic drive |
Double rear-wheel |
||||
|
Wheel size-stuffed&no mark |
Φ381×127 |
||||
|
Whole weight (kg) |
1900 |
2080 |
2490 |
2760 |
3320 |
