Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of new small indoor scissor lift in China. We warmly welcome you to buy discount new small indoor scissor lift for sale here from our factory. Quality products and reasonable price are available.
Small indoor scissor lift can achieve fast or slow movement under different working conditions. When performing aerial work, only one person is required to continuously complete lifting, forward, backward and turning actions. Compared with traditional hydraulic platforms, this equipment significantly improves work efficiency while reducing the demand for operators and labor intensity. It is especially suitable for airport terminals, stations, docks, shopping malls, stadiums, residential properties, factories, mines and other places that require continuous aerial work
Product Details:

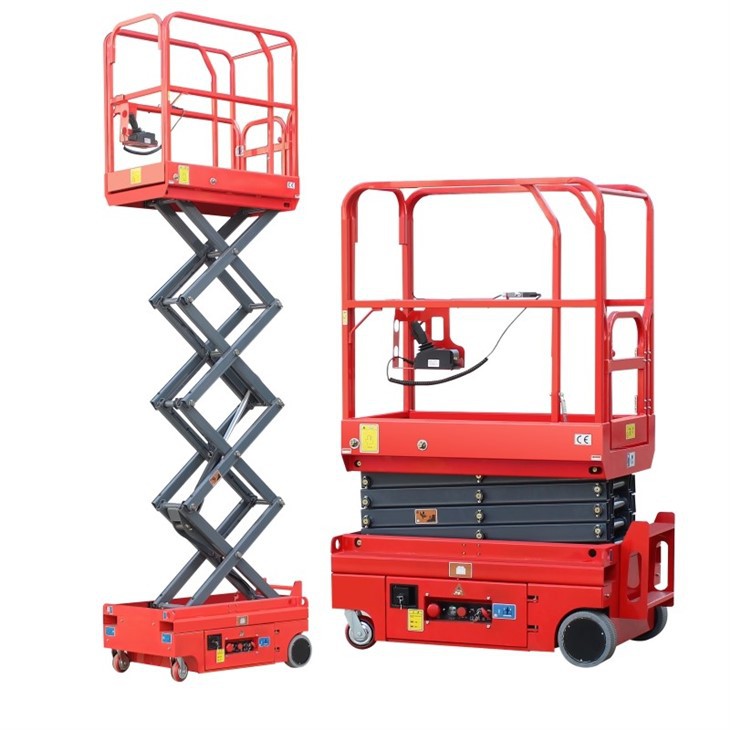

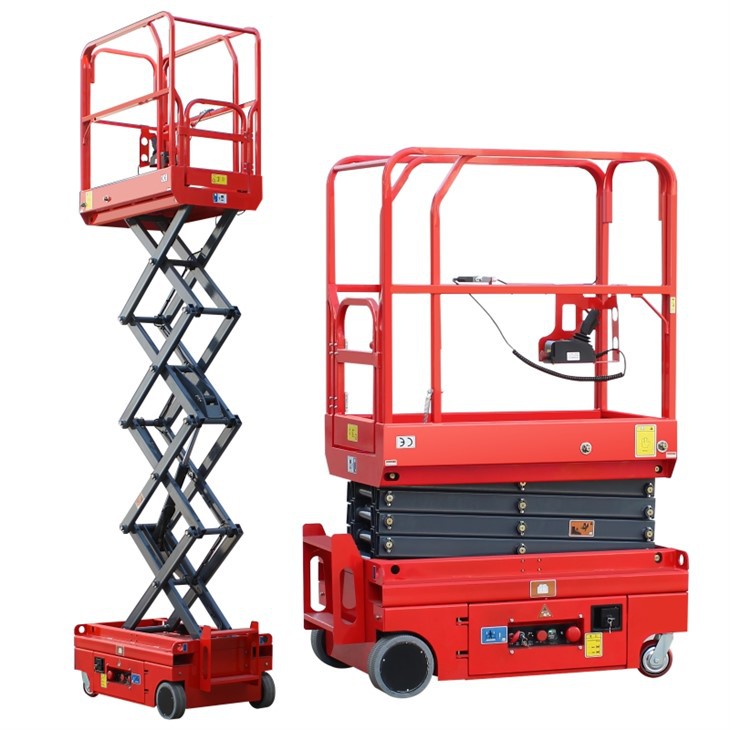

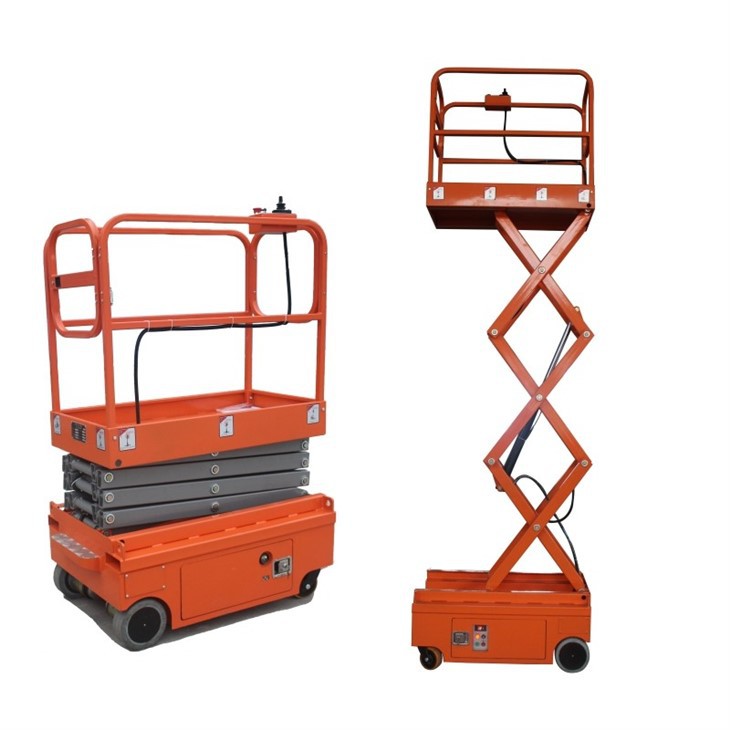

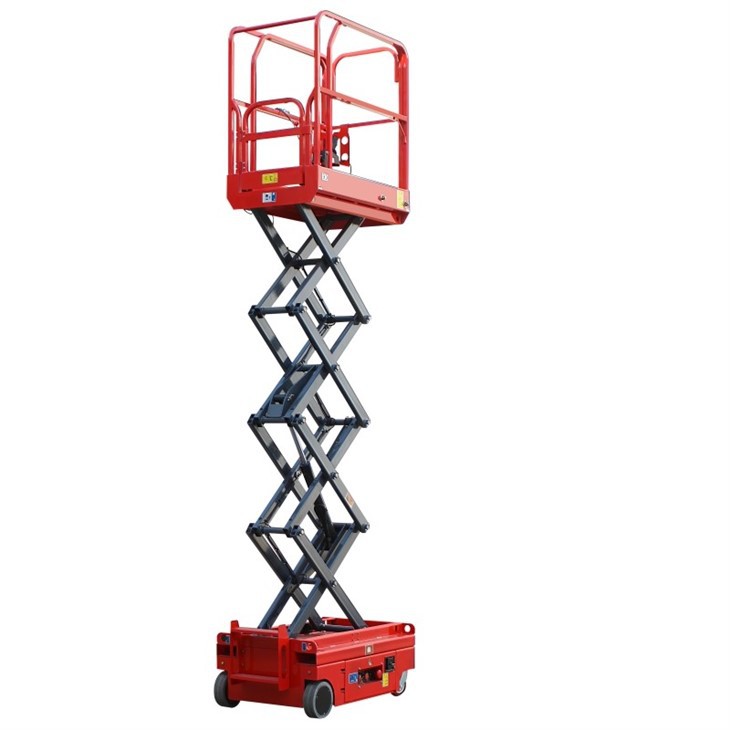

Overview
Overview
Overview

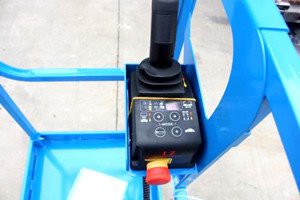

Control Handle(Curties) Intuitive Control, High Maneuverability

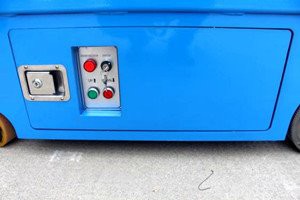

Ground Control Panel (Up, Down, Emergency Lowing Valive, Battery Power Indicator)
Ladder (Easy to climp)

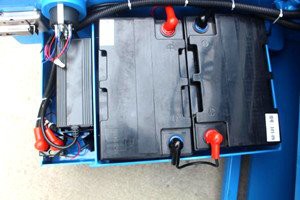

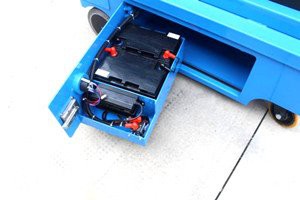

Battery Group(Maintenance-free lead-acid battery)
Internal smart Charger

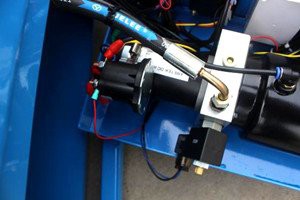

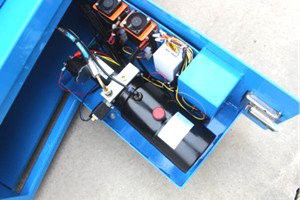

Italy Hydrappp Hydraulic Pump Station
Italy Doyle Hydraulic Valve

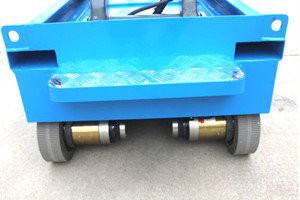

Electric Driven &Steering(Rear Wheels)

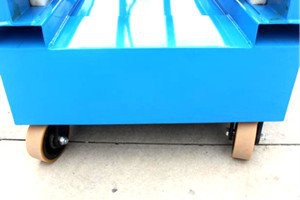

Solid universal wheel(Front Wheels)
Features & Advantages:
- Safety certification: It complies with EU standards and has obtained CE, RoHS, and ISO9001 certifications.

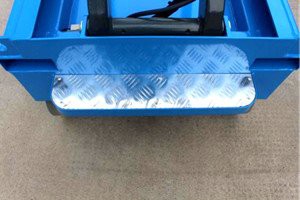

- Safety protection: It is equipped with a horizontal alarm device. When the vehicle tilts more than 3 degrees, the protection system is automatically triggered. Only descending operations are allowed. It can be used normally after the safety state is restored. There is a safety plate at the bottom of the chassis. When the platform is raised, it automatically starts working, reduces the ground clearance, and effectively prevents tipping caused by uneven ground. An oil pipe explosion-proof system is set at the oil cylinder.
- Continuously variable speed: Only one person can control all actions through the workbench handle. The motor adopts continuously variable speed technology, which effectively prolongs the life of the battery and motor, and the motor only consumes energy during T-type operation.
- Large-angle steering system: The large-angle steering design gives the machine excellent flexibility.
- Disc brake system: It adopts a hydraulic disc brake system. The wheels are automatically braked when parking, and it can be reliably parked on a 6-degree slope.
- Intelligent charging system: It is equipped with a fully automatic charger to complete the entire charging process. Charging stops automatically after full power.
- Extended platform: The platform is detachable to expand the working range and meet special needs.
- Overload protection: It has an overload protection function to provide mandatory safety protection for personnel who are not familiar with the equipment.
- Self-diagnosis function: The self-diagnosis function helps customers to grasp the equipment status in real time and optimize maintenance.
- Green and environmentally friendly: It is powered by DC batteries and can operate quietly and safely indoors and outdoors.
- Emergency device: It is equipped with an emergency descent system.

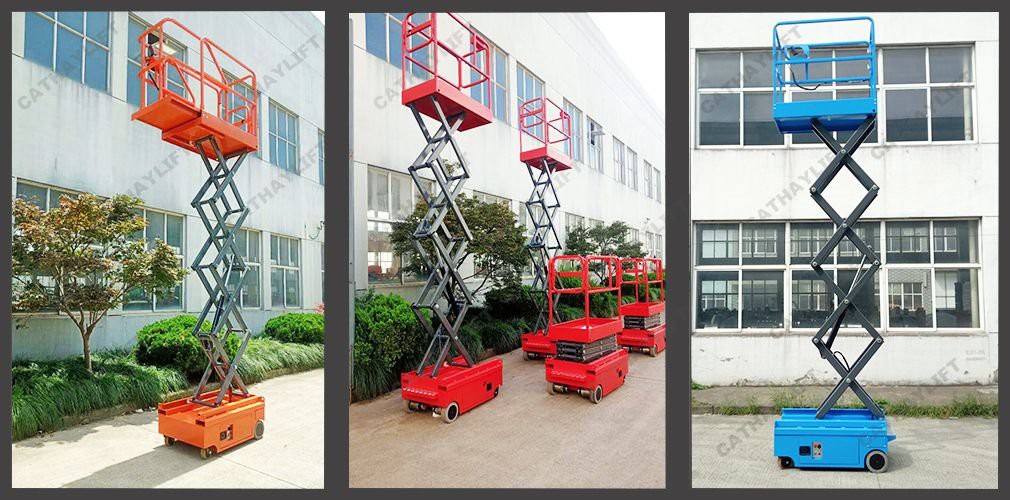

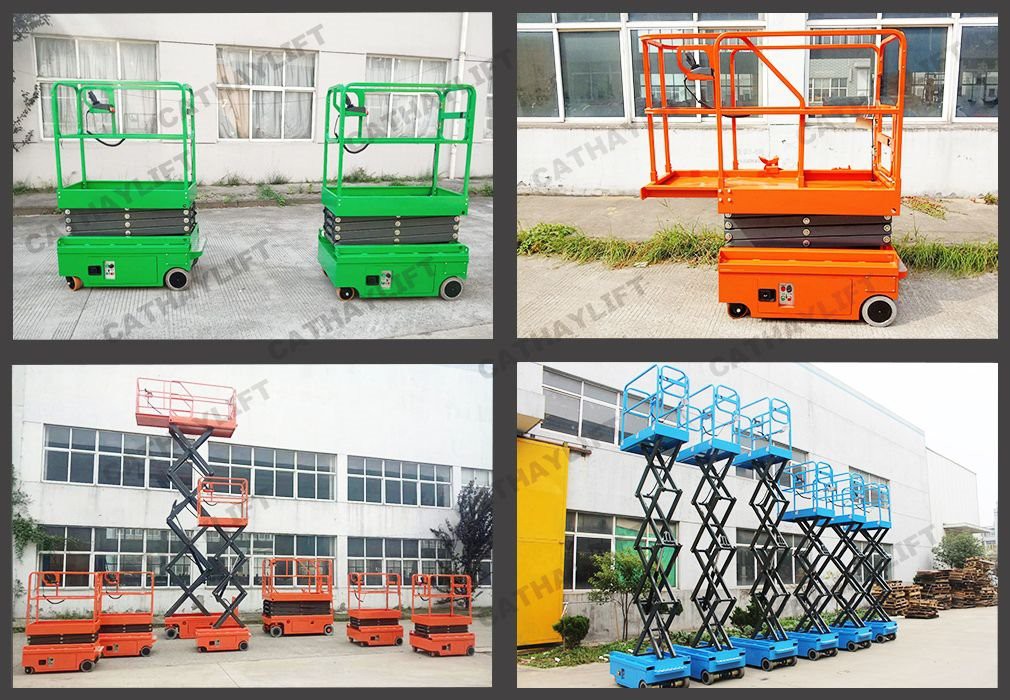

Real Order:
|
Model Type |
CLMS30 |
CLMS39 |
CLMS48 |
|
Max. Platform Height (mm) |
3000 |
3900 |
4800 |
|
Max. Working Height (mm) |
5000 |
5900 |
6800 |
|
Lift Rated Capacity (kg) |
300 |
300 |
300 |
|
Ground Clearance (mm) |
60 |
||
|
Platform Size (mm) |
1170*600 |
||
|
Wheelbase (mm) |
990 |
||
|
Min. turning radius (mm) |
1200 |
||
|
Max. Drive peed(Platform Lifted) |
4km/h |
||
|
Max. Drive Speed(Platform down) |
0.8km/h |
||
|
Lifting/falling speed (SEC) |
20~40/30~40 |
||
|
Max. Travel Grade (%) |
10-15 |
||
|
Drive motors (V/KW) |
2×24/0.3 |
||
|
Lifting motor (V/KW) |
24/0.8 |
||
|
Battery (V/AH) |
2×12/ 80 |
||
|
Charger (V/A) |
24/15A |
||
|
Max allowable working angle |
2° |
||
|
Overall Length (mm) |
1180 |
||
|
Overall Width (mm) |
760 |
||
|
Overall Height (mm) |
1830 |
1930 |
2030 |
|
Overall Net Weight (kg) |
490 |
600 |
710 |
