Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of mini semi-electric hydraulic lift in China. We warmly welcome you to buy discount mini semi-electric hydraulic lift for sale here from our factory. Quality products and reasonable price are available.

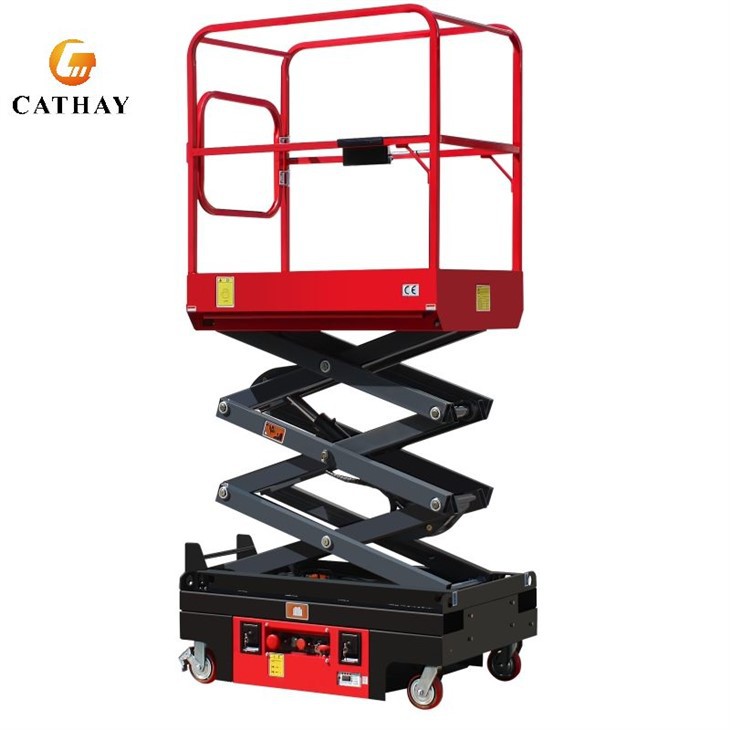

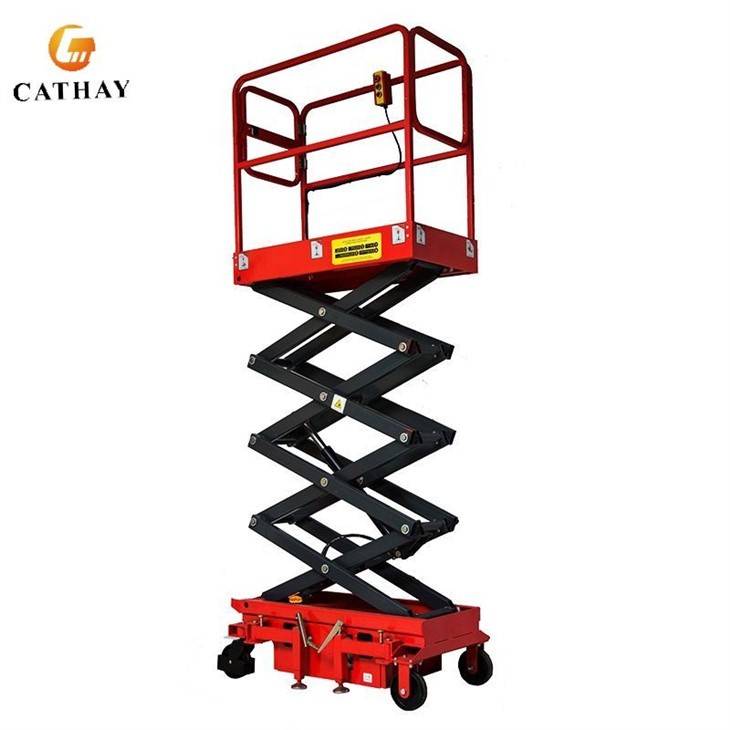

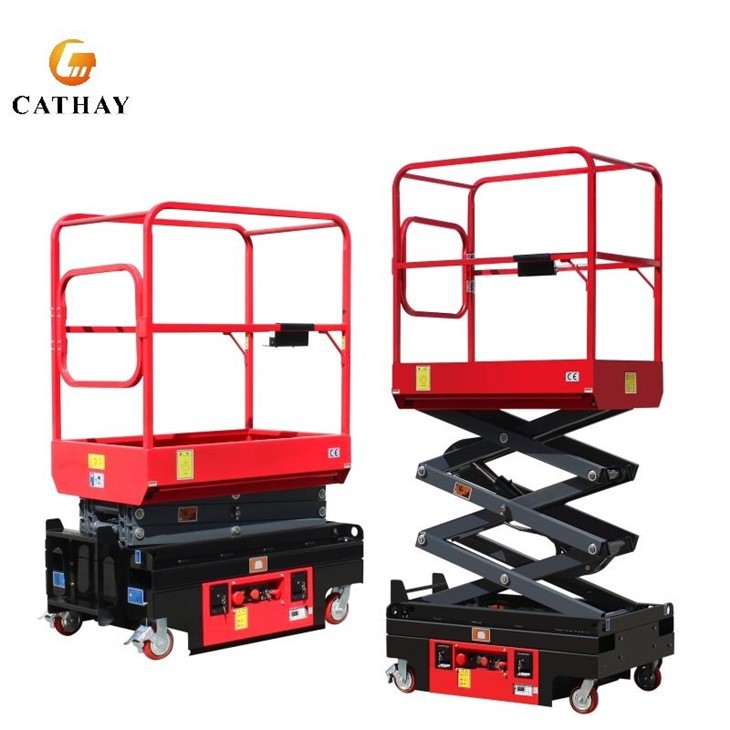

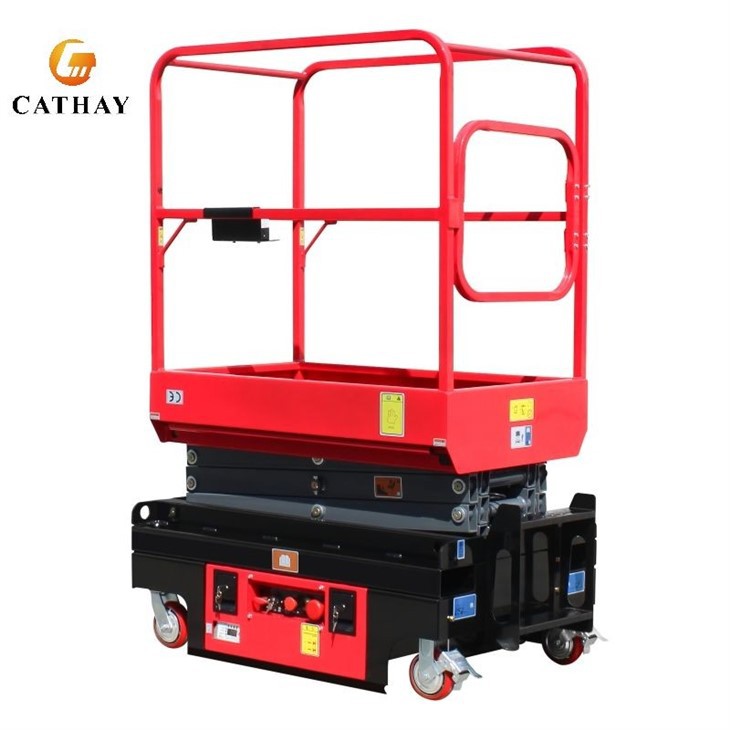

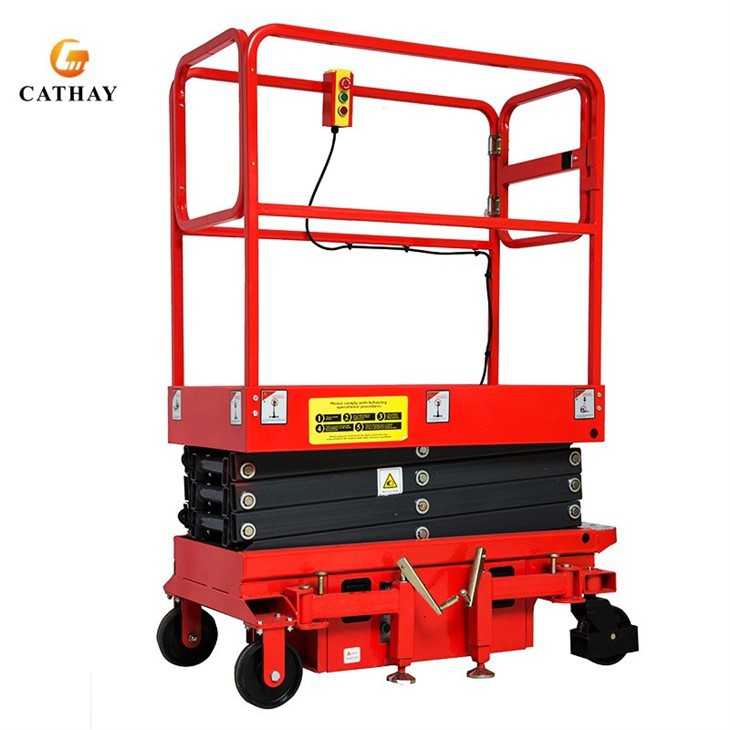

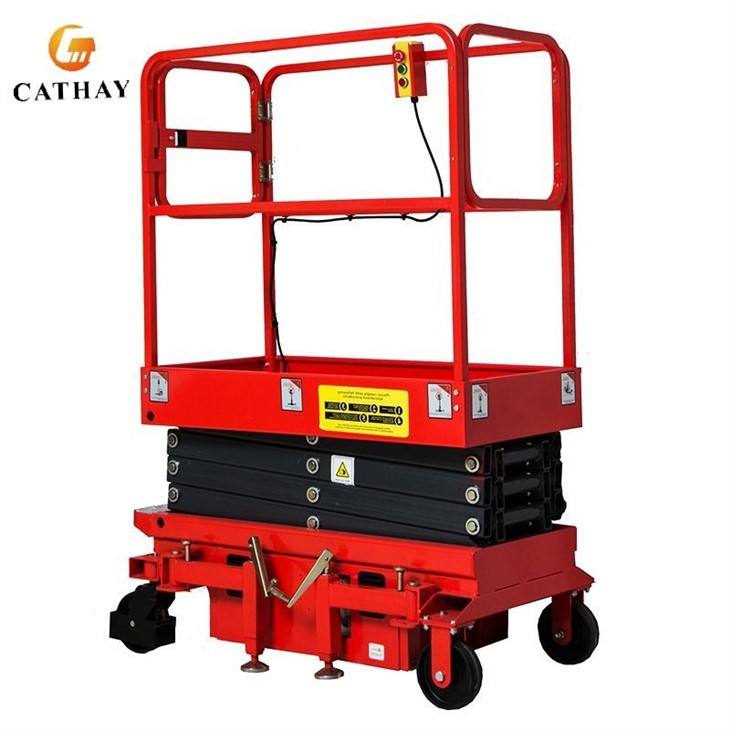

Mini Semi-electric Hydraulic Lift
Despite its small footprint, CATHAYLIFT Mini Semi-electric Hydraulic Lift delivers powerful performance, combining hydraulic stability with semi-electric operation for smooth and precise lifting. Its user-friendly controls ensure effortless operation, making it a top choice for professionals seeking reliability and ease of use in demanding work environments.
What sets the CATHAYLIFT Mini Semi-electric Hydraulic Lift apart is its self-propelled functionality, enhancing productivity and mobility. Equipped with an automatic walking feature, the lift can move forward, backward, and steer with adjustable speeds-all controlled via an intuitive handle. The integrated design includes a built-in power supply, eliminating the need for external electricity or manual pulling, allowing for unrestricted movement and positioning. A single operator can manage all functions, from lifting and lowering to navigating the workspace, streamlining workflows and reducing labor costs. Durable, agile, and designed for indoor and outdoor use, this lift is a cost-effective solution for industries that demand precision, safety, and adaptability in elevated work platforms.
|
Model Type |
CLMS30 |
CLMS39 |
|
Max. Platform Height (mm) |
3000 |
3900 |
|
Max. Working Height (mm) |
5000 |
5900 |
|
Rated Capacity (kg) |
300 |
300 |
|
Ground Clearance (mm) |
60 |
|
|
Platform Size (mm) |
1170*600 |
|
|
Wheelbase (mm) |
990 |
|
|
Min. Turning Radius (mm) |
1200 |
|
|
Max. Drive Speed (Platform Lifted) |
4km/h |
|
|
Max. Drive Speed (Platform down) |
0.8km/h |
|
|
Lifting/Falling speed (Sec) |
20/30 |
|
|
Max. Travel Grade (%) |
10-15 |
|
|
Drive Motors (V/Kw) |
2×24/0.3 |
|
|
Lifting Motor (V/Kw) |
24/0.8 |
|
|
Battery (V/AH) |
2×12/ 80 |
|
|
Charger (V/A) |
24/15A |
|
|
Max. Allowable Working Angle |
2° |
|
|
Overall Length (mm) |
1180 |
|
|
Overall Width (mm) |
760 |
|
|
Overall Height (mm) |
1830 |
1930 |
|
Net Weight (kg) |
490 |
600 |
Product Details:
Overview
Overview
Overview
Control Handle
Battery Power Indicator
Internal Smart Charger
Battery Group
(Maintenance-free lead-acid battery)
Italy Hydrappp Hydraulic Pump Station
Driving Wheels
1. Certified Safety & Compliance
- CE, RoHS, and ISO9001 certified, ensuring compliance with stringent EU safety and quality standards.
- Overload protection prevents misuse by inexperienced operators, enhancing workplace safety.
- Hydraulic disc brake system keeps the lift securely locked even on 6-degree slopes, preventing accidental movement.
2. Superior Mobility & Compact Design
- Ultra-compact body allows access through standard doors, elevators, and narrow workspaces.
- Large-angle steering system provides excellent maneuverability, making it ideal for tight corners and confined areas.
- Self-propelled functionality enables forward/backward movement, steering, and speed adjustment via an ergonomic control handle.
Real Order:
