Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of oil-free vertical access platform in China. We warmly welcome you to buy discount oil-free vertical access platform for sale here from our factory. Quality products and reasonable price are available.

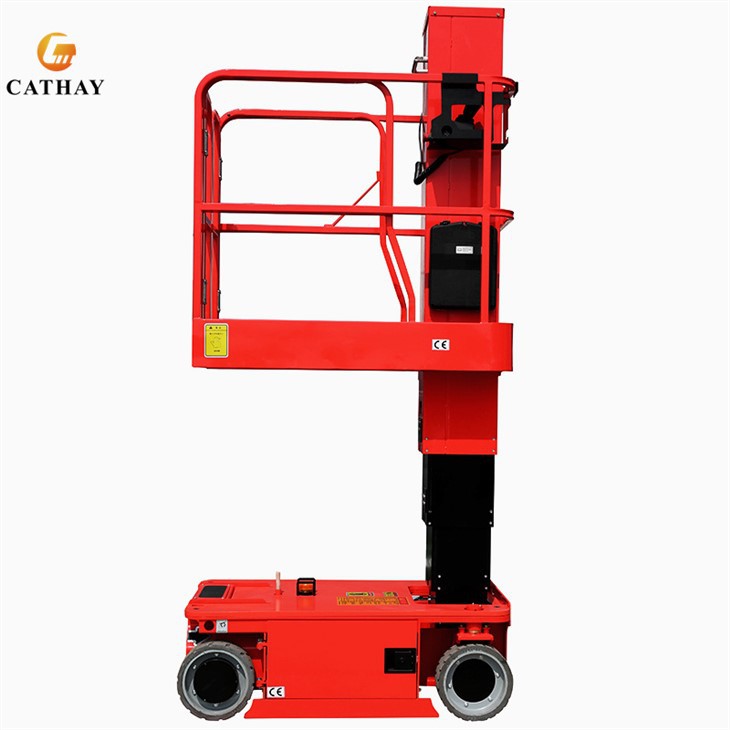

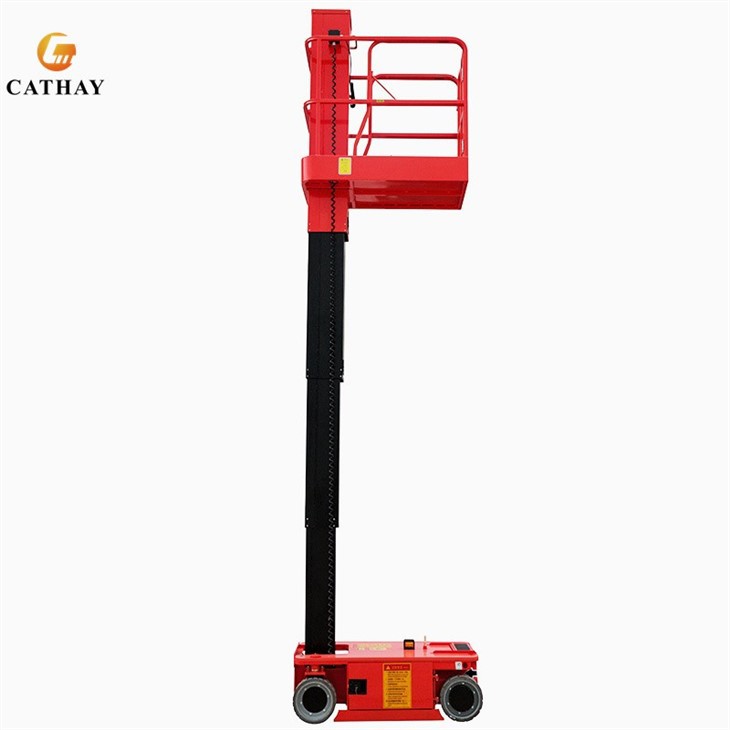

Oil-Free Vertical Access Platform
CATHAYLIFT's Oil-Free Vertical Access Platform boasts high maneuverability and sensitivity, allowing it to navigate tight spaces with ease. The platform's brushless DC motor ensures smooth, quiet operation, while its oil-free design eliminates the need for traditional oil cylinders, resulting in zero emissions and reduced maintenance requirements. This environmentally friendly approach not only minimizes your environmental footprint but also reduces operating costs, making it an ideal choice for businesses seeking sustainable solutions. Whether you require access for maintenance, construction, or cleaning, CATHAYLIFT Oil-Free Vertical Access Platform delivers exceptional performance and reliability, empowering you to achieve your goals with ease and confidence.
|
Model Type No. |
CSTAR-3600 |
CSTAR-4800 |
CSTAR-6000 |
|
Max. Platform Height |
3.6m |
4.8m |
6m |
|
Max. Lifting Height |
5.6m |
6.8m |
8m |
|
Load Capacity |
227 kg |
159 kg |
|
|
Extendable Platform Capacity |
114 kg |
||
|
Platform Size |
1.3x0.7 m |
||
|
Extendable Platform Length |
0.51 m |
||
|
Wheel Base |
1.04 m |
||
|
Inner Turning Radius |
0 m |
||
|
Outer Turning Radius |
1.4 m |
||
|
Travel Speed (Stowed) |
4 km/h |
||
|
Travel Speed (Raised) |
1.1 km/h |
||
|
Up/down Speed |
31/32sec |
41.5/42sec |
52/53sec |
Product Details:
CATHAYLIFT's Oil-Free Vertical Access Platform offers a perfect blend of innovation, sustainability, and safety. Its oil-free design, maintenance-free operation, and advanced features make it an ideal choice for businesses seeking efficient, eco-friendly, and cost-effective vertical access solutions. Whether for industrial, commercial, or residential applications, this platform delivers unmatched performance and reliability, setting a new standard in the market.

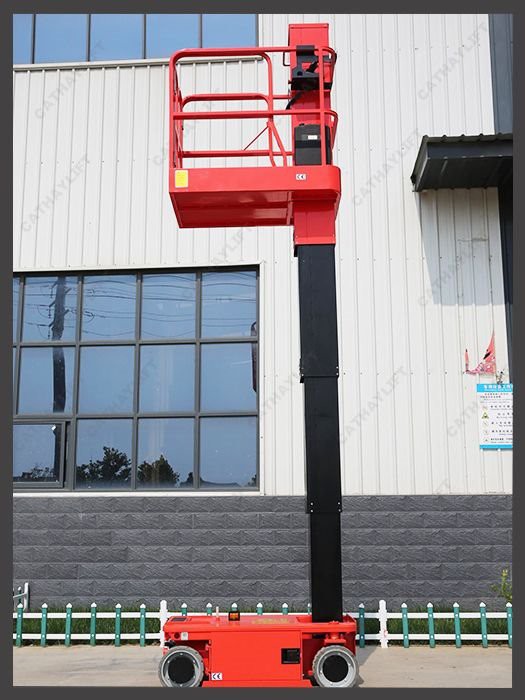

Detail Images:
Extensible Platform and Electric Push Rod:
The extendable platform measures 0.51m and can be swiftly deployed to the operational site, ensuring convenience and efficiency. The electric push rod replaces the conventional hydraulic cylinder, offering a safe and reliable solution. With an integrated chain mechanism, it achieves an oil-free design.
Dual Control System:
The ground control system features an emergency descent valve, a main power switch, an emergency stop button, and a charging jack (protected by a blue casing) with a built-in charger. The platform's control handle includes proportional control and an anti-misoperation design.
Automatic Pothole Protection System:
The pothole protection system is equipped with a sensor switch. If the pothole protection is not fully extended, the platform will automatically halt when it reaches a height of 2m and will be unable to ascend further.
Pumping Station ECU and Tilt Sensor:
The Bucher Motor, paired with a stable and reliable Electronic Control Unit (ECU), manages the machine's operations, analyzing each action and diagnosing faults. Any detected issues are displayed as fault codes on the ground control panel.
Maintenance-free Lead-acid Batteries:
Compared to conventional batteries, the advantages include: no requirement to add any liquid; reduced corrosion on terminal posts and wiring; enhanced resistance to overcharging; high starting current capacity; and extended power storage duration.
High Elastic Rubber Static Grey Tires and Hydraulic Steering System:
The tires measure Φ305*100 mm, offering quiet operation and leaving no marks. Standard forklift slots are located on the sides to accommodate long-distance transportation needs.
Application:
- Long Power Storage: The platform's battery system ensures extended power storage, reducing the need for frequent recharging and improving productivity.
- Quick Deployment: The platform can be rapidly deployed to the operation point, saving time and increasing efficiency.
- Intuitive Controls: The ground control system and platform handle are designed for ease of use, with features like fault code displays and horn controls for added convenience.
- Adjustable Steering Assist: The hydraulic steering system can be fine-tuned based on angle and speed parameters, ensuring stability and adaptability in various working conditions.
Advantages:
-
Oil-Free Design for Enhanced Sustainability
- Electric Push Rod System: The platform utilizes an oil-free electric push rod, eliminating the need for hydraulic oil. This design reduces environmental impact and ensures cleaner operation.
- Zero Emissions: With no oil or harmful emissions, the platform is an eco-friendly choice, aligning with global sustainability goals and reducing the carbon footprint.
- Energy Efficiency: The oil-free system minimizes energy consumption, making it a cost-effective and environmentally responsible solution.
2. Maintenance-Free Operation
- Brushless DC Motor: The platform is powered by a high-performance brushless DC motor, which requires no maintenance over its lifespan. This reduces downtime and operational costs.
- Durability: The absence of brushes in the motor reduces wear and tear, ensuring long-lasting performance and reliability.
3. Quiet and Noise-Free Operation
- Noise Reduction: The platform operates silently, making it ideal for environments where noise pollution is a concern, such as hospitals, libraries, or residential areas.
- Smooth Performance: The oil-free design and advanced motor technology contribute to a quiet and seamless user experience.
