Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of push around towable scissor lift in China. We warmly welcome you to buy discount push around towable scissor lift for sale here from our factory. Quality products and reasonable price are available.

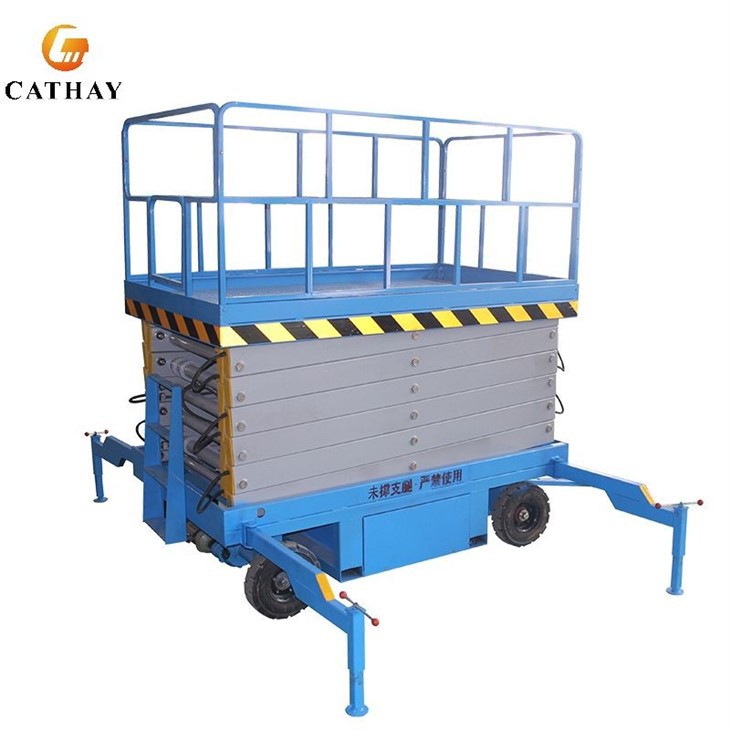

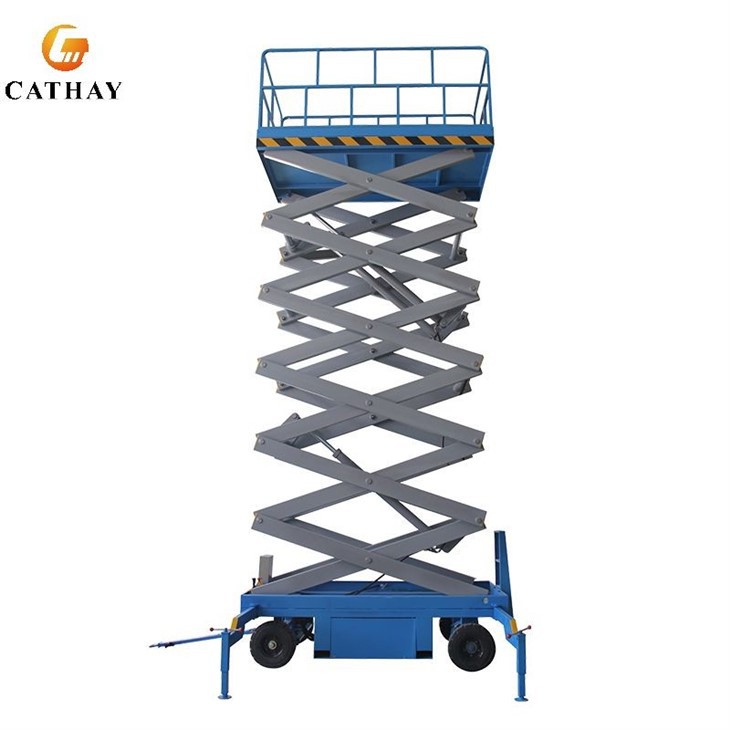

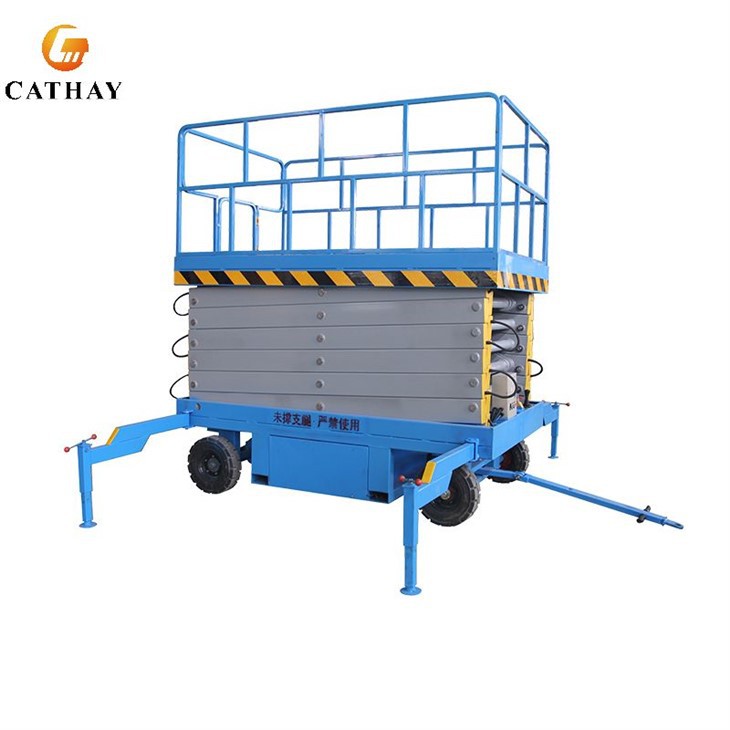

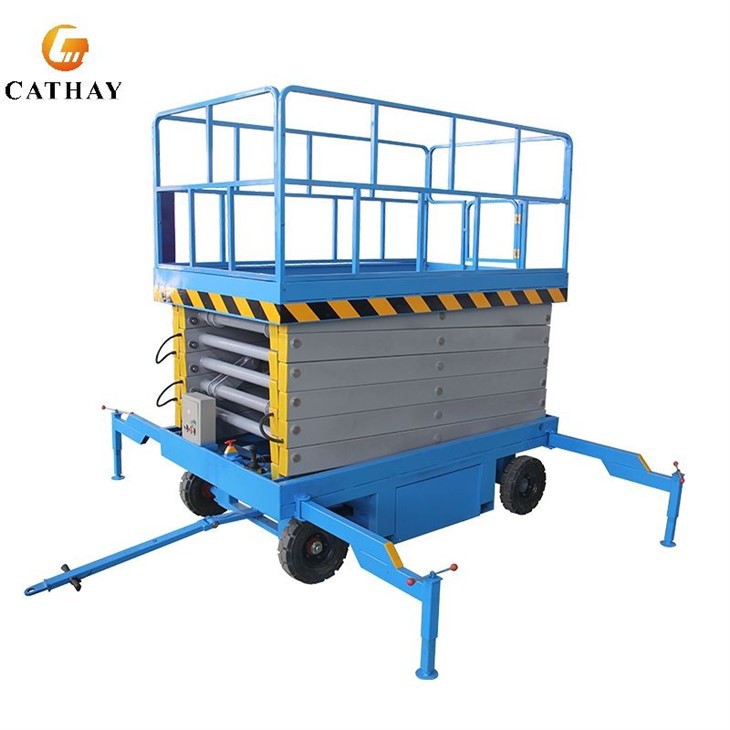

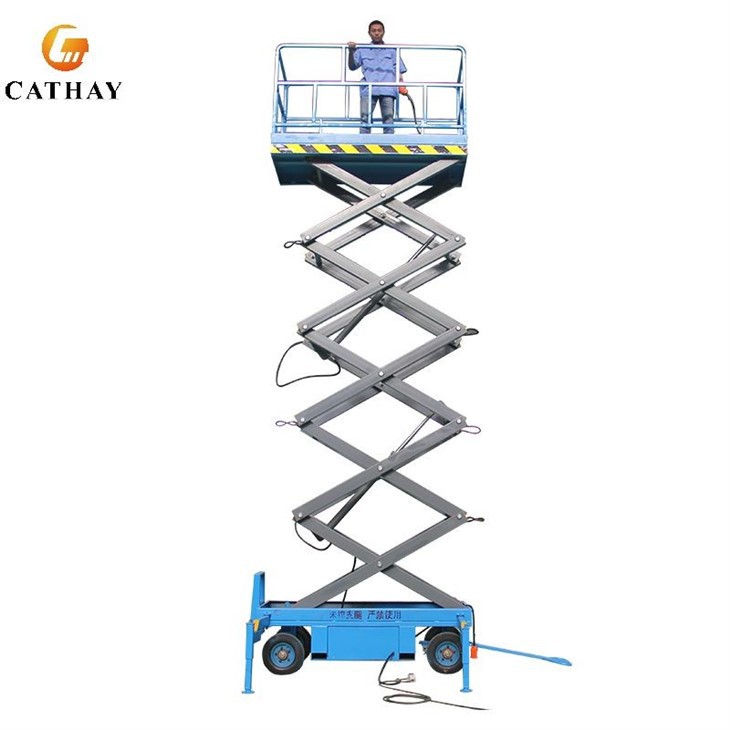

Push Around Towable Scissor Lift
Versatility and dependability are at the core of the CATHAYLIFT Push Around Towable Scissor Lift's design. It offers unparalleled flexibility in its power configuration, supporting 220V or 380V mains electricity, with optional battery or diesel power sources for complete operational freedom in remote locations or environments without grid access. This ensures uninterrupted productivity, even in the event of a power failure.
The Push Around Towable Scissor Lift features precision-engineered hydraulic systems, utilizing renowned Italian and domestic pump stations renowned for their durability and smooth, consistent lifting action. Control is intuitive and adaptable, with options for manual operation, convenient electric hand control, or wireless remote control, allowing the operator to manage the lift from the most advantageous position. Every component, from the hydraulic system to the smallest fitting, is sourced from world-renowned brands, guaranteeing exceptional quality and longevity.
|
Model No. |
Loading Capacity (kg) |
Lifting Height (m) |
Platform Size (m) |
Lifting Time (s) |
Voltage |
Motor |
Net Weight (kg) |
|
CLH0406 |
450 |
6 |
1.85*0.88 |
55 |
AC380 |
1.5 |
800 |
|
CLH0407 |
7.5 |
1.8*1.0 |
60 |
1.5 |
1000 |
||
|
CLH0409 |
9 |
1.8*1.0 |
70 |
1.5 |
1200 |
||
|
CLH0411 |
11 |
2.1*1.15 |
80 |
2.2 |
1580 |
||
|
CLH0412 |
12 |
2.45*1.35 |
125 |
3 |
2450 |
||
|
CLH0414 |
14 |
2.45*1.35 |
165 |
3 |
2650 |
||
|
CLH1006 |
1000 |
6 |
1.8*1.0 |
60 |
2.2 |
1100 |
|
|
CLH1009 |
9 |
1.8*1.25 |
100 |
3 |
1510 |
||
|
CLH1012 |
12 |
2.45*1.35 |
135 |
4 |
2700 |
||
|
CLH0316 |
300 |
16 |
2.75*1.5 |
173 |
3 |
3200 |
Product Details:
Platfrom With Guardrail
Control Panel (One The Platform)
Control Panel (Ground)
Ladder For Easy To Climp
Pressure Gauges & Emergency Decline Valve
Hydraulic Pump Station
Main Power
Leveling Indicator
Support Legs
Battery (Optional)
Tool Box
Rubber Wheels
Advantages:
- The core framework of the lift is constructed from high-strength manganese steel rectangular tubes. This material choice provides exceptional structural integrity, resisting bending, twisting, and deformation under heavy loads. The base is further reinforced with heavy-duty channel steel welding, creating a solid and stable foundation that ensures safety and reliability throughout the lift's entire operational range.
- The Push Around Towable Scissor Lift is equipped with a multi-faceted protection system that includes an overload hydraulic safety system, which prevents the platform from being raised if it exceeds its rated capacity. Furthermore, an anti-fall safety protection system automatically engages to lock the platform in place and prevent a sudden drop in the event of an unexpected hydraulic line failure. A standard manual emergency drop valve allows for the safe and controlled lowering of the platform to the ground during a power failure, ensuring no operator is ever stranded at height.
- The use of a finely ground hydraulic cylinder body, combined with high-quality imported seals, guarantees exceptional sealing performance, preventing leaks and ensuring smooth, consistent, and powerful lifting action cycle after cycle.
- Understanding that no two job sites are identical, CATHAYLIFT offers significant customization. Operators can select the most appropriate tire type-solid tires for indoor use on rough floors or puncture resistance, and pneumatic tires for superior traction and cushioning on outdoor terrain. The height of the platform guardrail (900mm-1200mm) can be specified to meet specific site safety requirements. For added functionality, an optional telescopic platform extension is available, effectively enlarging the work area to accommodate larger materials or provide greater maneuverability when needed.
Real Order:
