Scissor Lift Table Platform

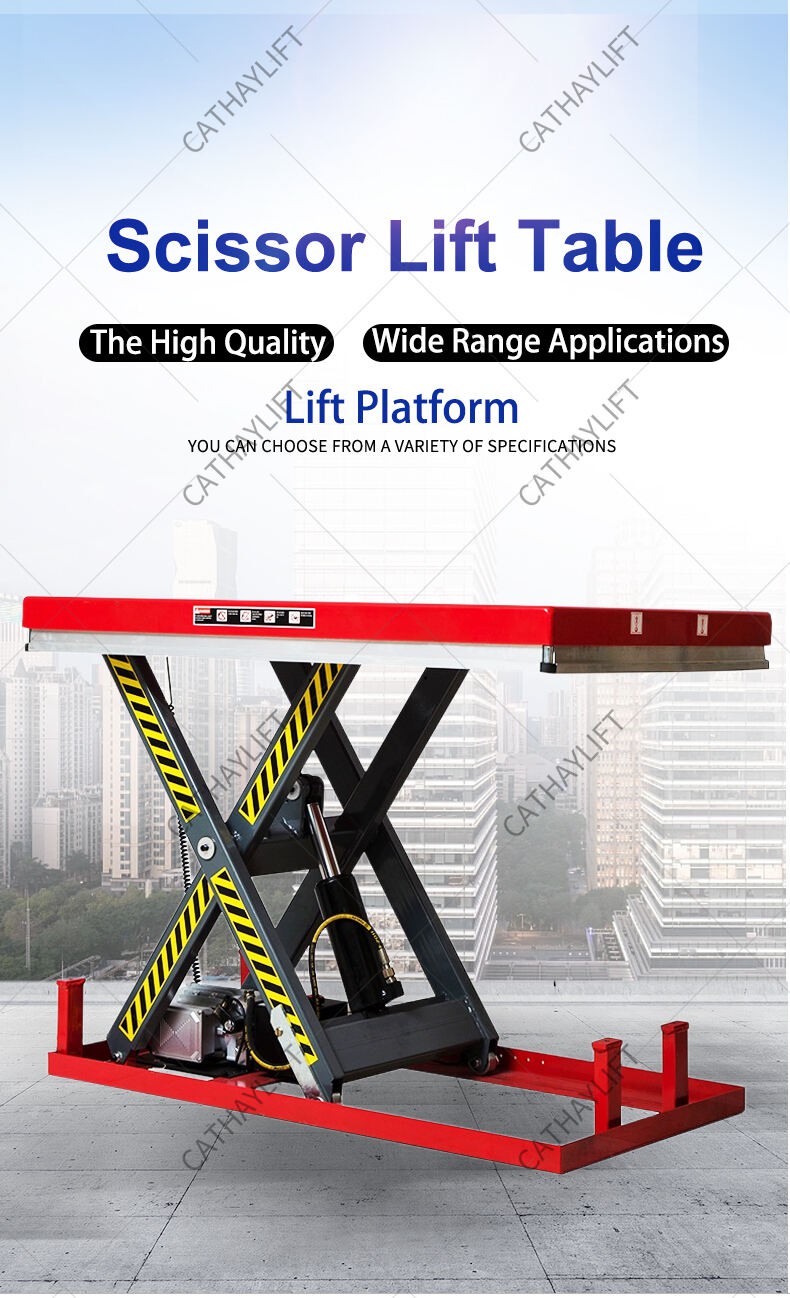

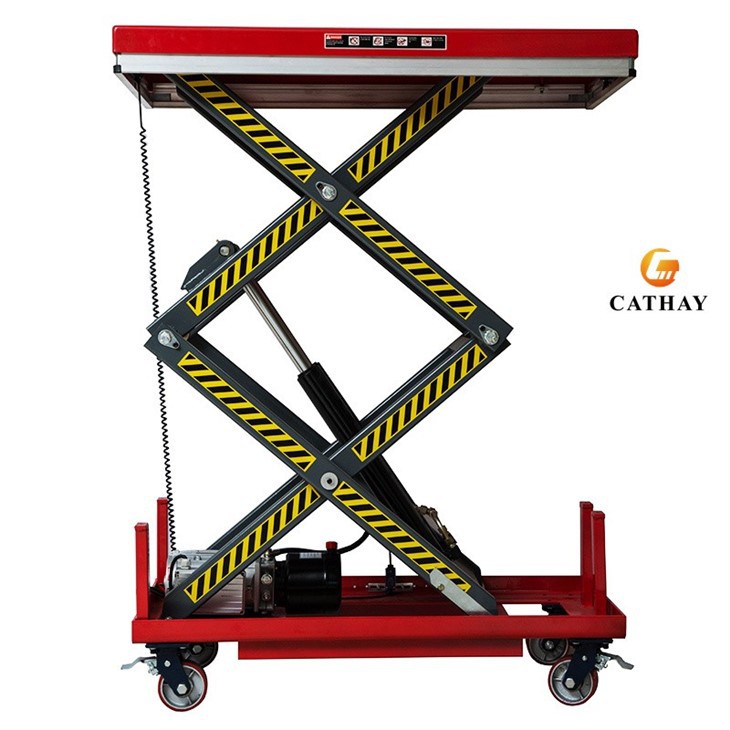

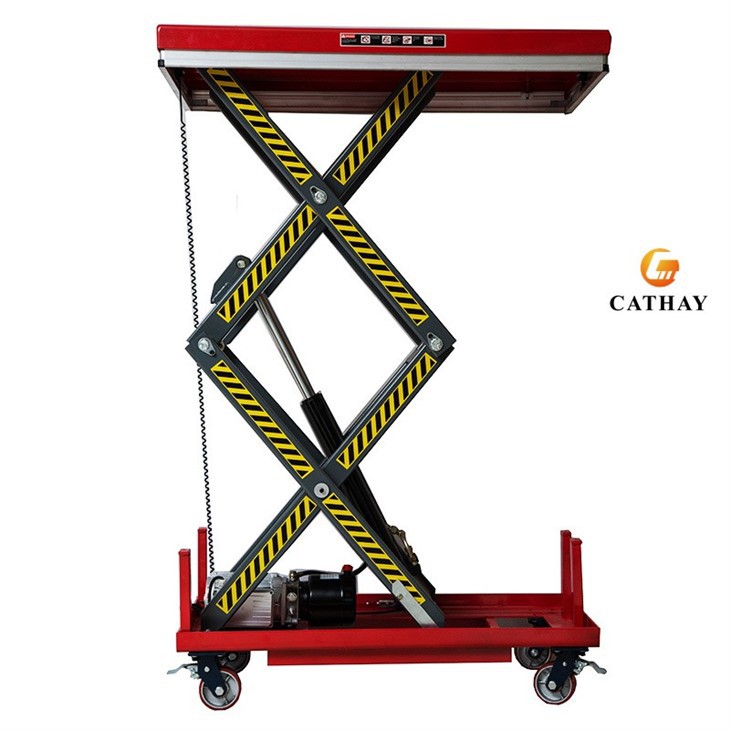

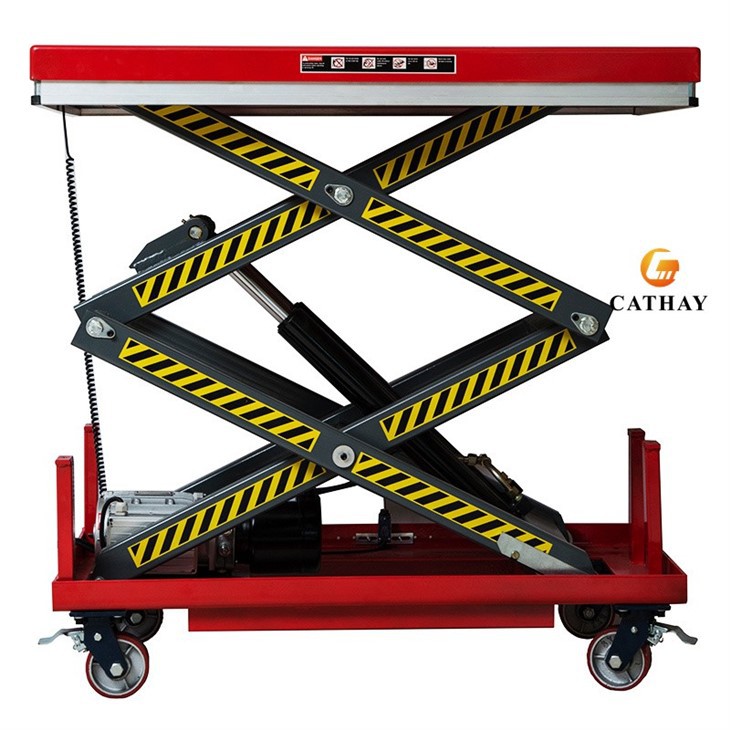

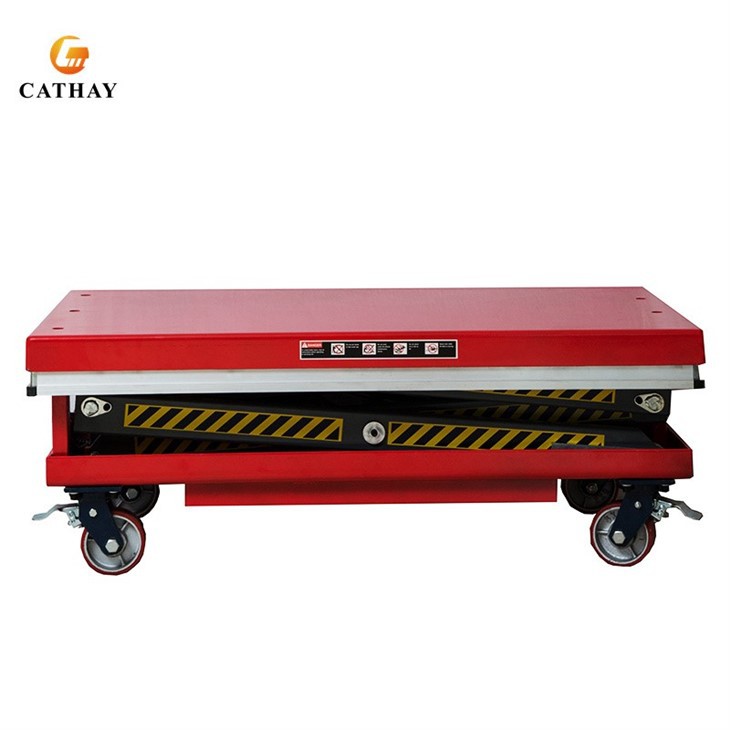

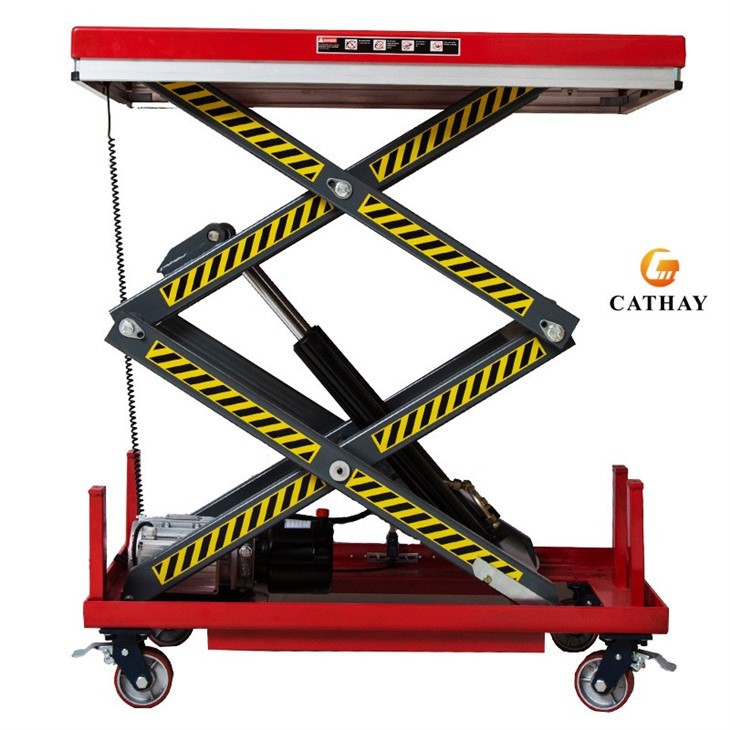

CATHAYLIFT scissor lift table platform designed for stationary use, boasts a robust construction with a hydraulic pumping system, sturdy oil cylinder, and interlocking scissor forks. Ideal for heavy-duty material handling, it ensures seamless operation and can be tailored to specific requirements for optimal performance in various industrial settings.
Products Details

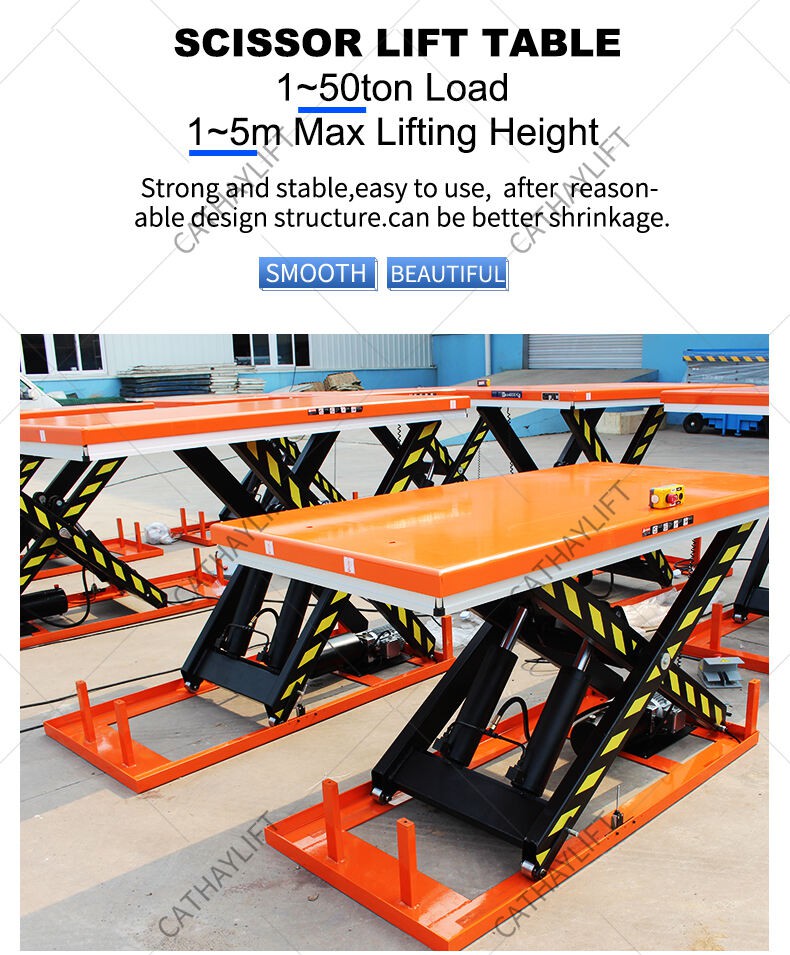

The small scissor lift table is known for its smooth and fast lifting capabilities, ability to handle heavy loads, and large working surface. With its customizable features, the lifting platform can meet diverse needs and ensure efficient and safe operations.
Advantages:
Versatility: These platforms can be adapted to a wide range of tasks, from lifting heavy machinery in manufacturing facilities to facilitating maintenance work in warehouses or providing accessibility solutions in commercial buildings.
Space Efficiency: Their compact design allows them to operate in tight spaces where traditional forklifts or cranes may not be suitable, maximizing floor space utilization.
Safety: Equipped with safety features such as emergency stop buttons, guardrails, and overload protection, scissor lift table platforms prioritize operator safety during operation, reducing the risk of accidents and injuries.

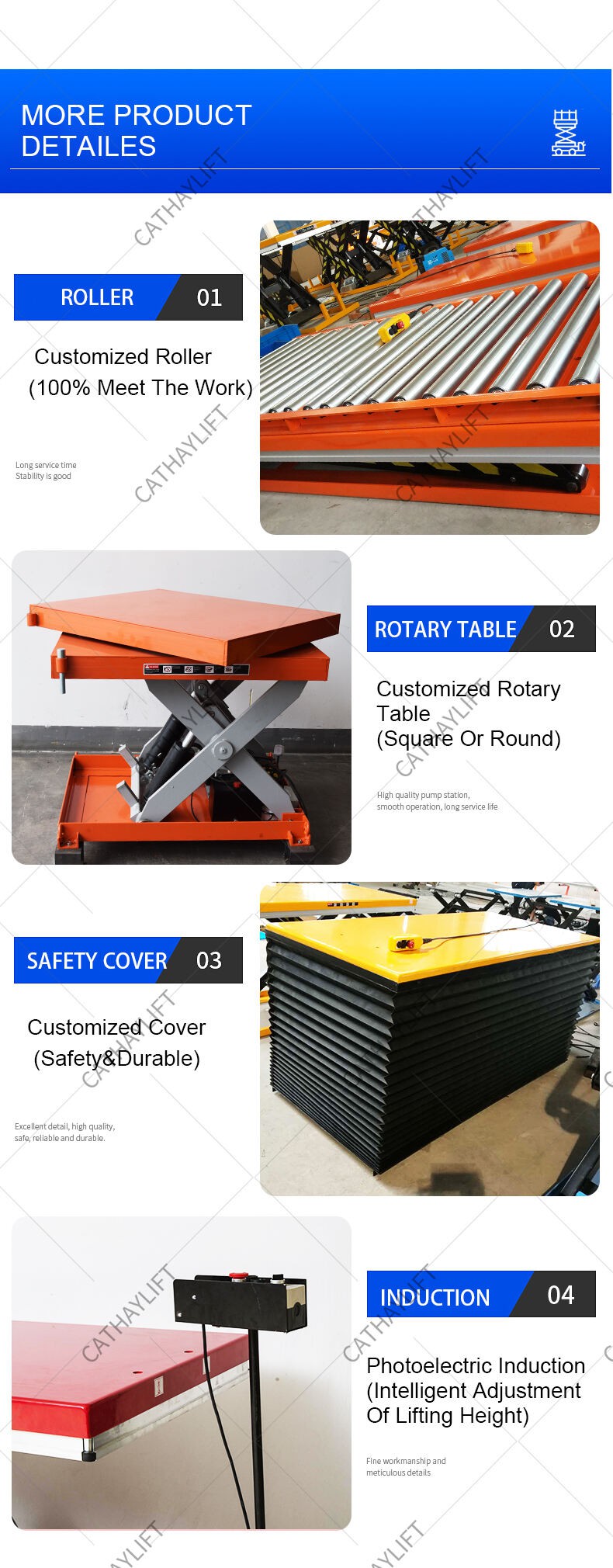

Customization Options: These platforms can be customized with various features such as adjustable height ranges, platform sizes, and load capacities to meet specific application requirements and optimize operational efficiency.
Environmental Benefits: Compared to traditional lifting equipment powered by fossil fuels, electric scissor lift table platforms offer a more eco-friendly solution, producing zero emissions and reducing carbon footprint.
Cost-Effectiveness: With their long service life, minimal maintenance requirements, and energy-efficient operation, scissor lift table platforms offer a cost-effective solution for lifting and material handling needs, delivering a high return on investment over time.
Compliance: Many scissor lift table platforms adhere to industry standards and regulations, ensuring compliance with safety and operational guidelines, and providing peace of mind for users and operators alike.
Safety:
Safety is paramount in every aspect of our design. Our lifts come equipped with an array of safety features, including explosion-proof valves to safeguard hydraulic pipes, spillover valves to regulate pressure, and anti-dropping devices to prevent platform falls. The hydraulic system is controlled by a solenoid valve, ensuring immediate cessation of lift operations in the event of a power outage. Moreover, an emergency decline valve provides an extra layer of safety during unforeseen circumstances, guaranteeing user protection and peace of mind.

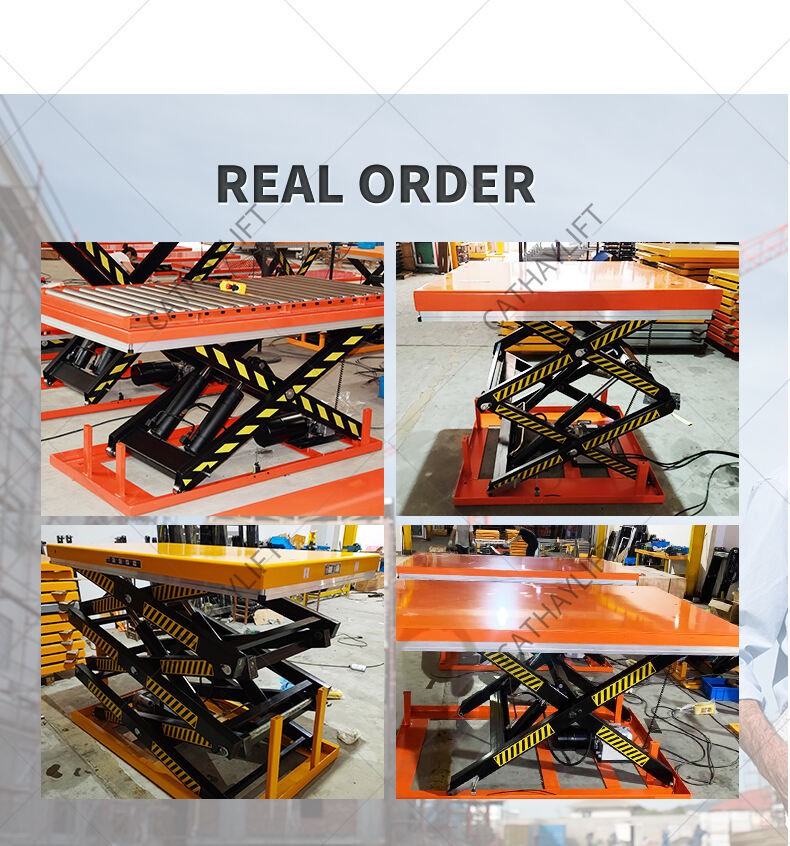

Real Order
|
Model |
Load Capacity (KG) |
Self Height (MM) |
Max Platform Height (MM) |
Platform Size (MM) |
Lifting time (S) |
Net weight (KG) |
|
500kg Load Capacity |
||||||
|
C0501 |
500 |
180 |
950 |
610*916 |
17~22 |
160 |
|
C0502 |
500 |
200 |
1000 |
1200*600 |
20~25 |
120 |
|
C0503 |
500 |
200 |
1000 |
1200*800 |
20~25 |
130 |
|
C0504 |
500 |
200 |
1000 |
2000*800 |
20~25 |
240 |
|
1000KG Load Capacity |
||||||
|
C1000 |
1000 |
180 |
770 |
610*916 |
15~20 |
115 |
|
C1001 |
1000 |
205 |
1000 |
1300×820 |
20~25 |
160 |
|
C1002 |
1000 |
205 |
1000 |
1600×1000 |
20~25 |
186 |
|
C1003 |
1000 |
190 |
1010 |
1300*800 |
20~25 |
160 |
|
C1004 |
1000 |
240 |
1300 |
1700×850 |
30~35 |
200 |
|
C1005 |
1000 |
240 |
1300 |
1700×1000 |
30~35 |
210 |
|
C1006 |
1000 |
240 |
1300 |
2000×850 |
30~35 |
212 |
|
C1007 |
1000 |
240 |
1300 |
2000×1000 |
30~35 |
223 |
|
C1008 |
1000 |
240 |
1300 |
1700×1500 |
30~35 |
365 |
|
C1009 |
1000 |
240 |
1300 |
2000×1700 |
30~35 |
430 |
|
C1010 |
1000 |
305 |
1780 |
1300X820 |
35-45 |
210 |
|
C1011 |
1000 |
470 |
3000 |
1700x1000 |
35-45 |
450 |
|
2000KG Load Capacity |
||||||
|
C2001 |
2000 |
230 |
1000 |
1300×850 |
20~25 |
235 |
|
C2002 |
2000 |
205 |
1000 |
2500*820 |
20~25 |
300 |
|
C2003 |
2000 |
230 |
1050 |
1600×1000 |
20~25 |
268 |
|
C2004 |
2000 |
250 |
1300 |
1700×850 |
25~35 |
289 |
|
C2005 |
2000 |
250 |
1300 |
1700×1000 |
25~35 |
300 |
|
C2006 |
2000 |
250 |
1300 |
2000×850 |
25~35 |
300 |
|
C2007 |
2000 |
250 |
1300 |
2000×1000 |
25~35 |
315 |
|
C2008 |
2000 |
250 |
1400 |
1700×1500 |
25~35 |
415 |
|
C2009 |
2000 |
250 |
1400 |
2000×1800 |
25~35 |
500 |
|
C2010 |
2000 |
190 |
1010 |
1300*800 |
20~25 |
235 |
|
C2011 |
2000 |
350 |
1780 |
1300X850 |
35-45 |
295 |
|
4000KG Load Capacity |
||||||
|
C4000 |
4000 |
230 |
1000 |
2500*850 |
20~25 |
320 |
|
C4001 |
4000 |
240 |
1050 |
1700×1200 |
30~40 |
375 |
|
C4002 |
4000 |
240 |
1050 |
2000×1200 |
30~40 |
405 |
|
C4003 |
4000 |
300 |
1400 |
2000×1000 |
35~40 |
470 |
|
C4004 |
4000 |
300 |
1400 |
2000×1200 |
35~40 |
490 |
|
C4005 |
4000 |
300 |
1400 |
2200×1000 |
35~40 |
480 |
|
C4006 |
4000 |
300 |
1400 |
2200×1200 |
35~40 |
505 |
|
C4007 |
4000 |
350 |
1300 |
1700×1500 |
35~40 |
570 |
|
C4008 |
4000 |
350 |
1300 |
2200×1800 |
35~40 |
655 |
|
C4009 |
4000 |
400 |
2050 |
1700X1200 |
55-65 |
520 |
|
Max Platform Height≥3M |
||||||
|
C1011 |
1000 |
470 |
3000 |
1700x1000 |
35-45 |
450 |
|
C2012 |
2000 |
560 |
3000 |
1700x1000 |
50-60 |
750 |
|
C2013 |
2000 |
850 |
4200 |
2500*1500 |
70-80 |
900 |
|
C0401 |
400 |
600 |
4140 |
1700x1000 |
30-40 |
800 |
|
C0801 |
800 |
706 |
4210 |
1700x1000 |
70-80 |
858 |
|
Other |
||||||
|
C3001 |
3000 |
220 |
1010 |
1300*800 |
20~25 |
350 |
|
C8000 |
8000 |
240 |
1050 |
3000*1200 |
20~25 |
370 |
