Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of all terrian lift platform in China. We warmly welcome you to buy discount all terrian lift platform for sale here from our factory. Quality products and reasonable price are available.

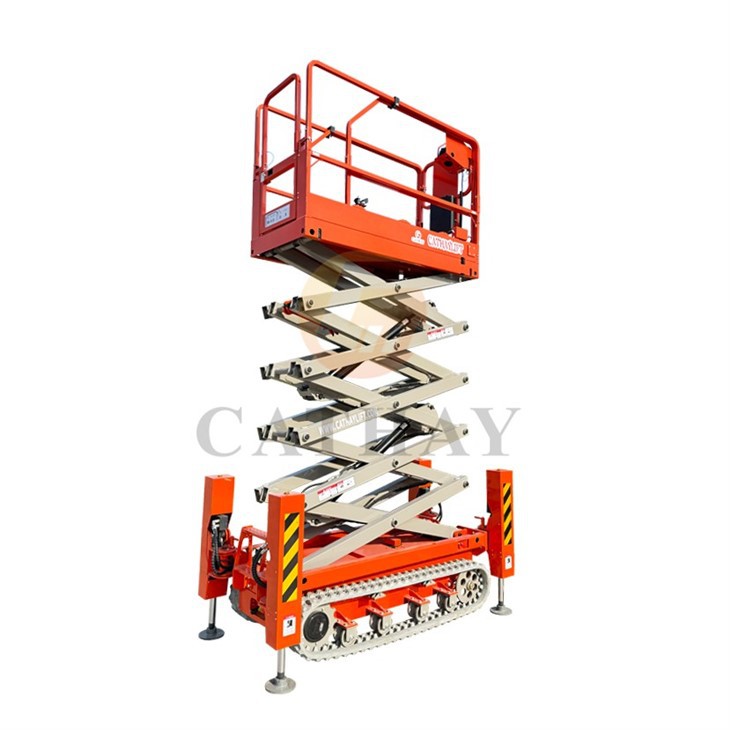

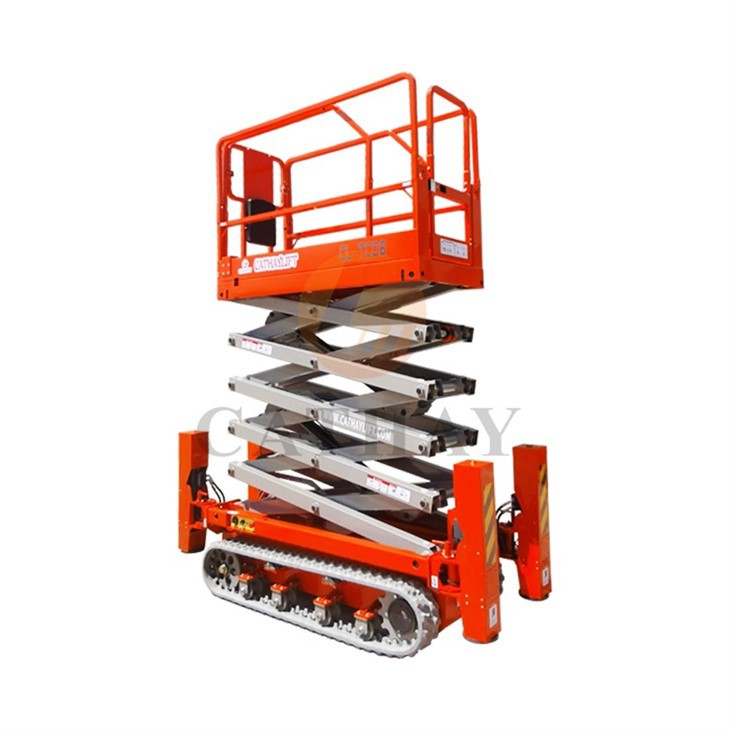

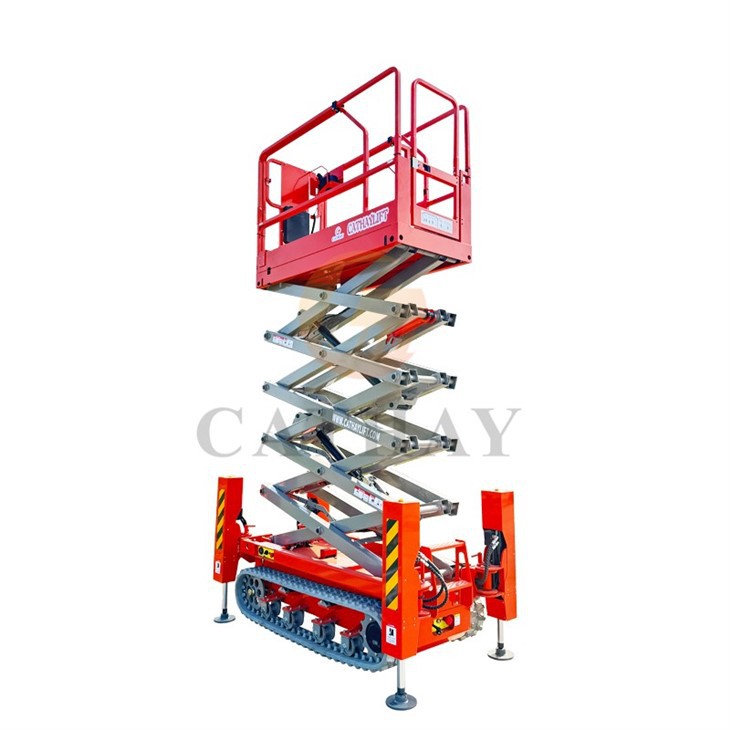

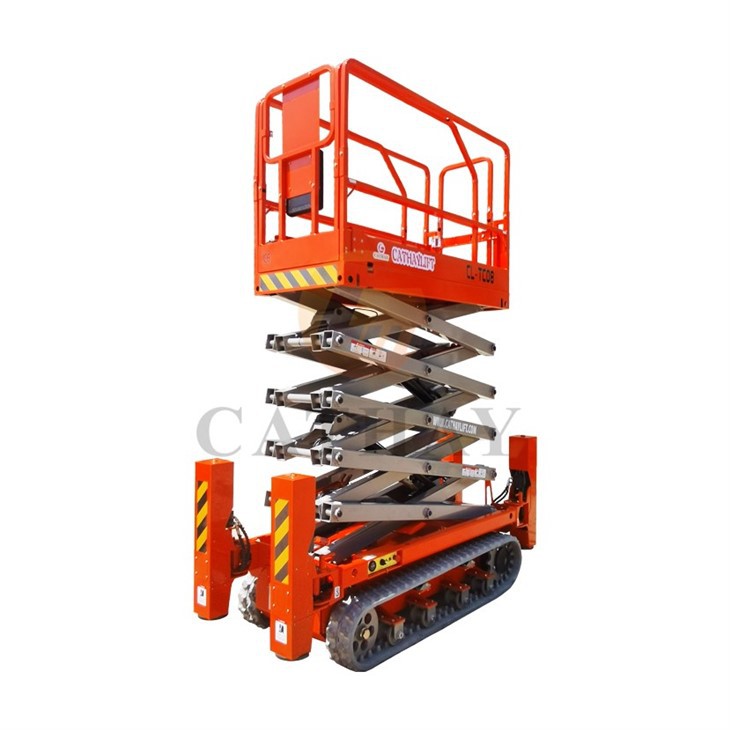

All Terrian Lift Platform
Designed for efficiency and adaptability, this platform excels in construction, maintenance, and industrial applications where ground conditions are unpredictable. With multiple height and wheelbase configurations available, CATHAYLIFT All Terrain Lift Platform provides the perfect balance between mobility and power, making it an indispensable tool for high-altitude operations on unprepared or challenging surfaces.
Unlike conventional wheeled lifts, its crawler system minimizes ground pressure while maximizing obstacle-climbing ability, ensuring smooth operation even on soft or unstable terrain. The platform's compact design enhances maneuverability in tight spaces, while its quick setup and low-maintenance requirements reduce downtime. Ideal for construction sites, warehouses, and outdoor projects, this lift platform bridges the gap between standard scissor lifts and heavy-duty boom trucks, offering faster cycle times and access to hard-to-reach areas.
Products Details
- Superior Mobility on Rough Terrain
Unlike wheeled scissor lifts, the crawler track system provides excellent traction on mud, snow, gravel, and uneven surfaces.
Distributes weight evenly, preventing sinking or instability on soft or unhardened ground.
Ideal for construction sites, agricultural settings, and outdoor maintenance where terrain is unpredictable.
- Extended Reach for High-Altitude Work

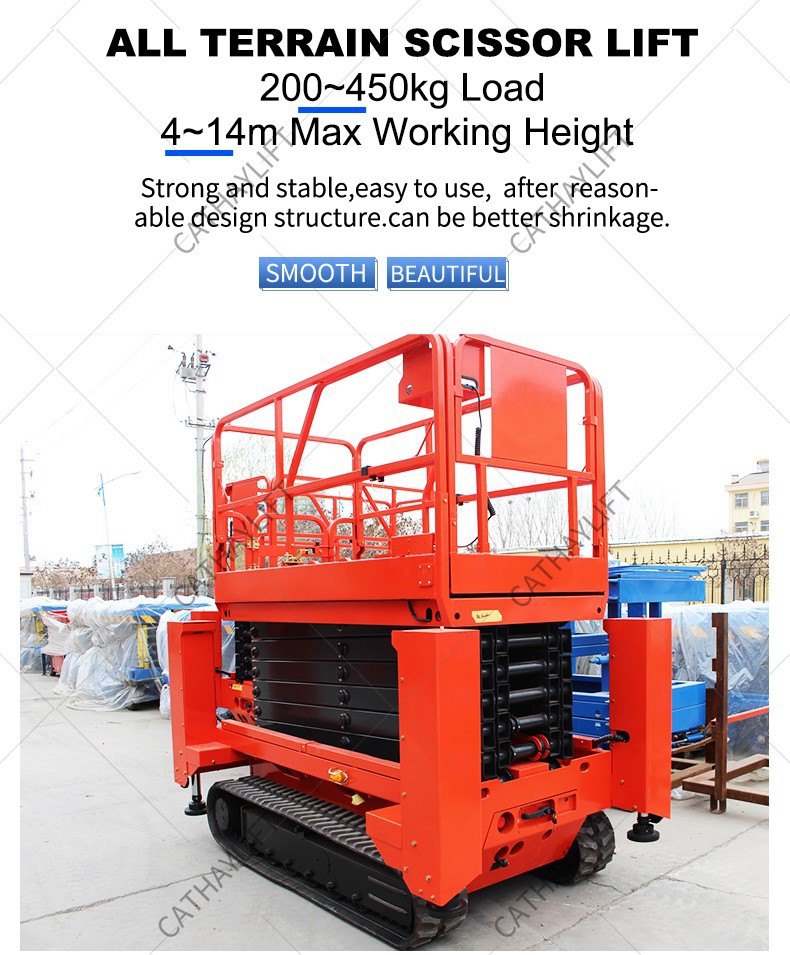

Offers a lifting height range of 4m to 14m, allowing access to elevated work areas that standard wheeled lifts cannot safely reach.
Perfect for tasks such as steel structure assembly, facade maintenance, and large-scale construction projects.
Advantages:
- Quick and Effortless Setup
Designed for rapid deployment, reducing downtime and increasing job site efficiency.
No complex assembly required-workers can begin tasks immediately after positioning the platform.
- Exceptional Maneuverability in Tight Spaces
Compact design allows easy navigation around obstacles, confined areas, and crowded job sites.
Zero tail swing minimizes the risk of collisions, enhancing safety in busy work environments.
- Lower Maintenance Requirements
Durable crawler system reduces wear and tear compared to wheeled lifts, leading to fewer breakdowns.
Simplified mechanical design means less frequent servicing, saving time and maintenance costs.

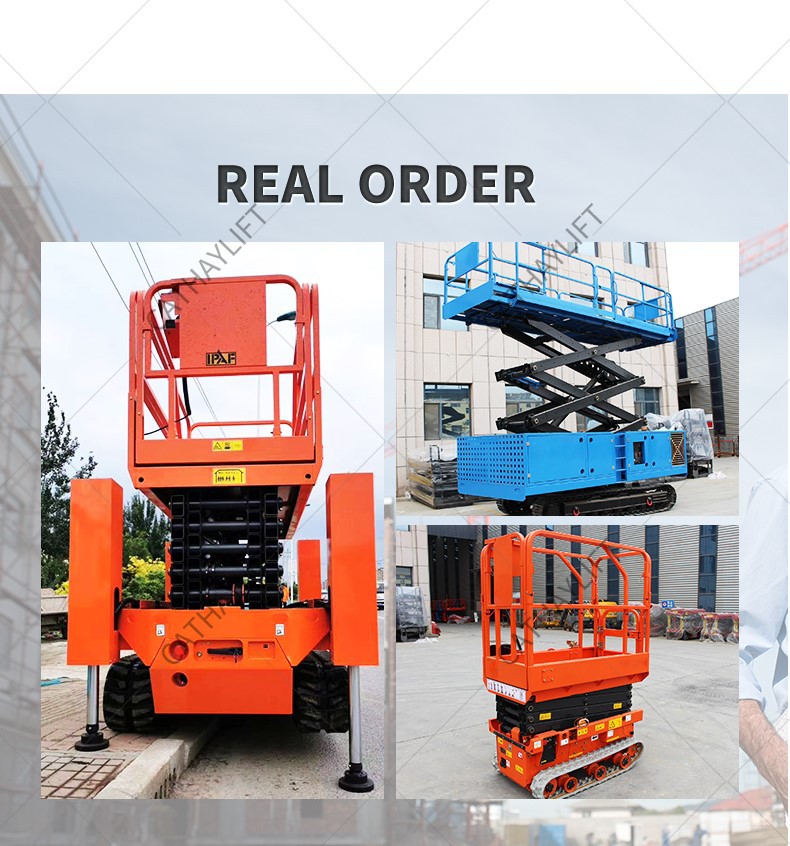

Real Order
|
Model Type |
CL-TC04 |
CL-TC06 |
CL-TC06H |

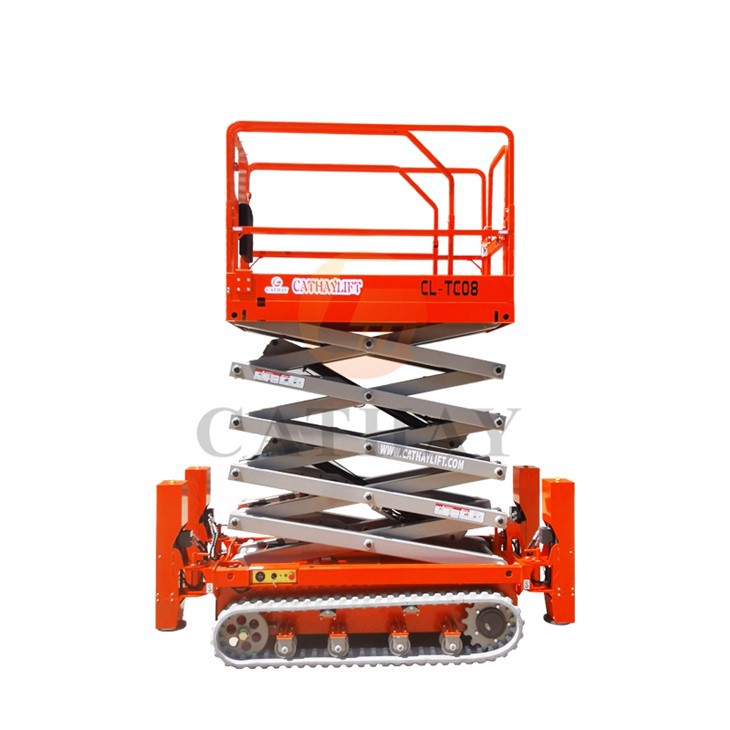

CL-TC08 |
CL-TC08H |
CL-TC10 |
CL-TC10H |
CL-TC12 |
CL-TC12H |
|
Automatic Leveling Hydraulic Outriggers |
None |
None |
Equipped |
None |
Equipped |
None |
Equipped |
None |
Equipped |
|
Working height |
6.5m |
8m |
8m |
10m |
10m |
12m |
12m |
14m |
14m |
|
Max.lifting height |
4.5m |
6m |
6m |
8m |
8m |
9.75m |
9.75m |
11.75m |
11.75m |
|
Load Capacity |
200Kg |
450Kg |
450Kg |
450Kg |
450Kg |
320Kg |
320Kg |
320Kg |
320Kg |
|
Extendable Platform |
100Kg |
113Kg |
113Kg |
113Kg |
113Kg |
113Kg |
113Kg |
113Kg |
113Kg |
|
Workers on Platform |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
Overall Length |
1.27 |
2.47 |
2.782 |
2.47 |
2.782 |
2.47 |
2.782 |
2.47 |
2.782 |
|
Overall Width |
0.79 |
1.39 |
1.581 |
1.39 |
1.581 |
1.39 |
1.581 |
1.39 |
1.581 |
|
Overall Height |
1.82 |
2.28 |
2.28 |
2.7 |
2.4 |
2.53 |
2.53 |
2.67 |
2.67 |
|
Overall Height |
/ |
1.745 |
1.745 |
1.865 |
1.865 |
1.995 |
1.955 |
2.13 |
2.13 |
|
Platform Size(m) |
1.23*0.655 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
2.27*1.12*0.7 |
|
Extendable Platform(m) |
0.55 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
|
Min Turning Radius(m) |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
|
Min Ground Clearance(m) |
0.05 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
|
Lifting Motor |
24v/0.1.2Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
|
Driving Motor |
2X24v/1.5Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
|
Driving Speed |
1.7Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
|
Lifting up/down Speed |
24/20sec |
38/30sec |
38/30sec |
45/36sec |
45/36sec |
70/62sec |
70/62sec |
85/75sec |
85/75sec |
|
Charger |
0.25 |
48V/25A |
48V/25A |
48V/25A |
48V/25A |
48V/25A |
48V/25A |
48V/25A |
48V/25A |
|
Machine Weight |
790Kg |
2400Kg |
2800Kg |
2550Kg |
2950kg |
2840Kg |
3240kg |
3000Kg |
3480kg |
|
Optional 1> |
USA Trojan battery |
||||||||
|
Optional 2> |
Manual outrigger: (only available for crawler type) |
||||||||
|
Optional 3> |
Diesel power,please inquiry us |
||||||||
