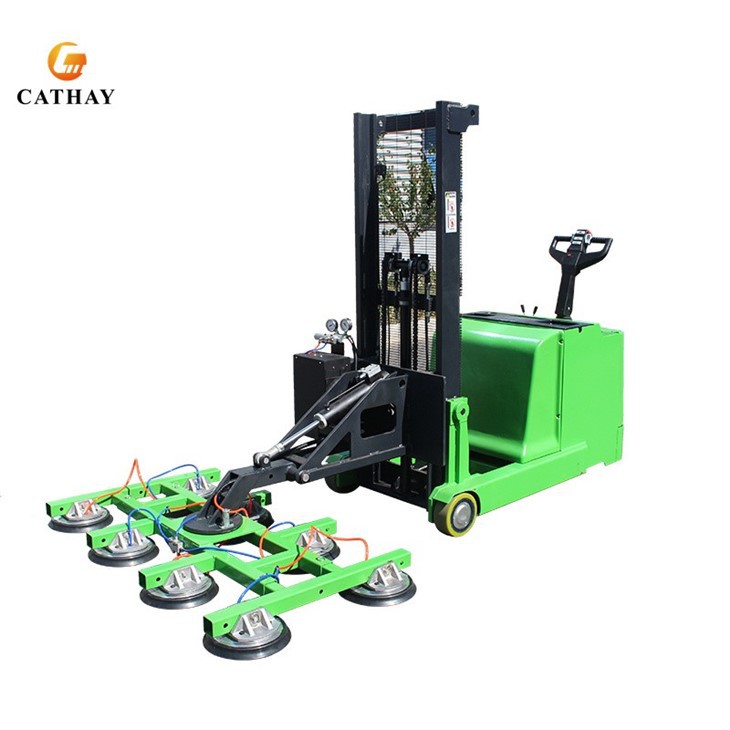

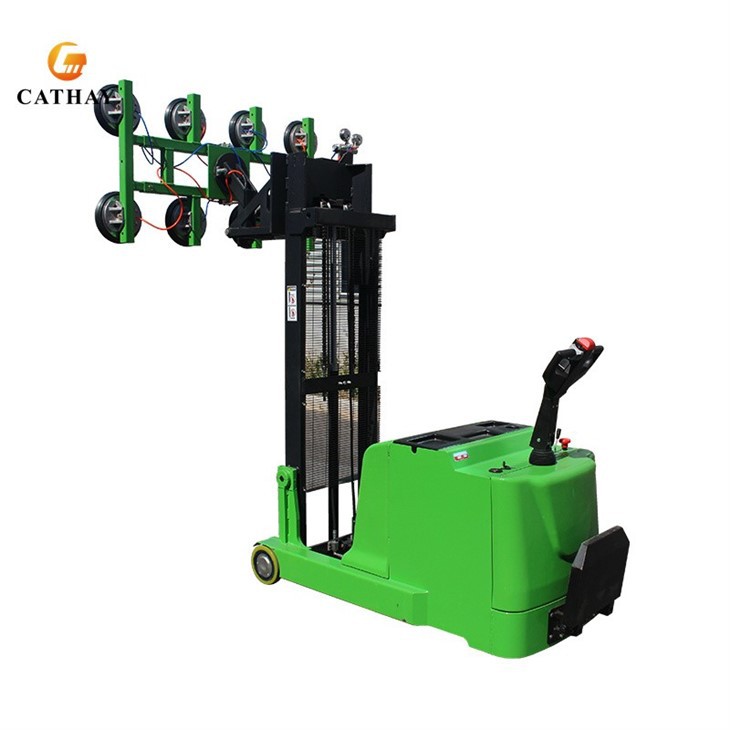

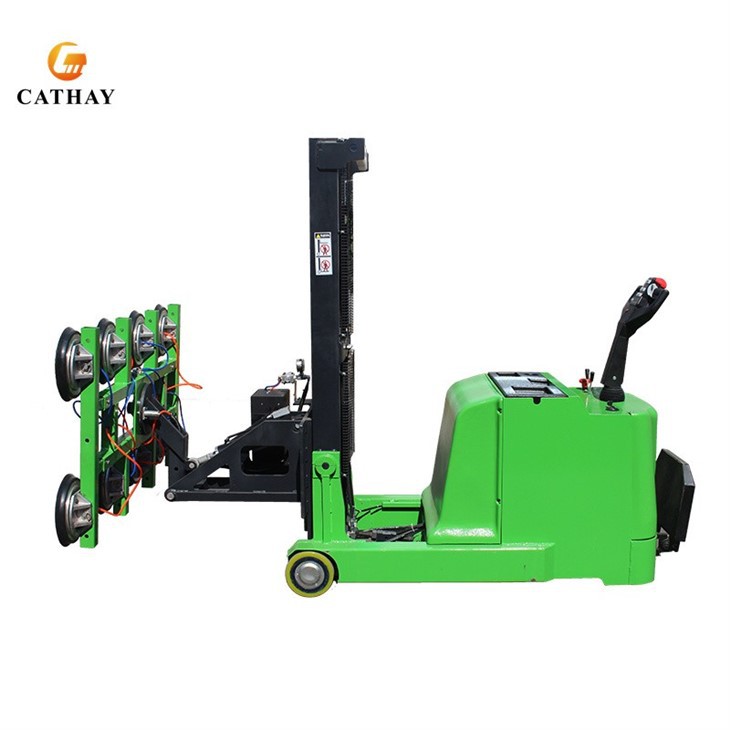

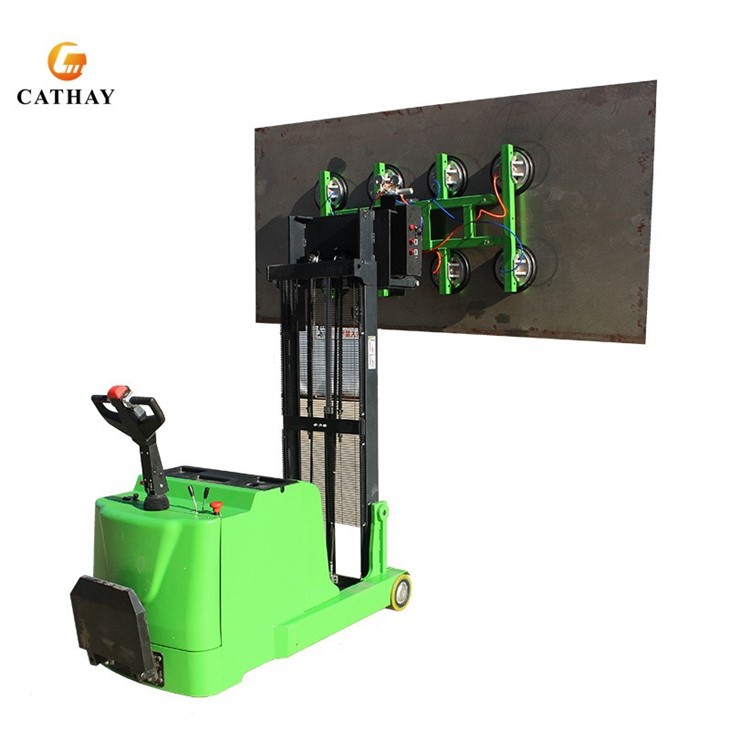

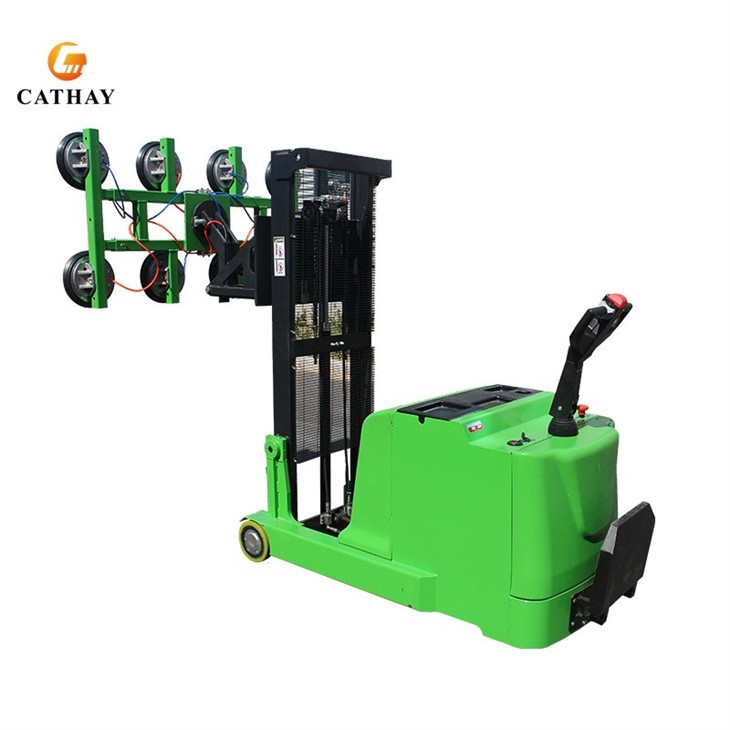

Automatic Vacuum Glass Lifter
CATHAYLIFT's Automatic Vacuum Glass Lifter features electric travel with stepless speed control, enabling operators to adjust movement with precision. Additionally, its electric hydraulic lift, side shift, and forward shift functions enhance maneuverability, while the tilt mechanism allows transitions from vertical to horizontal orientations. The inclusion of a microcomputer charger ensures optimal energy management, reducing downtime. Environmentally friendly and easy to operate, this lifter minimizes manual labor while maximizing productivity. Available in multiple variants-including walking-type economical models, foldable standing types, and cockpit-controlled versions-this lifter caters to diverse operational needs.
|
Model |
XC-H400 (4) |
XC-H400 (6) |
XC-H600 (6) |
XC-H600 (8) |
|
|
Rated Load Capacity |
400 kg |
600kg |
|||
|
Safe Load Capacity |
200 kg |
300 kg |
|||
|
Lifting Height |
1500 mm |
||||
|
QTY of Suction Caps |
4 pcs |
6 pcs |
8 pcs |
||
|
Cap Diameter |
Ø300mm |
||||
|
Plate Size (Customized) |
1220x1830 mm |
2440x1830 mm |
|||
|
Load Center |
650 mm |
950 mm |
|||
|
Drive Motor |
24V/500W |
24V/700W |
|||
|
Hydraulic Motor |
24V/2000W |
||||
|
Battery |
2x12V/70Ah |
2x12V/100Ah |
|||
|
Charger |
24V/10A |
24V/15A |
|||
|
Movements |
Automatic |
1.Driving automatic |
|||
|
Manual |
Pad frame tilt left/right 90° manual | ||||
|
Model |
XC-H800 (8) |
XC-H800 (10) |
XC-H800 (8) |
XC-H800 (10) |
|
|
Rated Load Capacity |
800 kgs |
||||
|
Safe Load Capacity |
400 kgs |
||||
|
Lifting Height |
1500 mm |
2500 mm |
|||
|
QTY of Suction Caps |
8 pcs |
10 pcs |
8 pcs |
10 pcs |
|
|
Cap Diameter |
Ø300 mm |
||||
|
Plate Size (Customized) |
3660x2440 mm |
||||
|
Load Center |
1250 mm |
||||
|
Drive Motor |
24V/900W |
||||
|
Hydraulic Motor |
24V/2000W |
||||
|
Battery |
2x12V/160Ah |
||||
|
Charger |
24V/20A |
||||
|
Movements |
Automatic |
1.Driving automatic |
|||
|
Manual |
Pad frame tilt left/right 90° manual | ||||
Product Details:

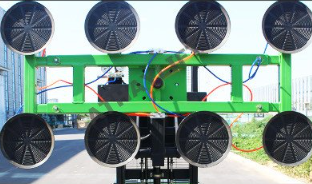

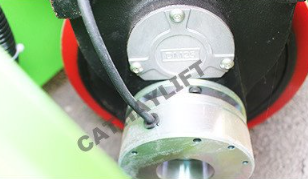

- Electric Walking & Vacuum Gripping – Powered movement and secure vacuum adhesion enable effortless transport of heavy glass, steel, or stone plates.

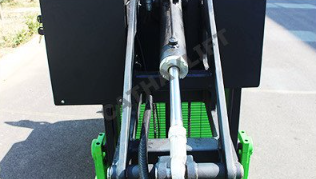

- Electric Boom Lift & Retraction – Adjust the lifting arm height smoothly for precise placement, reducing manual effort.
- Suction Cup Rotation & Flipping – Electrically rotate or flip materials from vertical to horizontal positions with controlled ease.
- Horizontal Fine Adjustment – The extendable arm allows micro-positioning for accurate alignment during installations.

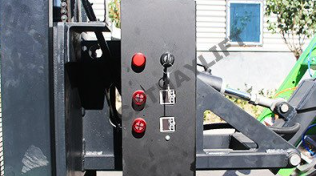

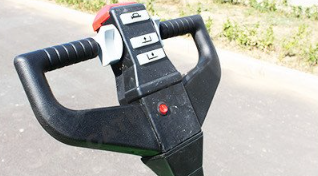

- Wired Remote Control – All operations are managed via an integrated remote, ensuring user convenience and safety.

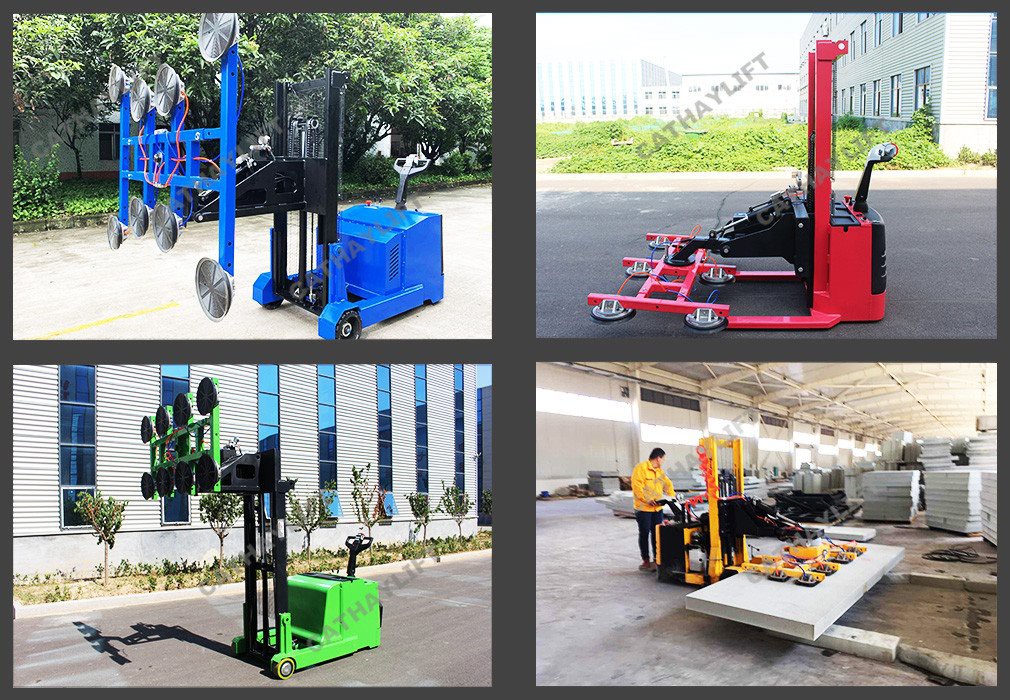

Real Order
- Comprehensive Protection Systems – Features vacuum loss alerts, low-battery warnings, and anti-rollover mechanisms to prevent accidents.
- Automatic Braking & Emergency Stop – Instant halting capability ensures operator and load protection during unexpected situations.
- Charging Safeguards – Intelligent power management extends battery life while preventing overcharging risks.
